FCC ID XYD-2TXD
Telecell with dimming control and external antenna
by Telensa Ltd.
Grantee Code: XYD Product Code: 2TXD
Latest application date: 2017-11-21
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 910.5-919.975 MHz | Class II permissive change or modification of presently authorized equipment | 2017-11-21 |
| 910.5-919.975 MHz | Original Equipment | 2016-06-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual and Instructions | Users Manual | 2017-11-21 | PDF 458.9 KB |
| User Manual | Users Manual | 2016-06-23 | PDF 369.8 KB |

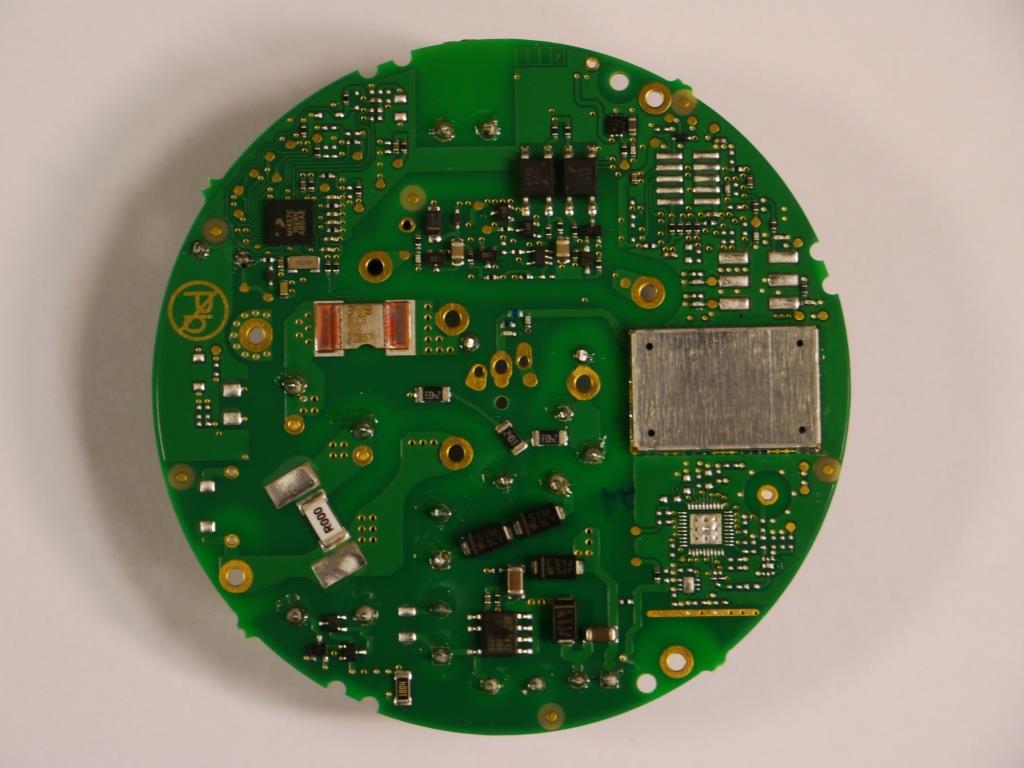

| Internal Photos | Internal Photos | 2017-11-21 | PDF 759.1 KB |
| Internal Photos | Internal Photos | 2016-06-23 | PDF 631.1 KB |
| External Photos | External Photos | 2016-06-23 | PDF 375.6 KB |
| Label Information | ID Label/Location Info | 2017-11-21 | PDF 212.7 KB |
| Label detail & location | ID Label/Location Info | 2016-06-23 | PDF 219.4 KB |
| Test Set Up Photos | Test Setup Photos | 2017-11-21 | PDF 3.2 MB |
| Test Setup Photos | Test Setup Photos | 2016-06-23 | PDF 3.1 MB |
| Part 15.247 test report | Test Report | 2017-11-21 | PDF 489 KB |
| Part 15.247 Test Report | Test Report | 2016-06-23 | PDF 991.3 KB |
| Professional Installation Attestation | Attestation Statements | 2017-11-21 | PDF 229.3 KB |
| Third Party Authorisation | Attestation Statements | 2016-06-23 | PDF 274.6 KB |
| Authorisation Letter | Cover Letter(s) | 2017-11-21 | PDF 121.2 KB |
| C2PC Request Letter | Cover Letter(s) | 2017-11-21 | PDF 140.5 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2017-11-21 | PDF 136.3 KB |
| Agency Letter | Cover Letter(s) | 2016-06-23 | PDF 279.4 KB |
| Confidentiality Request | Cover Letter(s) | 2016-06-23 | PDF 286 KB |
| MPE calculation | RF Exposure Info | 2017-11-21 | PDF 340.4 KB |
| MPE Calculation | RF Exposure Info | 2016-06-23 | PDF 27.2 KB |
| Block Diagram Metadata only | Block Diagram | PDF 367.1 KB | |
| Antenna Isolator Schematic Metadata only | Schematics | PDF 35.3 KB | |
| Assembly - antenna isolator Metadata only | Schematics | PDF 29.5 KB | |
| Main Schematic Metadata only | Schematics | PDF 726.3 KB | |
| Schematic - antenna isolator Metadata only | Schematics | PDF 60.1 KB | |
| Schematics - main PCB Metadata only | Schematics | PDF 849.8 KB | |
| Change Documentation Metadata only | Operational Description | PDF 2 MB | |
| Operational Description Metadata only | Operational Description | PDF 182.5 KB | |
| Parts List 1 Metadata only | Parts List/Tune Up Info | PDF 614.3 KB | |
| Parts List 2 Metadata only | Parts List/Tune Up Info | PDF 534.2 KB | |
| Parts List 3 Metadata only | Parts List/Tune Up Info | PDF 649.2 KB | |
| Tune Up Information Metadata only | Parts List/Tune Up Info | PDF 125.1 KB |
Application Information
| Application ID | LGlnSUL4yb09cFiFECJlOA== |
|---|---|
| Final Action Date | 2017-11-21 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0019325810 |
| Model | 2TXD |
| Frequency Range | 910.5-919.975 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Telecell with dimming control and external antenna |
| Responsible Party | Will Gibson, Mr., wg@telensa.com  , +44 1799 533289 |
| Technical Contact | Mark Bailey, Telensa Limited, mbailey@telensa.com , +441799588710 |
| Non-Technical Contact | Mark Bailey, Telensa Limited, mbailey@telensa.com , +441799588710 |
| Test Firm | Darren Rust, UL VS Ltd, darren.rust@ul.com  , +44 1256 31 2119 |
| TCB Email | certification@ul.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only the antenna tested with the device or an antenna of the same type with equal or lesser gain may be used with this transmitter. End-users must be informed of the operating requirements for satisfying RF exposure compliance. Class II Permissive Change to allow for changes as detailed in this filing. This device must be professionally installed. |
