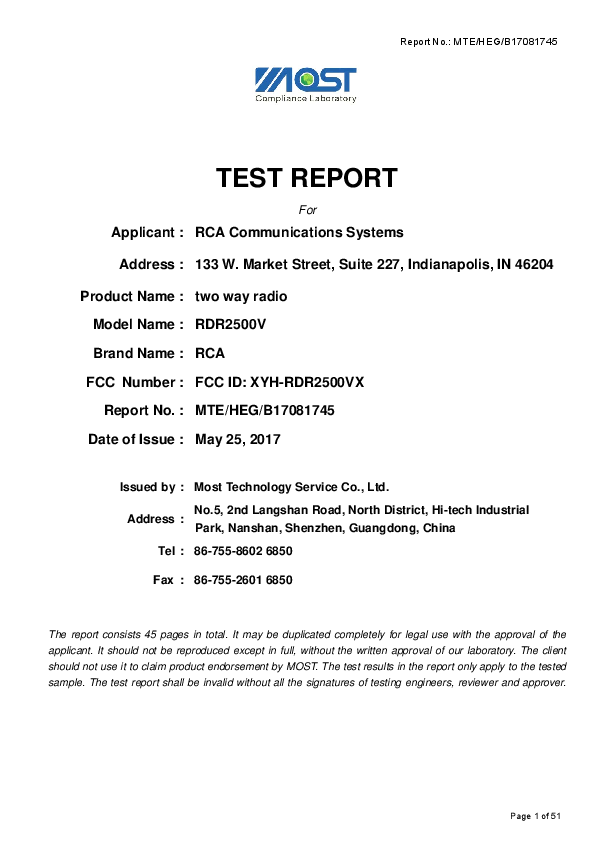

Report No.: MTE/HEG/B17081745
TEST REPORT
For
Applicant : RCA Communications Systems
Address : 133 W. Market Street, Suite 227, Indianapolis, IN 46204
Product Name : two way radio
Model Name : RDR2500V
Brand Name : RCA
FCC Number : FCC ID: XYH-RDR2500VX
Report No. : MTE/HEG/B17081745
Date of Issue : May 25, 2017
Issued by : Most Technology Service Co., Ltd.
Address :
No.5, 2nd Langshan Road, North District, Hi-tech Industrial
Park, Nanshan, Shenzhen, Guangdong, China
Tel : 86-755-8602 6850
Fax : 86-755-2601 6850
The report consists 45 pages in total. It may be duplicated completely for legal use with the approval of the
applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client
should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested
sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver.
Page 1 of 51
Report No.: MTE/HEG/B17081745
TABLE OF CONTENTS
1. TEST STANDARDS ....................................................................................................... 3
1.1 VERIFICATION OF CONFORMITY ................................................................................ 4
2. SUMMARY .................................................................................................................. 5
2.1 General Remarks ...................................................................................................................................... 5
2.2 Equipment Under Test.............................................................................................................................. 5
2.3 Short description of the Equipment under Test (EUT) ............................................................................. 6
2.4 Short description of the Equipment under Test (EUT) ............................................................................. 7
2.5 EUT operation mode ................................................................................................................................ 7
3. TEST ENVIRONMENT................................................................................................... 8
3. 1 TEST FACILITY .......................................................................................................................................... 8
3.2 Environmental conditions ........................................................................................................................ 8
3.3 Configuration of Tested System ............................................................................................................... 8
3.4Measurement uncertainty ........................................................................................................................ 9
3.5. Equipments Used during the Test ......................................................................................................... 10
3.6. General Technical Requirements and Summary of Test Results ........................................................... 11
4. TEST CONDITIONS AND RESULTS ............................................................................... 12
4.1 Conducted Emissions Test ...................................................................................................................... 12
4.2 Occupied Bandwidth and Emission Mask .............................................................................................. 15
4.2.1 Occupied Bandwidth ........................................................................................................................... 16
4.3. Emission Mask....................................................................................................................................... 19
4.3. Radiated Spurious Emission Test ........................................................................................................... 22
4.4. Spurious Emission On Antenna Port ..................................................................................................... 26
4.5. Modulation Characteristics ................................................................................................................... 31
4.6. Frequency Stability Measurement ........................................................................................................ 35
4.7. Conducted Output Power ..................................................................................................................... 38
4.8. Transmitter Frequency Behavior ........................................................................................................... 41
5 Test Setup Photos of the EUT ..................................................................................... 44
Page 2 of 45
Report No.: MTE/HEG/B17081745
1. TEST STANDARDS
The tests were performed according to following standards:
FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES
TIA/EIA 603-D-2010: Land Mobile FM or PM Communications Equipment Measurement and
Performance Standards.
47 CFR FCC Part 15 Subpart B - Unintentional Radiators
FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL
RULES AND REG-ULATIONS
Page 3 of 51
Report No.: MTE/HEG/B17081745
1.1 VERIFICATION OF CONFORMITY
Equipment Under Test:
two way radio
Brand Name:
RCA
Model Number:
RDR2500V
FCC ID:
FCC ID: XYH-RDR2500VX
Applicant:
RCA Communications Systems
133 W. Market Street, Suite 227, Indianapolis, IN 46204
Manufacturer:
File Number:
RCA Communications Systems
133 W. Market Street, Suite 227, Indianapolis, IN 46204
FCC Part 90
MTE/HEG/B17081745
Date of test:
May.05-25. 2017
Deviation:
None
Condition of Test
Sample:
Normal
Test Result:
PASS
Technical Standards:
The above equipment was tested by Most Technology Service Co., Ltd. for compliance with the
requirements set forth in FCC rules and the Technical Standards mentioned above. This said
equipment in the configuration described in this report shows the maximum emission levels
emanating from equipment and the level of the immunity endurance of the equipment are within
the compliance requirements.
The test results of this report relate only to the tested sample identified in this report.
Tested by (+ signature):
Chloe Cai (Engineer)
May.05-25, 2017
Review by (+ signature):
Henry Chen (Engineer)
May. 25. 2017
Yvette Zhou (Manager)
May. 25.2017
Approved by (+ signature):
Page 4 of 45
Report No.: MTE/HEG/B17081745
2. SUMMARY
2.1 General Remarks
Data of receipt of test sample
May24, 2017
Testing commenced on
May06-20, 2017
Testing concluded on
Mar 24, 2017
2.2 Equipment Under Test
Power supply system utilised
Power supply voltage
○
120V/60 Hz
○
115V/60Hz
○
12V DC
○
24V DC
●
Other(specified in blank below)
7.4V by battery
Page 5 of 45
Report No.: MTE/HEG/B17081745
2.3 Short description of the Equipment under Test (EUT)
The RCA Communications Systems Model: RDR2500V or the “EUT” as referred to in this report;
more general information as follows, for more details, refer to the user’s manual of the EUT.
Name of EUT
two way radio
Model Number
RDR2500V
FCC ID Number
FCC ID: XYH-RDR2500VX
Rated Output Power
5 Watts(36.93Bm)
Support data rate
9.6 kbps
4FSK for Digital Voice/ Digital Data
Modulation Type
Channel Separation
4FSK for Digital Data
Digital
F1W&F1D for 12.5KHz Channel Separation
Analog
F3E for 12.5KHz Channel Separation
Digital Voice/ Data
12.5KHz: F1W
Digital Data
12.5KHz: F1D
Analog Voice
12.5KHz: F3E
Antenna Type
External
Frequency Range
From 136MHz to 174MHz
Maximum Output Power
Digital/ Analog
5.0W for 12.5KHz Channel Separation
Note: The product has the same digital working characters when operating in both two digitized
voice/data mode. So only one set of test results for digital modulation modes are provided in this
test report.
Test frequency list
Frequency Range
Modulation Type
(MHz)
Channel Separation
Test frequency
(KHz)
(MHz)
137.0125
152.0125
Digital/4FSK
136-174
169.9870
12.5
Analog/FM
137.0125
152.0125
169.9870
Page 6 of 45
Report No.: MTE/HEG/B17081745
2.4 Short description of the Equipment under Test (EUT)
136-174MHz two way radio (RDR2500V).
For more details, refer to the user’s manual of the EUT.
Serial number: Nil
2.5 EUT operation mode
The EUT has been tested under typical operating condition.
2.6 EUT operation mode
The following peripheral devices and interface cables were connected during the measurement:
● - supplied by the manufacturer
○ - supplied by the lab
○
○
Power Cable
Multimeter
Length(m):
Shield:
Detachable:
Manufacturer:
Model No:
2.7 Related Submittal(s) / Grant (s)
This submittal(s) (test report) is intended for FCC ID:XYH-RDR2500VX filing to comply with the FCC Part 90
Rules.
2.8 Modifications
No modifications were implemented to meet testing criteria.
Page 7 of 45
Report No.: MTE/HEG/B17081745
3. TEST ENVIRONMENT
3. 1 TEST FACILITY
Test Site:
Location:
Description:
Most Technology Service Co., Ltd
No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen,
Guangdong, China
There is one 3m semi-anechoic an area test sites and two line conducted labs for final
test. The Open Area Test Sites and the Line Conducted labs are constructed and
calibrated to meet the FCC requirements in documents ANSI C63.4:2009 and CISPR
16 requirements.
The FCC Registration Number is 490827. The IC Registration Number is 7103A-1.
Site Filing:
The site description is on file with the Federal Communications
Commission, 7435 Oakland Mills Road, Columbia, MD 21046.
Instrument
All measuring equipment is in accord with ANSI C63.4:2009 and CISPR 16
Tolerance:
requirements that meet industry regulatory agency and accreditation agency
requirement.
Ground Plane:
Two conductive reference ground planes were used during the Line Conducted
Emission, one in vertical and the other in horizontal. The dimensions of these ground
planes are as below.
The vertical ground plane was placed distancing 40 cm to the
rear of the wooden test table on where the EUT and the support equipment were
placed during test. The horizontal ground plane projected 50 cm beyond the footprint
of the EUT system and distanced 80 cm to the wooden test table. For Radiated
Emission Test, one horizontal conductive ground plane extended at least 1m beyond
the periphery of the EUT and the largest measuring antenna, and covered the entire
area between the EUT and the antenna.
3.2 Environmental conditions
During the measurement the environmental conditions were within the listed ranges:
Temperature:
15-35 ° C
Humidity:
30-60 %
Atmospheric pressure:
950-1050mbar
3.3 Configuration of Tested System
Configuration of Tested System
EUT
Adapter
AC 120V/60Hz
Page 8 of 51
Report No.: MTE/HEG/B17081745
Table 2-1 Equipment Used in Tested System
Adapter:
Input:100-240V~50/60Hz
Output: 9V DC 0.5A
Power Cable: 150cm
◇ Shielded ◆ Unshielded
3.4Measurement uncertainty
No.
1.
2.
Item
Uncertainty for Conducted Disturbance Test
Uncertainty for Radiated Disturbance Test
Uncertainty
1.25dB
3.15dB
Page 9 of 45
Report No.: MTE/HEG/B17081745
3.5. Equipments Used during the Test
Test Equipment
Manufacturer
Model No.
Serial No.
Calibration Calibration
Date
Due Date
Bilog Antenna
Sunol Sciences Corp.
JB1
A061713
2017/03/11
2018/03/10
EMI Test Receiver
R&S
ESCI
103710
2017/03/09
2018/03/08
Spectrum
Agilent
E4407B
E4407B
2017/03/05
2018/03/04
N/A
2017/03/05
2018/03/04
Analyzer
MY45108355
Controller
EM Electronics
Controller
EM 1000
Horn Antenna
Sunol Sciences Corp.
DRH-118
A062013
2017/03/11
2018/03/10
Horn Antenna
SCHWARZBECK
BBHA9170
1562
2017/03/11
2018/03/10
Active Loop
SCHWARZBECK
FMZB1519
1519-037
2017/03/11
2018/03/10
LISN
R&S
ENV216
101316
2017/03/09
2018/03/08
LISN
SCHWARZBECK
NSLK8127
8127687
2017/03/09
2018/03/08
Microwave
HP
8349B
3155A00882
2017/03/09
2018/03/08
Amplifier
HP
8447D
3113A07663
2017/03/09
2018/03/08
Transient Limiter
Com-Power
LIT-153
532226
2017/03/09
2018/03/08
Radio
R&S
CMU200
3655A03522
2017/03/05
2018/03/04
zhicheng
ZC1-2
22522
2017/03/09
2018/03/08
HP
8647A
3200A00852
2017/03/09
2018/03/08
Anritsu
ML2495A
220.23.35
2017/03/05
2018/03/04
Climate Chamber
ESPEC
EL-10KA
A20120523
2017/03/05
2018/03/04
High-Pass Filter
K&L
9SH10-2700/X
2017/03/05
2018/03/04
2017/03/05
2018/03/04
Antenna
Preamplifier
Communication
Tester
Temperature/Hum
idity Meter
SIGNAL
GENERATOR
Wideband
Peak
Power Meter
12750-O/O
High-Pass Filter
K&L
41H10-1375/U
12750-O/O
Page 10 of 45
Report No.: MTE/HEG/B17081745
3.6. General Technical Requirements and Summary of Test Results
FCC Rules
Description of Test
Test Result
§90.205
Maximum Transmitter Power
Complies
§90.207
Modulation Characteristic
Complies
§90.209
Occupied Bandwidth
Complies
§90.210
Emission Mask
Complies
§90.213
Frequency Stability
Complies
§90.214
Transmitter Frequency Behavior
Complies
§90.210
Transmitter Radiated Spurious Emission
Complies
§90.210
Spurious Emission On Antenna Port
Complies
Page 11 of 45
Report No.: MTE/HEG/B17081745
4. TEST CONDITIONS AND RESULTS
4.1 Conducted Emissions Test
TEST CONFIGURATION
TEST PROCEDURE
1 The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual.
The EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the
ground plane as per ANSI C63.4.
2 Support equipment, if needed, was placed as per ANSI C63.4.
3 All I/O cables were positioned to simulate typical actual usage as per ANSI C63.4.
4 The EUT received DC7.4V power from the battery.
5 All support equipments received AC power from a second LISN, if any.
6 The EUT test program was started. Emissions were measured on each current carrying line of the EUT using
a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring
points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to
Analyzer / Receiver and Line 2 connected to a 50 ohm load; the second scan had Line 1 connected to a 50
ohm load and Line 2 connected to the Analyzer / Receiver.
7 Analyzer / Receiver scanned from 150 KHz to 30MHz for emissions in each of the test modes.
8 During the above scans, the emissions were maximized by cable manipulation.
Conducted Power Line Emission Limit
For unintentional device, according to § 15.107(a) Line Conducted Emission Limits is as following:
Maximum RF Line Voltage (dBμV)
Frequency
(MHz)
CLASS A
CLASS B
Q.P.
Ave.
Q.P.
Ave.
0.15-0.50
79
66
66-65
56-46
0.50-5.00
73
60
56
46
5.00-30.0
73
60
60
50
* Decreasing linearly with the logarithm of the frequency
For intentional device, according to §15.207(a) Line Conducted Emission Limit is same as above table.
Page 12 of 45
Report No.: MTE/HEG/B17081745
TEST RESULTS
For 4FSK Modulation @ 12.5 KHz
EUT:
two way radio
M/N:
RDR2500V
Mode:
Charging
Phase:
Tested by:
Bilg Li (Engineer)
Power:
DC 9V by Adapter
Temperature: / Humidity
24.4℃/ 50.8%
Test date:
2017-05-12
Page 13 of 45
Report No.: MTE/HEG/B17081745
EUT:
two way radio
M/N:
RDR2500V
Mode:
Charging
Phase:
Tested by:
Bilg Li (Engineer)
Power:
DC 9V by Adapter
Temperature: / Humidity
24.4℃/ 50.8%
Test date:
2017-05-12
Page 14 of 45
Report No.: MTE/HEG/B17081745
4.2 Occupied Bandwidth and Emission Mask
PROVISIONS APPLICABLE
a). Occupied Bandwidth: The EUT was connected to the audio signal generator and the spectrum analyzer via
the main RF connector, and through an appropriate attenuator. The EUT was controlled to transmit its
maximum power. Then the bandwidth of 99% power can be measured by the spectrum analyzer.
(b). Emission Mask B: For transmitters that are equipped with an audio low-pass filter pursuant to §90.211(a),
the power of any emission must be below the unmodulated carrier power (P) as follows:
(1) On any frequency removed from the assigned frequency by more than 50 percent, but not more than 100
percent of the authorized bandwidth: At least 25 dB.
(2) On any frequency removed from the assigned frequency by more than 100 percent, but not more than 250
percent of the authorized bandwidth: At least 35 dB.
(3) On any frequency removed from the assigned frequency by more than 250 percent of the authorized
bandwidth: At least 43 + 10 log (P) dB.
(c). Emission Mask D, 12.5 kHz channel bandwidth equipment: For transmitters designed to operate with a 12.5
kHz channel bandwidth, any emission must be attenuated below the power (P) of the highest emission
contained within the authorized bandwidth as follows:
(1) On any frequency from the center of the authorized bandwidth f0 to 5.625 kHz removed from f0: Zero dB.
(2) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in
kHz) of more than 5.625 kHz but no more than 12.5 kHz: At least 7.27(fd -2.88 kHz) dB.
(3) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in
kHz) of more than 12.5 kHz: At least 50 + 10 log (P) dB or 70 dB, whichever is the lesser attenuation.
(d). Emission Mask E—6.25 kHz or less channel bandwidth equipment. For transmitters designed to operate
with a 6.25 kHz or less bandwidth, any emis-sion must be attenuated below the power (P) of the highest
emission con-tained within the authorized band-width as follows
(1) On any frequency from the center of the authorized bandwidth f0to 3.0 kHz removed from f0: Zero dB.
(2) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fdin
kHz) of more than 3.0 kHz but no more than 4.6 kHz: At least 30 + 16.67(fd-3 kHz) or 55 + 10 log (P) or 65 dB,
whichever is the lesser attenuation.
(3) On any frequency removed from the center of the authorized bandwidth by more than 4.6 kHz: At least 55 +
10log (P) or 65 dB, whichever is the lesser attenuation.
TEST CONFIGURATION
Page 15 of 45
Report No.: MTE/HEG/B17081745
TEST PROCEDURE
1 The EUT was modulated by 2.5 KHz Sine wave audio signal; the level of the audio signal employed is 16 dB
greater than that necessary to produce 50% of rated system deviation. Rated system deviation is 2.5 kHz (12.5
kHz channel spacing)
2 Set EUT as normal operation.
3 Set SPA Center Frequency = fundamental frequency, RBW=300Hz, VBW= 3 KHz, span =50 KHz.
4 Set SPA Max hold. Mark peak, Set 99% Occupied Bandwidth and 26dB Occupied Bandwidth.
6 Set SPA Center Frequency=fundamental frequency, set =100Hz, VBW=1 KHz, span=50 KHz for 12.5
channel spacing and set =100Hz, VBW=1 KHz, span=50 KHz for 6.25 channel spacing
TEST RESULTS:
4.2.1 Occupied Bandwidth
High power:
Modulation
Type
Channel
Separation
Test
Channel
Test
Frequency
12.5KHz
Low
Middle
High
Low
Middle
High
137.0125 MHz
152.0125 MHz
169.9870 MHz
137.0125 MHz
152.0125 MHz
169.9870 MHz
4FSK
FM
99% Occupied 26dB Occupied
Bandwidth
Band width
(KHz)
(KHz)
5.44
7.04
5.6
7.52
5.44
7.36
5.12
7.20
6.08
7.52
6.08
7.52
11.25KHz for 12.5KHz Channel Separation
Limit
6.00KHz for 6.25KHz Channel Separation
Test Results
Compliance
Low power:
Modulation
Type
Channel
Separation
Test
Channel
Test
Frequency
12.5KHz
Low
Middle
High
Low
Middle
High
137.0125 MHz
152.0125 MHz
169.9870 MHz
137.0125 MHz
152.0125 MHz
169.9870 MHz
4FSK
FM
Limit
Test Results
99% Occupied 26dB Occupied
Bandwidth
Band width
(KHz)
(KHz)
5.44
7.20
5.44
7.04
5.60
7.20
5.12
7.36
6.08
7.36
6.08
7.52
11.25KHz for 12.5KHz Channel Separation
6.00KHz for 6.25KHz Channel Separation
Compliance
Page 16 of 45
Report No.: MTE/HEG/B17081745
Digital/4FSK
Occupied Bandwidth
High power
* RBW 100 Hz
* VBW 1 kHz
Ref
40
* Att
40 dBm
Offset
30 dB
SWT 9.6 s
20 dB
30
D1 26.85 dBm
1 PK
MAXH
20
T1
T2
10
Low power
Delta 1 [T1 ]
3.01 dB
7.040000000 kHz
OBW 5.440000000
Marker 1 [T1 ]
0.30
137.009140000
Temp 1 [T1 OBW]
14.63
137.010100000
Temp 2 [T1 OBW]
9.01
137.015540000
* RBW 100 Hz
* VBW 1 kHz
Ref
kHz
dBm
MHz
40
* Att
40 dBm
Offset
30 dB
dBm
MHz LVL
1 PK
MAXH
20
D1 15.09 dBm
dBm
MHz
10
T1
-10
-20
dBm
MHz
dBm
MHz LVL
dBm
MHz
D2 -10.91 dBm
-20
-30
-30
-40
-40
-50
-50
-60
-60
Center 137.0125 MHz
8 kHz/
Span 80 kHz
Center 137.0125 MHz
8 kHz/
137.0125 MHz
* RBW 100 Hz
* VBW 1 kHz
* Att
40 dBm
Offset
30 dB
SWT 9.6 s
20 dB
30
D1 27 dBm
1 PK
MAXH
kHz
40
T2
OBW 5.440000000
Marker 1 [T1 ]
-7.08
137.009140000
Temp 1 [T1 OBW]
0.49
137.009940000
Temp 2 [T1 OBW]
1.07
137.015380000
20 dB
30
-10
Ref
Delta 1 [T1 ]
-0.07 dB
7.200000000 kHz
D2 0.85 dBm
SWT 9.6 s
20
T1
T2
10
137.0125 MHz
* RBW 100 Hz
* VBW 1 kHz
Delta 1 [T1 ]
2.21 dB
7.520000000 kHz
OBW 5.600000000
Marker 1 [T1 ]
1.11
152.008660000
Temp 1 [T1 OBW]
10.84
152.009940000
Temp 2 [T1 OBW]
9.30
152.015540000
Ref
40
kHz
dBm
MHz
* Att
40 dBm
Offset
30 dB
SWT 9.6 s
20 dB
1 PK
MAXH
dBm
MHz LVL
20
D1 18 dBm
10
dBm
MHz
Delta 1 [T1 ]
2.09 dB
7.040000000 kHz
OBW 5.440000000
Marker 1 [T1 ]
-7.95
152.008980000
Temp 1 [T1 OBW]
3.44
152.010100000
Temp 2 [T1 OBW]
-0.74
152.015540000
30
T1
kHz
dBm
MHz
dBm
MHz LVL
dBm
MHz
T2
D2 1 dBm
Span 80 kHz
D2 -8 dBm
-10
-10
-20
-20
-30
-30
-40
-40
-50
-50
-60
-60
Center 152.0125 MHz
8 kHz/
Center 152.0125 MHz
Span 80 kHz
8 kHz/
152.0125MHz
* RBW 100 Hz
* VBW 1 kHz
Ref
40
* Att
40 dBm
Offset
30 dB
SWT 9.6 s
20 dB
30
D1 27.28 dBm
1 PK
MAXH
20
T1
10
T2
152.0125MHz
* RBW 100 Hz
* VBW 1 kHz
Delta 1 [T1 ]
0.58 dB
7.360000000 kHz
OBW 5.440000000
Marker 1 [T1 ]
3.50
169.983480000
Temp 1 [T1 OBW]
9.37
169.984600000
Temp 2 [T1 OBW]
5.93
169.990040000
Ref
40
kHz
dBm
MHz
dBm
MHz LVL
dBm
MHz
* Att
40 dBm
Offset
30 dB
SWT 9.6 s
20 dB
OBW 5.600000000
Marker 1 [T1 ]
-7.75
169.983480000
Temp 1 [T1 OBW]
1.62
169.984600000
Temp 2 [T1 OBW]
-0.62
169.990200000
30
1 PK
MAXH
Delta 1 [T1 ]
-0.49 dB
7.200000000 kHz
20
D1 16.83 dBm
10
T1
kHz
dBm
MHz
dBm
MHz LVL
dBm
MHz
T2
D2 1.28 dBm
-10
-10
-20
-20
-30
-30
-40
-40
-50
-50
-60
Center 169.987 MHz
Span 80 kHz
D2 -9.17 dBm
-60
8 kHz/
169.9870 MHz
Span 80 kHz
Center 169.987 MHz
8 kHz/
Span 80 kHz
169.9870 MHz
Page 17 of 45
Report No.: MTE/HEG/B17081745
Analog/FM
Occupied Bandwidth and 26dB Bandwidth
High power
Low power
* RBW 100 Hz
* VBW 1 kHz
Ref
40
30
1 PK
MAXH
* Att
40 dBm
Offset
30 dB
SWT 9.6 s
20 dB
D1 30.5 dBm
T2
20
T1
10
D2 4.5 dBm
* RBW 100 Hz
* VBW 1 kHz
Delta 1 [T1 ]
-2.94 dB
7.200000000 kHz
OBW 5.120000000
Marker 1 [T1 ]
8.43
137.009140000
Temp 1 [T1 OBW]
16.53
137.010100000
Temp 2 [T1 OBW]
20.83
137.015220000
Ref
30
kHz
dBm
MHz
20
1 PK
MAXH
dBm
MHz LVL
30 dBm
Offset
Att
20 dB
D1 19.85 dBm
10
T1
dBm
MHz
D2 -6.15 dBm
-10
-10
-20
-20
-30
-30
-40
-40
-50
-50
-60
Center 137.0125 MHz
8 kHz/
Center 137.0125 MHz
Span 80 kHz
* RBW 100 Hz
* VBW 1 kHz
1 PK
MAXH
40 dBm
Offset
Att
40 dB
SWT 9.6 s
20 dB
D1 31.02 dBm
T2
20
T1
10
D2 5.02 dBm
OBW 6.080000000
Marker 1 [T1 ]
12.73
152.008980000
Temp 1 [T1 OBW]
12.16
152.009140000
Temp 2 [T1 OBW]
22.61
152.015220000
30
kHz
dBm
MHz
30 dBm
Offset
Att
SWT 9.6 s
20 dB
20
T2
1 PK
MAXH
dBm
MHz LVL
10
T1
dBm
MHz
D2 -6.15 dBm
-20
-20
-30
-30
-40
-40
-50
-50
-60
dBm
MHz LVL
dBm
MHz
Delta 1 [T1 ]
-4.84 dB
7.360000000 kHz
OBW 6.080000000
Marker 1 [T1 ]
3.36
152.009140000
Temp 1 [T1 OBW]
3.36
152.009140000
Temp 2 [T1 OBW]
13.80
152.015220000
kHz
dBm
MHz
dBm
MHz LVL
dBm
MHz
-70
-60
Center 152.0125 MHz
8 kHz/
Center 152.0125 MHz
Span 80 kHz
8 kHz/
152.0125MHz
* RBW 100 Hz
* VBW 1 kHz
1 PK
MAXH
40 dB
D1 22.15 dBm
-10
30
dBm
MHz
Span 80 kHz
* RBW 100 Hz
* VBW 1 kHz
Ref
-10
40
kHz
137.0125 MHz
Delta 1 [T1 ]
-5.78 dB
7.520000000 kHz
Ref
OBW 5.120000000
Marker 1 [T1 ]
-0.35
137.008980000
Temp 1 [T1 OBW]
6.70
137.010100000
Temp 2 [T1 OBW]
10.26
137.015220000
8 kHz/
137.0125 MHz
30
Delta 1 [T1 ]
-4.72 dB
7.360000000 kHz
-70
-60
40
SWT 9.6 s
T2
Ref
40 dB
40 dBm
Offset
Att
50 dB
SWT 9.6 s
20 dB
D1 31.22 dBm
T2
20
T1
10
D2 5.22 dBm
152.0125MHz
* RBW 100 Hz
* VBW 1 kHz
Delta 1 [T1 ]
-4.24 dB
7.520000000 kHz
OBW 6.080000000
Marker 1 [T1 ]
12.95
169.983480000
Temp 1 [T1 OBW]
13.00
169.983640000
Temp 2 [T1 OBW]
22.95
169.989720000
Ref
30
kHz
dBm
MHz
dBm
MHz LVL
30 dBm
Offset
Att
30 dB
SWT 9.6 s
20 dB
D1 22 dBm
20
T2
1 PK
MAXH
10
T1
dBm
MHz
D2 -4 dBm
-10
-10
-20
-20
-30
-30
-40
-40
-50
-50
-60
Delta 1 [T1 ]
-4.06 dB
7.520000000 kHz
OBW 6.080000000
Marker 1 [T1 ]
3.89
169.983480000
Temp 1 [T1 OBW]
3.97
169.983640000
Temp 2 [T1 OBW]
13.93
169.989720000
kHz
dBm
MHz
dBm
MHz LVL
dBm
MHz
-70
-60
Center 169.987 MHz
Span 80 kHz
8 kHz/
169.9870 MHz
Span 80 kHz
Center 169.987 MHz
8 kHz/
Span 80 kHz
169.9870 MHz
Page 18 of 45
Report No.: MTE/HEG/B17081745
4.3. Emission Mask
Applicable Standard
FCC §90.210
(b) Emission Mask B. For transmitters that are equipped with an audio low-pass filter, the power of any
emission must be attenuated below the unmodulated carrier power (P) as follows:
(1) On any frequency removed from the assigned frequency by more than 50 percent, but not more than
100 percent of the authorized bandwidth: At least 25 dB.
(2) On any frequency removed from the assigned frequency by more than 100 percent, but not more than
250 percent of the authorized bandwidth: At least 35 dB.
(3) On any frequency removed from the assigned frequency by more than 250 percent of the authorized
bandwidth: At least 43 + 10 log (P) dB.
(d) Emission Mask D—12.5 kHz channel bandwidth equipment. For transmitters designed to operate with
a 12.5 kHz channel bandwidth, any emission must be attenuated below the power (P) of the highest
emission contained within the authorized bandwidth as follows:
(1) On any frequency from the center of the authorized bandwidth f0 to 5.625 kHz removed from f0: Zero
dB.
(2) On any frequency removed from the center of the authorized bandwidth by a displacement frequency
(fd in kHz) of more than 5.625 kHz but no more than 12.5 kHz: At least 7.27(fd−2.88 kHz) dB.
(3) On any frequency removed from the center of the authorized bandwidth by a displacement frequency
(fd in kHz) of more than 12.5 kHz: At least 50 + 10 log (P) dB or 70 dB, whichever is the lesser
attenuation.
(4) The reference level for showing compliance with the emission mask shall be established using a
resolution bandwidth sufficiently wide (usually two or three times the channel bandwidth) to capture the
true peak emission of the equipment under test. In order to show compliance with the emission mask up to
and including 50 kHz removed from the edge of the authorized bandwidth, adjust the resolution
bandwidth to 100 Hz with the measuring instrument in a peak hold mode. A sufficient number of sweeps
must be measured to insure that the emission profile is developed. If video filtering is used, its bandwidth
must not be less than the instrument resolution bandwidth. For emissions beyond 50 kHz from the edge of
the authorized bandwidth, see paragraph (o) of this section. If it can be shown that use of the above
instrumentation settings do not accurately represent the true interference potential of the equipment under
test, an alternate procedure may be used provided prior Commission approval is obtained.
Modulation
Type
Channel
Separation
4FSK
12.5KHz
FM
137.0125 MHz
152.0125MHz
FCC
Applicable
Mask
100Hz
100Hz
High
169.9870 MHz
100Hz
Low
137.0125 MHz
100Hz
Middle
152.0125MHz
100Hz
High
169.9870 MHz
100Hz
Test
Channel
Test
Frequency
Low
Middle
Test Results
RBW
Compliance
Referred as the attached plot hereinafter
Page 19 of 45
Report No.: MTE/HEG/B17081745
Digital/4FSK
Emission Mask
High power
Low power
137.0125 MHz
137.0125 MHz
152.0125MHz
152.0125MHz
169.9870
MHz
169.9870
MHz
Page 20 of 45
Report No.: MTE/HEG/B17081745
FM/Analog
Emission Mask
406.1 – 430 MHz
450 – 470 MHz
137.0125 MHz
137.0125 MHz
152.0125MHz
152.0125MHz
169.9870 MHz
169.9870 MHz
Page 21 of 45
Report No.: MTE/HEG/B17081745
4.3. Radiated Spurious Emission Test
TEST APPLICABLE
According to the TIA/EIA 603 test method, and according to Section 90.210, the power of each unwanted
emission shall be less than Transmitted Power as specified below for transmitters designed to operate with
12.5 KHz channel bandwidth:
1 On any frequency removed from the center of the authorized bandwidth fo to 5.625 KHz removed from fo:
Zero dB
2 On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in
KHz) fo of more than 5.625 KHz but no more than 12.5 KHz: At least 7.27dB
3 On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in
KHz) fo of more than 12.5 KHz: At least 50+10 log (P) dB or 70 dB, which ever is lesser attenuation.
For transmitters designed to transmit with 6.25 KHz channel separation and equipped with an audio low-pass
filter, the power of any emission must be attenuated below the unmodulated carrier power (P) as following:
1 On any frequency from the center of the authorized bandwidth f0 to 3.0 kHz removed from f0: Zero dB.
2 On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in
kHz) of more than 3.0 kHz but no more than 4.6 kHz: At least 30 + 16.67(fd−3 kHz) or 55 + 10 log (P) or 65 dB,
whichever is the lesser attenuation.
3 On any frequency removed from the center of the authorized bandwidth by more than 4.6 kHz: At least 55 +
10 log (P) or 65 dB, whichever is the lesser attenuation.
TEST CONFIGURATION
Below 1GHz:
Antenna
d: distance in 3
1-4m
Amplifier and Receiver
0.8m
Turntable
Signal Generator
Substituted Biconical or Log
Broadband antenna
Page 22 of 45
Report No.: MTE/HEG/B17081745
Above 1GHz:
Antenna
d: distance 3 meters
0.8m
d: 3 meter
Turntable
Signal Generator
1-4 meter
Horn antenna
Substituted Horn antenna
Receiver
TEST PROCEDURE
The transmitter was placed on a wooden turntable, and it was transmitting into a non-radiating load, which
was also placed on the turntable.
The measurement antenna was placed at a distance of 3 meters from the EUT. During the tests, the
antenna height and polarization as well as EUT azimuth were varied in order to identify the maximum
level of emissions from the EUT .The test was performed by placing the EUT on 3-orthogonal axis.
The frequency range up to teeth harmonic of the fundamental frequency was investigated.
Remove the EUT and replace it with substitution antenna. A signal generator was connected to the
substitution antenna by a non-radiating cable. The absolute levels of the spurious emissions were
measured by the substitution.
Spurious emissions in dB =10 1g (TXpwr in Watts/0.001)-the absolute level Spurious attenuation limit in
dB =50+10 Log10 (power out in Watts) for EUT with a 12.5 kHz channel bandwidth.
TEST RESULTS
Modulation Type: 4FSK
Note: 1. In general, the worse case attenuation requirement shown above was applied.
2. The measurement frequency range from 30 MHz to 5 GHz.
3. *** means that the emission level is too low to be measured or at least 20 dB down than the limit.
Page 23 of 45
Report No.: MTE/HEG/B17081745
Modulation
Test Channel
Frequency
E-Field
(MHz)
Level
(dBuv/m)
514.74
2463.13
3244.14
…
512.41
2450.47
3275.42
…
43.09
49.39
41.85
Peak
Peak
Peak
51.29
48.82
42.42
Peak
Peak
Peak
…
Modulation
Test Channel
Frequency
E-Field
(MHz)
Level
(dBuv/m)
483.54
2452.37
3241.87
…
471.46
2431.27
3178.24
…
…
4FSK
Middle Channel
EMI
Antenna
Detector
Polarization
(Peak/QP)
Peak
Peak
Peak
50.31
50.08
42.64
Peak
Peak
Peak
…
4FSK
High Channel
EMI
Antenna
Detector
Polarization
(Peak/QP)
Peak
Peak
Peak
49.21
50.79
42.93
Peak
Peak
Peak
…
247
152
47
100
130
120
345
94
123
140
120
120
261
156
44
100
130
120
350
101
147
100
200
200
302
78
149
100
200
100
274
105
43
-46.12
-48.43
-54.72
-32.47
-26.42
-33.66
-26.12
-28.43
-34.72
12.5KHz
152.0125MHz
ERP
Limit
measured by
(dBm)
Substitution
Method(dBm)
-50.14
-20
-44.66
-20
-53.41
-20
-45.11
-47.50
-52.87
Margin
(dB)
-30.14
-24.66
-33.41
-20
-20
-20
-25.11
-27.50
-32.87
12.5KHz
169.9870 MHz
ERP
Limit
measured by
(dBm)
Substitution
Method(dBm)
-52.62
-20
-46.61
-20
-53.46
-20
-46.33
-46.42
-54.21
Margin
(dB)
-20
-20
-20
Channel Separation
Test Frequency
Antenna
Table
Height
Angle
(cm)
(Degree)
12.5KHz
137.0125 MHz
ERP
Limit
measured by
(dBm)
Substitution
Method(dBm)
-52.47
-20
-46.42
-20
-53.66
-20
Channel Separation
Test Frequency
Antenna
Table
Height
Angle
(cm)
(Degree)
140
120
120
41.19
48.82
44.12
Channel Separation
Test Frequency
Antenna
Table
Height
Angle
(cm)
(Degree)
43.27
50.48
44.05
Modulation
Test Channel
Frequency
E-Field
(MHz)
Level
(dBuv/m)
536.54
2517.23
3342.23
…
450.35
2524.25
3357.67
4FSK
Low Channel
EMI
Antenna
Detector
Polarization
(Peak/QP)
Margin
(dB)
-32.62
-26.61
-33.46
-20
-20
-20
-26.33
-26.42
-34.21
Page 24 of 45
Report No.: MTE/HEG/B17081745
Modulation
Test Channel
Frequency
E-Field
(MHz)
Level
(dBuv/m)
201.024
2431.32
3214.05
…
513.37
2376.59
3235.52
…
45.02
47.34
40.86
Peak
Peak
Peak
50.28
49.81
43.43
Peak
Peak
Peak
…
Modulation
Test Channel
Frequency
E-Field
(MHz)
Level
(dBuv/m)
455.14
2362.36
3136.88
…
481.41
2344.23
3258.25
…
…
FM
Middle Channel
EMI
Antenna
Detector
Polarization
(Peak/QP)
Peak
Peak
Peak
51.32
54.04
41.66
Peak
Peak
Peak
…
FM
High Channel
EMI
Antenna
Detector
Polarization
(Peak/QP)
Peak
Peak
Peak
48.25
51.77
43.99
Peak
Peak
Peak
…
247
152
47
100
130
120
243
52
124
140
120
120
261
156
35
100
130
120
350
120
147
100
200
200
302
78
149
100
200
100
35
105
43
-47.65
-46.74
-54.83
-33.34
-27.42
-34.55
-27.65
-26.74
-34.83
12.5KHz
152.0125MHz
ERP
Limit
measured by
(dBm)
Substitution
Method(dBm)
-47.52
-20
-42.74
-20
-53.52
-20
-45.25
-43.54
-47.43
Margin
(dB)
-27.52
-22.74
-33.52
-20
-20
-20
-25.25
-23.54
-27.43
12.5KHz
169.9870 MHz
ERP
Limit
measured by
(dBm)
Substitution
Method(dBm)
-52.67
-20
-44.78
-20
-56.59
-20
-48.31
-47.52
-53.33
Margin
(dB)
-20
-20
-20
Channel Separation
Test Frequency
Antenna
Table
Height
Angle
(cm)
(Degree)
12.5KHz
137.0125 MHz
ERP
Limit
measured by
(dBm)
Substitution
Method(dBm)
-53.34
-20
-47.42
-20
-54.55
-20
Channel Separation
Test Frequency
Antenna
Table
Height
Angle
(cm)
(Degree)
140
120
120
40.18
44.81
42.13
Channel Separation
Test Frequency
Antenna
Table
Height
Angle
(cm)
(Degree)
45.25
47.47
45.09
Modulation
Test Channel
Frequency
E-Field
(MHz)
Level
(dBuv/m)
554.67
2416.29
3274.22
…
482.34
2443.26
3146.68
FM
Low Channel
EMI
Antenna
Detector
Polarization
(Peak/QP)
Margin
(dB)
-32.67
-24.78
-36.59
-20
-20
-20
-28.31
-27.52
-33.33
Page 25 of 45
Report No.: MTE/HEG/B17081745
4.4. Spurious Emission On Antenna Port
TEST APPLICABLE
The same as Section 4.3
TEST PROCEDURE
The RF output of the EUT was connected to a spectrum analyzer through appropriate attenuation. The
resolution bandwidth of the spectrum analyzer was set to 100 kHz. Sufficient scans were taken to show any out
of band emission up to 10th. Harmonic for the lower and the highest frequency range. Set RBW 100 kHz, VBW
300 kHz in the frequency band 30MHz to 1GHz,while set RBW=1MHz.VBW=3MHz from the 1GHz to 10th
Harmonic.
The audio input was set to 0 to get the unmodulated carrier, the resulting picture is print out for each channel
separation.
TEST CONFIGURATION
Radio
Comm.
Test Set
20dB Att.
Receiver/
Spectrum
ANT
MIC
EUT
High-Pass
Filter
EXT
Power
Analyzer
DC Power
Supply/DC
7.4 V
TEST RESULTS:
Modulation Type: 4FSK
Note: 1. In general, the worse case attenuation requirement shown above was applied.
2. The measurement frequency range from 30 MHz to 5 GHz.
Plots of Spurious Emission on Antenna Port Measurement
See next pages.
Modulation
Analog/FM
Digital/4FSK
Spurious Emissions at
ISED
Antenna Port
Limits
(dBm)
(dBmc)
9 KHz – 5 GHz
<-20.00
-20.00
PASS
152.0125
9 KHz – 5 GHz
<-20.00
-20.00
PASS
169.9870
9 KHz – 5 GHz
<-20.00
-20.00
PASS
137.0125
9 KHz – 5 GHz
<-20.00
-20.00
PASS
152.0125
9 KHz – 5 GHz
<-20.00
-20.00
PASS
169.9870
9 KHz – 5 GHz
<-20.00
-20.00
PASS
Frequency
Test Frequency
(MHz)
Range
137.0125
Verdict
Page 26 of 45
Report No.: MTE/HEG/B17081745
Spurious Emissions at Antenna Port
Digital/4FSK
137.0125MHz
152.0125MHz
30 MHz – 500 MHz
137.0125MHz
30 MHz – 500 MHz
152.0125MHz
500 MHz – 1000 MHz
137.0125MHz
500 MHz – 1000 MHz
152.0125MHz
1000 MHz – 5000 MHz
1000 MHz – 5000 MHz
Page 27 of 45
Report No.: MTE/HEG/B17081745
Spurious Emissions at Antenna Port
Digital/4FSK
169.9870 MHz
30 MHz – 500 MHz
169.9870 MHz
500 MHz – 1000 MHz
169.9870 MHz
1000 MHz – 5000 MHz
Page 28 of 45
Report No.: MTE/HEG/B17081745
Spurious Emissions at Antenna Port
Analog / FM
137.0125 MHz
152.0125MHz
30 MHz – 500 MHz
137.0125 MHz
30 MHz – 500 MHz
152.0125MHz
500 MHz – 1000 MHz
137.0125 MHz
500 MHz – 5000 MHz
152.0125MHz
1000 MHz – 5000 MHz
1000 MHz – 5000 MHz
Page 29 of 45
Report No.: MTE/HEG/B17081745
Spurious Emissions at Antenna Port
Analog / FM
169.9870 MHz
30 MHz – 500 MHz
169.9870 MHz
500 MHz – 1000 MHz
169.9870 MHz
1000 MHz – 5000 MHz
Page 30 of 45
Report No.: MTE/HEG/B17081745
4.5. Modulation Characteristics
TEST APPLICABLE
According toCFR47 section 2.1047(a), for Voice Modulation Communication Equipment, the frequency
response of the audio modulation circuit over a range of 100 to 5000Hz shall be measured.
TEST PROCEDURE
Modulation Limit
1 Configure the EUT as shown in figure 1, adjust the audio input for 60% of rated system deviation at 1 KHz
using this level as a reference (0dB) and vary the input level from –20 to +20dB. Record the frequency
deviation obtained as a function of the input level.
2 Repeat step 1 with input frequency changing to 300, 1004, 1500 and 2500Hz in sequence.
Audio Frequency Response
1 Configure the EUT as shown in figure 1.
2 Adjust the audio input for 20% of rated system deviation at 1 KHz using this level as a reference (0dB).
3 Vary the Audio frequency from 100 Hz to 3 KHz and record the frequency deviation.
4 Audio Frequency Response =20log10 (Deviation of test frequency/Deviation of 1 KHz reference).
TEST CONFIGURATION
Page 31 of 45
Report No.: MTE/HEG/B17081745
TEST RESULTS
Modulation Type: FM
12.5 KHz Channel Separation
Modulation
Peak Freq.
Peak Freq.
Peak Freq.
Peak Freq.
Level(dB)
Deviation At
Deviation At
Deviation At
Deviation At
300 Hz(KHz)
1000 Hz(KHz)
1500 Hz(KHz)
2500 Hz(KHz)
-20
0.17
0.15
0.21
0.41
2.5
-15
0.17
0.34
0.40
0.67
2.5
-10
0.18
0.48
0.74
1.14
2.5
-5
0.25
0.81
1.26
2.01
2.5
0.42
1.51
2.14
2.17
2.5
+5
0.73
2.18
2.26
2.22
2.5
+10
1.24
2.29
2.23
2.20
2.5
15
2.18
2.26
2.24
2.22
2.5
+20
2.24
2.24
2.23
2.22
2.5
Limit
(KHz)
Peak Deviation (KHz)
2.5
Peak Freq. Deviation At
300 Hz(KHz)
Peak Freq. Deviation At
1000 Hz(KHz)
Peak Freq. Deviation At
1500 Hz(KHz)
Peak Freq. Deviation At
2500 Hz(KHz)
1.5
0.5
Modulation Level (dB)
Modulation type: 4FSK
Channel bandwidth: 12.5 kHz
It is not applicable for devices which operate with the digitized voice/data modulation type.
b). Audio Frequency Response:
Rule Part No.: Part 2.1407(a) (b)
Page 32 of 45
Report No.: MTE/HEG/B17081745
Method of Measurement:
The audio frequency response was measured in accordance with TIA/EIA Specification 603 with no exception.
A curve or equivalent data showing the frequency response of the audio modulating circuit over a range of
300-3000Hz shall be submitted and Audio Post Limiter Low Pass Filter Response from 3.0 KHz to
50KHz.However, the audio frequency response should test from 100Hz to 5.0 KHz according to FCC Part 90.
Modulation Type: FM
The audio frequency response curve is show below and Test Audio Level (1 KHz and 20% maximum deviation)
is 2.90mv for 12.5 KHz channel separation.
Note:
1 Not applicable to new standard. However, tests are conducted under FCC’s recommendation.
12.5 KHz Channel Separation
Frequency
(KHz )
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.2
1.4
1.6
1.8
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.5
4.0
4.5
5.0
Frequency Deviation
(KHz)
0.04
0.05
0.15
0.28
0.27
0.32
0.36
0.37
0.44
0.51
0.53
0.67
0.77
0.89
0.92
1.01
1.03
1.07
1.16
1.18
1.21
1.22
1.21
1.24
1.26
0.05
0.04
0.03
0.03
1KHz Reference Deviation
(KHz)
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
Audio Frequency Response
(dB)
-20.17
-20.21
-10.22
-7.88
-5.54
-4.06
-2.74
-1.74
-0.62
0.00
1.74
3.00
4.04
4.90
5.56
5.84
6.14
6.37
6.62
6.86
7.18
7.35
7.53
7.92
6.12
-20.14
-22.13
-24.62
-24.61
Page 33 of 45
Report No.: MTE/HEG/B17081745
15
10
data
-5
limit
limit
-10
-15
-20
100
1000
10000
Modulation type: 4FSK
Channel bandwidth:12.5 kHz
It is not applicable for devices which operate with the digitized voice/data modulation type.
Page 34 of 45
Report No.: MTE/HEG/B17081745
4.6. Frequency Stability Measurement
TEST APPLICABLE
1 According to FCC Part 2 Section 2.1055 (a)(1), the frequency stability shall be measured with variation of
ambient temperature from -30℃ to +50℃ centigrade.
2 According to FCC Part 2 Section 2.1055 (a) (2), for battery powered equipment, the frequency stability shall
be measured with reducing primary supply voltage to the battery operating end point, which is specified by the
manufacture.
3 Vary primary supply voltage from 85 to 115 percent of the nominal value for other than hand carried battery
equipment and tested end point voltage.
4 According to §90.213, the frequency stability limit is 2.5 ppm for 12.5 KHz channel separation and 1.0 ppm for
6.25KHz channel separation.
TEST PROCEDURE
The EUT was set in the climate chamber and connected to an external DC power supply. The RF output was
directly connected to Spectrum Analyzer ESI 26. The coupling loss of the additional cables was recorded and
taken in account for all the measurements. After temperature stabilization (approx. 20 min for each stage), the
frequency for the lower, the middle and the highest frequency range was recorded. For Frequency stability Vs.
Voltage the EUT was connected to a DC power supply and the voltage was adjusted in the required ranges.
The result was recorded.
TEST SETUP BLOCK DIAGRAM
EUT
DC Power Supply
Chamber
Spectrum Analyzer
Page 35 of 45
Report No.: MTE/HEG/B17081745
TEST LIMITS
According to 90.213, Transmitters used must have minimum frequency stability as specified in the following
table.
Modulation
Type
Channel
separation
Test conditions
Voltage(V)
Frequency error (ppm)
Temp(℃)
137.0125
(MHz)
7.40
Digital/4FSK
169.9870
(MHz)
(MHz)
-30
-0.60
-0.60
-0.50
-20
-0.53
-0.63
-0.57
10
-0.54
-0.54
-0.52
-0.50
-0.52
-0.44
10
-0.42
-0.40
-0.38
20
-0.22
-0.16
-0.14
30
-0.31
-0.33
-0.36
40
-0.42
-0.43
-0.41
50
-0.60
-0.45
-0.50
6.25 (End Point)
25
-0.54
-0.64
-0.68
6.29 (85% Rated)
20
-0.31
-0.36
-0.27
8.51 (115% Rated)
20
-0.26
-0.22
-0.25
1.00
5.00
5.00
12.5KHz
Limit
Conclusion
152.0125
Complies
Page 36 of 45
Report No.: MTE/HEG/B17081745
Modulation
Type
Channel
separation
Test conditions
Voltage(V)
Frequency error (ppm)
Temp(℃)
137.0125
(MHz)
7.40
FM
169.9870
(MHz)
(MHz)
-30
-0.42
-0.67
-0.55
-20
-0.53
-0.65
-0.58
10
-0.53
-0.53
-0.56
-0.51
-0.54
-0.46
10
-0.45
-0.46
-0.38
20
-0.27
-0.18
-0.17
30
-0.30
-0.32
-0.36
40
-0.44
-0.45
-0.47
50
-0.64
-0.46
-0.59
6.25 (End Point)
25
-0.52
-0.68
-0.68
6.29 (85% Rated)
20
-0.32
-0.32
-0.28
8.51 (115% Rated)
20
-0.25
-0.28
-0.24
1.00
5.00
5.00
12.5KHz
Limit
Conclusion
152.0125
Complies
Page 37 of 45
Report No.: MTE/HEG/B17081745
4.7. Conducted Output Power
TEST APPLICABLE
Per FCC§2.1046 and§90.205: Maximum ERP is dependent upon the station’s antenna HAAT and required
service area.
Typical transmitter output powers are 110 watts for base and/or fixed stations (paging transmitters excepted),
and 30 watts for mobile stations. Higher powers may be certified, but it should be noted that mobile stations are
normally only licensed up to 30 watts. See the SRSP relevant to the operating frequency for equipment power
limits.
TEST PROCEDURE
Measurements shall be made to establish the radio frequency power delivered by the transmitter the standard
output termination. The power output shall be monitored and recorded and no adjustment shall be made to the
transmitter after the test has begun, except as noted bellow:
f the power output is adjustable, measurements shall be made for the highest and lowest power levels.
The EUT connect to the Receiver through 40 dB attenuator.
Measurement with Spectrum Analyzer FSP40 or Aglient E4407B conducted, external power supply with 12.50
V stabilized supply voltage.
TEST CONFIGURATION
EUT
Attenuator
Spectrum
Analyzer/Receiver
The EUT was directly connected to a RF Communication
Test set by a 20 dB attenuator
TEST RESULTS
Plots of Maximum Transmitter Power Measurement
Test Results
Test
(dBm)
Frequency
(MHz)
Rated High
Rated Low
Ch1
137.0125
36.73
26.84
Ch2
152.0125
36.91
26.90
Digital/4FSK
Ch3
169.9870
36.93
26.84
12.5KHz
Op 1
Ch7
137.0125
36.47
26.08
Ch8
152.0125
36.53
26.72
Analog/FM
Ch9
169.9870
36.05
26.81
Limit
The output power shall be within ±1.0 dB of the manufacturer’s rated power.
Test Results
PASS
Modulation
Type
Channel
Separation
Operation
Mode
Test
Channel
Page 38 of 45
Report No.: MTE/HEG/B17081745
Digital/4FSK
Occupied Bandwidth
High power
Low power
137.0125 MHz
137.0125 MHz
152.0125MHz
152.0125MHz
169.9870 MHz
169.9870 MHz
Page 39 of 45
Report No.: MTE/HEG/B17081745
Analog/FM
Occupied Bandwidth
High power
* RBW 100 kHz
* VBW 300 kHz
Ref
* Att
50 dBm
Offset
50
30 dB
30 dB
40
1 PK
MAXH
SWT 2.5 ms
Low power
Marker 1 [T1 ]
36.47 dBm
137.012500000 MHz
30
LVL
20
10
-10
-20
-30
-40
-50
Center 137.0125 MHz
100 kHz/
Span 1 MHz
137.0125 MHz
* RBW 100 kHz
* VBW 300 kHz
Ref
50
* Att
50 dBm
Offset
30 dB
SWT 2.5 ms
137.0125 MHz
Marker 1 [T1 ]
36.53 dBm
152.014500000 MHz
* RBW 100 kHz
* VBW 300 kHz
Ref
30 dB
50
40
1 PK
MAXH
* Att
50 dBm
Offset
30 dB
SWT 2.5 ms
Marker 1 [T1 ]
26.72 dBm
152.012500000 MHz
30 dB
40
1 PK
MAXH
30
30
LVL
LVL
20
20
10
10
-10
-10
-20
-20
-30
-30
-40
-40
-50
-50
Center 152.0125 MHz
100 kHz/
Span 1 MHz
Center 152.0125 MHz
100 kHz/
152.0125MHz
152.0125MHz
169.9870 MHz
169.9870 MHz
Span 1 MHz
Page 40 of 45
Report No.: MTE/HEG/B17081745
4.8. Transmitter Frequency Behavior
TEST APPLICABLE
Section 90.214
Transient frequencies must be within the maximum frequency difference limits during the time intervals
indicated:
TEST PROCEDURE
TIA/EIA-603 2.2.19
TEST CONFIGURATION
Page 41 of 45
Report No.: MTE/HEG/B17081745
TEST RESULTS
Modulation Type: 4FSK
Transmitter Frequency Behavior @ 12.5 KHz Channel Separation------Off – On
Transmitter Frequency Behavior @ 12.5KHz Channel Separation------Off – On
Page 42 of 45
Report No.: MTE/HEG/B17081745
Page 43 of 45
Report No.: MTE/HEG/B17081745
5 Test Setup Photos of the EUT
Radiated emission test
Page 44 of 45
Report No.: MTE/HEG/B17081745
Conducted emission test
RF test
End of the report
Page 45 of 45
Download: RDR2500VX two way radio Test Report Test Report RCA Communications Systems
Mirror Download [FCC.gov]RDR2500VX two way radio Test Report Test Report RCA Communications Systems
Document ID3557245
Application IDkZPg3Wl/pYIrC+4BZv1RbQ==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize130.46kB (1630728 bits)
Date Submitted2017-09-12 00:00:00
Date Available2017-09-12 00:00:00
Creation Date2017-09-11 16:36:31
Producing SoftwareAcrobat Distiller 11.0 (Windows)
Document Lastmod2017-09-11 16:36:31
Document TitleTest Report
Document CreatorPScript5.dll Version 5.2
Document Author: Administrator

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : Yes
Author                          : Administrator
Create Date                     : 2017:09:11 16:36:31+08:00
Modify Date                     : 2017:09:11 16:36:31+08:00
XMP Toolkit                     : Adobe XMP Core 5.4-c005 78.147326, 2012/08/23-13:03:03
Creator Tool                    : PScript5.dll Version 5.2
Producer                        : Acrobat Distiller 11.0 (Windows)
Format                          : application/pdf
Title                           : Microsoft Word - RDR2500V-Part90-Report-re1. doc.doc
Creator                         : Administrator
Document ID                     : uuid:c71949d2-219f-45c7-a16a-5bc426ed6e80
Instance ID                     : uuid:828431a0-8391-406c-b420-1ab39539334d
Page Count                      : 45

Facebook Twitter Google+ RSS © FCCID.io 2017
