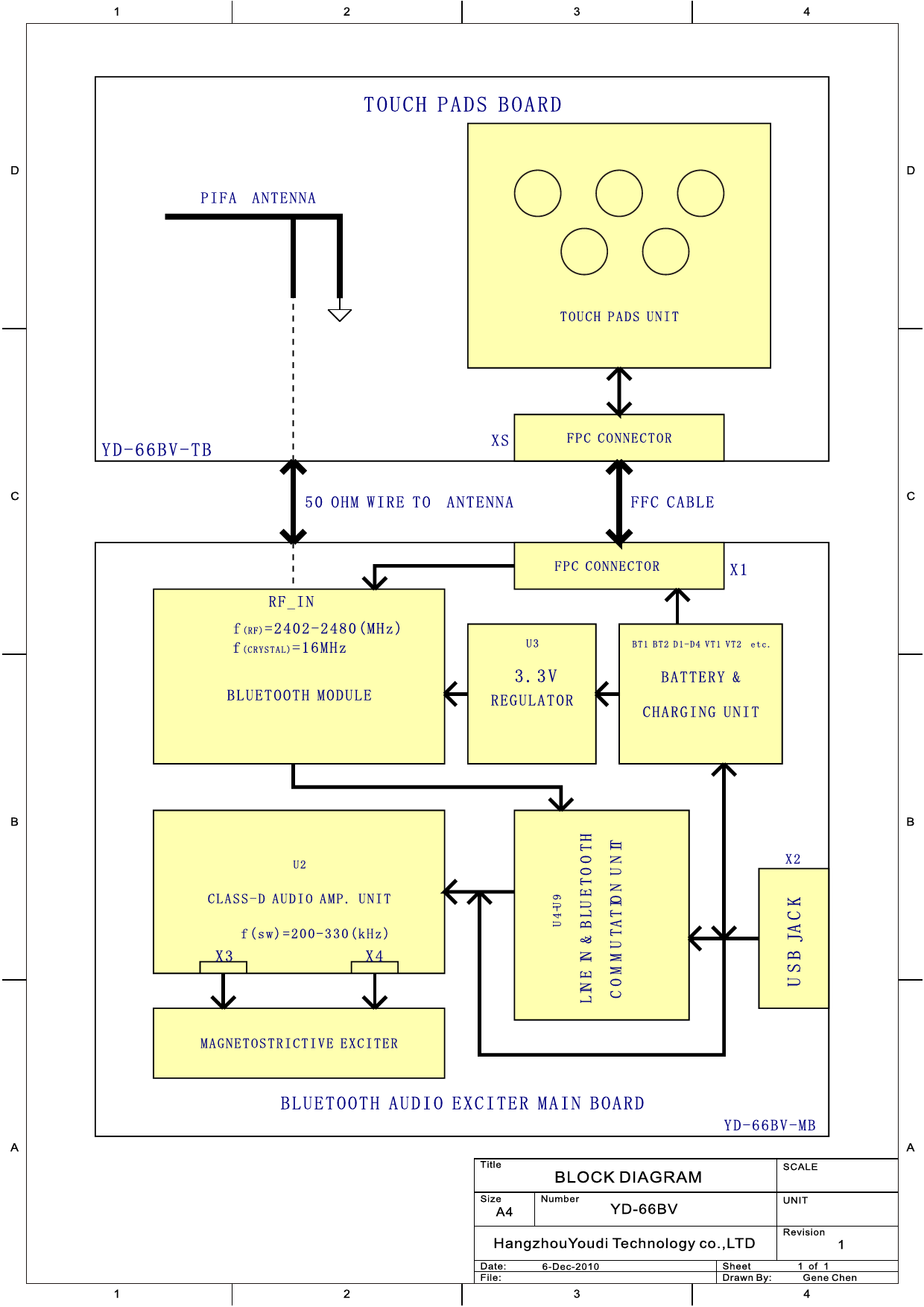

YD66BV EXO Bluetooth Exciter Block Diagram - FCC ID Y4QYD-66BV

FCC ID Y4QYD-66BV

block diagram

EXO Bluetooth Exciter

by HangZhou YD Technology Co., Ltd

Document preview loads when visible.

Document Details

FCC IDY4QYD-66BV
Document ID1392887
Document TypeBlock Diagram
Descriptionblock diagram
Document TitleYD-66BV-BLOCK-Rev1.cdr
ApplicantHangZhou YD Technology Co., Ltd
Equipment ClassEXO Bluetooth Exciter
Product CodeYD66BV
Application IDBeKhCgniypZIUYCj8iXG9g==
Application PurposeOriginal Equipment
Application Date2010-12-17
Frequency Range2402-2480 MHz
FRN0020421335
Test FirmShenzhen Certification Technology Service Co.,Ltd
Certified ByMark Zhu
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2010-12-17
Available2010-12-17
Created2010-12-06
Modified2010-12-06
Pages1
File TypeAdobe Acrobat PDF
File Size167704
File SHA-25622666eb19615532c3b677d44fd4ef852cab5b28ed2af7037978ca4dce734b7e1
PDF Metadata AuthorNone
PDF Metadata CreatorCorelDRAW 12.0
PDF Metadata ProducerCorel PDF Engine Version 1.0.0.458
FCC.gov SourcesFCC.gov 1392887
