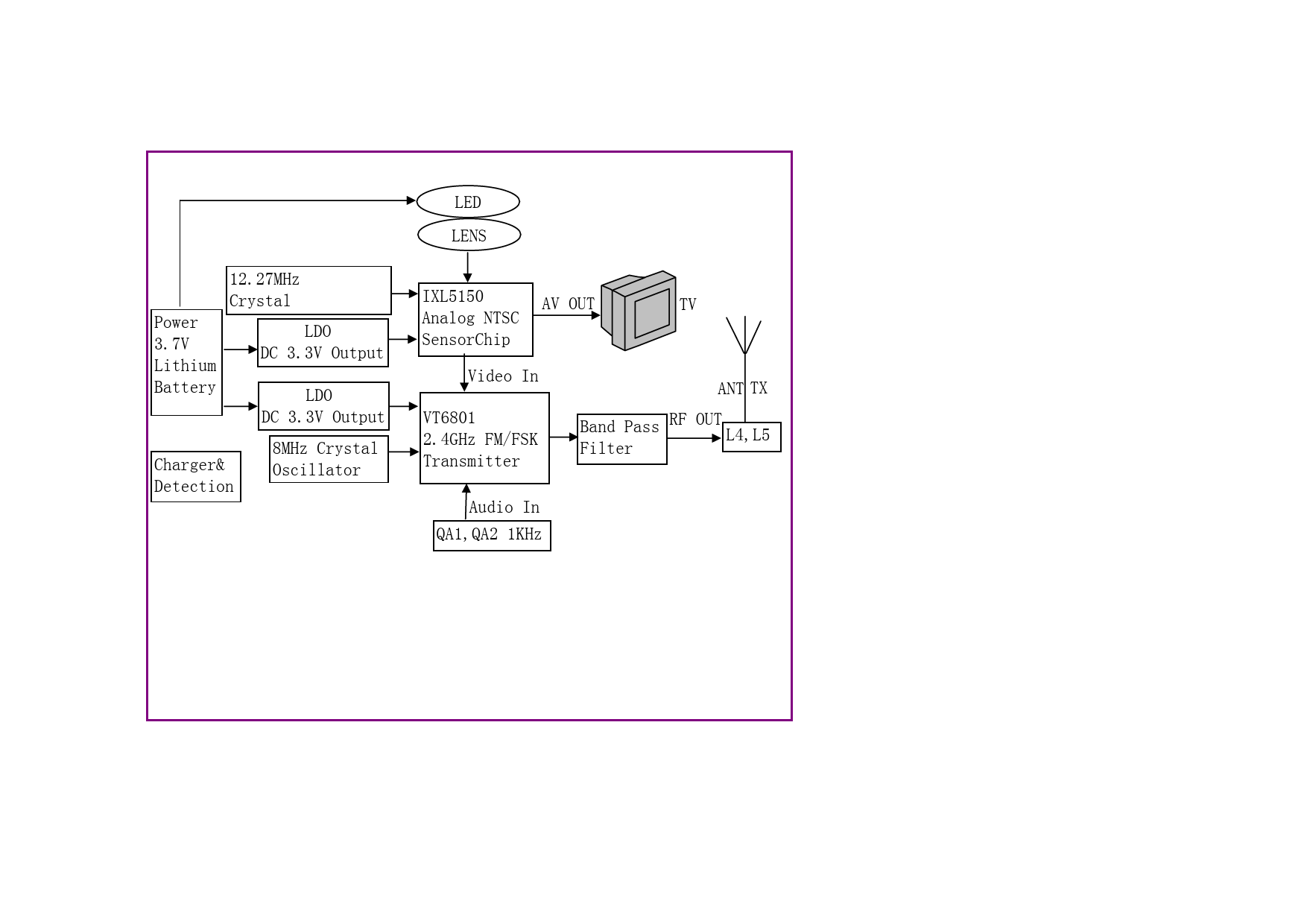

VTRV403B Handheld Microscope Block Diagram - FCC ID Y5WVTRV403B

FCC ID Y5WVTRV403B

Block Diagram

Handheld Microscope

by Infoxelle Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDY5WVTRV403B
Document ID1399510
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title2.4G_Block Diagram .xls
ApplicantInfoxelle Co., Ltd.
Equipment ClassHandheld Microscope
Product CodeVTRV403B
Application IDcmYX3vUnuh+sadF6irmyGA==
Application PurposeOriginal Equipment
Application Date2011-01-04
Frequency Range2414-2468 MHz
