EG7000 WIRELESS DOOR LOCK Schematics - FCC ID Y8UEG7000

FCC ID Y8UEG7000

PCB

WIRELESS DOOR LOCK

by Hangzhou Engine Electronics Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDY8UEG7000
Document ID1424393
Document TypeSchematics

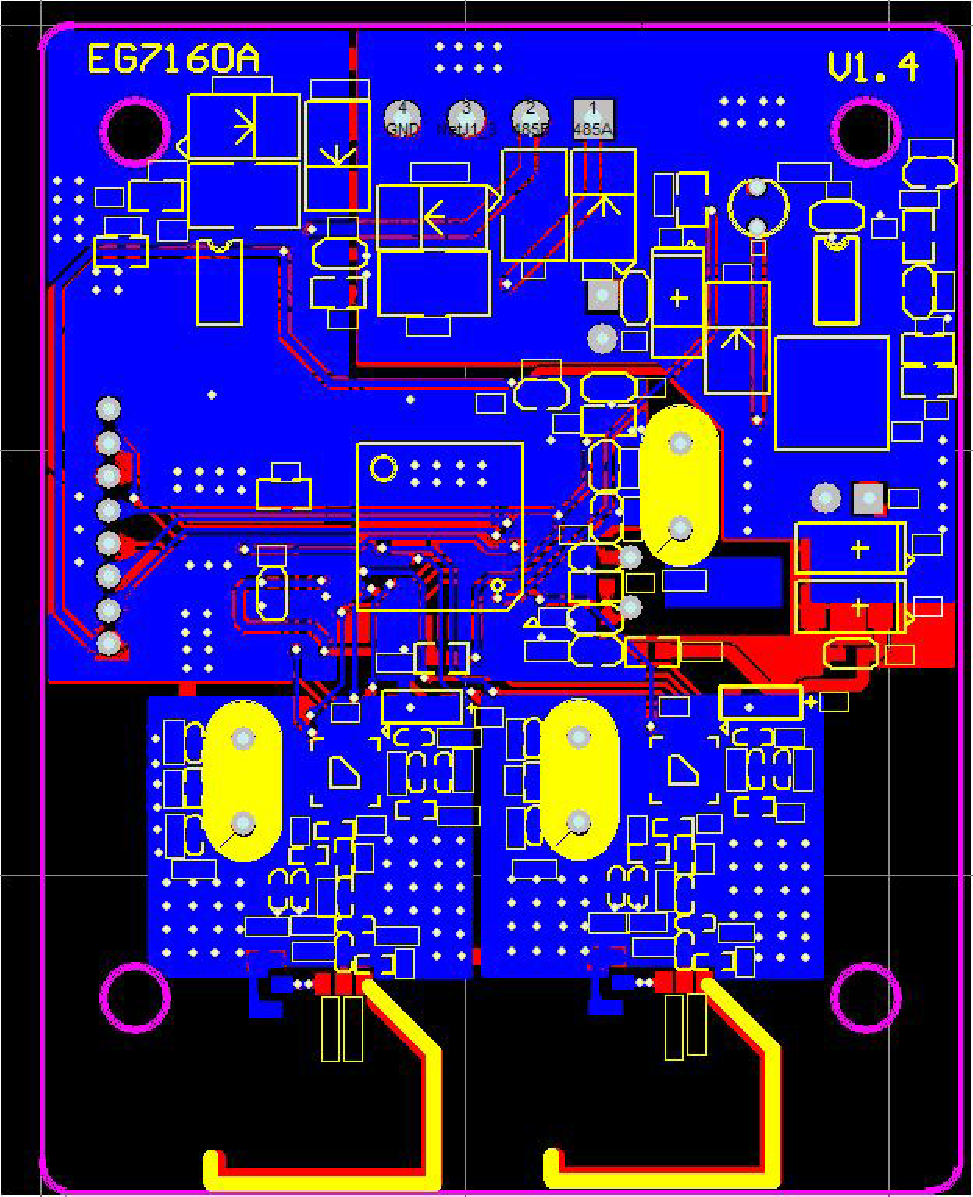

DescriptionPCB
Document TitleNone
ApplicantHangzhou Engine Electronics Co., Ltd.
Equipment ClassWIRELESS DOOR LOCK
Product CodeEG7000
Application IDgsc/9uDnWzMrVxxEZPhtqw==
Application PurposeOriginal Equipment
Application Date2011-03-02
Frequency Range2402-2480 MHz
FRN0020559407
Test Firmemitel (Shenzhen) Limited
Certified ByTianrong Li Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-03-02
Available2011-03-02
Created2011-01-29
Modified2011-01-29
Pages2
File TypeAdobe Acrobat PDF
File Size283730
File SHA-256d96750c20f5a2c837edb4c66ea4e08cb1a7c4e8da01f3b37fef6031c4b901448
PDF Metadata AuthorNone
PDF Metadata CreatorAdobe Acrobat 6.0
PDF Metadata ProducerAdobe Acrobat 6.0 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 1424393
