FCC ID YBN-PSARCCA100
Multimedia System with Bluetooth for PSA vehicles
by Robert Bosch Car Multimedia GmbH
Grantee Code: YBN Product Code: PSARCCA100
Latest application date: 2016-09-02
Device Images
FCC ID Device Details
| FCC ID | YBN-PSARCCA100 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | YBN |
| Product Code | PSARCCA100 |
| Applicant Business | Robert Bosch Car Multimedia GmbH 🇩🇪 |
| Related Domains |  de.bosch.com |
| Equipment Class | Multimedia System with Bluetooth for PSA vehicles |
| Test Firm | 7layers AG |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-09-02 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| FCC_Declaration_Manual | Cover Letter(s) | 2016-09-02 | PDF 157.4 KB |
| Users Manual | Users Manual | 2016-09-02 | PDF 1.2 MB |
| Users Manual_Technical Passport Blocked | Users Manual | 2016-09-02 | PDF 2.4 MB |

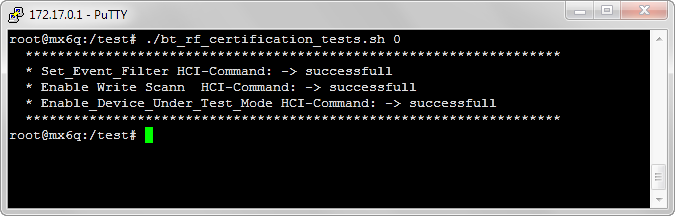

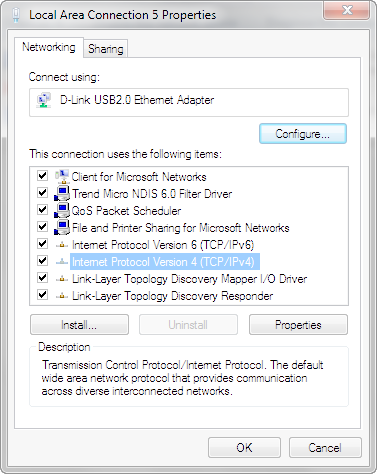

| Users Manual__iPerf_and_RTA_tests | Users Manual | 2016-09-02 | PDF 1.4 MB |
| Internal Photos | Internal Photos | 2016-09-02 | PDF 962.5 KB |
| Internal Photos_UGXZE | Internal Photos | 2016-09-02 | PDF 76.1 KB |
| External Photos_back | External Photos | 2016-09-02 | PDF 83.3 KB |
| External Photos_front | External Photos | 2016-09-02 | PDF 91.4 KB |
| ID Label | ID Label/Location Info | 2016-09-02 | PDF 1.4 MB |
| Label location info | ID Label/Location Info | 2016-09-02 | PDF 91.4 KB |
| Test Setup Photos | Test Setup Photos | 2016-09-02 | PDF 996 KB |
| Test Report | Test Report | 2016-09-02 | PDF 1.3 MB |
| Antenna Information | Cover Letter(s) | 2016-09-02 | PDF 207.2 KB |
| DoC | Cover Letter(s) | 2016-09-02 | PDF 205.2 KB |
| POA | Cover Letter(s) | 2016-09-02 | PDF 246.4 KB |
| confidentiality | Cover Letter(s) | 2016-09-02 | PDF 297.2 KB |
| MPE | RF Exposure Info | 2016-09-02 | PDF 306.2 KB |
| Block Diagram_ALPS_UGXZE Metadata only | Block Diagram | PDF 59.6 KB | |
| Block Diagram_PSA_RCC_A1 Metadata only | Block Diagram | PDF 225.9 KB | |
| Schematics_Connector_PCB_8638504619_g07v00 Metadata only | Schematics | PDF 288.7 KB | |
| Schematics_RCC_A1_DAB_8638504621_g10v00 Metadata only | Schematics | PDF 4 MB | |
| Schematics_UGXZE Metadata only | SDR Software/Security Inf | PDF 34.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 339.4 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 60.5 KB |
Application Information
| Application ID | SbAbm/CwS7VOcAt1C8dhCg== |
|---|---|
| Final Action Date | 2016-09-02 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019732882 |
| Model | PSARCCA100 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Multimedia System with Bluetooth for PSA vehicles |
| Responsible Party | Dirk Zamow, Team Manager Approval, Dirk.Zamow@de.bosch.com , +49 5121 49 |
| Agent | Dirk Dirk Dirk, 7layers GmbH, dirk.bratsch@7layers.com  |
| Technical Contact | Torsten Sahm, Robert Bosch Car Mutimedia GmbH, Torsten.Sahm@de.bosch.com |
| Non-Technical Contact | Torsten Sahm, Robert Bosch Car Mutimedia GmbH, Torsten.Sahm@de.bosch.com |
| Test Firm | Robert Machulec, 7layers AG, robert.machulec@7layers.de  , 49-2102-749-313 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| SbAbm/CwS7VOcAt1C8dhCg== | 2016-09-02 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0009800 | 15C |
Grants
TCB Grant - Application SbAbm/CwS7VOcAt1C8dhCg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 09/02/2016 Application Dated: 09/01/2016 |
| Robert Bosch Car Multimedia GmbH |
| Robert-Bosch-Strasse 200 |
| Hildesheim, 31139 Germany |
| Attention: Dirk Zamow , Team Manager Approval |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | YBN-PSARCCA100 |
| Name of Grantee: | Robert Bosch Car Multimedia GmbH |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Multimedia System with Bluetooth for PSA vehicles |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00098 |
| Output power listed is conducted. |
