ATYFR01R WIRELESS CONTROL- RECEIVER Block... - FCC ID YRV-ATY-FR01R

FCC ID YRV-ATY-FR01R

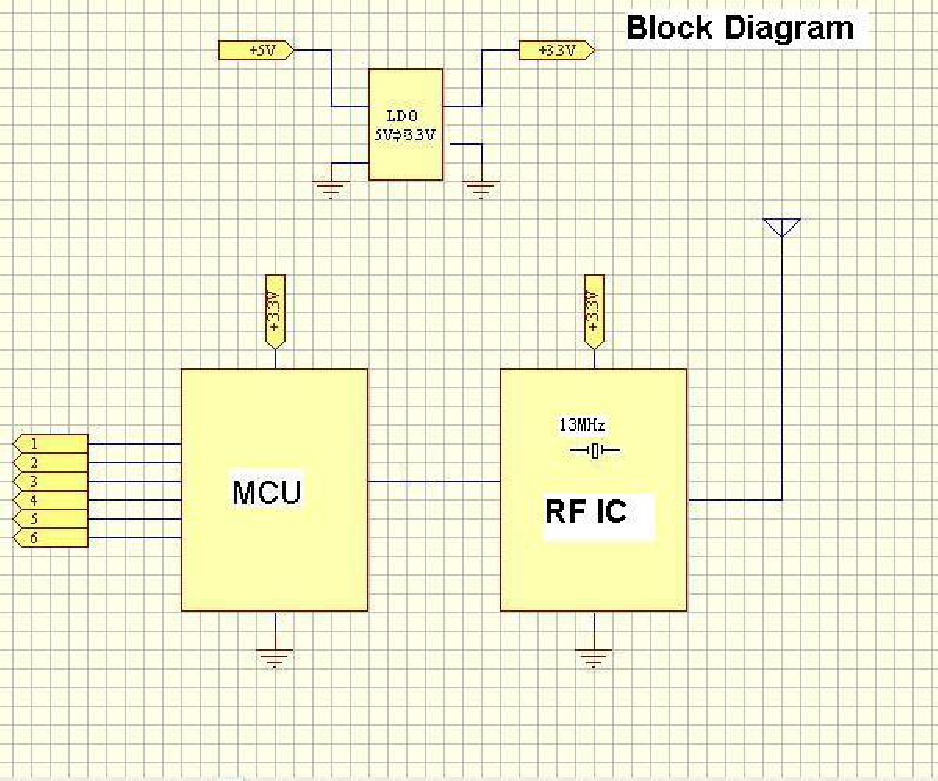

Block Diagram

WIRELESS CONTROL- RECEIVER

by Shen Zhen Oread Electronics Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDYRV-ATY-FR01R
Document ID1341290
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantShen Zhen Oread Electronics Co., Ltd.
Equipment ClassWIRELESS CONTROL- RECEIVER
Product CodeATYFR01R
Application IDTTb1uPt95r/WTYE5ZtYH/Q==
Application PurposeOriginal Equipment
Application Date2010-09-10
Frequency Range433.89 MHz
FRN0020173811
Test FirmBontek Compliance Testing Laboratory Ltd
Certified ByOswald Qiu Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2010-09-10
Available2010-09-10
Created2010-09-03
Modified2010-09-03
Pages1
File TypeAdobe Acrobat PDF
File Size67606
File SHA-256c35e01f4f42d22d93a51c068ab40ab0c1bfa7d106a774581360857e929226607
PDF Metadata AuthorNone
PDF Metadata CreatorAdobe Acrobat 7.1
PDF Metadata ProducerAdobe Acrobat 7.1 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 1341290
