FCC ID YT5XP-TR
Mode A/C/S Transponder
by Sagetech Avionics Inc
Grantee Code: YT5 Product Code: XPTR
Latest application date: 2017-05-04
Device Images
FCC ID Device Details
| FCC ID | YT5XP-TR |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | YT5 |
| Product Code | XPTR |
| Applicant Business | Sagetech Avionics Inc 🇺🇸 |
| Related Domains |  sagetech.com |
| Equipment Class | Mode A/C/S Transponder |
| Test Firm | Professional Testing (EMI), Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 1090 MHz | Original Equipment | 2017-05-04 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-05-04 | PDF 1.2 MB |

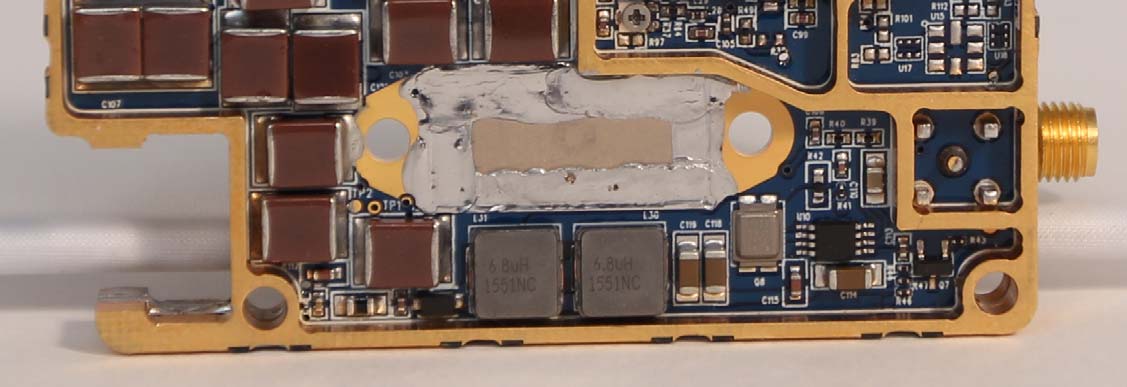

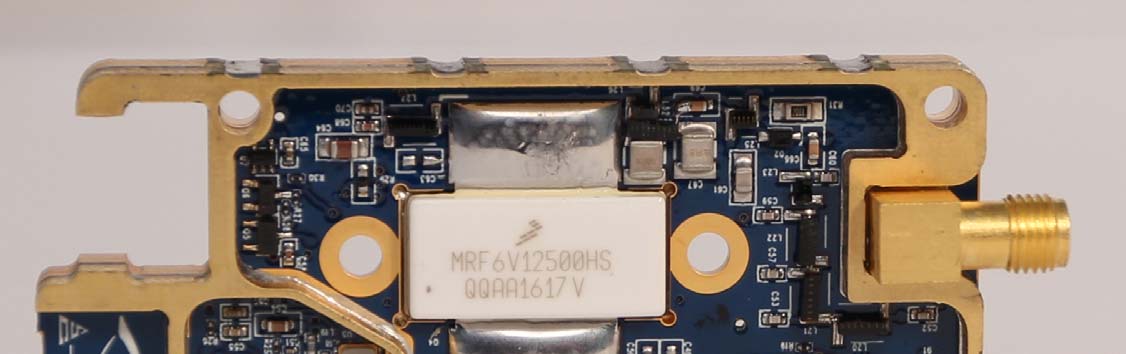

| Internal Photos | Internal Photos | 2017-05-04 | PDF 803.2 KB |

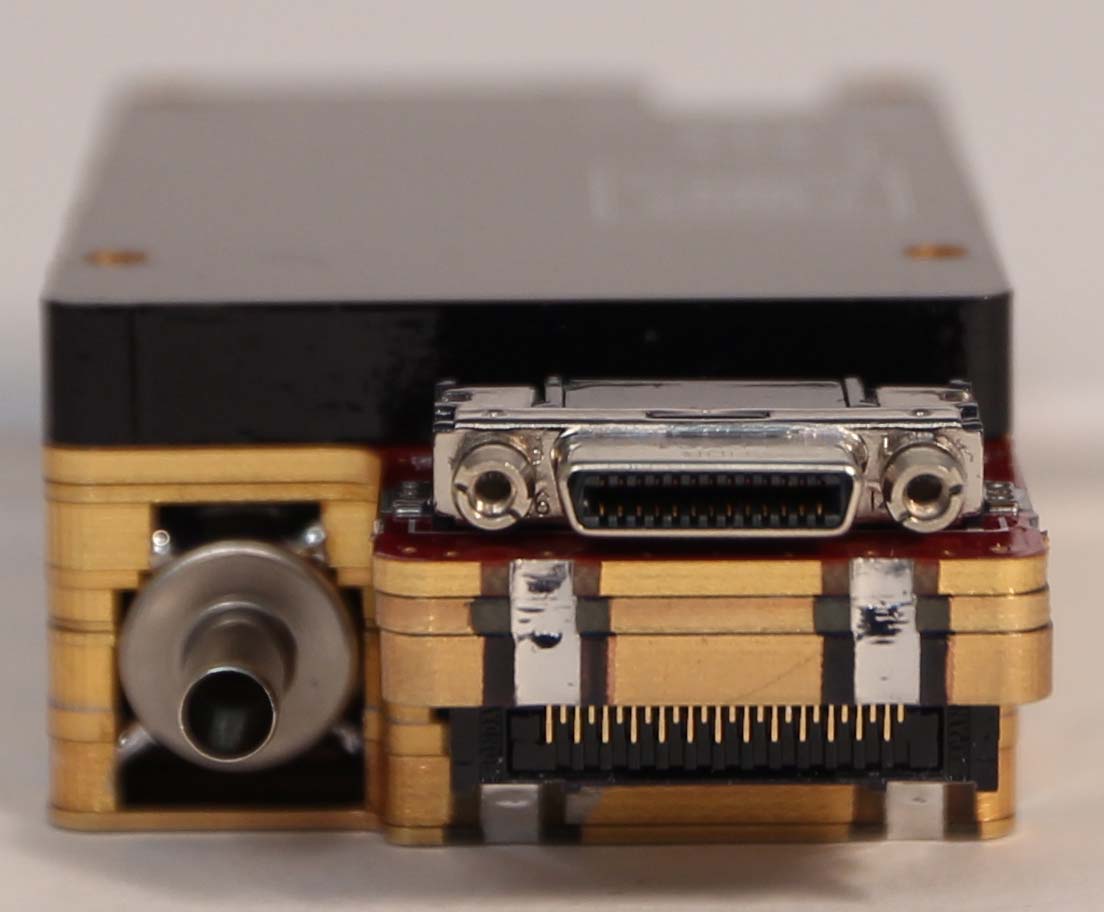

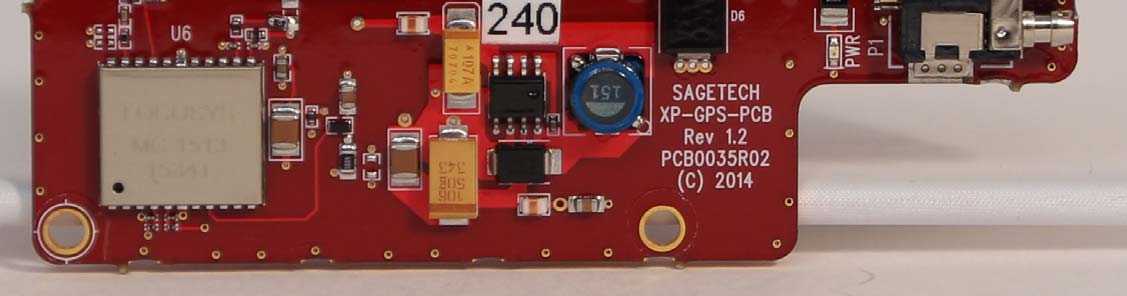

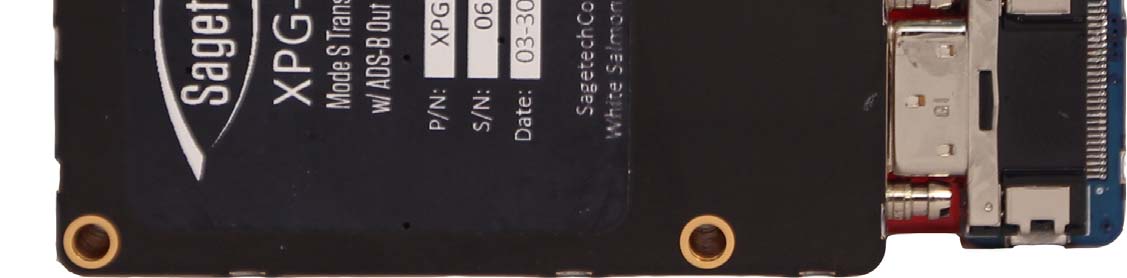

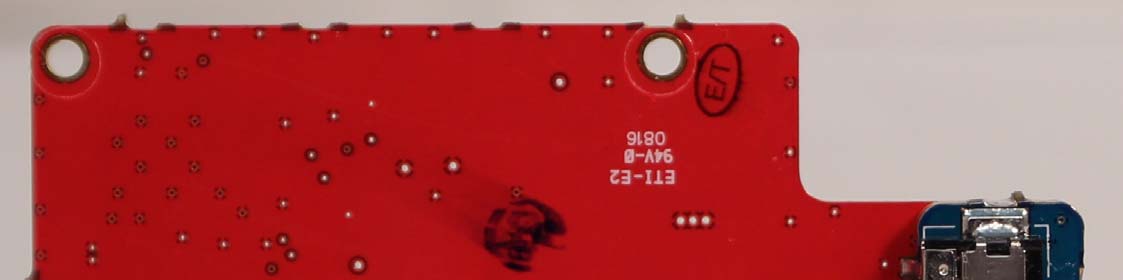

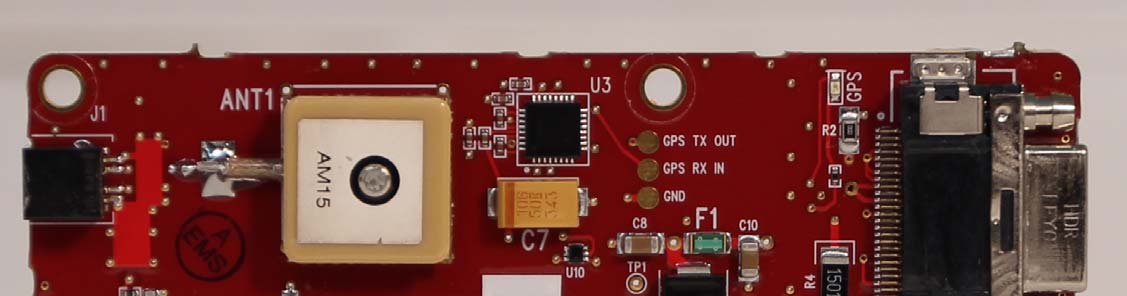

| External photos | External Photos | 2017-05-04 | PDF 390.7 KB |
| Label | ID Label/Location Info | 2017-05-04 | PDF 219.6 KB |
| Test Setup Photos | Test Setup Photos | 2017-05-04 | PDF 1.8 MB |
| Test Report | Test Report | 2017-05-04 | PDF 1.7 MB |
| Agents Letter | Cover Letter(s) | 2017-05-04 | PDF 20.5 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-05-04 | PDF 43.9 KB |
| FAA Notification Letter | Cover Letter(s) | 2017-05-04 | PDF 514.9 KB |
| FAA letter | Cover Letter(s) | 2017-05-04 | PDF 33.2 KB |
| RF Exposure Report | RF Exposure Info | 2017-05-04 | PDF 155.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 105.8 KB | |
| Schematics Metadata only | Schematics | PDF 154.4 KB | |
| Schemetics Metadata only | Schematics | PDF 153.8 KB | |
| Operating Description Metadata only | Operational Description | PDF 59.9 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 271.1 KB |
Application Information
| Application ID | cCFtF83fq3oqWGDnQ5JC6Q== |
|---|---|
| Final Action Date | 2017-05-04 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0006855134 |
| Model | XP-TR |
| Frequency Range | 1090 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Mode A/C/S Transponder |
| Responsible Party | David Day, Chief Compliance Officer, david.day@sagetech.com , 623-523-2848 |
| Test Firm | Larry Finn, Professional Testing (EMI), Inc., lfinn@ptitest.com  , 512-244-3371 |
| TCB Email | vkerai@tuvam.com  |
| TCB Scope | B3: Maritime & Aviation Radio Services equipment in 47 CFR parts 80 & 87 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The device and its antenna(s) must be installed to provide a separation distance of at least 20 cm from all persons. Installers and end-users must be provided with operating conditions for satisfying RF exposure compliance. |
