FCC ID YWTWF55724MX
WiFi Module
by Shenzhen Ogemray Technology Co.,Ltd
Grantee Code: YWT Product Code: WF55724MX
Latest application date: 2015-12-30
Device Images
FCC ID Device Details
| FCC ID | YWTWF55724MX |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | YWT |
| Product Code | WF55724MX |
| Applicant Business | Shenzhen Ogemray Technology Co.,Ltd 🇨🇳 |
| Related Domains |  ogemray.com  newbtl.com |
| Equipment Class | WiFi Module |
| Test Firm | BTL Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2015-12-30 |
| 2412-2462 MHz | Original Equipment | 2015-12-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-12-30 | PDF 593.8 KB |
| Internal Photos | Internal Photos | 2015-12-30 | PDF 244.6 KB |
| External Photos | External Photos | 2015-12-30 | PDF 210.6 KB |
| ID Label/Location Info | ID Label/Location Info | 2015-12-30 | PDF 63.4 KB |

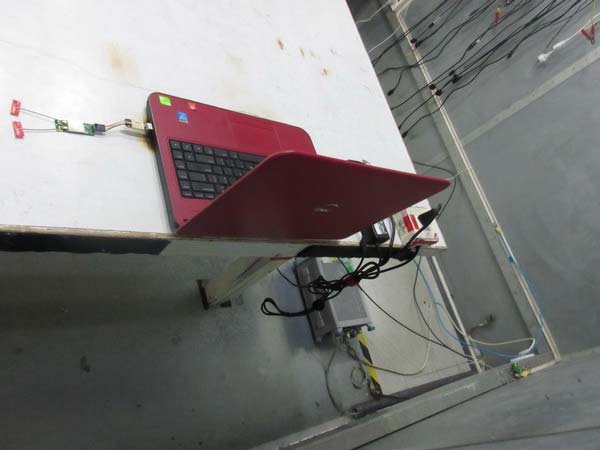

| Test Setup Photos | Test Setup Photos | 2015-12-30 | PDF 357.8 KB |
| Test Report | Test Report | 2015-12-30 | PDF 3.7 MB |
| Test Report | Test Report | 2015-12-30 | PDF 3.5 MB |
| Confidentiality | Cover Letter(s) | 2015-12-30 | PDF 259.5 KB |
| Declaration of authorization | Cover Letter(s) | 2015-12-30 | PDF 155.2 KB |
| Module Approval Request | Cover Letter(s) | 2015-12-30 | PDF 42.5 KB |
| RF Exposure Info | RF Exposure Info | 2015-12-30 | PDF 66.7 KB |
| RF Exposure Info | RF Exposure Info | 2015-12-30 | PDF 64.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 76.1 KB | |
| Schematics Metadata only | Schematics | PDF 62.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 40 KB | |
| SW security for UNII Metadata only | Operational Description | PDF 66.3 KB |
Application Information
| Application ID | iM/6Uvc3GP4W5J5IsmsfUA== |
|---|---|
| Final Action Date | 2015-12-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0020295762 |
| Model | WF55724MX |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WiFi Module |
| Responsible Party | Victor Zheng, General Manager, 29500201@ogemray.com , 0755-29500315 |
| Agent | Cathy Cathy Cathy, BTL Inc., cathy@newbtl.com , 86-769-83183000 |
| Technical Contact | Steven Lu, BTL Inc., steven@newbtl.com , 86-769-83183000 |
| Non-Technical Contact | Cathy Wang, BTL Inc., cathy@newbtl.com , 86-769-83183000 |
| Test Firm | Daisy Dai, BTL Inc., daisy.dai@btl.org.cn  , 008676983183000 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Modular Approval. Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions.OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes. |
