FCC ID Z5CWLR-755
WLAN Repeater
by Supra Foto Elektronik Vertriebs GmbH
Grantee Code: Z5C Product Code: WLR755
Latest application date: 2016-07-07
Device Images
FCC ID Device Details
| FCC ID | Z5CWLR-755 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | Z5C |
| Product Code | WLR755 |
| Applicant Business | Supra Foto Elektronik Vertriebs GmbH 🇩🇪 |
| Related Domains |  supra-elektronik.com  twn.tuv.com |
| Equipment Class | WLAN Repeater |
| Test Firm | TUV Rheinland Taiwan Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-07-07 |
| 2412-2462 MHz | Original Equipment | 2016-07-07 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-07-07 | PDF 3.5 MB |
| Internal Photos | Internal Photos | 2016-07-07 | PDF 1.1 MB |
| External photo | External Photos | 2016-07-07 | PDF 269.7 KB |
| label and location artwork | ID Label/Location Info | 2016-07-07 | PDF 92.3 KB |

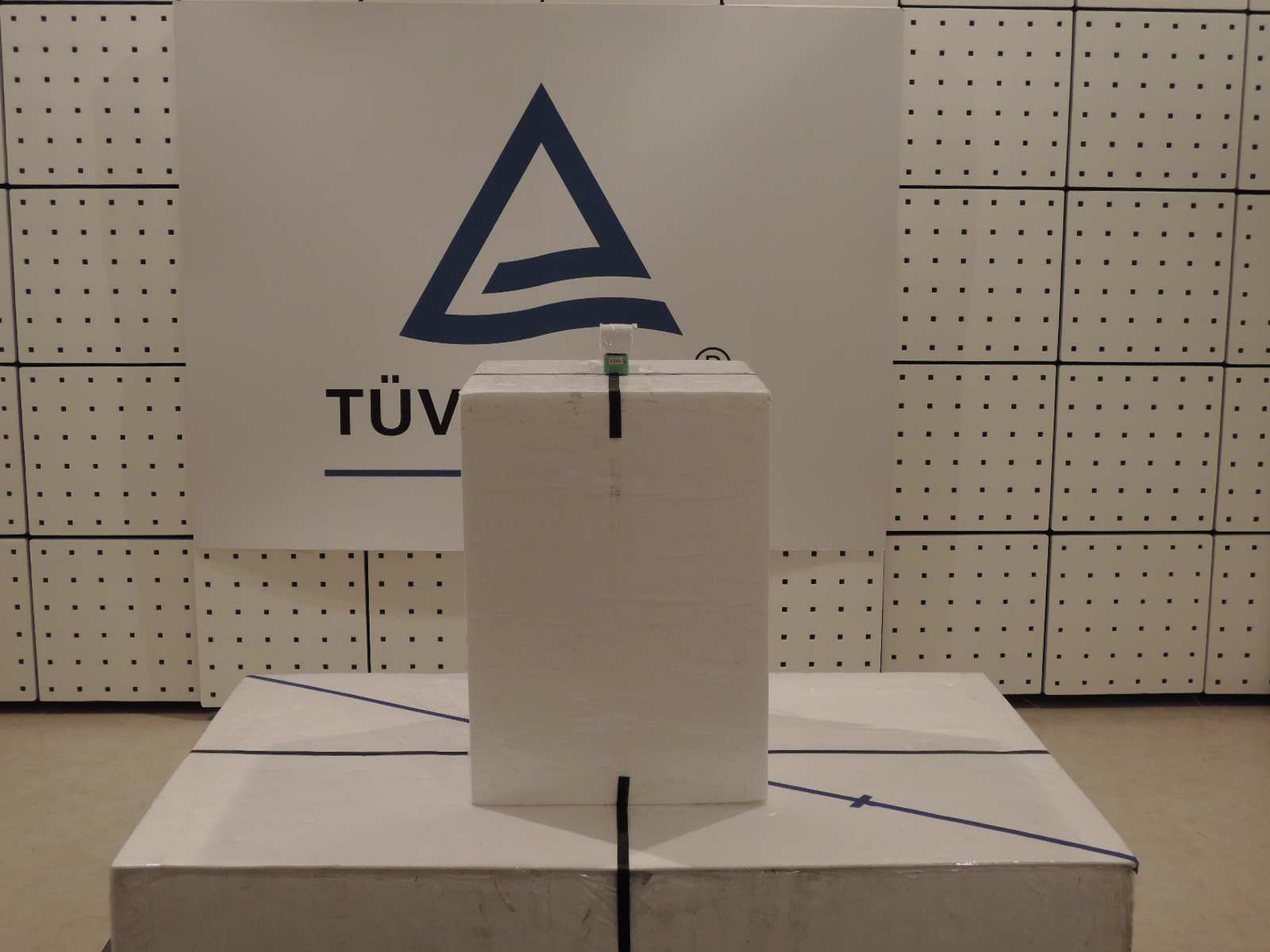

| Test Setup Photo | Test Setup Photos | 2016-07-07 | PDF 884.8 KB |

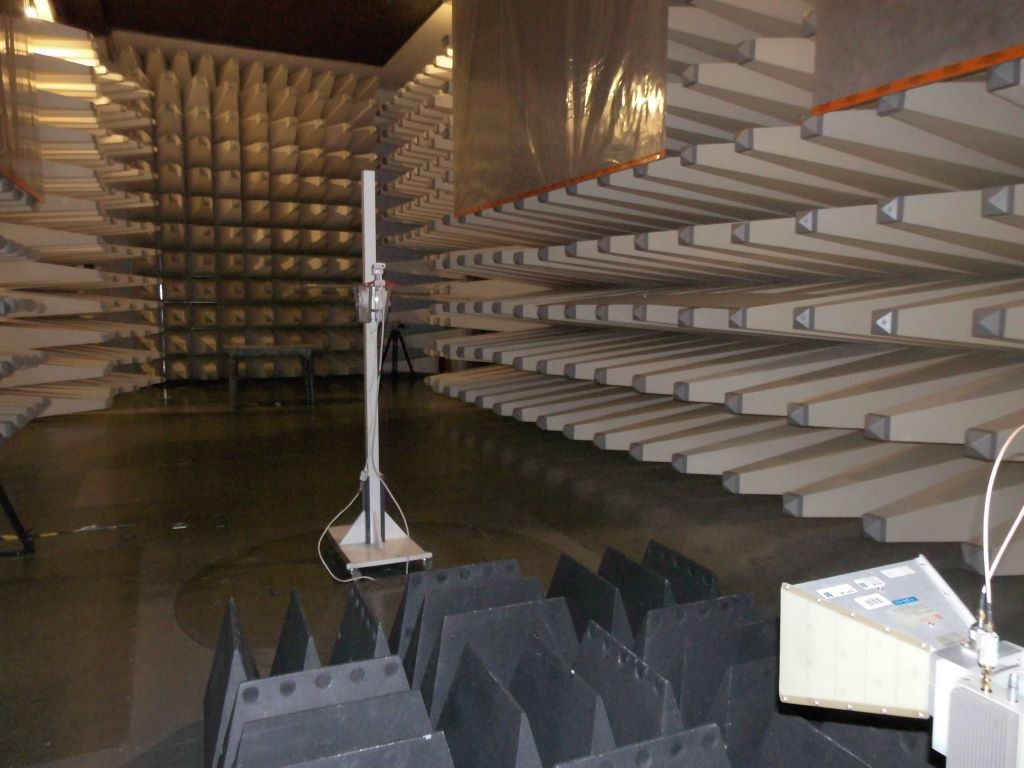

| test setup photo | Test Setup Photos | 2016-07-07 | PDF 692 KB |
| Test data | Test Report | 2016-07-07 | PDF 2.9 MB |
| Test data | Test Report | 2016-07-07 | PDF 1.9 MB |
| Test report | Test Report | 2016-07-07 | PDF 424.7 KB |
| Test report | Test Report | 2016-07-07 | PDF 2.7 MB |
| Letter of agency | Cover Letter(s) | 2016-07-07 | PDF 229.2 KB |
| confidentiality letter | Cover Letter(s) | 2016-07-07 | PDF 253.2 KB |
| RF exposure | RF Exposure Info | 2016-07-07 | PDF 44.1 KB |
| RF exposure info | RF Exposure Info | 2016-07-07 | PDF 44.1 KB |
| Block diagram Metadata only | Block Diagram | PDF 31.8 KB | |
| Schematics Metadata only | Schematics | PDF 221.5 KB | |
| Operation Description Metadata only | Operational Description | PDF 45.7 KB | |
| Software security description Metadata only | Operational Description | PDF 1.3 MB |
Application Information
| Application ID | xeaTgtfiJMbJ9irYBC2vBg== |
|---|---|
| Final Action Date | 2016-07-07 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0021212824 |
| Model | WLR-755 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WLAN Repeater |
| Responsible Party | Ralph Hennes, General Manager, rhennes@supra-elektronik.com , +4963135199 |
| Agent | Hugo Hugo Hugo, TUV Rheinland Hong Kong Ltd, hugo.wan@tuv.com  , 8522192100 |
| Technical Contact | Max Yao, TUV Rheinland Taiwan Ltd., mya@twn.tuv.com , 0221727200 |
| Non-Technical Contact | Max Yao, TUV Rheinland Taiwan Ltd., mya@twn.tuv.com , 0221727200 |
| Test Firm | Max Yao, TUV Rheinland Taiwan Ltd., mya@twn.tuv.com , 886221727000 |
| TCB Email | fcb@us.tuv.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. This device is restricted to indoor use only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| xeaTgtfiJMbJ9irYBC2vBg== | 2016-07-07 | Original Equipment |
| 9GAPzP1t4DNQsmLjRtcBgQ== | 2016-07-07 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application xeaTgtfiJMbJ9irYBC2vBg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV Rheinland of North America, Inc. 1279 Quarry Lane Suite A Pleasanton, CA 94566 |
Date of Grant: 07/07/2016 Application Dated: 07/07/2016 |
| Supra Foto Elektronik Vertriebs GmbH |
| Denisstr. 28a |
| Kaiserslautern, 67663 Germany |
| Attention: Ralph Hennes , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | Z5CWLR-755 |
| Name of Grantee: | Supra Foto Elektronik Vertriebs GmbH |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WLAN Repeater |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.35 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.36 |
| Power listed is conducted. This device is restricted to indoor use only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
