FCC ID Z8H89FT0029
cnPilot E501S Outdoor
by Cambium Networks Inc.
Grantee Code: Z8H Product Code: 89FT0029
Latest application date: 2017-08-17
Device Images
FCC ID Device Details
| FCC ID | Z8H89FT0029 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | Z8H |
| Product Code | 89FT0029 |
| Applicant Business | Cambium Networks Inc. 🇺🇸 |
| Related Domains |  cambiumnetworks.com |
| Equipment Class | cnPilot E501S Outdoor |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class III permissive change to software defined radio | 2017-08-17 |
| 2412-2462 MHz | Original Equipment | 2017-05-16 |
| 5180-5240 MHz | Original Equipment | 2017-05-16 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-05-16 | PDF 401.2 KB |
| Internal Photos | Internal Photos | 2017-05-16 | PDF 1.9 MB |

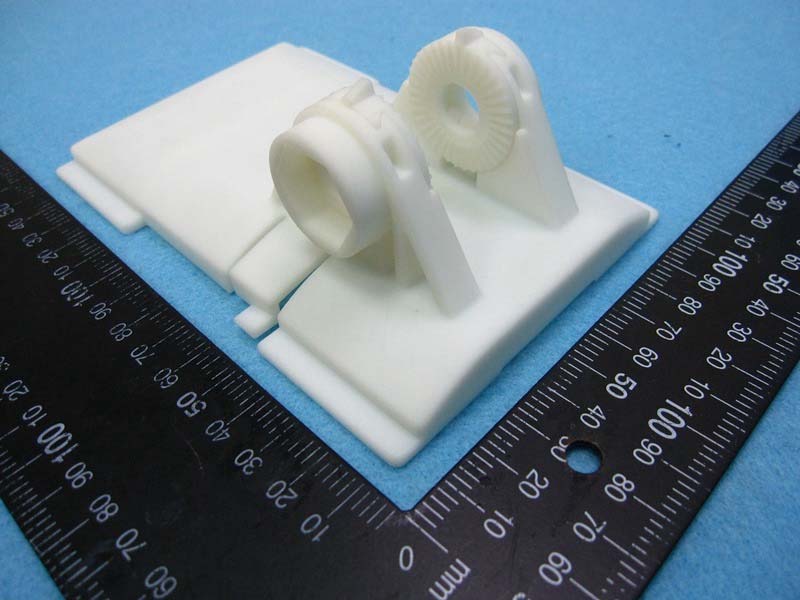

| External Photos | External Photos | 2017-05-16 | PDF 482.6 KB |
| Label & Location | ID Label/Location Info | 2017-05-16 | PDF 83.3 KB |
| Test Setup Photo | Test Setup Photos | 2017-08-17 | PDF 91.4 KB |
| Test Setup Photo DFS | Test Setup Photos | 2017-08-17 | PDF 97.7 KB |
| Test Setup Photos | Test Setup Photos | 2017-05-16 | PDF 215.5 KB |
| Test Report | Test Report | 2017-08-17 | PDF 2.2 MB |
| Test Report Metadata only | Test Report | 2017-08-17 | PDF 2.6 MB |
| Test Report DFS | Test Report | 2017-08-17 | PDF 1.6 MB |
| Test Report Revised | Test Report | 2017-08-17 | PDF 2.6 MB |
| MPE Test Report | RF Exposure Info | 2017-05-16 | PDF 173.3 KB |
| RF Test Report | Test Report | 2017-05-16 | PDF 1.8 MB |
| RF Test Report NII | Test Report | 2017-05-16 | PDF 2.4 MB |
| DoC Attestation Letter | Cover Letter(s) | 2017-05-16 | PDF 16.2 KB |
| Class III Permissive Change Letter | Cover Letter(s) | 2017-08-17 | PDF 40 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2017-08-17 | PDF 45.2 KB |
| POA | Cover Letter(s) | 2017-08-17 | PDF 40.1 KB |
| TPC Declaration Letter | Cover Letter(s) | 2017-08-17 | PDF 31.7 KB |
| Confidential Request Letter | Cover Letter(s) | 2017-05-16 | PDF 103.1 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2017-05-16 | PDF 103.1 KB |
| DoC Letter | Cover Letter(s) | 2017-05-16 | PDF 16.2 KB |
| POA | Cover Letter(s) | 2017-05-16 | PDF 15.6 KB |
| Professional Installation Declaration | Cover Letter(s) | 2017-05-16 | PDF 93.6 KB |
| MPE Report | RF Exposure Info | 2017-08-17 | PDF 327.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 106.9 KB | |
| Schematics Metadata only | Schematics | PDF 772.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 38.9 KB | |
| Operational Description Software Security Metadata only | SDR Software/Security Inf | PDF 100.8 KB | |
| Operational Description Software Security Metadata only | SDR Software/Security Inf | PDF 103.6 KB |
Application Information
| Application ID | q3rtNXIAt8bYXjR5ndfu+g== |
|---|---|
| Final Action Date | 2017-08-17 |
| Application Purpose | Class III permissive change to software defined radio |
| Applicant FRN | 0016216152 |
| Model | 89FT0029 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | cnPilot E501S Outdoor |
| Responsible Party | Steven M. Payne, R.F. Principle Staff Engineer, steve.payne@cambiumnetworks.com , 224-392-5930 |
| Test Firm | Sharon Jiang, SPORTON International Inc., sharonjiang@sporton.com.tw  , 886-3-656-9065 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | Yes |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
