FCC ID ZC8S321NETWORK
GNSS Survey Receiver
by Hemisphere GNSS Inc.
Grantee Code: ZC8 Product Code: S321NETWORK
Latest application date: 2016-01-26
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-01-26 |
| 2412-2462 MHz | Original Equipment | 2016-01-26 |
| 824.2-848.8 MHz | Original Equipment | 2016-01-26 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-01-26 | PDF 2.6 MB |

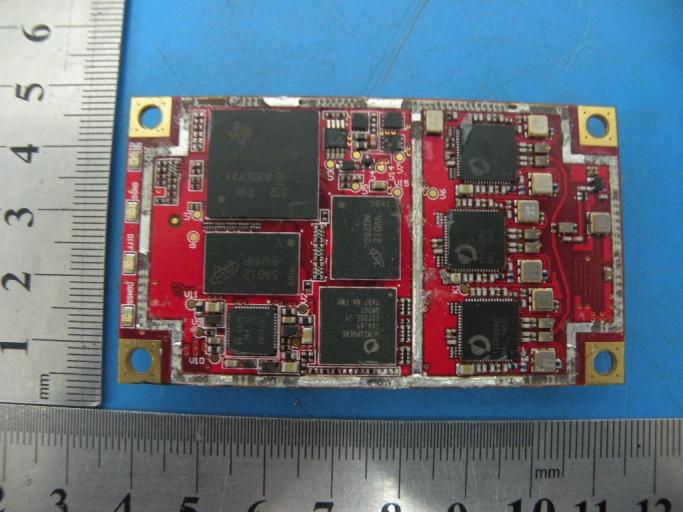

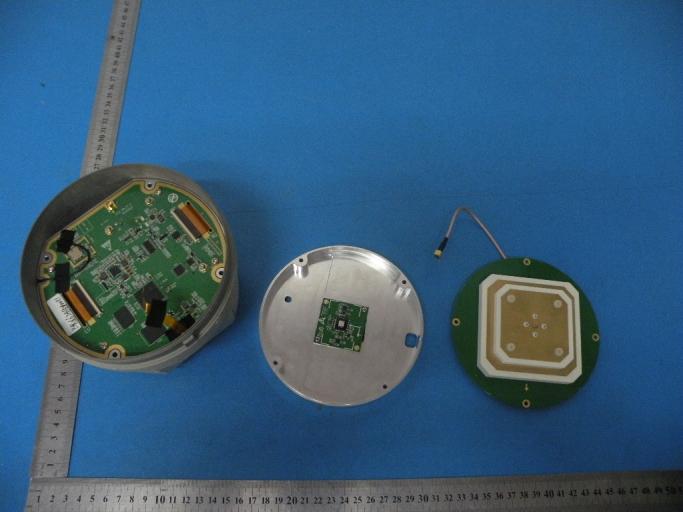

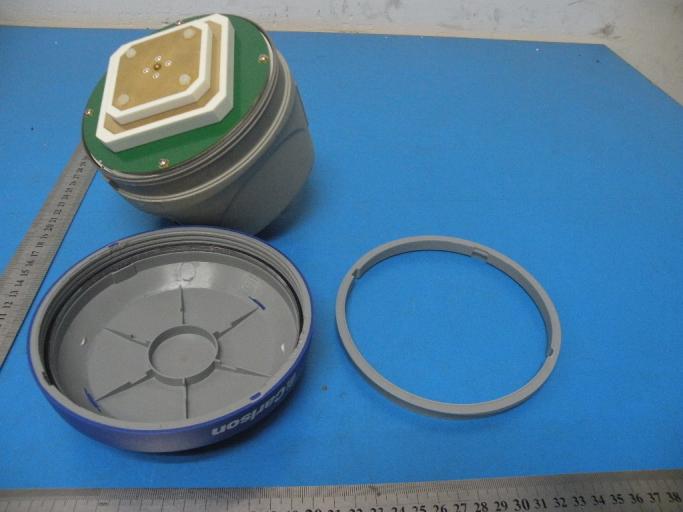

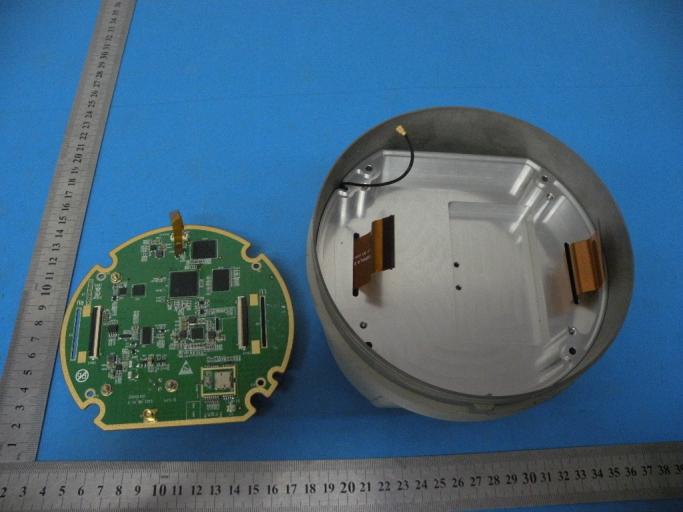

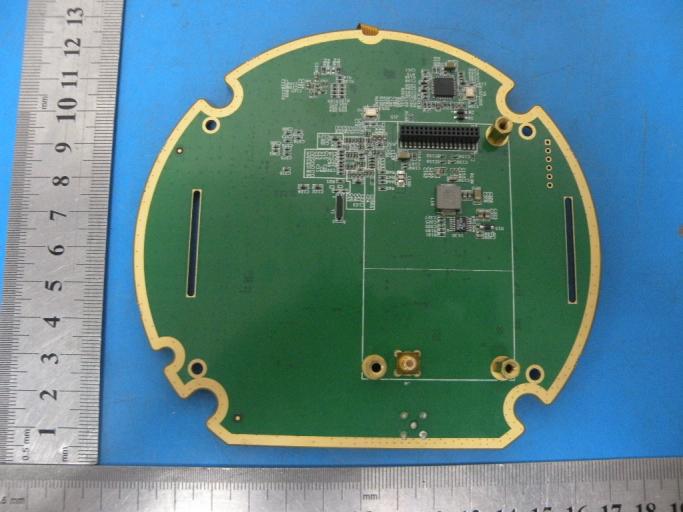

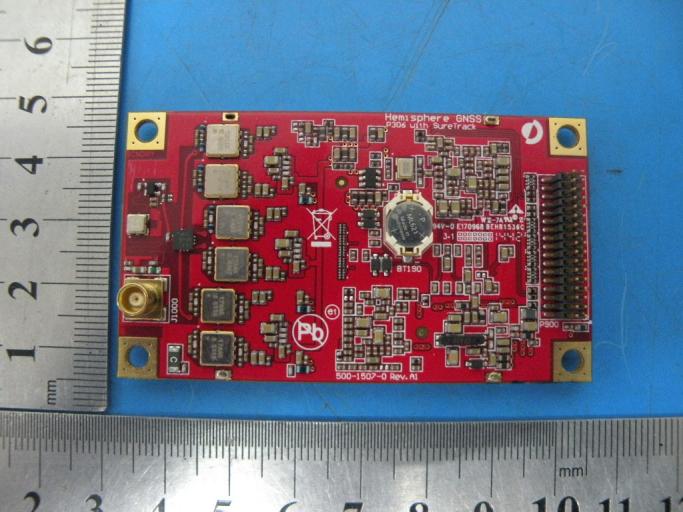

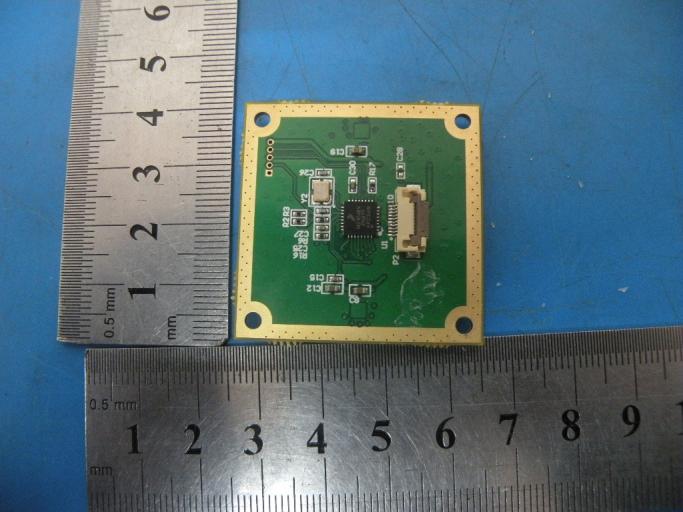

| Internal photos | Internal Photos | 2016-01-26 | PDF 1.3 MB |

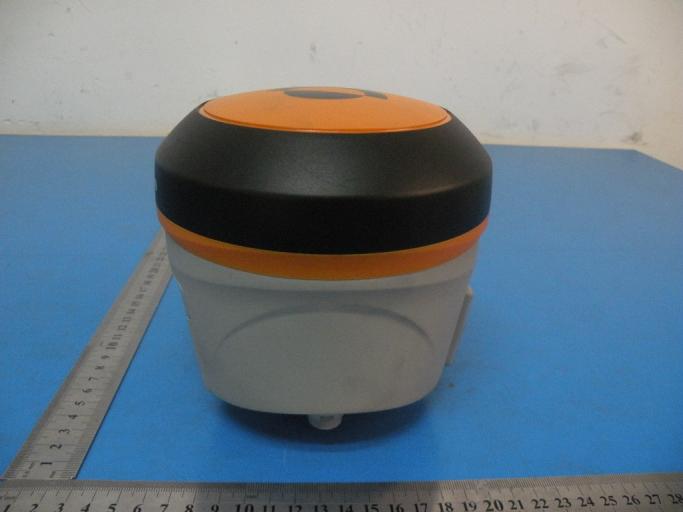

| External photos | External Photos | 2016-01-26 | PDF 115.4 KB |
| Label | ID Label/Location Info | 2016-01-26 | PDF 375.8 KB |
| Test setup | Test Setup Photos | 2016-01-26 | PDF 76.3 KB |
| Test report | Test Report | 2016-01-26 | PDF 3 MB |
| Test report | Test Report | 2016-01-26 | PDF 3.1 MB |
| Test report | Test Report | 2016-01-26 | PDF 1.2 MB |
| Cover letter | Cover Letter(s) | 2016-01-26 | PDF 201.2 KB |
| RF Exposure | RF Exposure Info | 2016-01-26 | PDF 23.8 KB |
| RF Exposure | RF Exposure Info | 2016-01-26 | PDF 41.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 211.5 KB | |
| Schematics Metadata only | Schematics | PDF 421.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 90.7 KB | |
| Tune up Metadata only | Parts List/Tune Up Info | PDF 31.4 KB |
Application Information
| Application ID | XfnHJDIWi++w37/0+qnu3A== |
|---|---|
| Final Action Date | 2016-01-26 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0020691101 |
| Model | S321NETWORK |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | GNSS Survey Receiver |
| Responsible Party | Brad P Badke, Vice President, Product Developement, bbadke@hgnss.com  , 1 480 348 6393 |
| Test Firm | Mark Zhu, Shenzhen Alpha Product Testing Co., Ltd., mark@a-lab.cn  , 86-755-86375552 |
| TCB Email | stuart.beck@nemko.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| XfnHJDIWi++w37/0+qnu3A== | 2016-01-26 | Original Equipment |
| J2vUwDAkipci14J+sN3z6A== | 2016-01-26 | Original Equipment |
| H5VxKmUhVyHgFDBFtgoklA== | 2016-01-26 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application XfnHJDIWi++w37/0+qnu3A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 01/26/2016 Application Dated: 01/26/2016 |
| Hemisphere GNSS Inc. |
| 8515 E. Anderson Drive |
| Scottsdale, AZ 85255 |
| Attention: Brad Badke , Vice President, Product Developement |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZC8S321NETWORK |
| Name of Grantee: | Hemisphere GNSS Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GNSS Survey Receiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00432 |
| Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application XfnHJDIWi++w37/0+qnu3A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Hemisphere GNSS Inc. 8515 E. Anderson Drive Scottsdale, AZ 85255 United States |
Date of Grant: 01/26/2016 Application Dated: 01/26/2016 |
| Attention: Brad Badke , Vice President, Product Developement |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZC8S321NETWORK |
| Name of Grantee: | Hemisphere GNSS Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GNSS Survey Receiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00432 |
| Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 01/26/2016 Application Dated: 01/26/2016 |
| Hemisphere GNSS Inc. |
| 8515 E. Anderson Drive |
| Scottsdale, AZ 85255 |
| Attention: Brad Badke , Vice President, Product Developement |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZC8S321NETWORK |
| Name of Grantee: | Hemisphere GNSS Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | GNSS Survey Receiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0543 |
| Power output listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application J2vUwDAkipci14J+sN3z6A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Hemisphere GNSS Inc. 8515 E. Anderson Drive Scottsdale, AZ 85255 United States |
Date of Grant: 01/26/2016 Application Dated: 01/26/2016 |
| Attention: Brad Badke , Vice President, Product Developement |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZC8S321NETWORK |
| Name of Grantee: | Hemisphere GNSS Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | GNSS Survey Receiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0543 |
| Power output listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 01/26/2016 Application Dated: 01/26/2016 |
| Hemisphere GNSS Inc. |
| 8515 E. Anderson Drive |
| Scottsdale, AZ 85255 |
| Attention: Brad Badke , Vice President, Product Developement |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZC8S321NETWORK |
| Name of Grantee: | Hemisphere GNSS Inc. |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | GNSS Survey Receiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.8147 | 0.02 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.1416 | 0.03 PM | 4M10F9W | |
| 24E | 1850.2 - 1909.8 | 0.4853 | 0.02 PM | 246KGXW | |
| 24E | 1852.4 - 1907.6 | 0.1358 | 0.02 PM | 4M14F9W |
| Power output listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application H5VxKmUhVyHgFDBFtgoklA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Hemisphere GNSS Inc. 8515 E. Anderson Drive Scottsdale, AZ 85255 United States |
Date of Grant: 01/26/2016 Application Dated: 01/26/2016 |
| Attention: Brad Badke , Vice President, Product Developement |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZC8S321NETWORK |
| Name of Grantee: | Hemisphere GNSS Inc. |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | GNSS Survey Receiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.8147 | 0.02 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.1416 | 0.03 PM | 4M10F9W | |
| 24E | 1850.2 - 1909.8 | 0.4853 | 0.02 PM | 246KGXW | |
| 24E | 1852.4 - 1907.6 | 0.1358 | 0.02 PM | 4M14F9W |
| Power output listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
