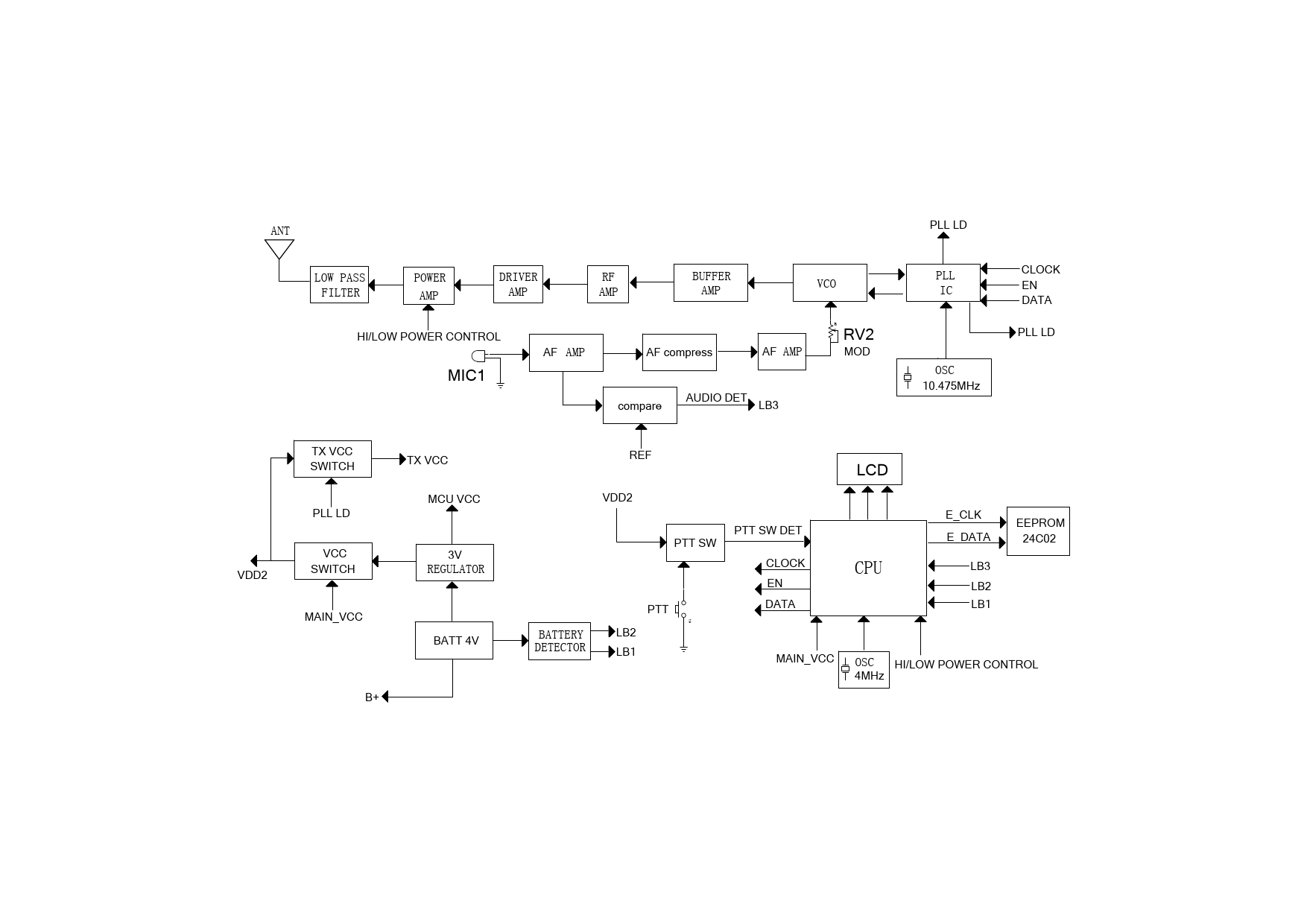

WS823T WIRELESS GUIDE TRANSMITTER Block Diagram - FCC ID ZF4WS823T

FCC ID ZF4WS823T

Block Diagram

WIRELESS GUIDE TRANSMITTER

by JUSTLISTEN TECHNOLOGY LIMITED

Document preview loads when visible.

Document Details

FCC IDZF4WS823T
Document ID1454214
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleTX_BLOCK
ApplicantJUSTLISTEN TECHNOLOGY LIMITED
Equipment ClassWIRELESS GUIDE TRANSMITTER
Product CodeWS823T
Application IDZTeCFi6JhisWKuky1E4PtA==
Application PurposeOriginal Equipment
Application Date2011-04-26
Frequency Range915.025-916.975 MHz
FRN0020752150
Test Firmemitel (Shenzhen) Limited
Certified ByStefano Doninelli Administrator
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2011-04-26
Available2011-04-26
Created2010-12-25
Modified2010-12-25
Pages1
File TypeAdobe Acrobat PDF
File Size52444
File SHA-256ab9bbedb75ffa660235a4b1a10180045d6c41e236f8a7455550deeca2bba7be5
PDF Metadata AuthorAdministrator
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 8.0.0 (Windows)
FCC.gov SourcesFCC.gov 1454214
