S100 S100 Wireless SOS Health Bracelet Schematics - FCC ID ZIHS100

FCC ID ZIHS100

Schematics

S100 Wireless SOS Health Bracelet

by Tech Vision Electronics Ltd.

Document preview loads when visible.

Document Details

FCC IDZIHS100
Document ID1484549
Document TypeSchematics
DescriptionSchematics

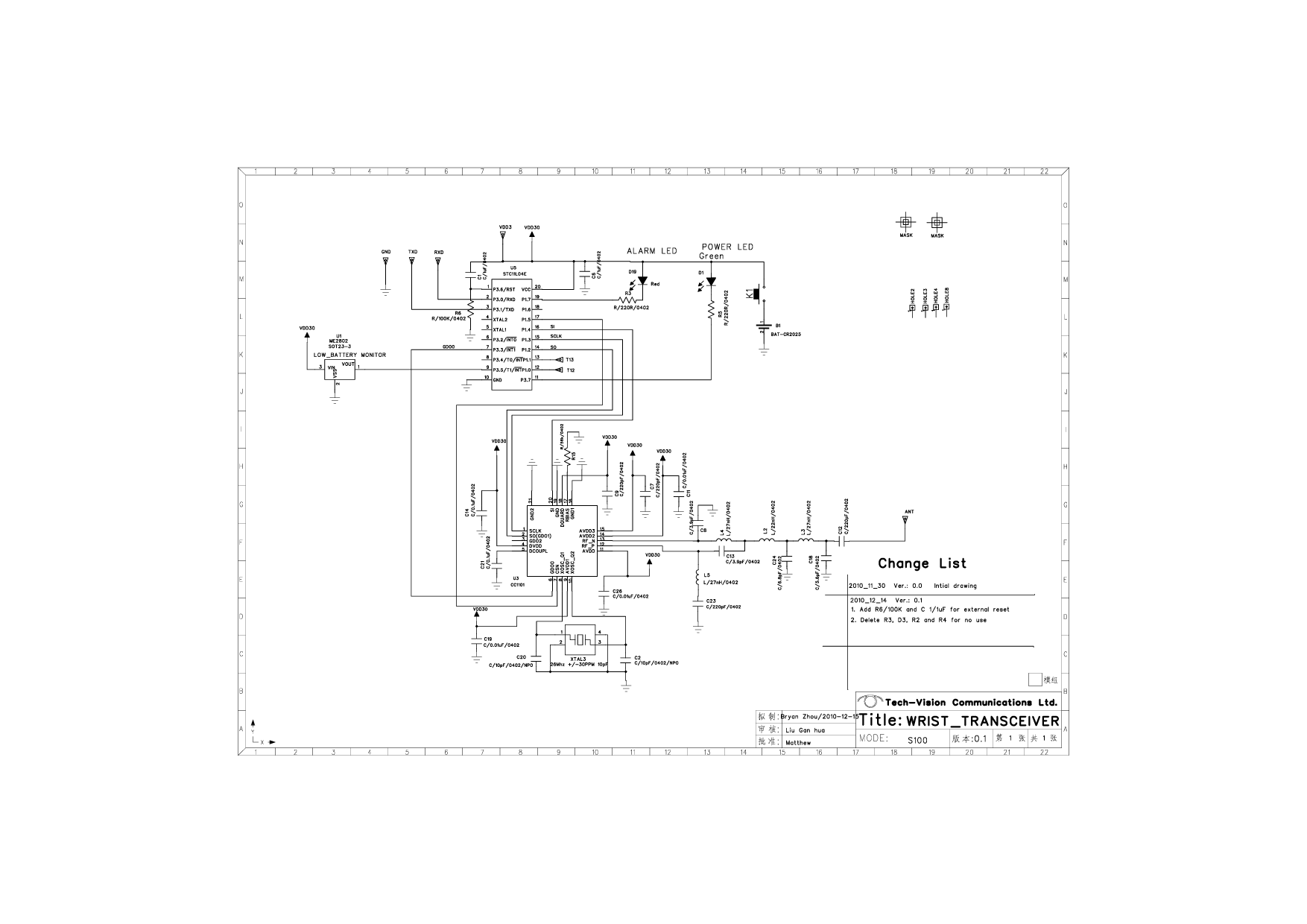

Document TitleS100_SOS_RF_V2
ApplicantTech Vision Electronics Ltd.
Equipment ClassS100 Wireless SOS Health Bracelet
Product CodeS100
Application IDu/hgylXRrhsuLgIsVPJ7sg==
Application PurposeOriginal Equipment
Application Date2011-06-16
Frequency Range433.91 MHz
FRN0020816187
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByHu Yin Zhang
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2011-06-16
Available2011-06-16
Created2011-01-13
Modified2011-06-02
Pages1
File TypeAdobe Acrobat PDF
File Size89842
File SHA-25638bbf10ce8abcc5b0bca475dcc4b485aa8f74e3166db007cab71df5617dd08a9
PDF Metadata AuthorAdministrator
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows)
FCC.gov SourcesFCC.gov 1484549
