9051327MT R/C Boat Schematics - FCC ID ZJR90513-27MT

FCC ID ZJR90513-27MT

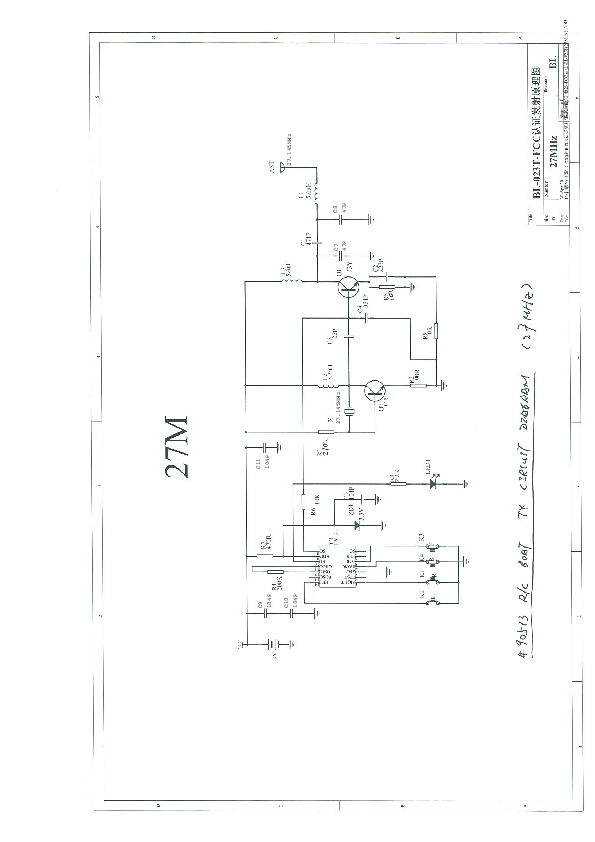

Circuit Diagram

R/C Boat

by MAGIC TIME INTERNATIONAL LIMITED.

Document preview loads when visible.

Document Details

FCC IDZJR90513-27MT
Document ID2308369
Document TypeSchematics
DescriptionCircuit Diagram
ApplicantMAGIC TIME INTERNATIONAL LIMITED.
Equipment ClassR/C Boat
Product Code9051327MT
Application ID1RNG8fCN84UYdaE7lxmeLQ==
Application PurposeOriginal Equipment
Application Date2014-06-27
Frequency Range27.145 MHz
FRN0020844858
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-06-27
Available2014-06-27
Created2014-06-24
Modified2014-06-24
Pages1
File TypeAdobe Acrobat PDF
File Size276347
File SHA-25681a831ecdfc8f1dc40e3d3d32af795717df2ff919e9afc937d77ca12114aec06
PDF Metadata ProducerAdobe Acrobat 8.0 Image Conversion Plug-in Adobe Acrobat 8.0
FCC.gov SourcesFCC.gov 2308369
