FCC ID ZKQ-PLW
WCDMA Tracker
by Micron Electronics LLC.
Grantee Code: ZKQ Product Code: PLW
Latest application date: 2016-04-14
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2016-04-14 |
| 2412-2462 MHz | Original Equipment | 2016-04-14 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-04-14 | PDF 282.2 KB |
| Users manual | Users Manual | 2016-04-14 | PDF 282.2 KB |

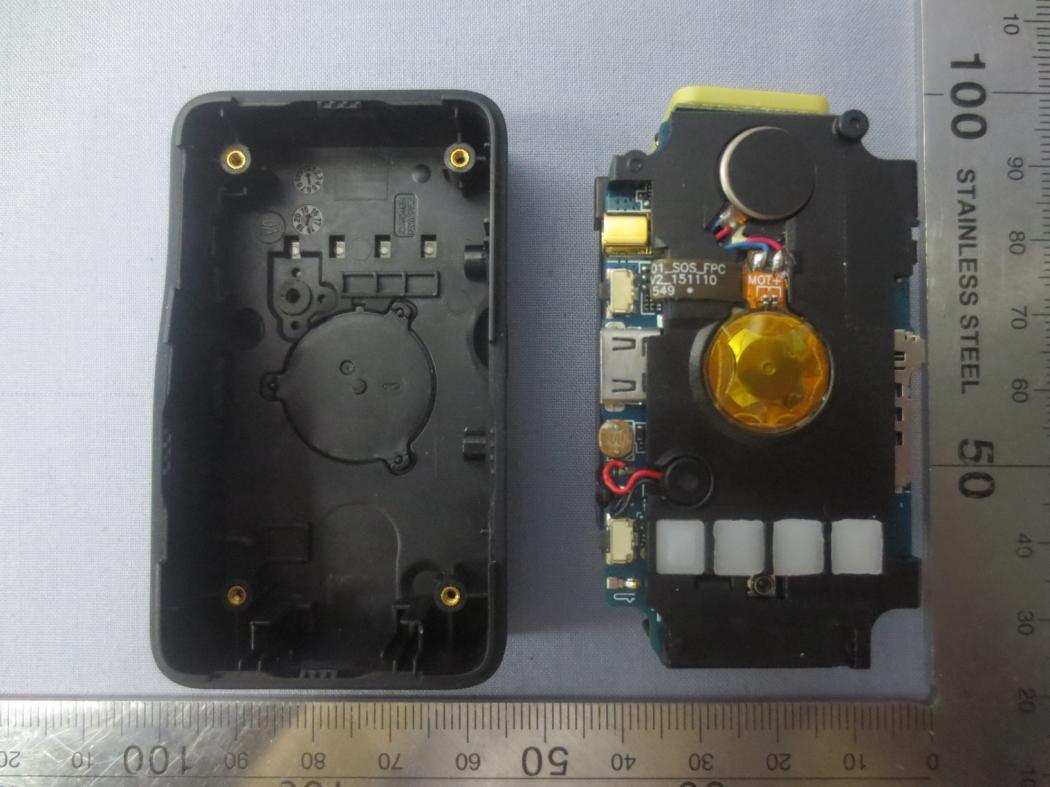

| Internal Photos | Internal Photos | 2016-04-14 | PDF 843.3 KB |

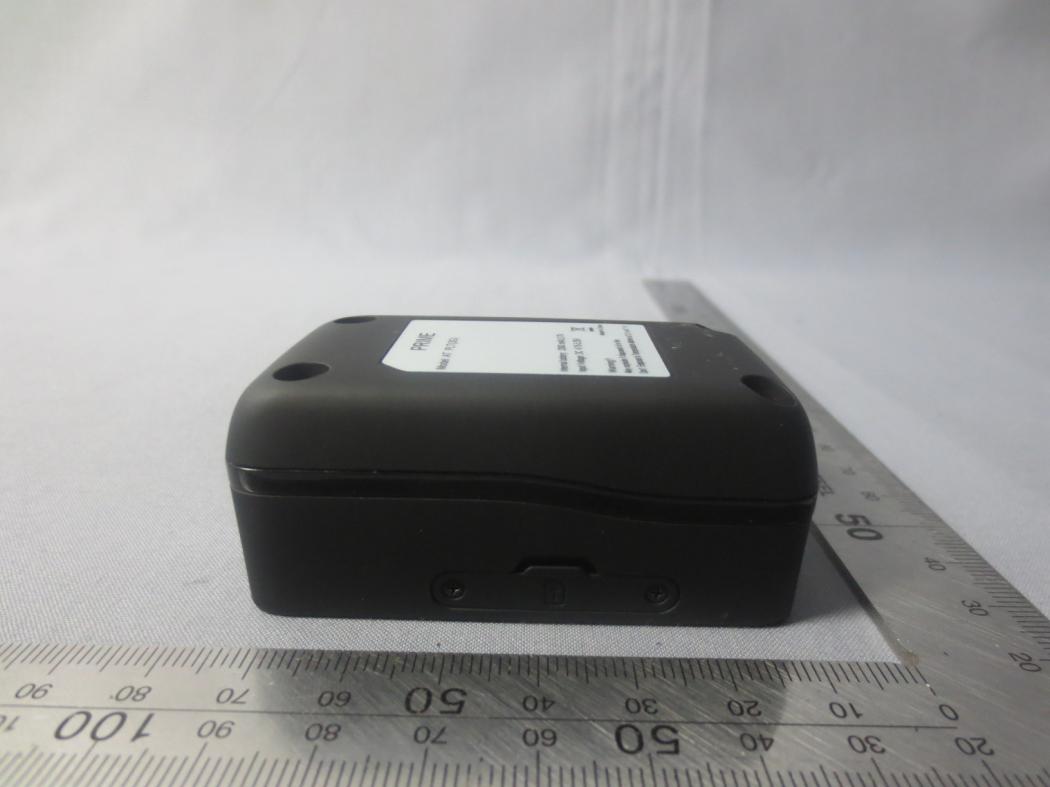

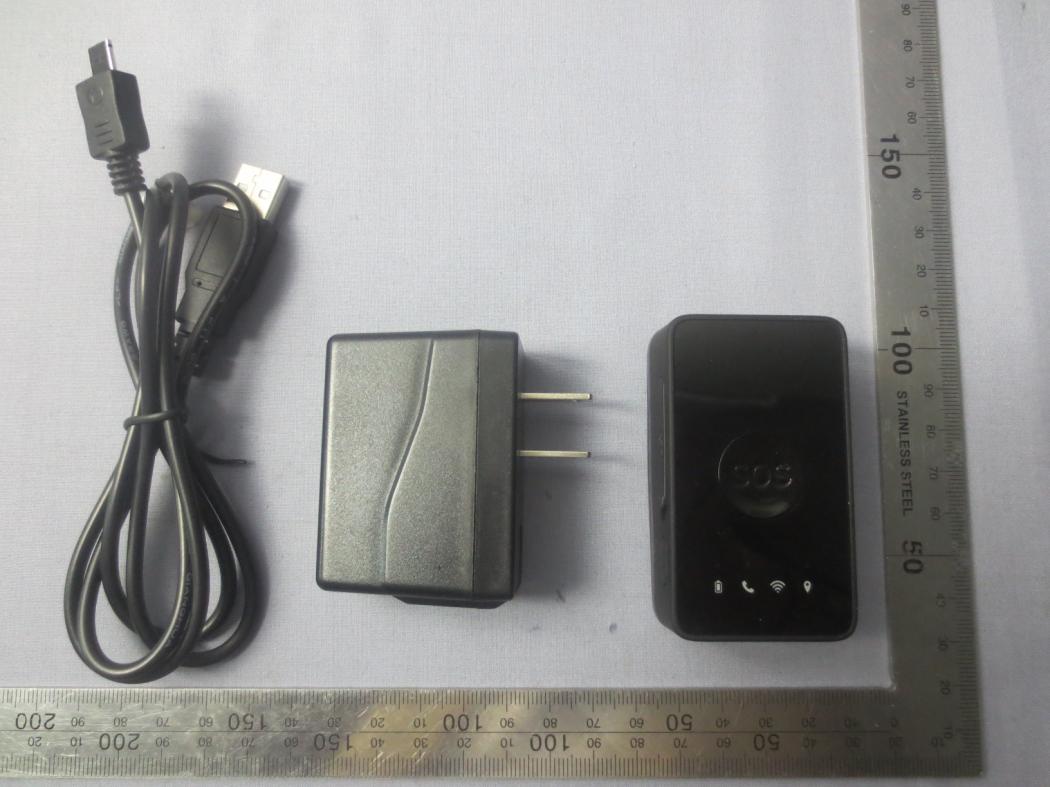

| External Photos | External Photos | 2016-04-14 | PDF 457.5 KB |
| Label and label Location | ID Label/Location Info | 2016-04-14 | PDF 30.5 KB |
| Label and label location | ID Label/Location Info | 2016-04-14 | PDF 30.5 KB |

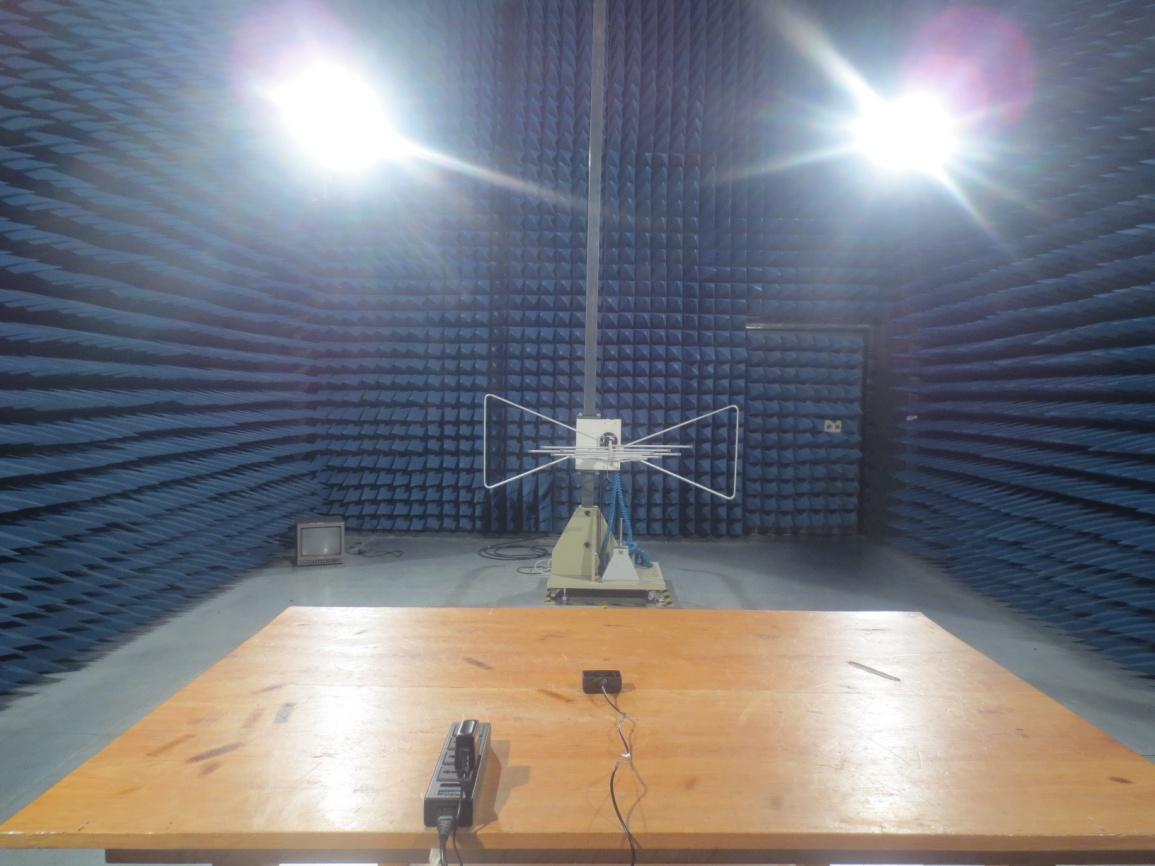

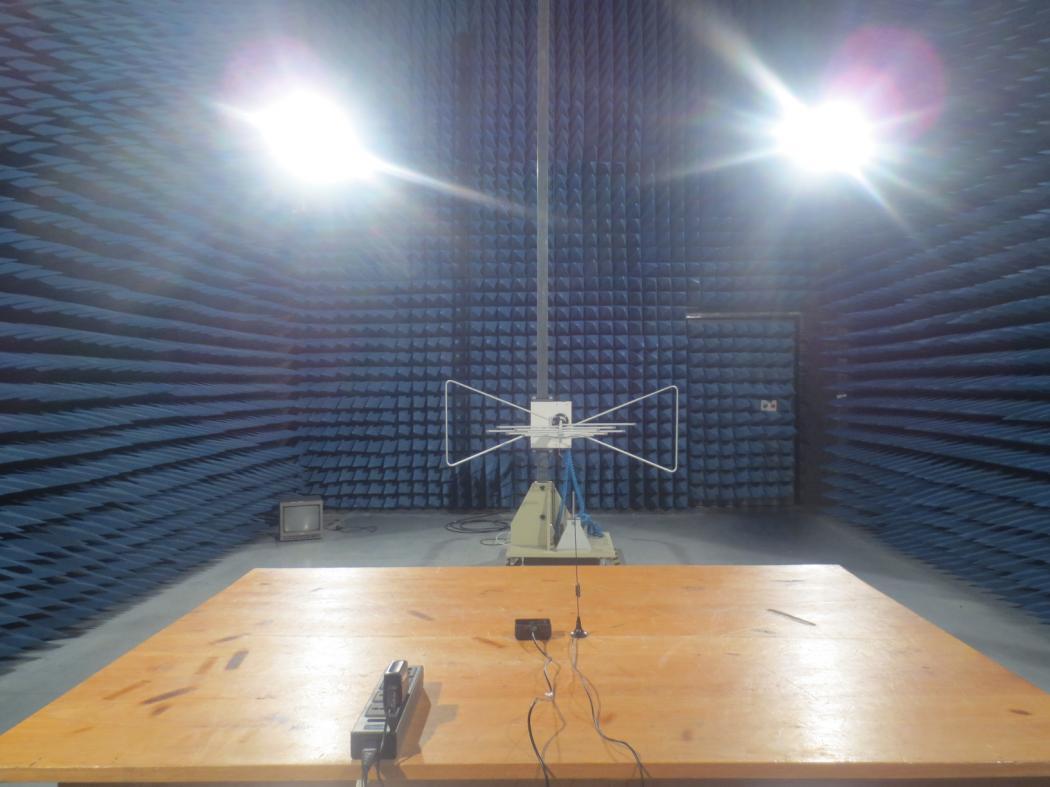

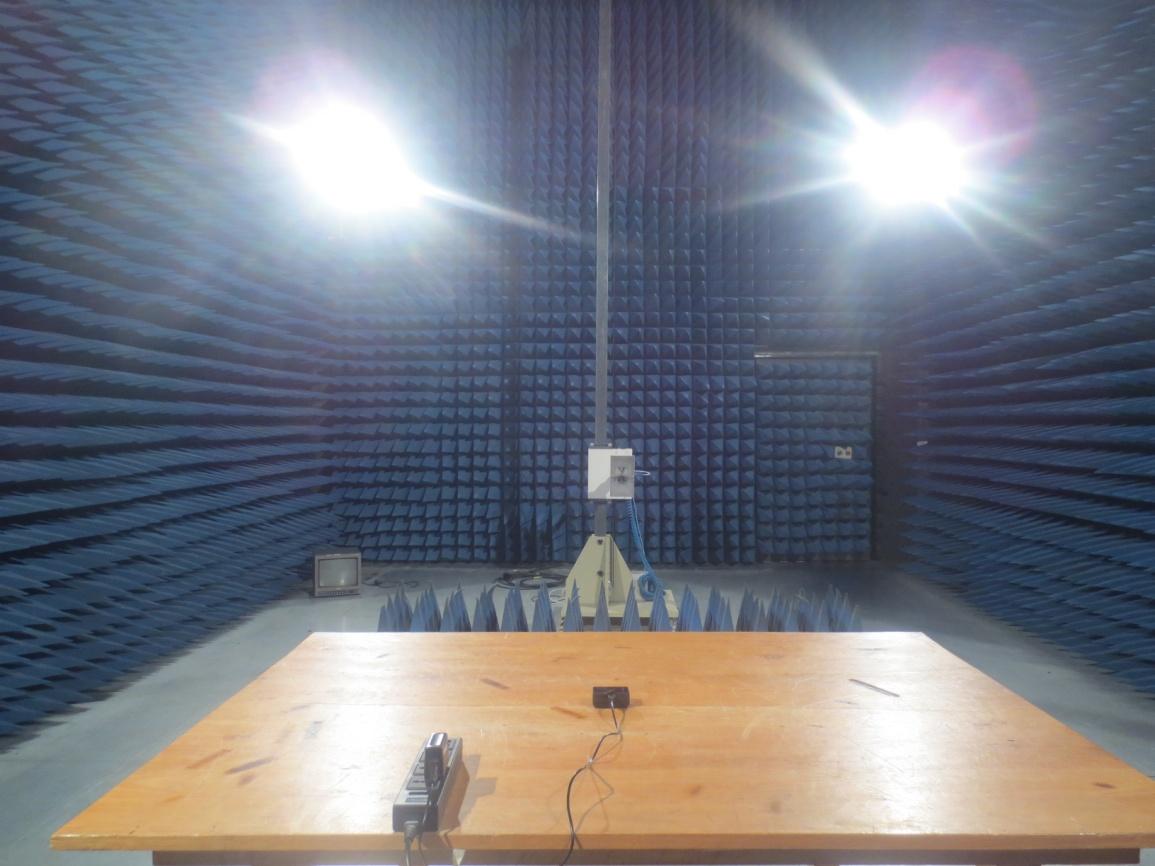

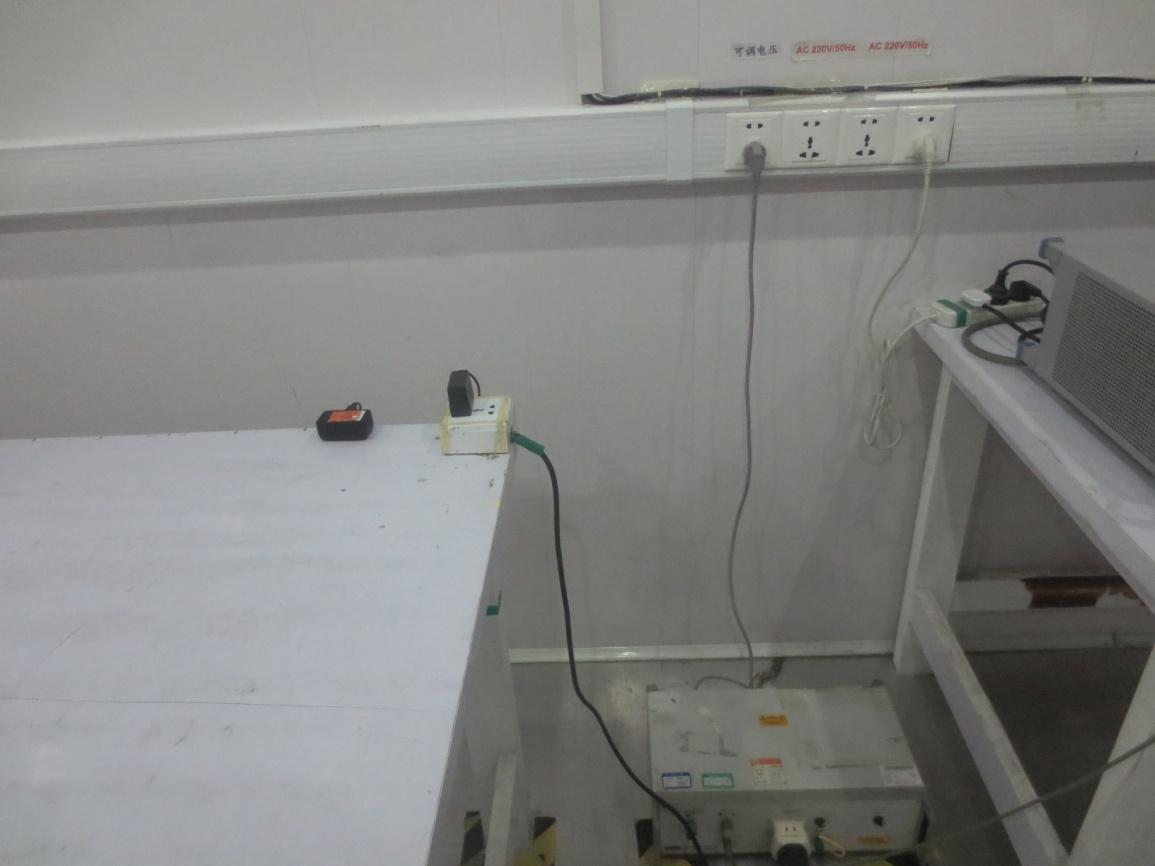

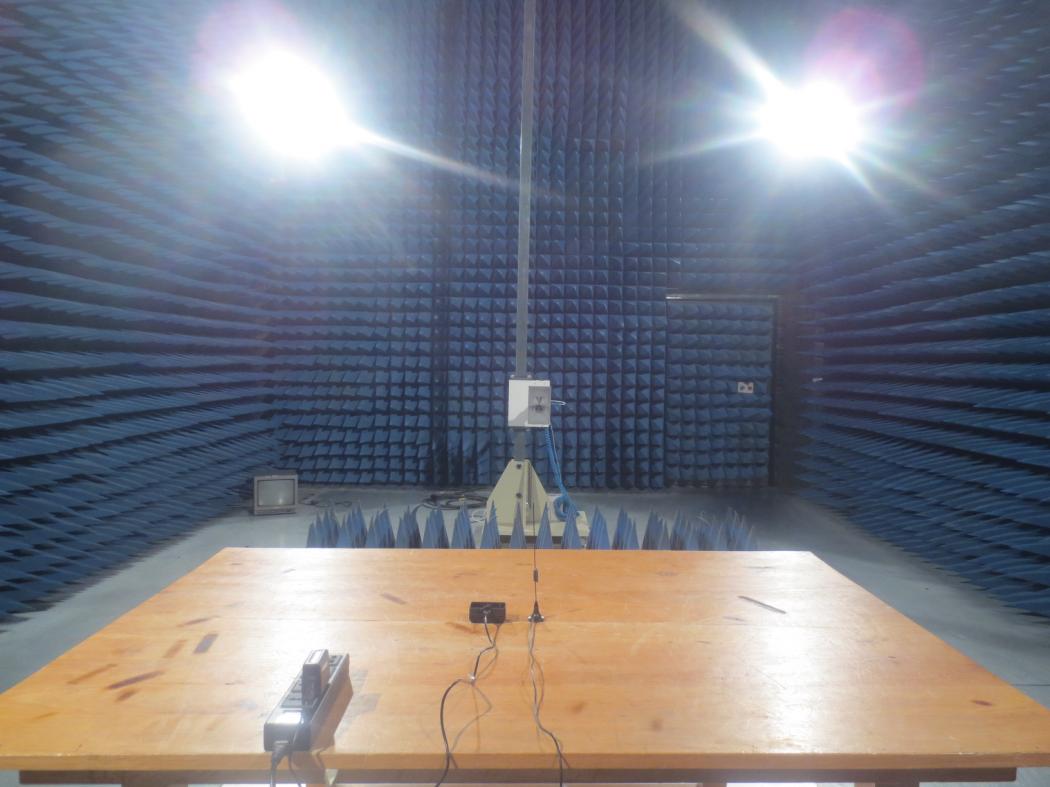

| Test Setup Photos | Test Setup Photos | 2016-04-14 | PDF 192.1 KB |
| Test Setup Photos | Test Setup Photos | 2016-04-14 | PDF 280.8 KB |
| Test report | Test Report | 2016-04-14 | PDF 4.2 MB |
| Test report | Test Report | 2016-04-14 | PDF 1.3 MB |
| Cover letters | Cover Letter(s) | 2016-04-14 | PDF 45.1 KB |
| RF Exposure info | RF Exposure Info | 2016-04-14 | PDF 3.6 MB |
| Block Diagram Metadata only | Block Diagram | PDF 85.4 KB | |
| Schematics Metadata only | Schematics | PDF 433.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 56.1 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 413 KB | |
| Parts list Metadata only | Parts List/Tune Up Info | PDF 413 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 97.3 KB | |
| tune up info Metadata only | Parts List/Tune Up Info | PDF 97.3 KB |
Application Information
| Application ID | rSWj++kzk5c2WSOosod0+A== |
|---|---|
| Final Action Date | 2016-04-14 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0020840385 |
| Model | PLW |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCT - PCS Licensed Transmitter worn on body |
| Device Description | WCDMA Tracker |
| Responsible Party | Ping Cheng, Director, pcheng@simcom.us  , 888-538-3489 |
| Test Firm | Bruce Zhang, Shenzhen Zhongjian Nanfang Testing Co.,Ltd, bruce.zhang@ccis-cb.com  , 86-755-23118282 |
| TCB Email | Stuart.Beck@nemko.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is ERP for part 22 and EIRP for part 24. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn accessory and simultaneous transmission exposure conditions are 1.234W/kg and 1.37 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| rSWj++kzk5c2WSOosod0+A== | 2016-04-14 | Original Equipment |
| X/Ma44fC58pE6g+eSKZ5Ug== | 2016-04-14 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application X/Ma44fC58pE6g+eSKZ5Ug==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 04/14/2016 Application Dated: 04/14/2016 |
| Micron Electronics LLC. |
| 1001 Yamato Road |
| Suite 400 |
| Boca Raton, FL 33431 |
| Attention: Ping Cheng , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZKQ-PLW |
| Name of Grantee: | Micron Electronics LLC. |
| Equipment Class: | Digital Transmission System |
| Notes: | WCDMA Tracker |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0334 | |||
| 15C | 2422.0 - 2452.0 | 0.0326 |
| Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn accessory and simultaneous transmission exposure conditions are 1.234W/kg and 1.37 W/kg, respectively |
EAS Grant - Application X/Ma44fC58pE6g+eSKZ5Ug==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Micron Electronics LLC. 1001 Yamato Road Suite 400 Boca Raton, FL 33431 United States |
Date of Grant: 04/14/2016 Application Dated: 04/14/2016 |
| Attention: Ping Cheng , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZKQ-PLW |
| Name of Grantee: | Micron Electronics LLC. |
| Equipment Class: | Digital Transmission System |
| Notes: | WCDMA Tracker |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0334 | |||
| 15C | 2422.0 - 2452.0 | 0.0326 |
| Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn accessory and simultaneous transmission exposure conditions are 1.234W/kg and 1.37 W/kg, respectively |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 04/14/2016 Application Dated: 04/14/2016 |
| Micron Electronics LLC. |
| 1001 Yamato Road |
| Suite 400 |
| Boca Raton, FL 33431 |
| Attention: Ping Cheng , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZKQ-PLW |
| Name of Grantee: | Micron Electronics LLC. |
| Equipment Class: | PCS Licensed Transmitter worn on body |
| Notes: | WCDMA Tracker |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.39 | 0.211571 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.334 | 0.190055 PM | 4M16F9W | |
| 24E | 1850.2 - 1909.8 | 0.7907 | 0.081915 PM | 252KGXW | |
| 24E | 1852.4 - 1907.6 | 0.3112 | 0.088298 PM | 4M18F9W |
| Power listed is ERP for part 22 and EIRP for part 24. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn accessory and simultaneous transmission exposure conditions are 1.234W/kg and 1.37 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
EAS Grant - Application rSWj++kzk5c2WSOosod0+A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Micron Electronics LLC. 1001 Yamato Road Suite 400 Boca Raton, FL 33431 United States |
Date of Grant: 04/14/2016 Application Dated: 04/14/2016 |
| Attention: Ping Cheng , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZKQ-PLW |
| Name of Grantee: | Micron Electronics LLC. |
| Equipment Class: | PCS Licensed Transmitter worn on body |
| Notes: | WCDMA Tracker |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.39 | 0.211571 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.334 | 0.190055 PM | 4M16F9W | |
| 24E | 1850.2 - 1909.8 | 0.7907 | 0.081915 PM | 252KGXW | |
| 24E | 1852.4 - 1907.6 | 0.3112 | 0.088298 PM | 4M18F9W |
| Power listed is ERP for part 22 and EIRP for part 24. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn accessory and simultaneous transmission exposure conditions are 1.234W/kg and 1.37 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
| Mail To: |
