FCC ID ZNFK500K
Multi-band GSM/EDGE/WCDMA/LTE Phone with WLAN and Bluetooth
by LG Electronics USA, Inc.
Grantee Code: ZNF Product Code: K500K
Latest application date: 2016-04-06
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-04-06 |
| 824.2-848.8 MHz | Original Equipment | 2016-04-06 |
| 2402-2480 MHz | Original Equipment | 2016-04-06 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-06-16 | PDF 5.4 MB |
| Internal Photographs | Internal Photos | 2016-06-16 | PDF 1.2 MB |
| External Photographs | External Photos | 2016-06-16 | PDF 421.3 KB |

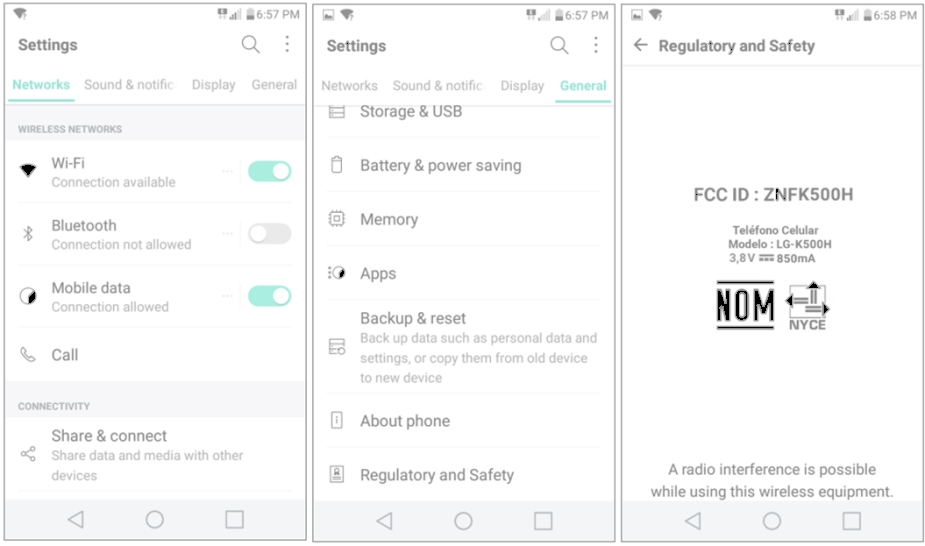

| FCC ID Label and Location | ID Label/Location Info | 2016-04-06 | PDF 302.8 KB |
| SAR Test Setup Photographs | Test Setup Photos | 2016-06-16 | PDF 632.6 KB |
| Test Setup Photographs | Test Setup Photos | 2016-06-16 | PDF 1.4 MB |
| Test Setup Photographs | Test Setup Photos | 2016-06-16 | PDF 1,012.7 KB |
| Test Setup Photographs | Test Setup Photos | 2016-06-16 | PDF 254.7 KB |
| Bluetooth LE Test Report | Test Report | 2016-04-06 | PDF 2.5 MB |
| Test Report | Test Report | 2016-04-06 | PDF 3.3 MB |
| Test Report | Test Report | 2016-04-06 | PDF 694.7 KB |
| Test Report | Test Report | 2016-04-06 | PDF 3.8 MB |
| Test_Report_LTE5 | Test Report | 2016-04-06 | PDF 2.5 MB |
| WLAN Test Report | Test Report | 2016-04-06 | PDF 3.9 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-04-06 | PDF 247 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-04-06 | PDF 190.4 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-04-06 | PDF 304.3 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-04-06 | PDF 192.6 KB |
| RF Exposure Info | RF Exposure Info | 2016-04-06 | PDF 3.9 MB |
| Block Diagram Metadata only | Block Diagram | PDF 696.1 KB | |
| Schematics Metadata only | Schematics | PDF 1.6 MB | |
| Antenna Separation Distance Metadata only | Operational Description | PDF 210.6 KB | |
| Antenna Specs Metadata only | Operational Description | PDF 3.1 MB | |
| Operational Description Metadata only | Operational Description | PDF 3.2 MB | |
| Operational Description Metadata only | Operational Description | PDF 5 MB | |
| Parts List and Tune-Up Procedure Metadata only | Parts List/Tune Up Info | PDF 1.3 MB |
Application Information
| Application ID | w+dxmeUP4Lu3XJSkNI4ntA== |
|---|---|
| Final Action Date | 2016-04-06 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0020917688 |
| Model | K500K |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Multi-band GSM/EDGE/WCDMA/LTE Phone with WLAN and Bluetooth |
| Responsible Party | Sung Soo Kim, Director, Regulatory and Environmental Affairs, sungsoo.kim@lge.com  , 201-266-2215 |
| Technical Contact | Randy Ortanez, PCTEST Engineering Laboratory, Inc., tcb@pctestlab.com  , 410-290-6652 |
| Test Firm | Lee Yoon-Jung, HCT Co., Ltd., yjlee@hct.co.kr  , 82-31-645-6432 |
| TCB Email | tcb@pctestlab.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 06/16/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output is conducted. |
