FCC ID ZPT904TS0147
Wireless video receiver module
by TRANSVIDEO S.A.
Grantee Code: ZPT Product Code: 904TS0147
Latest application date: 2016-12-09

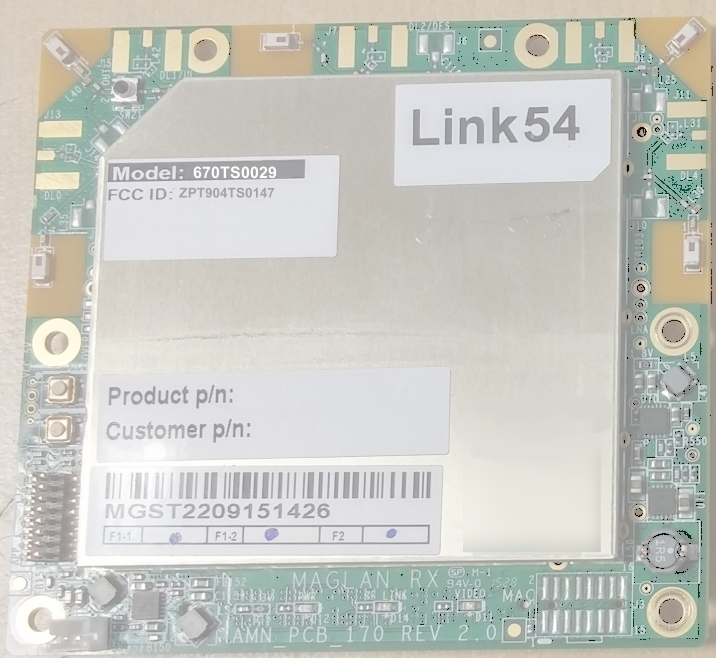

Device Images
FCC ID Device Details
| FCC ID | ZPT904TS0147 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | ZPT |
| Product Code | 904TS0147 |
| Applicant Business | TRANSVIDEO S.A. 🇫🇷 |
| Related Domains |  transvideo.eu |
| Equipment Class | Wireless video receiver module |
| Test Firm | EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INC |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Change in identification of presently authorized equipment. Original FCC ID: VQSAMNMGIN01 Grant Date: 04/15/2016 | 2016-12-09 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Installation Manual | Users Manual | 2016-12-09 | PDF 2.6 MB |
| Installation manual Metadata only | Users Manual | 2016-12-09 | PDF 2.1 MB |
| External Photos | External Photos | 2016-12-09 | PDF 729.6 KB |
| Label | ID Label/Location Info | 2016-12-09 | PDF 66.7 KB |
| Authorization Letter from original applicant | Cover Letter(s) | 2016-12-09 | PDF 62.6 KB |
| Change of ID request Letter | Cover Letter(s) | 2016-12-09 | PDF 65.6 KB |
| Product Certification Rep Auth Letter | Cover Letter(s) | 2016-12-09 | PDF 70.2 KB |
Application Information
| Application ID | OnXM6WjyoK0tvBSKsxC2tg== |
|---|---|
| Final Action Date | 2016-12-09 |
| Application Purpose | Change in identification of presently authorized equipment. Original FCC ID: VQSAMNMGIN01 Grant Date: 04/15/2016 |
| Applicant FRN | 0020985347 |
| Model | 904TS0147 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wireless video receiver module |
| Responsible Party | Jacques Delacoux, C.E.O., info@transvideo.eu , 33232322761 |
| Test Firm | Greg Kovolenko, EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INC, greg.kovolenko@metlabs.com  , 4108444071 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device support 20 and 40 MHz bandwidths. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| OnXM6WjyoK0tvBSKsxC2tg== | 2016-12-09 | Change in identification of presently authorized equipment. Original FCC ID: VQSAMNMGIN01 Grant Date: 04/15/2016 |
Equipment Authorization
Grants
TCB Grant - Application OnXM6WjyoK0tvBSKsxC2tg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 12/09/2016 Application Dated: 12/08/2016 |
| TRANSVIDEO S.A. |
| Rue Marie Harel |
| Verneuil sur Avre, 27135 France |
| Attention: Jacques Delacoux , C.E.O. |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZPT904TS0147 |
| Name of Grantee: | TRANSVIDEO S.A. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless video receiver module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 | 15E | 5180.0 - 5240.0 | 0.187 | ||
| 38 ND | 15E | 5260.0 - 5320.0 | 0.24 | ||
| 38 ND | 15E | 5500.0 - 5580.0 | 0.247 | ||
| 38 ND | 15E | 5660.0 - 5700.0 | 0.245 | ||
| 38 | 15E | 5745.0 - 5825.0 | 0.374 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device support 20 and 40 MHz bandwidths. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application OnXM6WjyoK0tvBSKsxC2tg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TRANSVIDEO S.A. Rue Marie Harel P.O. Box , Verneuil sur Avre, 27135 France |
Date of Grant: 12/09/2016 Application Dated: 12/08/2016 |
| Attention: Jacques Delacoux , C.E.O. |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZPT904TS0147 |
| Name of Grantee: | TRANSVIDEO S.A. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless video receiver module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 | 15E | 5180.0 - 5240.0 | 0.187 | ||
| 38 ND | 15E | 5260.0 - 5320.0 | 0.24 | ||
| 38 ND | 15E | 5500.0 - 5580.0 | 0.247 | ||
| 38 ND | 15E | 5660.0 - 5700.0 | 0.245 | ||
| 38 | 15E | 5745.0 - 5825.0 | 0.374 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device support 20 and 40 MHz bandwidths. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: |
