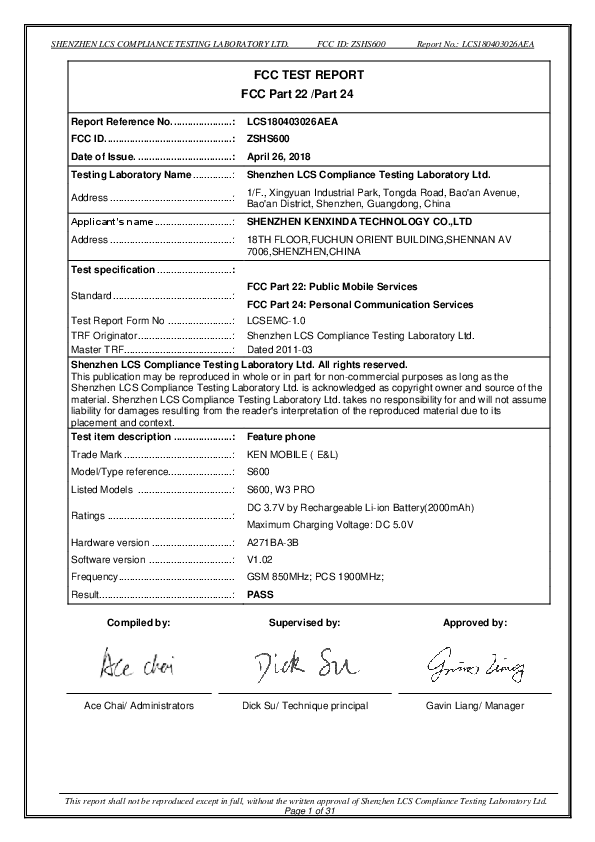

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
FCC TEST REPORT
FCC Part 22 /Part 24
Report Reference No. .....................:
LCS180403026AEA
FCC ID. .............................................:
ZSHS600
Date of Issue. ..................................:
April 26, 2018
Testing Laboratory Name .............. :
Shenzhen LCS Compliance Testing Laboratory Ltd.
Address ............................................ :
1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue,
Bao'an District, Shenzhen, Guangdong, China
Applicant’s name ............................ :
SHENZHEN KENXINDA TECHNOLOGY CO.,LTD
Address ............................................ :
18TH FLOOR,FUCHUN ORIENT BUILDING,SHENNAN AV
7006,SHENZHEN,CHINA
Test specification ...........................:
Standard ........................................... :
Test Report Form No ....................... :
TRF Originator .................................. :
Master TRF ....................................... :
FCC Part 22: Public Mobile Services
FCC Part 24: Personal Communication Services
LCSEMC-1.0
Shenzhen LCS Compliance Testing Laboratory Ltd.
Dated 2011-03
Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved.
This publication may be reproduced in whole or in part for non-commercial purposes as long as the
Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the
material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume
liability for damages resulting from the reader's interpretation of the reproduced material due to its
placement and context.
Test item description .....................: Feature phone
Trade Mark ....................................... :
KEN MOBILE ( E&L)
Model/Type reference....................... :
S600
Listed Models .................................. :
S600, W3 PRO
Ratings ............................................. :
DC 3.7V by Rechargeable Li-ion Battery(2000mAh)
Maximum Charging Voltage: DC 5.0V
Hardware version ............................. :
A271BA-3B
Software version .............................. :
V1.02
Frequency ..........................................
GSM 850MHz; PCS 1900MHz;
Result................................................ :
PASS
Compiled by:
Supervised by:
Approved by:
Ace Chai/ Administrators
Dick Su/ Technique principal
Gavin Liang/ Manager
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 1 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
TEST REPORT
LCS180403026AEA
Test Report No. :
April 26, 2018
Date of issue
______________________________________________________________________________________________
Equipment under Test
Feature phone
Model /Type
S600
Listed Models
S600, W3 PRO
Model Declaration
Applicant
SHENZHEN KENXINDA TECHNOLOGY CO.,LTD
Address
18TH FLOOR,FUCHUN ORIENT BUILDING,SHENNAN AV
7006,SHENZHEN,CHINA
Manufacturer
SHENZHEN KENXINDA TECHNOLOGY CO.,LTD
Address
18TH FLOOR,FUCHUN ORIENT BUILDING,SHENNAN AV
7006,SHENZHEN,CHINA
Factory
SHENZHEN KENXINDA TECHNOLOGY CO.,LTD
Address
No.8 Building, Shiao Second Industrial Zone, Dalang Clothing
Base, Longhua New District, Shenzhen,China
Test Result:
PCB board, structure and internal of these model(s) are the same,
So no additional models were tested.
PASS
The test report merely corresponds to the test sample.
It is not permitted to copy extracts of these test result without the written permission of the test
laboratory.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 2 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Revison History
Revision
000
Issue Date
April 26, 2018
Revisions
Initial Issue
Revised By
Gavin Liang
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 3 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Contents
TEST STAND ARDS ................................................................. 5
SUMM ARY ............................................................................ 6
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
General Remarks
Product Description
Equipment under Test
Short description of the Equipment under Test (EUT)
Internal Identification of AE used during the test
Normal Accessory setting
EUT configuration
Related Submittal(s) / Grant (s)
Modifications
General Test Conditions/Configurations
TEST ENVIRONMENT .............................................................. 9
3.1
3.2
3.3
3.4
3.5
3.6
Address of the test laboratory
Test Facility
Environmental conditions
Test Description
Equipments Used during the Test
Measurement uncertainty
TEST CONDITIONS AND RESULTS........................................... 13
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Output Power
Radiated Spurious Emssion
Occupied Bandwidth and Emission Bandwidth
Band Edge Complicance
Spurious Emssion on Antenna Port
Frequency Stability Test
Peak-to-Average Ratio (PAR)
TEST SETUP PHOTOS OF THE EUT ......................................... 31
EXTERNAL PHOTOS OF THE EUT ............................................ 31
INTERNAL PHOTOS OF THE EUT ............................................ 31
11
12
13
16
19
21
23
28
30
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 4 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
1 TEST STANDARDS
The tests were performed according to following standards:
FCC Part 22 (10-1-16 Edition): Private Land Mobile Radio Services.
FCC Part 24(10-1-16 Edition): Public Mobile Services.
ANSI/TIA-603-E-2016: Land Mobile FM or PM Communications Equipment Measurement and Performance
Standards.
971168 D01 Power Meas License Digital Systems v03 : Measurement Guidance For Certification of Licensed
Digital Transmitters
FCC Part 2: Frequency Allocations And Radio Treaty Matters: General Rules And Regulations.
ANSI C63.26:2015: American National Standard for Compliance Testing of Transmitters Used in Licensed
Radio Services.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 5 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
2 SUMMARY
2.1
General Remarks
Date of receipt of test sample
April 04, 2018
Testing commenced on
April 26, 2018
Testing concluded on
April 26, 2018
2.2
Product Description
The Advanced Electronic Solutions Global Ltd.’s Model: BFTCELL-PRIME or the “EUT” as referred to in
this report; more general information as follows, for more details, refer to the user’s manual of the EUT.
Name of EUT
Model Number
Modulation Type
Hardware version
Software version
Operation Frequency Band
GSM/EDGE/GPRS
GSM Release Version
GSM/EDGE/GPRS Power Class
GPRS/EDGE Multislot Class
GPRS operation mode
Antenna Type
Antenna Gain
Extreme temp. Tolerance
Extreme vol. Limits
Bluetooth
BluetoothOperation frequency
Feature phone
S600, W3 PRO
GMSK for GSM/GPRS
A271BA-3B
V1.02
GSM850/PCS1900/GPRS850/GPRS1900
Supported GSM /GPRS
R99
GSM850:Power Class 4/ PCS1900:Power Class 1
GPRS: Multi-slot Class 12
Class B
Internal Antenna
0.6dBi(max.) For GSM 850, 0.8dBi(max.) For GSM 1900
-25°C to +75°C
3.33VDC to 4.07VDC (Normal: 3.7VDC)
2402MHz-2480MHz
2.1+EDR
79 Channels
1 MHz
Internal Antenna, 1.0dB
Support and only RX
88~108MHz
FM
External Antenna(earphone)
Bluetooth Version
Bluetooth Channel Number
Bluetooth Channel Spacing
Antenna Description
FM Function
Frequency Rang
Modulation Type
Antenna Description
2.3
Equipment under Test
Power supply system utilised
Power supply voltage
○
○
●
○
120V / 60 Hz
○ 115V / 60Hz
12 V DC
○ 24 V DC
3.7 V DC
Other (specified in blank below)
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 6 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Test frequency list
Test Mode
TX/RX
TX
GSM850
RX
Test Mode
TX/RX
TX
GSM1900
RX
2.4
RF Channel
Middle (M)
Channel 190
836.6 MHz
Channel 190
881.6 MHz
RF Channel
Middle (M)
Channel 661
1880.0 MHz
Channel 661
1960.0 MHz
Low(L)
Channel 128
824.2 MHz
Channel 128
869.2 MHz
Low(L)
Channel 512
1850.2 MHz
Channel 512
1930.2 MHz
High (H)
Channel 251
848.8 MHz
Channel 251
893.8 MHz
High (H)
Channel 810
1909.8 MHz
Channel 810
1989.8 MHz
Short description of the Equipment under Test (EUT)
2.4.1 General Description
Assist monitoring system SekurIt is subscriber equipment in the GSM system. The GSM/GPRS frequency
band includes GSM850 and GSM900 and DCS1800 and PCS1900, but only GSM850 and PCS1900 bands
test data included in this report. The Wireless Door Intercom implements such functions as RF signal
receiving/transmitting, GSM/GPRS protocol processing, positioning service and etc. Externally it provides SIM
card interface.
NOTE: Unless otherwise noted in the report, the functional boards installed in the units shall be selected from
the below list, but not means all the functional boards listed below shall be installed in one unit.
2.5
Internal Identification of AE used during the test
AE ID*
AE1
Description
Li-ion Battery
AE1
DC 3.7V by Rechargeable Li-ion Battery(2000mAh)
*AE ID: is used to identify the test sample in the lab internally.
2.6
Normal Accessory setting
AC/DC Adapter was used during the test.
2.7
EUT configuration
The following peripheral devices and interface cables were connected during the measurement:
● - supplied by the manufacturer
○ - supplied by the lab
○ Power Cable
○ Multimeter
Length (m) :
Shield :
Detachable :
Manufacturer :
Model No. :
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 7 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
2.8
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Related Submittal(s) / Grant (s)
This submittal(s) (test report) is intended for FCC ID: ZSHS600 filing to comply with FCC Part 22 and Part 24
Rules.
2.9
Modifications
No modifications were implemented to meet testing criteria.
2.10 General Test Conditions/Configurations
2.10.1 Test Modes
NOTE: The test mode(s) are selected according to relevant radio technology specifications.
Test Mode
GSM/TM1
GSM/TM2
Test Modes Description
GSM system, GPRS, GMSK modulation
GSM system, GPRS, GMSK modulation
Note:
1. As GSM and GPRS with the same emission designator, test result recorded in this report at the worst
case GSM/TM1 only after exploratory scan.
2.10.2 Test Environment
Environment Parameter
Relative Humidity
Temperature
Voltage
TN
VL
VN
VH
Selected Values During Tests
Ambient
Ambient
3.33V
3.70V
4.07V
NOTE: VL=lower extreme test voltage VN=nominal voltage
VH=upper extreme test voltage TN=normal temperature
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 8 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
3 TEST ENVIRONMENT
3.1
Address of the test laboratory
Shenzhen LCS Compliance Testing Laboratory Ltd
1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong,
China
The sites are constructed in conformance with the requirements of ANSI C63.4 (2014) and CISPR
Publication 22.
3.2
Test Facility
The test facility is recognized, certified, or accredited by the following organizations:
FCC Registration Number. is 254912.
Industry Canada Registration Number. is 9642A-1.
ESMD Registration Number. is ARCB0108.
UL Registration Number. is 100571-492.
TUV SUD Registration Number. is SCN1081.
TUV RH Registration Number. is UA 50296516-001
NVLAP Registration Code is 600167-0
3.3
Environmental conditions
During the measurement the environmental conditions were within the listed ranges:
Temperature:
15-35 °C
Humidity:
30-60 %
Atmospheric pressure:
3.4
950-1050mbar
Test Description
3.4.1 Cellular Band (824-849MHz paired with 869-894MHz)
Test Item
Effective(Isotropic) Radiated
Output Power
Modulation Characteristics
FCC Rule No.
§2.1046,
§22.913
§2.1047
Bandwidth
§2.1049
Band Edges Compliance
§2.1051,
§22.917
Spurious Emission at Antenna
Terminals
§2.1051,
§22.917
Field Strength of Spurious
Radiation
Requirements
FCC: ERP ≤ 7W.
ISED: ERP ≤ 11.5W.
Digital modulation
OBW: No limit.
EBW: No limit.
≤-13dBm/1%*EBW, in 1MHz bands
immediately outside and adjacent
to
The frequency block.
≤ -13dBm/100kHz,
from 9kHz to 10th harmonics but
outside authorized operating
frequency ranges.
§2.1053,
≤ -13dBm/100kHz.
§22.917
§2.1055,
Frequency Stability
≤ ±2.5ppm.
§22.355
Peak-Average Ratio
N/A
IC:Limit≤13dB
Receiver Spurious Emissions
N/A
-NOTE 1: For the verdict, the “N/A” denotes “not applicable”, the “N/T” de notes “not tested”.
Verdict
Pass
N/A
Pass
Pass
Pass
Pass
Pass
Pass
Pass
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 9 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
3.4.2 PCS Band (1850-1915MHz paired with 1930-1995MHz)
Test Item
Effective(Isotropic) Radiated
Output Power
Modulation Characteristics
FCC Rule No.
§2.1046,
§24.232
§2.1046,
§24.232
§2.1047
Bandwidth
§2.1049
Band Edges Compliance
§2.1051,
§24.238
Spurious Emission at
Antenna Terminals
§2.1051,
§24.238
Peak-Average Ratio
Requirements
Verdict
EIRP ≤ 2W
Pass
≤13dB
Pass
Digital modulation
OBW: No limit.
EBW: No limit.
≤ -13dBm/1%*EBW, In 1MHz
bands immediately outside and
adjacent to The frequency
block.
≤-13dBm/1MHz, from 9kHz
to10th harmonics but outside
authorized Operating frequency
ranges.
N/A
Field Strength of Spurious
Radiation
§2.1053,
≤ -13dBm/1MHz.
§24.238
§2.1055,
Frequency Stability
≤ ±2.5ppm.
§24.235
Receiver Spurious Emissions
N/A
-NOTE 1: For the verdict, the “N/A” denotes “not applicable”, the “N/T” de notes “not tested”.
Pass
Pass
Pass
Pass
Pass
Pass
Remark: 1. The measurement uncertainty is not included in the test result.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 10 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
3.5
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Equipments Used during the Test
Item
Equipment
Manufacturer
Model No.
Serial No.
Cal Date
Due Date
Power Meter
R&S
NRVS
100444
2017-06-17
2018-06-16
Power Sensor
R&S
NRV-Z81
100458
2017-06-17
2018-06-16
Power Sensor
R&S
NRV-Z32
10057
2017-06-17
2018-06-16
X-series USB Peak and Average
Power Sensor Aglient
Agilent
U2021XA
MY54080022
2017-10-26
2018-10-25
4 CH. Simultaneous Sampling 14
Bits 2MS/s
Agilent
U2531A
MY54080016
2017-10-26
2018-10-25
Test Software
Ascentest
AT890-SW
20160630
N/A
N/A
RF Control Unit
Ascentest
AT890-RFB
N/A
2017-06-17
2018-06-16
ESA-E SERIES SPECTRUM
ANALYZER
Agilent
E4407B
MY41440754
2017-11-17
2018-11-16
MXA Signal Analyzer
Agilent
N9020A
MY49100040
2017-06-17
2018-06-16
10
SPECTRUM ANALYZER
R&S
FSP
100503
2017-06-17
2018-06-16
11
MXG Vector Signal Generator
Agilent
N5182A
MY47071151
2017-11-17
2018-11-16
12
ESG VECTOR SIGNAL
GENERATOR
Agilent
E4438C
MY42081396
2017-11-17
2018-11-16
13
PSG Analog Signal Generator
Agilent
E8257D
MY4520521
2017-11-17
2018-11-16
14
Universal Radio Communication
Tester
R&S
CMU 200
105788
2017-06-17
2018-06-16
15
WIDEBAND RADIO
COMMUNICATION TESTER
R&S
CMW 500
103818
2017-06-17
2018-06-16
16
RF Control Unit
Tonscend
JS0806-1
N/A
2017-06-17
2018-06-16
17
DC Power Supply
Agilent
E3642A
N/A
2017-11-17
2018-11-16
18
LTE Test Software
Tonscend
JS1120-1
N/A
N/A
N/A
19
Temperature & Humidity Chamber
GUANGZHOU
GOGNWEN
GDS-100
70932
2017-10-11
2018-10-10
20
DC Source
CHROMA
62012P-80-60
34782951
2017-10-11
2018-10-10
21
RF Filter
Micro-Tronics
BRC50718
S/N-017
2017-06-17
2018-06-16
22
RF Filter
Micro-Tronics
BRC50719
S/N-011
2017-06-17
2018-06-16
23
RF Filter
Micro-Tronics
BRC50720
S/N-011
2017-06-17
2018-06-16
24
RF Filter
Micro-Tronics
BRC50721
S/N-013
2017-06-17
2018-06-16
25
RF Filter
Micro-Tronics
BRM50702
S/N-195
2017-06-17
2018-06-16
26
Splitter/Combiner
Micro-Tronics
PS2-15
CB11-20
2017-06-17
2018-06-16
27
Splitter/Combiner
Micro-Tronics
CB11-20
N/A
2017-06-17
2018-06-16
28
Attenuator
Micro-Tronics
PAS-8-10
S/N23466
2017-06-17
2018-06-16
29
Exposure Level Tester
Narda
ELT-400
N-0713
2017-04-03
2018-04-02
30
B-Field Probe
Narda
ELT-400
M-1154
2017-04-11
2018-04-10
31
3m Semi Anechoic Chamber
SIDT
FRANKONIA
SAC-3M
03CH03-HY
2017-06-17
2018-06-16
32
Positioning Controller
MF
MF-7082
2017-06-17
2018-06-16
33
EMI Test Software
AUDIX
E3
N/A
2017-06-17
2018-06-16
34
EMI Test Receiver
R&S
ESR 7
101181
2017-06-17
2018-06-16
35
AMPLIFIER
QuieTek
QTK-A2525G
CHM10809065
2017-11-17
2018-11-16
36
Active Loop Antenna
SCHWARZBECK
FMZB 1519B
00005
2017-06-23
2018-06-22
37
By-log Antenna
SCHWARZBECK
VULB9163
9163-470
2017-05-02
2018-05-01
38
Horn Antenna
EMCO
3115
6741
2017-06-23
2018-06-22
39
Broadband Horn Antenna
SCHWARZBECK
BBHA 9170
791
2017-09-21
2018-09-20
40
Broadband Preamplifier
SCHWARZBECK
BBV 9719
9719-025
2017-09-21
2018-09-20
41
RF Cable-R03m
Jye Bao
RG142
CB021
2017-06-17
2018-06-16
42
RF Cable-HIGH
SUHNER
SUCOFLEX 106
03CH03-HY
2017-06-17
2018-06-16
Note: All equipment is calibrated through GUANGZHOU LISAI CALIBRATION AND TEST CO.,LTD.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 11 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
3.6 Measurement uncertainty
The data and results referenced in this document are true and accurate. The reader is cautioned that there
may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was
calculated for all measurements listed in this test report acc. to ETSI TR 100 028 “ Electromagnetic
compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio
equipment characteristics” and is documented in the Shenzhen LCS Compliance Testing Laboratory Ltd.
quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices
similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of
continued compliance of the device.
Hereafter the best measurement capability for Shenzhen LCS Compliance Testing Laboratory Ltd. is reported:
Test
Radiated Emission
Radiated Emission
Radiated Emission
Conducted Disturbance
Conducted Power
Spurious RF Conducted Emission
Band Edge Compliance of RF Emission
Occuiped Bandwidth
Range
30~1000MHz
1~18GHz
18-40GHz
0.15~30MHz
9KHz~18GHz
9KHz~40GHz
9KHz~40GHz
9KHz~40GHz
Measurement
Uncertainty
3.10 dB
3.70 dB
3.90 dB
1.63 dB
0.61 dB
1.22 dB
1.22 dB
Notes
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1) This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level
using a coverage factor of k=1.96.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 12 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
4 TEST CONDITIONS AND RESULTS
4.1
Output Power
TEST APPLICABLE
During the process of testing, the EUT was controlled via R&S Digital Radio Communication tester (CMU200)
to ensure max power transmission and proper modulation. This result contains output power and EIRP
measurements for the EUT. In all cases, output power is within the specified limits.
4.1.1 Conducted Output Power
TEST CONFIGURATION
TEST PROCEDURE
Conducted Power Measurement:
a) Place the EUT on a bench and set it in transmitting mode.
b) Connect a low loss RF cable from the antenna port to a CMU200 by an Att.
c) EUT Communicate with CMU200 then selects a channel for testing.
d) Add a correction factor to the display CMU200, and then test.
TEST RESULTS
Burst Average Conducted power (dBm)
Channel/Frequency(MHz)
GSM 850
GSM
1TX slot
2TX slot
3TX slot
4TX slot
GPRS
(GMSK)
GSM 1900
GSM
GPRS
(GMSK)
1TX slot
2TX slot
3TX slot
4TX slot
128/824.2
190/836.6
251/848.8
30.03
29.94
28.48
26.61
24.47
29.53
29.32
27.79
25.83
23.75
30.52
30.14
28.48
26.68
24.69
Burst Average Conducted power (dBm)
Channel/Frequency(MHz)
512/1850.2
661/1880
810/1909.8
27.70
26.38
27.53
27.98
26.52
27.70
26.08
25.21
25.72
24.94
23.67
24.17
22.67
21.34
21.76
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 13 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
4.1.2 Radiated Output Power
TEST DESCRIPTION
This is the test for the maximum radiated power from the EUT.
Per rule Part 24.232(c) specifies, "Mobile/portable stations are limited to 2 watts e.i.r.p. Peak power" and
24.232(e) specifies that "Peak transmit power must be measured over any interval of continuous transmission
using instrumentation calibrated in terms of an rms-equivalent voltage."
Per rule Part 22.913(a) specifies ” The ERP of mobile transmitters and auxiliary test transmitters must not
exceed 7 Watts.”
TEST CONFIGURATION
TEST PROCEDURE
1. EUT was placed on a 1.50 meter high non-conductive stand at a 3 meter test distance from the receive
antenna. A receiving antenna was placed on the antenna mast 3 meters from the EUT for emission
measurements. The height of receiving antenna is 1.50 m. Detected emissions were maximized at each
frequency by rotating the EUT through 360°and adjusting the receiving antenna polarization. The radiated
emission measurements of all transmit frequencies in three channels (High, Middle, Low) were measured
with peak detector.
2. A log-periodic antenna or double-ridged waveguide horn antenna shall be substituted in place of the EUT.
The log-periodic antenna will be driven by a signal generator and the level will be adjusted till the same
power value on the spectrum analyzer or receiver. The level of the spurious emissions can be calculated
through the level of the signal generator, cable loss, the gain of the substitution antenna and the reading
of the spectrum analyzer or receiver.
3. The EUT is then put into continuously transmitting mode at its maximum power level during the test.Set
Test Receiver or Spectrum RBW=1MHz,VBW=3MHz, And the maximum value of the receiver should be
recorded as (Pr).
4. The EUT shall be replaced by a substitution antenna. In the chamber, an substitution antenna for the
frequency band of interest is placed at the reference point of the chamber. An RF Signal source for the
frequency band of interest is connected to the substitution antenna with a cable that has been constructed
to not interfere with the radiation pattern of the antenna. A power (PMea) is applied to the input of the
substitution antenna, and adjust the level of the signal generator output until the value of the receiver
reach the previously recorded (Pr). The power of signal source (PMea) is recorded. The test should be
performed by rotating the test item and adjusting the receiving antenna polarization.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 14 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
5. A amplifier should be connected to the Signal Source output port. And the cable should be connect
between the Amplifier and the Substitution Antenna. The cable loss (Pcl) ,the Substitution Antenna Gain
(Ga) and the Amplifier Gain (PAg) should be recorded after test.
The measurement results are obtained as described below:
Power(EIRP)=PMea+ PAg - Pcl + Ga
6. This value is EIRP since the measurement is calibrated using an antenna of known gain (2.15 dBi) and
known input power.
7. ERP can be calculated from EIRP by subtracting the gain of the dipole, ERP = EIRP-2.15dBi.
TEST LIMIT
According to 22.913(a), 24.232(c) , the ERP should be not exceed following table limits:
GSM850(GPRS850,EDGE850)
Function
Power Step
Burst Peak ERP (dBm)
GSM
FCC: ≤38.45dBm (7W)
GPRS
FCC: ≤38.45dBm (7W)
PCS1900(GPRS1900,EDGE1900)
Power Step
Function
GSM
GPRS
Burst Peak EIRP (dBm)
≤33.01dBm (2W)
≤33.01dBm (2W)
TEST RESULTS
Remark:
1. We were tested all Configuration refer 3GPP TS151 010.
2. EIRP=PMea(dBm)-Pcl(dB)+PAg(dB)+Ga(dBi)
3. ERP = EIRP – 2.15dBi as EIRP by subtracting the gain of the dipole.
4. Margin = Emission Level - Limit
5. We test the H direction and V direction recorded worst case.
GSM/TM1/GSM850
Frequency
(MHz)
PMea
(dBm)
Pcl
(dB)
Ga
Antenna
Gain(dB)
Correction
(dB)
PAg
(dB)
824.2
836.6
848.8
-6.94
-7.06
-7.08
3.45
3.49
3.55
8.45
8.45
8.36
2.15
2.15
2.15
33.79
33.85
33.88
Burst
Average
ERP
(dBm)
29.70
29.60
29.46
Limit
(dBm)
Margin
(dB)
Polariz
ation
38.45
38.45
38.45
-8.75
-8.85
-8.99
GSM/TM1/GSM1900
Frequency
(MHz)
1850.2
1880
1909.8
PMea
(dBm)
-11.95
-11.90
-11.95
Pcl
(dB)
Ga
Antenna
Gain(dB)
PAg
(dB)
3.45
3.49
3.55
8.45
8.45
8.36
33.79
33.85
33.88
Burst
Average
EIRP
(dBm)
26.84
26.91
26.74
Limit
(dBm)
Margin
(dB)
Polarization
33.00
33.00
33.00
-6.16
-6.09
-6.26
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 15 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
4.2
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Radiated Spurious Emssion
TEST APPLICABLE
According to the TIA/EIA 603D:2010 and FCC Part 2.1033 test method, The Receiver or Spectrum was
th
scanned from lowest frequency frequency generated within the equipment to the 10 harmonic of the highest
frequency generated within the equipment, which is the transmitted carrier that can be as high as 1910 MHz.
The resolution bandwidth is set as outlined in Part 24.238, Part 22.917, RSS-132 §5.5 and RSS-133 §6.5. The
spectrum is scanned with the mobile station transmitting at carrier frequencies that pertain to low, mid and high
channels of PCS1900 and GSM850.
TEST CONFIGURATION
TEST PROCEDURE
1. EUT was placed on a 1.50 meter high non-conductive stand at a 3 meter test distance from the receive
antenna. A receiving antenna was placed on the antenna mast 3 meters from the EUT for emission
measurements. The height of receiving antenna is 1.50 m. Detected emissions were maximized at each
frequency by rotating the EUT through 360°and adjusting the receiving antenna polarization. The radiated
emission measurements of all transmit frequencies in three channels (High, Middle, Low) were measured
with peak detector.
2. A log-periodic antenna or double-ridged waveguide horn antenna shall be substituted in place of the EUT.
The log-periodic antenna will be driven by a signal generator and the level will be adjusted till the same
power value on the spectrum analyzer or receiver. The level of the spurious emissions can be calculated
through the level of the signal generator, cable loss, the gain of the substitution antenna and the reading
of the spectrum analyzer or receiver.
3. The EUT is then put into continuously transmitting mode at its maximum power level during the test.Set
Test Receiver or Spectrum RBW=1MHz,VBW=3MHz, And the maximum value of the receiver should be
recorded as (Pr).
4. The EUT shall be replaced by a substitution antenna. In the chamber, an substitution antenna for the
frequency band of interest is placed at the reference point of the chamber. An RF Signal source for the
frequency band of interest is connected to the substitution antenna with a cable that has been constructed
to not interfere with the radiation pattern of the antenna. A power (PMea) is applied to the input of the
substitution antenna, and adjust the level of the signal generator output until the value of the receiver
reach the previously recorded (Pr). The power of signal source (PMea) is recorded. The test should be
performed by rotating the test item and adjusting the receiving antenna polarization.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 16 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
5. A amplifier should be connected to the Signal Source output port. And the cable should be connect
between the Amplifier and the Substitution Antenna. The cable loss (Pcl) ,the Substitution Antenna Gain
(Ga) and the Amplifier Gain (PAg) should be recorded after test.
The measurement results are obtained as described below:
Power(EIRP)=PMea+ PAg - Pcl + Ga
6. This value is EIRP since the measurement is calibrated using an antenna of known gain (2.15 dBi) and
known input power.
7. ERP can be calculated from EIRP by subtracting the gain of the dipole, ERP = EIRP -2.15dBi.
8. In order to make sure test results more clearly,we set frequency range and sweep time for difference
frequency range as follows table:
Working
Subrange
Sweep time
RBW
VBW
Frequency
(GHz)
(s)
0.00009~0.15
1KHz
3KHz
30
0.00015~0.03
10KHz
30KHz
10
0.03~1
100KHz
300KHz
10
TM1/GSM 850
1~2
1 MHz
3 MHz
2~5
1 MHz
3 MHz
5~8
1 MHz
3 MHz
8~10
1 MHz
3 MHz
0.00009~0.15
1KHz
3KHz
30
0.00015~0.03
10KHz
30KHz
10
0.03~1
100KHz
300KHz
10
1~2
1 MHz
3 MHz
2~5
1 MHz
3 MHz
TM1/GSM 1900
5~8
1 MHz
3 MHz
8~11
1 MHz
3 MHz
11~14
1 MHz
3 MHz
14~18
1 MHz
3 MHz
18~20
1 MHz
3 MHz
TEST LIMITS
According to 24.238 and 22.917 specify that the power of any emission outside of the authorized operating
frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P)
dB.
The specification that emissions shall be attenuated below the transmitter power (P) by at least 43 + 10 log
(P) dB, translates in the relevant power range (1 to 0.001 W) to -13 dBm. At 1 W the specified minimum
attenuation becomes 43 dB and relative to a 30 dBm (1 W) carrier becomes a limit of -13 dBm. At 0.001 W (0
dBm) the minimum attenuation is 13 dB, which again yields a limit of -13 dBm. In this way a translation of the
specification from relative to absolute terms is carried out.
Frequency
TM1/GSM 850
TM1/GSM 1900
Channel
Low
Middle
High
Low
Middle
High
Frequency Range
9KHz-10GHz
9KHz -10GHz
9KHz -10GHz
9KHz -20GHz
9KHz -20GHz
9KHz -20GHz
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
TEST RESULTS
Remark:
1. We were tested all refer 3GPP TS151 010.
2. EIRP=PMea(dBm)-Pcl(dB) +Ga(dBi)
3. We were not recorded other points as values lower than limits.
4. Margin = EIRP - Limit
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 17 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
GSM/TM1/GSM850_ Low Channel
Frequency
(MHz)
PMea
(dBm)
Pcl
(dB)
Diatance
1648.40
2472.60
1648.40
2472.60
-43.60
-44.64
-40.04
-42.03
3.86
4.29
3.86
4.29
3.00
3.00
3.00
3.00
Ga
Antenna
Gain(dB)
8.56
6.98
8.56
6.98
Peak
EIRP
(dBm)
-38.90
-41.95
-35.34
-39.34
Ga
Antenna
Gain(dB)
8.58
6.8
8.58
6.8
Peak
EIRP
(dBm)
-37.30
-44.03
-33.20
-40.55
Ga
Antenna
Gain(dB)
9.06
6.65
9.06
6.65
Peak
EIRP
(dBm)
-41.31
-47.29
-37.79
-42.45
Ga
Antenna
Gain(dB)
9.88
11.36
9.88
11.36
Peak
EIRP
(dBm)
-40.32
-41.12
-36.99
-38.85
Ga
Antenna
Gain(dB)
10.03
11.41
10.03
11.41
Peak
EIRP
(dBm)
-39.41
-43.01
-35.20
-39.65
Ga
Antenna
Gain(dB)
9.62
11.46
9.62
11.46
Peak
EIRP
(dBm)
-44.51
-45.87
-40.85
-42.02
Limit
(dBm)
Margin
(dB)
Polarization
-13.00
-13.00
-13.00
-13.00
-25.90
-28.95
-22.34
-26.34
Limit
(dBm)
Margin
(dB)
Polarization
-13.00
-13.00
-13.00
-13.00
-24.30
-31.03
-20.20
-27.55
Limit
(dBm)
Margin
(dB)
Polarization
-13.00
-13.00
-13.00
-13.00
-28.31
-34.29
-24.79
-29.45
Limit
(dBm)
Margin
(dB)
Polarization
-13.00
-13.00
-13.00
-13.00
-27.32
-28.12
-23.99
-25.85
Limit
(dBm)
Margin
(dB)
Polarization
-13.00
-13.00
-13.00
-13.00
-26.41
-30.01
-22.20
-26.65
Limit
(dBm)
Margin
(dB)
Polarization
-13.00
-13.00
-13.00
-13.00
-31.51
-32.87
-27.85
-29.02
GSM/TM1/ GSM850_ Middle Channel
Frequency
(MHz)
PMea
(dBm)
Pcl
(dB)
Diatance
1673.20
2509.80
1673.20
2509.80
-41.98
-46.51
-37.88
-43.03
3.9
4.32
3.9
4.32
3.00
3.00
3.00
3.00
GSM/TM1/ GSM850_ High Channel
Frequency
(MHz)
PMea
(dBm)
Pcl
(dB)
Diatance
1697.60
2546.40
1697.60
2546.40
-46.46
-49.62
-42.94
-44.78
3.91
4.32
3.91
4.32
3.00
3.00
3.00
3.00
GSM/TM1/GSM1900_ Low Channel
Frequency
(MHz)
PMea
(dBm)
Pcl
(dB)
Diatance
3700.40
5550.60
3700.40
5550.60
-44.94
-46.37
-41.61
-44.10
5.26
6.11
5.26
6.11
3.00
3.00
3.00
3.00
GSM/TM1/ GSM1900_ Middle Channel
Frequency
(MHz)
PMea
(dBm)
Pcl
(dB)
Diatance
3760.00
5640.00
3760.00
5640.00
-44.12
-48.23
-39.91
-44.87
5.32
6.19
5.32
6.19
3.00
3.00
3.00
3.00
GSM/TM1/ GSM1900_ High Channel
Frequency
(MHz)
PMea
(dBm)
Pcl
(dB)
Diatance
3819.60
5729.40
3819.60
5729.40
-48.77
-51.09
-45.11
-47.24
5.36
6.24
5.36
6.24
3.00
3.00
3.00
3.00
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 18 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
4.3
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Occupied Bandwidth and Emission Bandwidth
TEST APPLICABLE
Similar to conducted emissions; occupied bandwidth measurements are only provided for selected
frequencies in order to reduce the amount of submitted data. Data were taken at the extreme and mid
frequencies of PCS1900 band and GSM850 band. The table below lists the measured 99% Bandwidth
and -26dBc Bandwidth.
TEST CONFIGURATION
TEST PROCEDURE
1.
2.
3.
4.
5.
The EUT was set up for the max output power with pseudo random data modulation;
The Occupied bandwidth and Emission Bandwidth were measured with Spectrum AnalyzerN9020A;
Set RBW=5.1KHz,VBW=51KHz,Span=1MHz,SWT=Auto;
Set SPA Max hold and View, Set 99% Occupied Bandwidth/ Set -26dBc Occupied Bandwidth
These measurements were done at 3 frequencies, 1850.20 MHz, 1880.00 MHz and 1909.80 MHz for
PCS1900 band; 824.20MHz, 836.60 MHz and 848.80 MHz for GSM850 band. (Low, middle and high of
operational frequency range).
TEST RESULTS
Test Mode
GSM/TM1/ GSM850
GSM/TM1/ GSM1900
Channel
Frequency
(MHz)
128
190
251
512
661
810
824.2
836.6
848.8
1850.2
1880.0
1908.8
Occupied
Bandwidth
(99% BW)
(KHz)
243.4
247.2
246.3
243.5
248.1
246.3
Emission
Bandwidth
(-26 dBc BW)
(KHz)
312
319
311
314
313
308
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
Remark:
1. Test results including cable loss;
2. Please refer to following plots;
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 19 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Occupied Bandwidth and Emission Bandwidth
GSM/TM1/GSM850
GSM/TM1/GSM1900
Channel 128 / 824.2 MHz
Channel 512 / 1850.2 MHz
Channel 190 / 836.6 MHz
Channel 661 / 1880.0 MHz
Channel 251 / 848.8 MHz
Channel 810 / 1909.8 MHz
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 20 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
4.4
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Band Edge Complicance
TEST APPLICABLE
During the process of testing, the EUT was controlled via Digital Radio Communication tester (CMU200) to
ensure max power transmission and proper modulation.
TEST CONFIGURATION
TEST PROCEDURE
1.
2.
3.
1.
The EUT was set up for the max output power with pseudo random data modulation;
The power was measured with Spectrum Analyzer N9020A;
Set RBW=5.1KHz,VBW=51KHz,Span=2MHz,SWT=Auto, Dector: RMS;
These measurements were done at 2 frequencies, 1850.20 MHz and 1909.80 MHz for PCS1900 band;
824.20 MHz and 848.80 MHz for GSM850 band. (bottom and top of operational frequency range).
TEST RESULTS
Test Mode
GSM/TM1/GSM850
GSM/TM1/GSM1900
Channel
Frequency
(MHz)
128
251
512
810
824.2
848.8
1850.2
1909.8
Band Edg
Compliance
(dBm)
<-13dBm
<-13dBm
<-13dBm
<-13dBm
Limits
(dBm)
Verdict
-13dBm
PASS
-13dBm
PASS
Remark:
1. Test results including cable loss;
2. please refer to following plots;
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 21 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Band-edge Compliance
GSM/TM1/GSM850
GSM/TM1/GSM1900
Channel 128 / 824.2 MHz
Channel 512 / 1850.2 MHz
Channel 251 / 848.8 MHz
Channel 810 / 1909.8 MHz
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 22 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
4.5
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Spurious Emssion on Antenna Port
TEST APPLICABLE
The following steps outline the procedure used to measure the conducted emissions from the EUT.
1. Determine frequency range for measurements: From CFR 2.1057 and RSS-GEN the spectrum should be
th
investigated from the lowest radio frequency generated in the equipment up to at least the 10 harmonic
of the carrier frequency. For the equipment of PCS1900 band, this equates to a frequency range of 9 KHz
to 20 GHz, data taken from 30 MHz to 20 GHz. For GSM850, this equates to a frequency range of 9 KHz
to 9 GHz,data taken from 30 MHz to 9 GHz.
2. The sweep time is set automatically by instrument itself. That should be the optimal sweep time for the
span and the RBW. If the sweep time is too short, that is sweep is too fast, the sweep result is not
accurate; if the sweep time is too long, that is sweep is too low, some frequency components may be lost.
The instrument will give an optimal sweep time according the selected span and RBW.
3. The procedure to get the conducted spurious emission is as follows:
The trace mode is set to MaxHold to get the highest signal at each frequency;
Wait 25 seconds;
Get the result.
4. Determine EUT transmit frequencies: below outlines the band edge frequencies pertinent to conducted
emissions testing.
TEST CONFIGURATION
TEST PROCEDURE
1. The EUT was set up for the max output power with pseudo random data modulation;
2. The power was measured with Spectrum Analyzer N9020A;
3. These measurements were done at 3 frequencies, 1850.20 MHz, 1880.00 MHz and 1909.80 MHz for
PCS1900 band; 824.20 MHz, 836.60 MHz and 848.80 MHz for GSM850 band. (Low, middle and high of
operational frequency range).
TEST LIMIT
Part 24.238, Part 22.917 specify that the power of any emission outside of the authorized operating frequency
ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB.
The specification that emissions shall be attenuated below the transmitter power (P) by at least 43 + 10 log
(P) dB, translates in the relevant power range (1 to 0.001 W) to -13 dBm. At 1 W the specified minimum
attenuation becomes 43 dB and relative to a 30 dBm (1 W) carrier becomes a limit of -13 dBm. At 0.001 W (0
dBm) the minimum attenuation is 13 dB, which again yields a limit of -13 dBm. In this way a translation of the
specification from relative to absolute terms is carried out.
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 23 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
TEST RESULTS
Test Mode
GSM/TM1/GSM850
GSM/TM1/GSM1900
Channel
Frequency
(MHz)
128
190
251
512
661
810
824.2
836.6
848.8
1850.2
1880.0
1908.8
Spurious RF
Conducted Emission
(dBm)
<-13dBm
<-13dBm
<-13dBm
<-13dBm
<-13dBm
<-13dBm
Limits
(dBm)
-13dBm
-13dBm
-13dBm
-13dBm
-13dBm
-13dBm
Verdict
PASS
PASS
Remark:
1. Test results including cable loss;
2. Please refer to following plots;
3. Not reorded test plots from 9 KHz to 30 MHz as emission levels 20dB lower than emission limit;
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 24 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Spurious Emssion on Antenna Port
GSM/TM1/GSM850
GSM/TM1/GSM850
Channel 128 / 824.2 MHz
Channel 190 / 836.6 MHz
30 MHz – 1000 MHz
30 MHz – 1000 MHz
1 GHz – 9 GHz
Channel 251 / 848.8 MHz
1 GHz – 9 GHz
Channel 251 / 848.8 MHz
30 MHz – 1000 MHz
1 GHz – 9 GHz
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 25 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Spurious Emssion on Antenna Port
GSM/TM1/GSM1900
GSM/TM1/GSM1900
Channel 512 / 1850.2 MHz
Channel 661 / 1880 MHz
30 MHz – 1000 MHz
30 MHz – 1000 MHz
1 GHz – 7 GHz
1 GHz – 7 GHz
7 GHz – 13.6 GHz
7 GHz – 13.6 GHz
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 26 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Spurious Emssion on Antenna Port
GSM/TM1/GSM1900
GSM/TM1/GSM1900
Channel 512 / 1850.2 MHz
Channel 661 / 1880 MHz
13.6 GHz – 20 GHz
Channel 810 / 1909.8 MHz
13.6 GHz – 20 GHz
Channel 810 / 1909.8 MHz
30 MHz – 1000 MHz
1 GHz – 7 GHz
7 GHz – 13.6 GHz
13.6 GHz – 20 GHz
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 27 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
4.6
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Frequency Stability Test
TEST APPLICABLE
1.
2.
3.
According to FCC Part 2 Section 2.1055 (a)(1) and RSS-GEN, the frequency stability shall be measured
with variation of ambient temperature from -30℃ to +50℃ centigrade.
According to FCC Part 2 Section 2.1055 (E) (2) and RSS-GEN, for battery powered equipment, the
frequency stability shall be measured with reducing primary supply voltage to the battery operating end
point, which is specified by the manufacture.
Vary primary supply voltage from 85 to 115 percent of the nominal value for other than hand carried
voltage equipment.
TEST PROCEDURE
In order to measure the carrier frequency under the condition of AFC lock, it is necessary to make
measurements with the EUT in a “call mode”. This is accomplished with the use of R&S CMU200 DIGITAL
RADIO COMMUNICATION TESTER.
1. Measure the carrier frequency at room temperature;
2. Subject the EUT to overnight soak at -30℃;
3. With the EUT, powered via nominal voltage, connected to the CMU200 and in a simulated call on middle
channel of PCS 1900 and GSM850, measure the carrier frequency. These measurements should be
made within 2 minutes of Powering up the EUT, to prevent significant self-warming;
4. Repeat the above measurements at 10℃ increments from -30℃ to +50℃. Allow at least 0.5 hours at
each temperature, unpowered, before making measurements;
5. Remeasure carrier frequency at room temperature with nominal voltage. Vary supply voltage from
minimum voltage to maximum voltage, in 0.1Volt increments remeasuring carrier frequency at each
voltage. Pause at nominal voltage for 0.5 hours unpowered, to allow any self-heating to stabilize, before
continuing;
6. Subject the EUT to overnight soak at +50℃;
7. With the EUT, powered via nominal voltage, connected to the CMU200 and in a simulated call on the
centre channel, measure the carrier frequency. These measurements should be made within 2 minutes of
Powering up the EUT, to prevent significant self-warming;
8. Repeat the above measurements at 10℃ increments from +50℃ to -30℃. Allow at least 0.5 hours at
each temperature, unpowered, before making measurements;
9. At all temperature levels hold the temperature to +/- 0.5℃ during the measurement procedure;
TEST CONFIGURATION
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 28 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
TEST LIMITS
For Hand carried battery powered equipment
According to the JTC standard the frequency stability of the carrier shall be accurate to within 0.1 ppm of the
received frequency from the base station. This accuracy is sufficient to meet Sec. 24.235, Frequency Stability.
The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized
frequency block. As this transceiver is considered "Hand carried, battery powered equipment" Section
2.1055(d)(2) applies. This requires that the lower voltage for frequency stability testing be specified by the
manufacturer. This transceiver is specified to operate with an input voltage of between 2.60VDC and 3.3VDC,
with a nominal voltage of 3.0DC. Operation above or below these voltage limits is prohibited by transceiver
software in order to prevent improper operation as well as to protect components from overstress. These
voltages represent a tolerance of -10 % and +12.5 %. For the purposes of measuring frequency stability these
voltage limits are to be used.
For equipment powered by primary supply voltage
According to the JTC standard the frequency stability of the carrier shall be accurate to within 0.1 ppm of the
received frequency from the base station. This accuracy is sufficient to meet Sec. 24.235, Frequency Stability.
The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized
frequency block. For this EUT section 2.1055(d)(1) applies. This requires varying primary supply voltage from
85 to 115 percent of the nominal value for other than hand carried battery equipment.
TEST RESULTS
DC Power
3.33
3.70
4.07
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
DC Power
3.33
3.70
4.07
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
3.70
Temperature
(℃)
25
25
25
-25
-20
-10
10
20
30
40
50
60
70
75
GSM/TM1/GSMS850
Frequency
Frequency
error(Hz)
error(ppm)
11
0.013
-10
-0.012
0.007
0.000
-12
-0.014
-7
-0.009
-14
-0.017
-13
-0.015
11
0.013
-6
-0.007
11
0.013
-15
-0.017
11
0.013
-10
-0.012
0.007
Limit
(ppm)
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
Temperature
(℃)
25
25
25
-25
-20
-10
10
20
30
40
50
60
70
75
GSM/TM1/GSM1900
Frequency
Frequency
error(Hz)
error(ppm)
-8
-0.004
-13
-0.007
0.003
-7
-0.004
-12
-0.006
-12
-0.007
0.004
0.003
0.001
0.002
13
0.007
0.002
-8
-0.004
-13
-0.007
0.003
Limit
(ppm)
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
Verdict
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
PASS
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 29 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
4.7
FCC ID: ZSHS600
Report No.: LCS180403026AEA
Peak-to-Average Ratio (PAR)
LIMIT
The Peak-to-Average Ratio (PAR) of the transmission may not exceed 13 dB.
TEST CONFIGURATION
TEST PROCEDURE
Use spectrum to measure the total peak power and record as PPk. Use spectrum to measure the total
average power and record as PAvg. Both the peak and average power levels must be expressed in the same
logarithmic units (e.g., dBm).
Determine the PAPR from:
PAPR (dB) = PPk (dBm) - PAvg (dBm).
TEST RESULTS
Test Mode
GSM/TM1/ GSM850
GSM/TM1/GSM1900
Channel
128
190
251
512
661
810
Frequency
(MHz)
824.2
836.6
848.8
1850.2
1880.0
1908.8
PAPR Value
(dB)
1.39
1.36
1.72
2.31
2.27
2.14
Limits
(dB)
13.0
13.0
13.0
13.0
13.0
13.0
Verdict
PASS
PASS
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 30 of 31
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
FCC ID: ZSHS600
Report No.: LCS180403026AEA
5 Test Setup Photos of the EUT
Please refer to separated files for Test Setup Photos of the EUT.
6 External Photos of the EUT
Please refer to separated files for External Photos of the EUT.
7 Internal Photos of the EUT
Please refer to separated files for Internal Photos of the EUT.
.........................End of Report.........................
This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.
Page 31 of 31
Download: S600 Feature phone Test Report EMC TRF Template SHENZHEN KENXINDA TECHNOLOGY CO.,LTD
Mirror Download [FCC.gov]S600 Feature phone Test Report EMC TRF Template SHENZHEN KENXINDA TECHNOLOGY CO.,LTD
Document ID3846360
Application IDZumQFVRjGi9cQKNTv6yvAw==
Document DescriptionPCE Test Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize215.91kB (2698902 bits)
Date Submitted2018-05-10 00:00:00
Date Available2018-05-10 00:00:00
Creation Date2018-05-10 09:22:36
Producing SoftwareMicrosoft® Office Word 2007
Document Lastmod2018-05-10 09:22:36
Document TitleEMC TRF Template
Document CreatorMicrosoft® Office Word 2007
Document Author: eie

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Page Count                      : 31
Language                        : zh-CN
Title                           : EMC TRF Template
Author                          : eie
Creator                         : Microsoft® Office Word 2007
Create Date                     : 2018:05:10 09:22:36+08:00
Modify Date                     : 2018:05:10 09:22:36+08:00
Producer                        : Microsoft® Office Word 2007
