FCC ID ZSW-30-027
Mobile Phone
by b mobile HK Limited
Grantee Code: ZSW Product Code: 30027
Latest application date: 2016-06-20
Device Images
FCC ID Device Details
| FCC ID | ZSW-30-027 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | ZSW |
| Product Code | 30027 |
| Applicant Business | b mobile HK Limited 🇨🇳 |
| Related Domains |  bmobile.eu.com |
| Equipment Class | Mobile Phone |
| Test Firm | Bay Area Compliance Laboratory Corp. (Shenzhen) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-06-20 |
| 2402-2480 MHz | Original Equipment | 2016-06-20 |
| 824.2-848.8 MHz | Original Equipment | 2016-06-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-06-20 | PDF 186.6 KB |

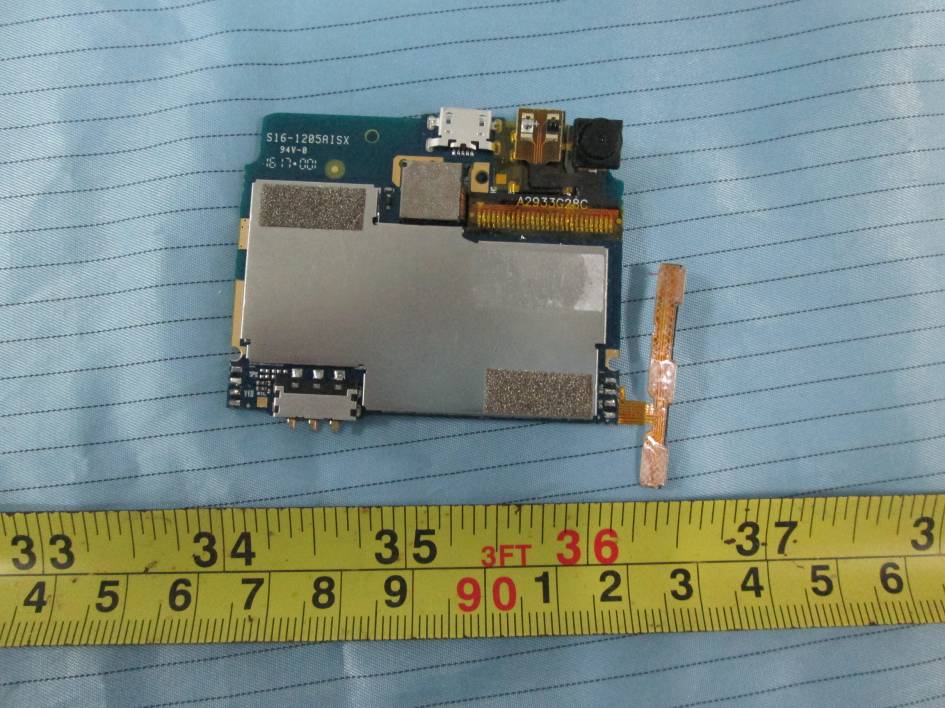

| Int Photos | Internal Photos | 2016-06-20 | PDF 739.8 KB |

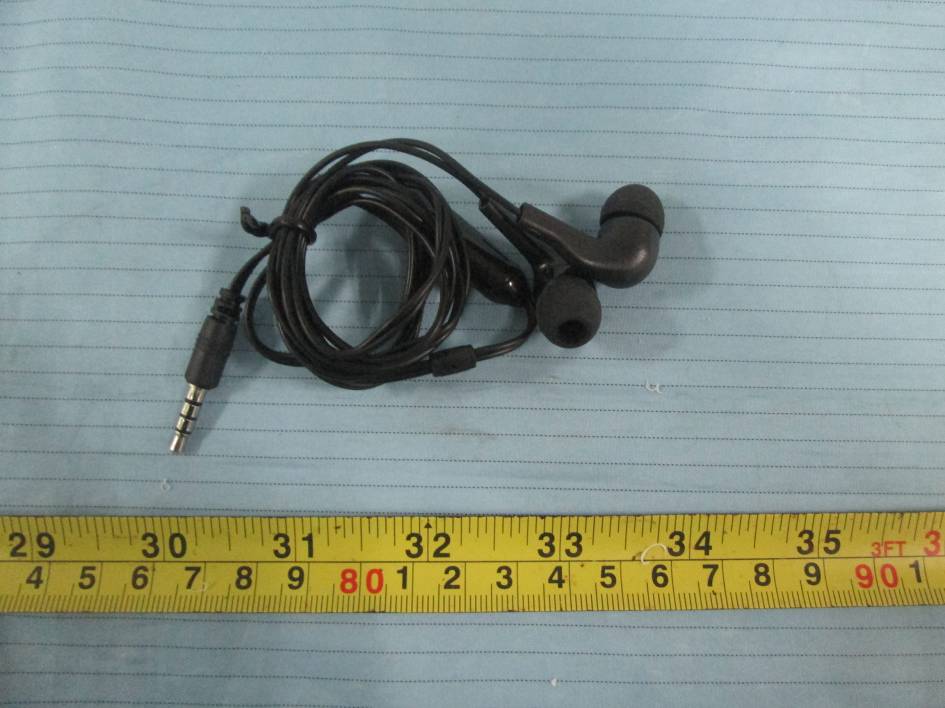

| Ext Photos | External Photos | 2016-06-20 | PDF 560.9 KB |
| FCC ID Label | ID Label/Location Info | 2016-06-20 | PDF 67.3 KB |

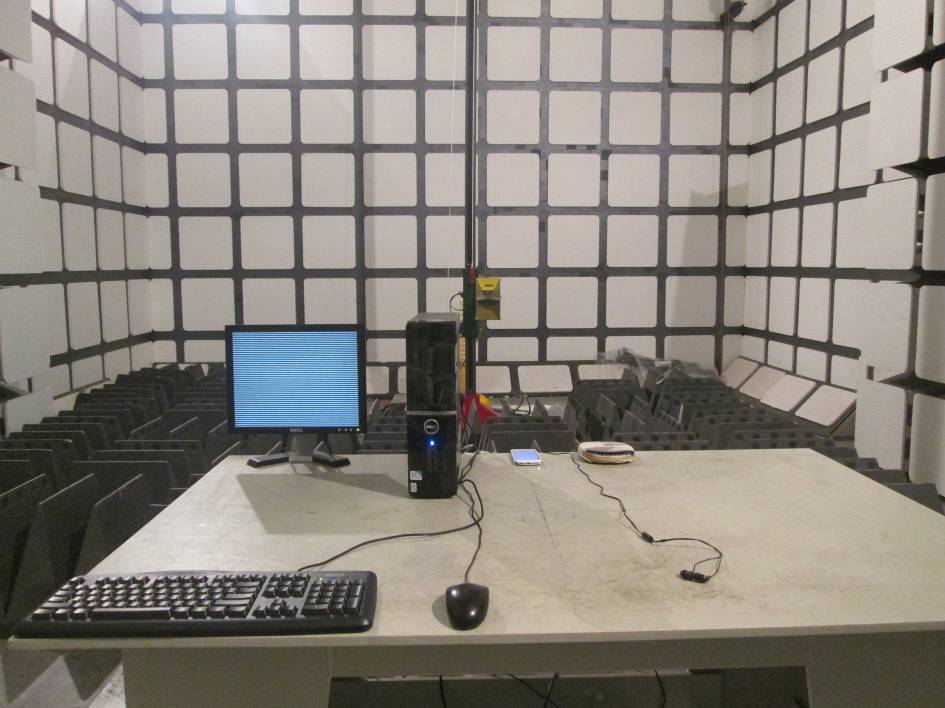

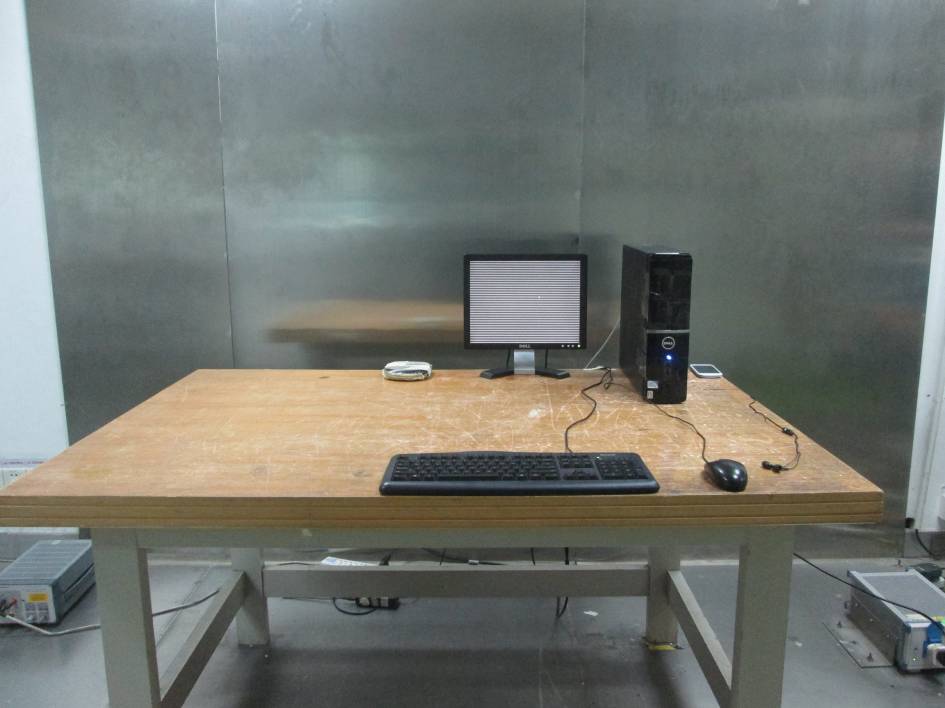

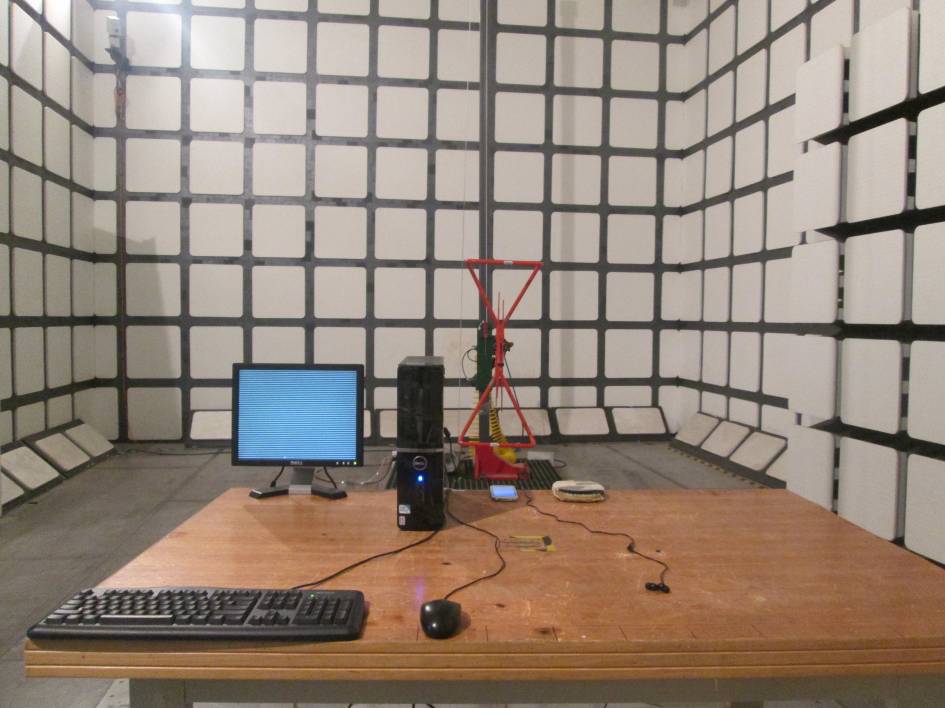

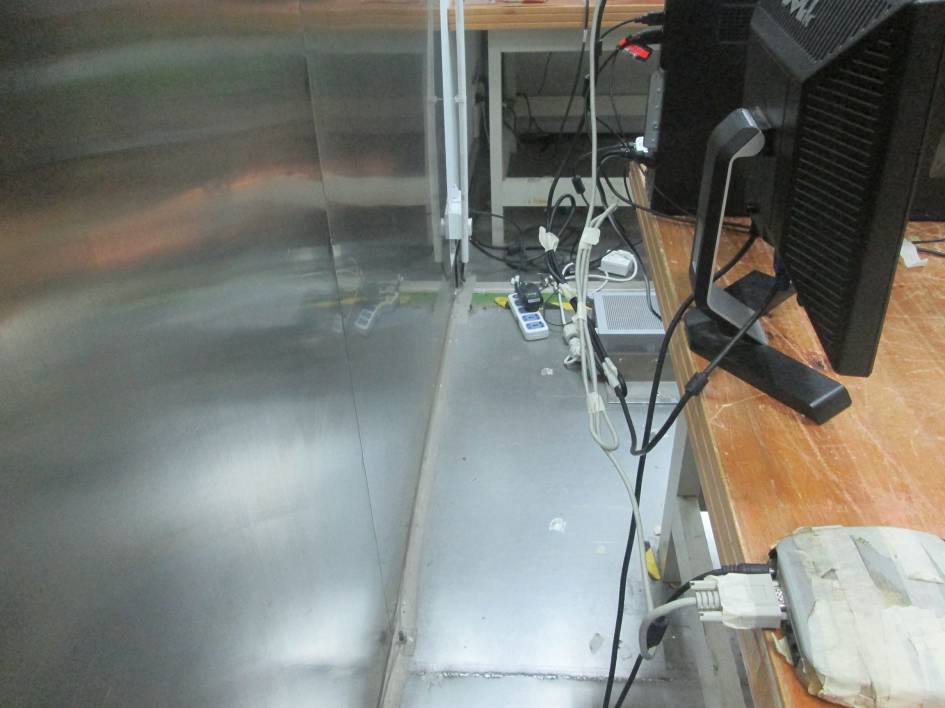

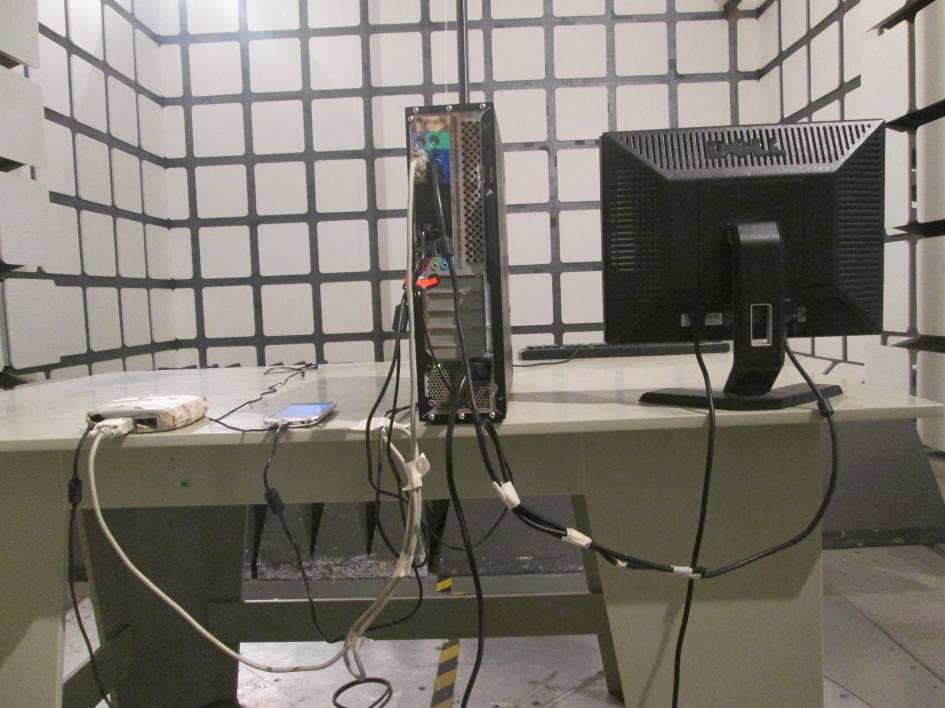

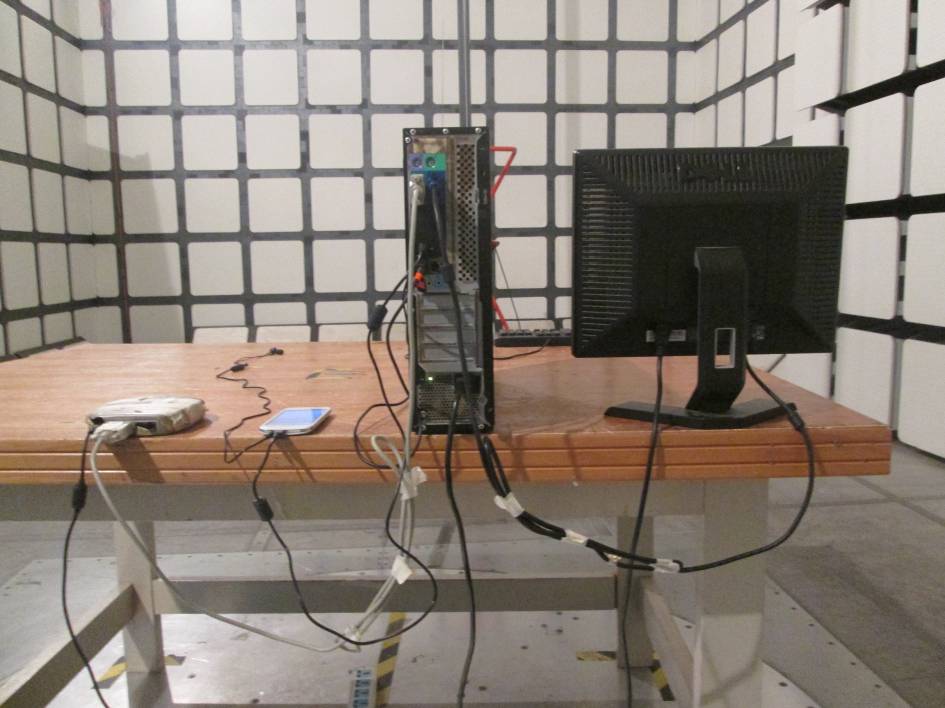

| Setup Photos | Test Setup Photos | 2016-06-20 | PDF 428.7 KB |
| Setup Photos | Test Setup Photos | 2016-06-20 | PDF 270 KB |
| Setup Photos | Test Setup Photos | 2016-06-20 | PDF 263 KB |
| Test Report | Test Report | 2016-06-20 | PDF 736.6 KB |
| Test Report | Test Report | 2016-06-20 | PDF 1,021.7 KB |
| Test Report | Test Report | 2016-06-20 | PDF 1,013.1 KB |
| Test Report | Test Report | 2016-06-20 | PDF 310.6 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-06-20 | PDF 39.7 KB |
| POA | Cover Letter(s) | 2016-06-20 | PDF 34.5 KB |
| SAR Report | RF Exposure Info | 2016-06-20 | PDF 5.5 MB |
| Block Diagram Metadata only | Block Diagram | PDF 43.9 KB | |
| Schematics Metadata only | Schematics | PDF 1.6 MB | |
| Operation Description Metadata only | Operational Description | PDF 1.2 MB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 77.4 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 674.6 KB |
Application Information
| Application ID | ectqNiQBSmTTzSmw1ahKxA== |
|---|---|
| Final Action Date | 2016-06-20 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0021037635 |
| Model | 30-027 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Mobile Phone |
| Responsible Party | Carlos Lopez, clopez@bmobile.eu.com , 852-2728 7886 |
| Test Firm | John Chan, Bay Area Compliance Laboratory Corp. (Shenzhen), john.chan@baclcorp.com  , 08675533320018 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| ectqNiQBSmTTzSmw1ahKxA== | 2016-06-20 | Original Equipment |
| LYDyyq7tnN9q1n8q4qxX3w== | 2016-06-20 | Original Equipment |
| Hv95GBvf42HPnxxCNGkDIQ== | 2016-06-20 | Original Equipment |
| /IlNY/NSWTMco+JBSl92kA== | 2016-06-20 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | CC | ||||
| 824.2-848.8 MHz | 1.205 | 2.5ppm | 248KGXW | 22H | |
| 824.2-848.8 MHz | 0.348 | 2.5ppm | 244KG7W | 22H | |
| 826.4-846.6 MHz | 0.115 | 2.5ppm | 4M17F9W | 22H | |
| 1850.2-1909.8 MHz | 0.933 | 2.5ppm | 244KGXW | 24E | |
| 1850.2-1909.8 MHz | 0.34 | 2.5ppm | 241KG7W | 24E | |
| 1852.4-1907.6 MHz | 0.191 | 2.5ppm | 4M17F9W | 24E | |
| 2402-2480 MHz | 0.0025000 | 15C | CC | ||
| 2402-2480 MHz | 0.0006 | 15C | CC | ||
| 2412-2472 MHz | 0.0363 | 15C | CC |
Grants
TCB Grant - Application LYDyyq7tnN9q1n8q4qxX3w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| b mobile HK Limited |
| Flat 18; 14/F Block 1; Golden Industrial Building; |
| 16-26 Kwai Tak Street; Kwai Chung;New Territories |
| HONG KONG, China |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application LYDyyq7tnN9q1n8q4qxX3w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building; 16-26 Kwai Tak Street; Kwai Chung;New Territories HONG KONG, China |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| b mobile HK Limited |
| Flat 18; 14/F Block 1; Golden Industrial Building; |
| 16-26 Kwai Tak Street; Kwai Chung;New Territories |
| HONG KONG, China |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0006 | ||
| CC | 15C | 2412.0 - 2472.0 | 0.0363 |
| Output power listed is peak conducted. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. The device supports 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application Hv95GBvf42HPnxxCNGkDIQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building; 16-26 Kwai Tak Street; Kwai Chung;New Territories HONG KONG, China |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0006 | ||
| CC | 15C | 2412.0 - 2472.0 | 0.0363 |
| Output power listed is peak conducted. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. The device supports 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| b mobile HK Limited |
| Flat 18; 14/F Block 1; Golden Industrial Building; |
| 16-26 Kwai Tak Street; Kwai Chung;New Territories |
| HONG KONG, China |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0025 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application ectqNiQBSmTTzSmw1ahKxA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building; 16-26 Kwai Tak Street; Kwai Chung;New Territories HONG KONG, China |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0025 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| b mobile HK Limited |
| Flat 18; 14/F Block 1; Golden Industrial Building; |
| 16-26 Kwai Tak Street; Kwai Chung;New Territories |
| HONG KONG, China |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.205 | 2.5 PM | 248KGXW | |
| 22H | 824.2 - 848.8 | 0.348 | 2.5 PM | 244KG7W | |
| 22H | 826.4 - 846.6 | 0.115 | 2.5 PM | 4M17F9W | |
| 24E | 1850.2 - 1909.8 | 0.933 | 2.5 PM | 244KGXW | |
| 24E | 1850.2 - 1909.8 | 0.34 | 2.5 PM | 241KG7W | |
| 24E | 1852.4 - 1907.6 | 0.191 | 2.5 PM | 4M17F9W |
| Output power listed is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 10 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 0.50 W/kg, 0.64 W/kg, 0.80 W/kg, and 0.80 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
EAS Grant - Application /IlNY/NSWTMco+JBSl92kA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building; 16-26 Kwai Tak Street; Kwai Chung;New Territories HONG KONG, China |
Date of Grant: 06/20/2016 Application Dated: 06/20/2016 |
| Attention: Carlos Lopez |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ZSW-30-027 |
| Name of Grantee: | b mobile HK Limited |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.205 | 2.5 PM | 248KGXW | |
| 22H | 824.2 - 848.8 | 0.348 | 2.5 PM | 244KG7W | |
| 22H | 826.4 - 846.6 | 0.115 | 2.5 PM | 4M17F9W | |
| 24E | 1850.2 - 1909.8 | 0.933 | 2.5 PM | 244KGXW | |
| 24E | 1850.2 - 1909.8 | 0.34 | 2.5 PM | 241KG7W | |
| 24E | 1852.4 - 1907.6 | 0.191 | 2.5 PM | 4M17F9W |
| Output power listed is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 10 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 0.50 W/kg, 0.64 W/kg, 0.80 W/kg, and 0.80 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
| Mail To: |
