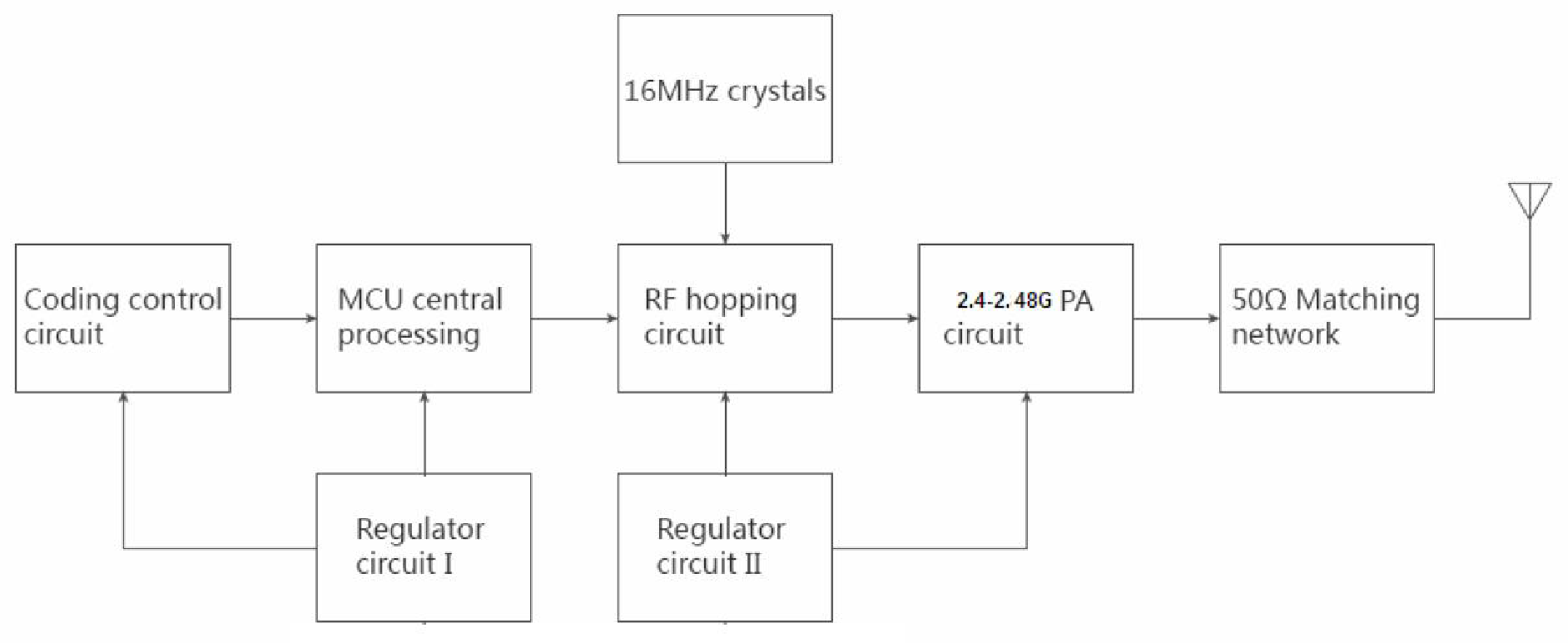

HPSDMXWTR transmitter Block Diagram - FCC ID ZTA-HPS-DMX-WTR

FCC ID ZTA-HPS-DMX-WTR

Block Diagram

transmitter

by HANSON PROSYSTEMS, LLC

Document preview loads when visible.

Document Details

FCC IDZTA-HPS-DMX-WTR
Document ID1510903
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantHANSON PROSYSTEMS, LLC
Equipment Classtransmitter
Product CodeHPSDMXWTR
Application IDO3EgV0ZxXic5n9Xzzm1PZA==
Application PurposeOriginal Equipment
Application Date2011-07-27
Frequency Range2402.06-2480.13 MHz
FRN0021039649
Test FirmWorld Standardization Certification&TestingCO.;,LTD
Certified ByKelly Wu
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-07-27
Available2011-07-27
Created2011-07-25
Modified2011-07-25
Pages1
File TypeAdobe Acrobat PDF
File Size39685
File SHA-2565c00446abb0edf6d935ec0d241d5e2d97fa8ccecff413ba032fbd41105f4a0ba
PDF Metadata AuthorNone
PDF Metadata CreatorAdobe Acrobat 9.4.5
PDF Metadata ProducerAdobe Acrobat 9.4.5 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 1510903
