FCC ID ZWF-TR00144
RFID Reader, model TR-001-044
by Illumina, Inc.
Grantee Code: ZWF Product Code: TR00144
Latest application date: 2015-12-05
Device Images
FCC ID Device Details
| FCC ID | ZWF-TR00144 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | ZWF |
| Product Code | TR00144 |
| Applicant Business | Illumina, Inc. 🇺🇸 |
| Related Domains |  illumina.com |
| Equipment Class | RFID Reader, model TR-001-044 |
| Test Firm | TUV Rheinland of North America Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 13.56 MHz | Class II permissive change or modification of presently authorized equipment | 2015-12-05 |
| 13.56 MHz | Original Equipment | 2013-08-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2014-02-11 | PDF 270.5 KB |
| C2PC Internal Photos | Internal Photos | 2015-12-05 | PDF 215.5 KB |
| Internal Photos | Internal Photos | 2014-02-11 | PDF 175 KB |
| External Photos | External Photos | 2013-08-17 | PDF 174 KB |
| ID and Label Location | ID Label/Location Info | 2013-08-17 | PDF 169.7 KB |
| C2PC External Photos | External Photos | 2015-12-05 | PDF 215.5 KB |
| Block Diagram | Block Diagram | 2014-02-11 | PDF 41.5 KB |
| Operational description | Operational Description | 2013-08-17 | PDF 107.9 KB |
| Tag info | Operational Description | 2013-08-17 | PDF 683.4 KB |

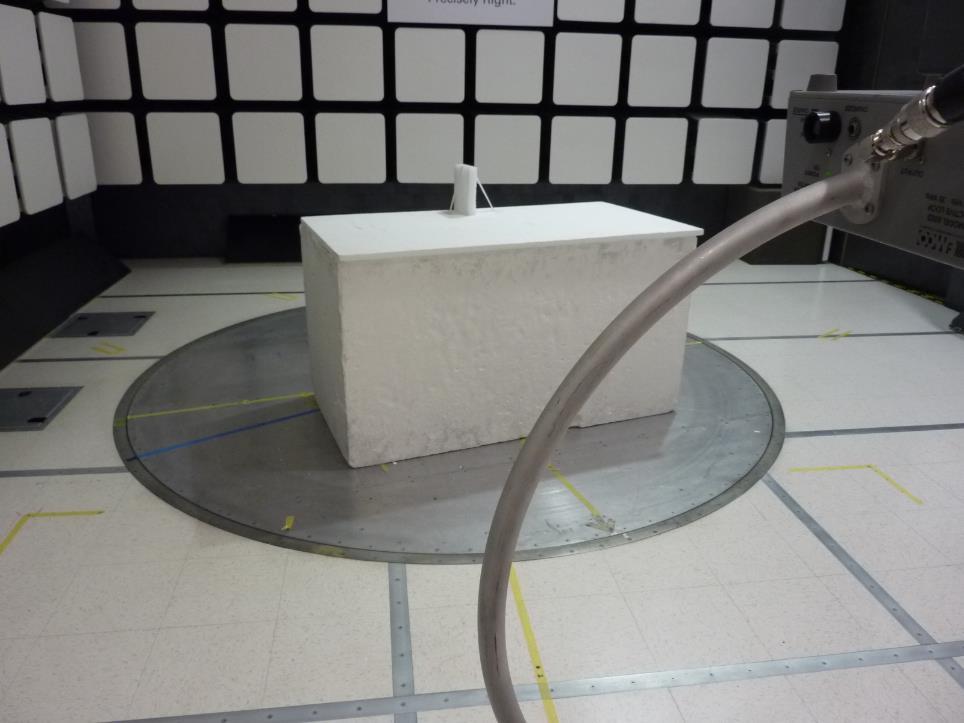

| C2PC Test Setup Photos | Test Setup Photos | 2015-12-05 | PDF 776.9 KB |
| Setup Photos | Test Setup Photos | 2013-08-17 | PDF 231.6 KB |
| C2PC Test report | Test Report | 2015-12-05 | PDF 1.3 MB |
| RF exposure info Test report | RF Exposure Info | 2013-08-17 | PDF 914.6 KB |
| Test Report | Test Report | 2013-08-17 | PDF 914.6 KB |
| C2PC Product Change Description | Cover Letter(s) | 2015-12-05 | PDF 26.6 KB |
| Confidentiality Request | Cover Letter(s) | 2013-08-17 | PDF 385.2 KB |
| Letter of Agency | Cover Letter(s) | 2013-08-17 | PDF 179.3 KB |
| Modular Approval letter | Cover Letter(s) | 2013-08-17 | PDF 1.6 MB |
| C2PC RF Exposure Exhibit | RF Exposure Info | 2015-12-05 | PDF 377.9 KB |
Application Information
| Application ID | yR/JEXZ0PXjNQXxv4wuRRA== |
|---|---|
| Final Action Date | 2015-12-05 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0020982336 |
| Model | TR00144 |
| Frequency Range | 13.56 MHz |
| Equipment Class | DXX - Part 15 Low Power Communication Device Transmitter |
| Device Description | RFID Reader, model TR-001-044 |
| Responsible Party | Carol M. Escano, Sr. Quality Engineer, cescano@illumina.com , 510-670-9319 |
| Test Firm | David Spencer, TUV Rheinland of North America Inc., dspencer@us.tuv.com  , (925) 249-9123 x2116 |
| TCB Email | mryan@us.tuv.com |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | This Grant is for a Class II Permissive Change, where the internal loop antenna is now a detachable flexible Loop Antenna. This module is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
