FCC ID ZXZWF60PA
AMPLIFIER
by Dayton Audio Division of Parts Express
Grantee Code: ZXZ Product Code: WF60PA
Latest application date: 2017-03-20
Device Images
FCC ID Device Details
| FCC ID | ZXZWF60PA |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | ZXZ |
| Product Code | WF60PA |
| Applicant Business | Dayton Audio Division of Parts Express 🇺🇸 |
| Related Domains |  parts-express.com |
| Equipment Class | AMPLIFIER |
| Test Firm | Keyway Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2017-03-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-03-20 | PDF 4.7 MB |

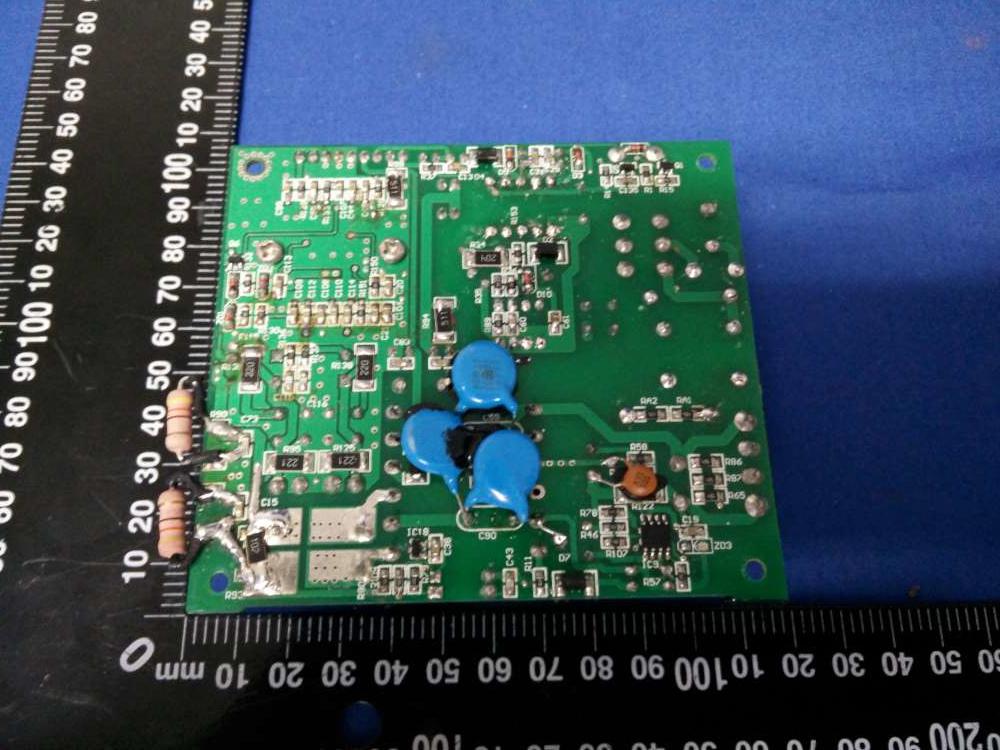

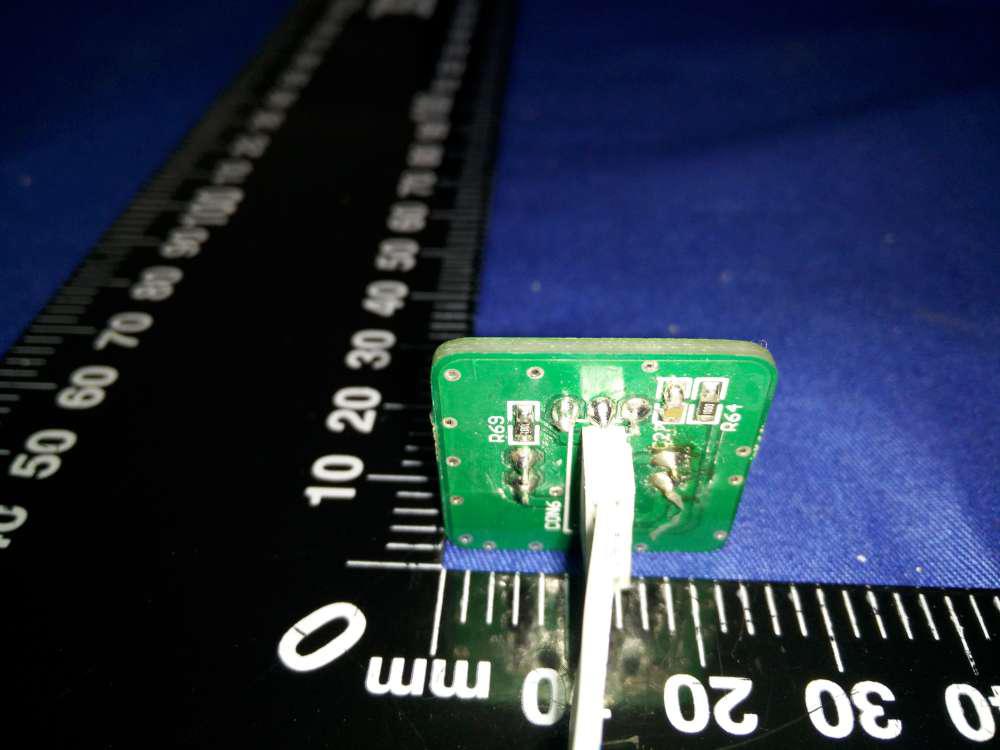

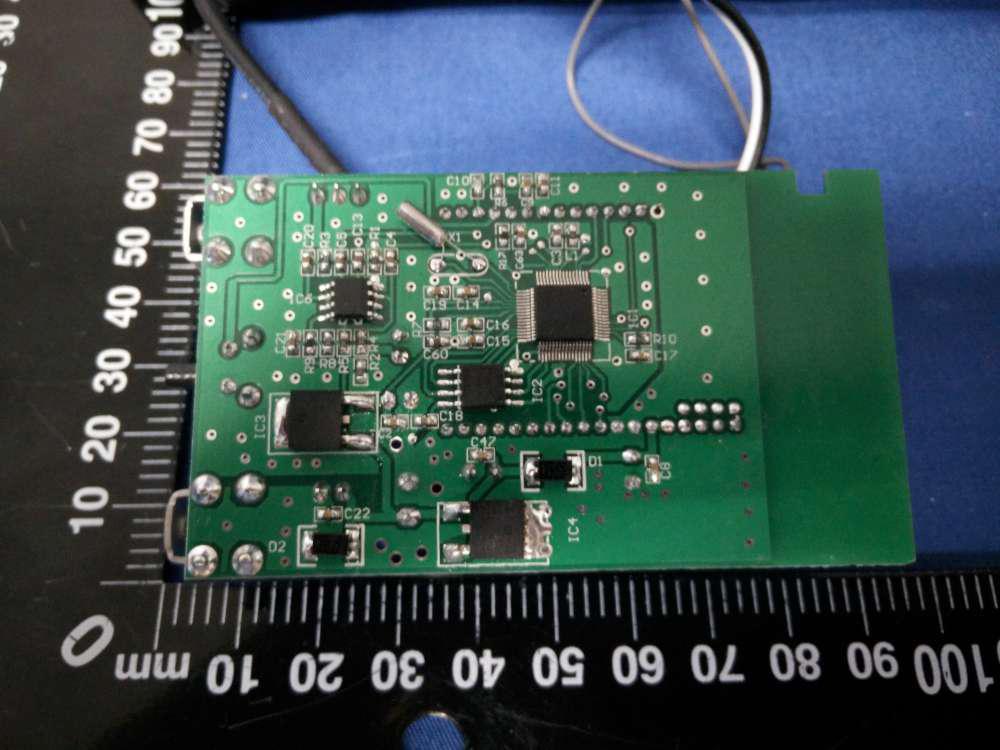

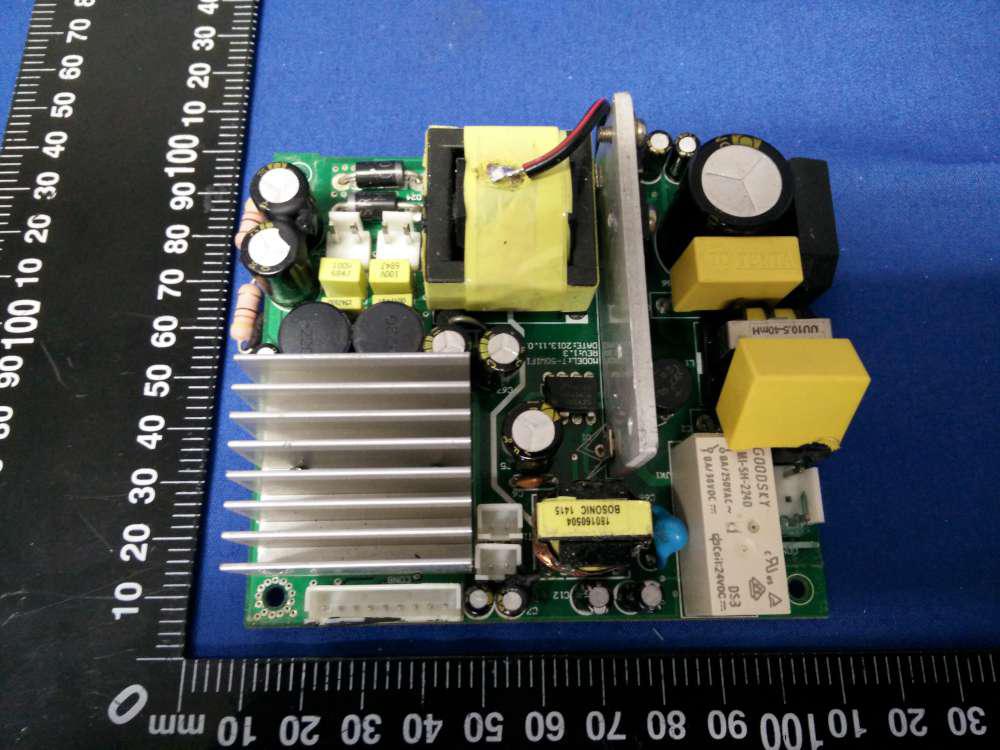

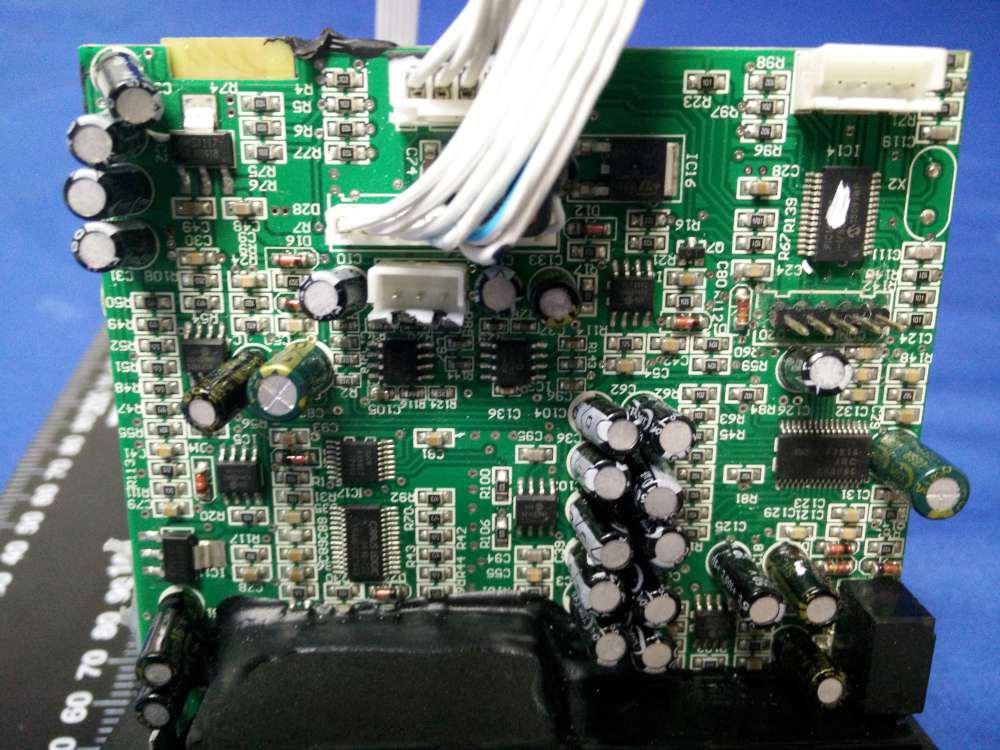

| Internal Photos | Internal Photos | 2017-03-20 | PDF 1.3 MB |

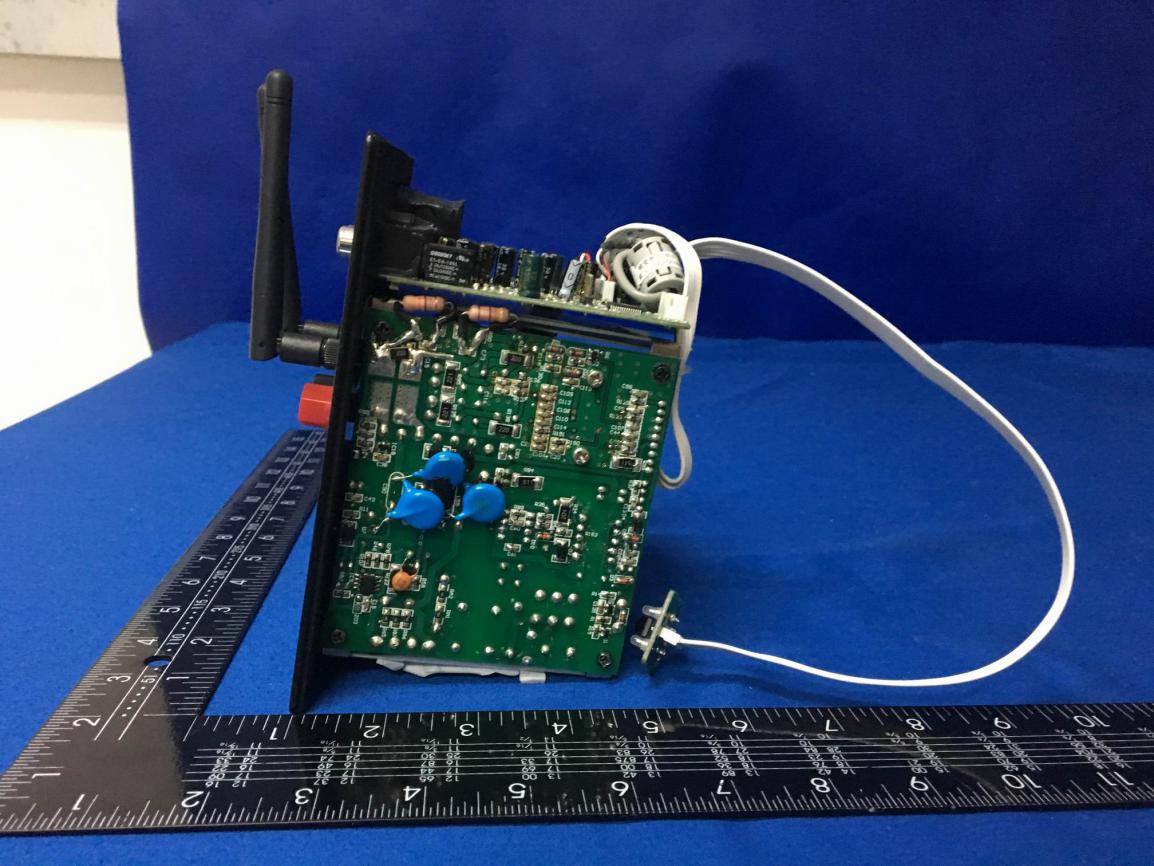

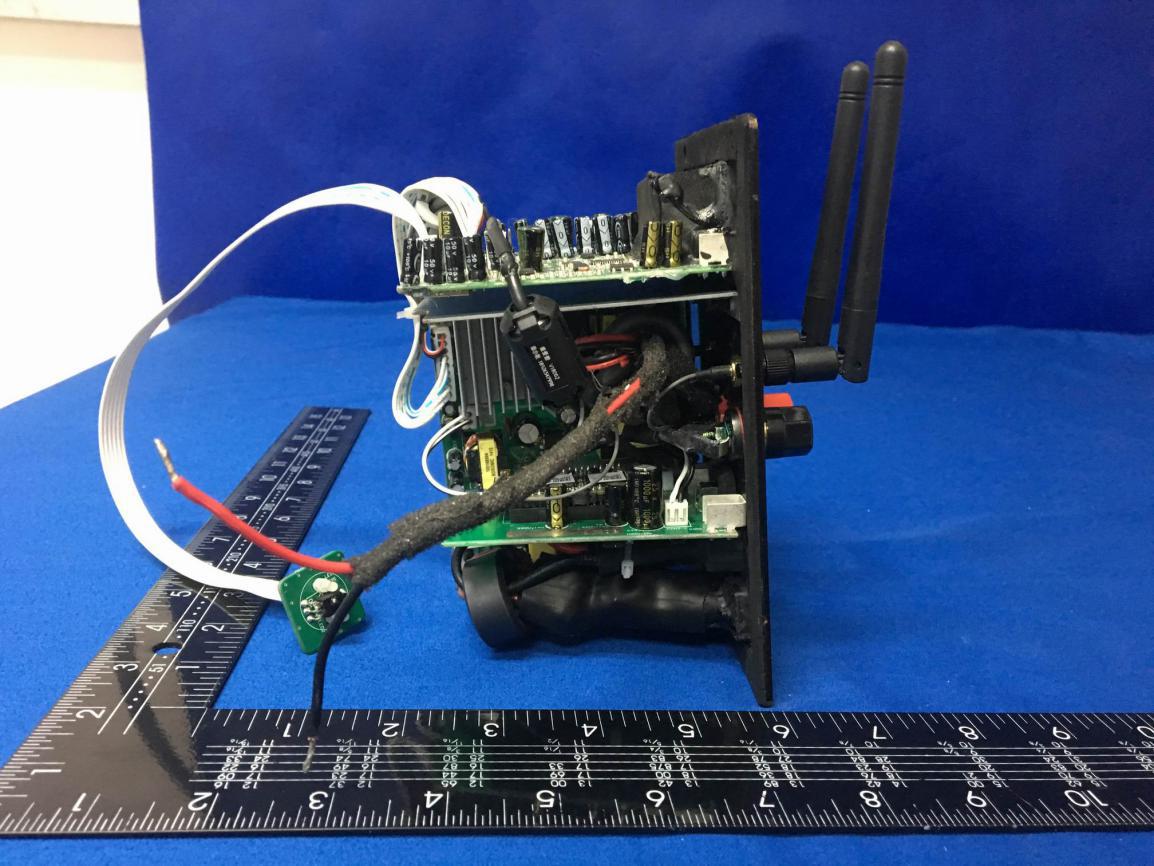

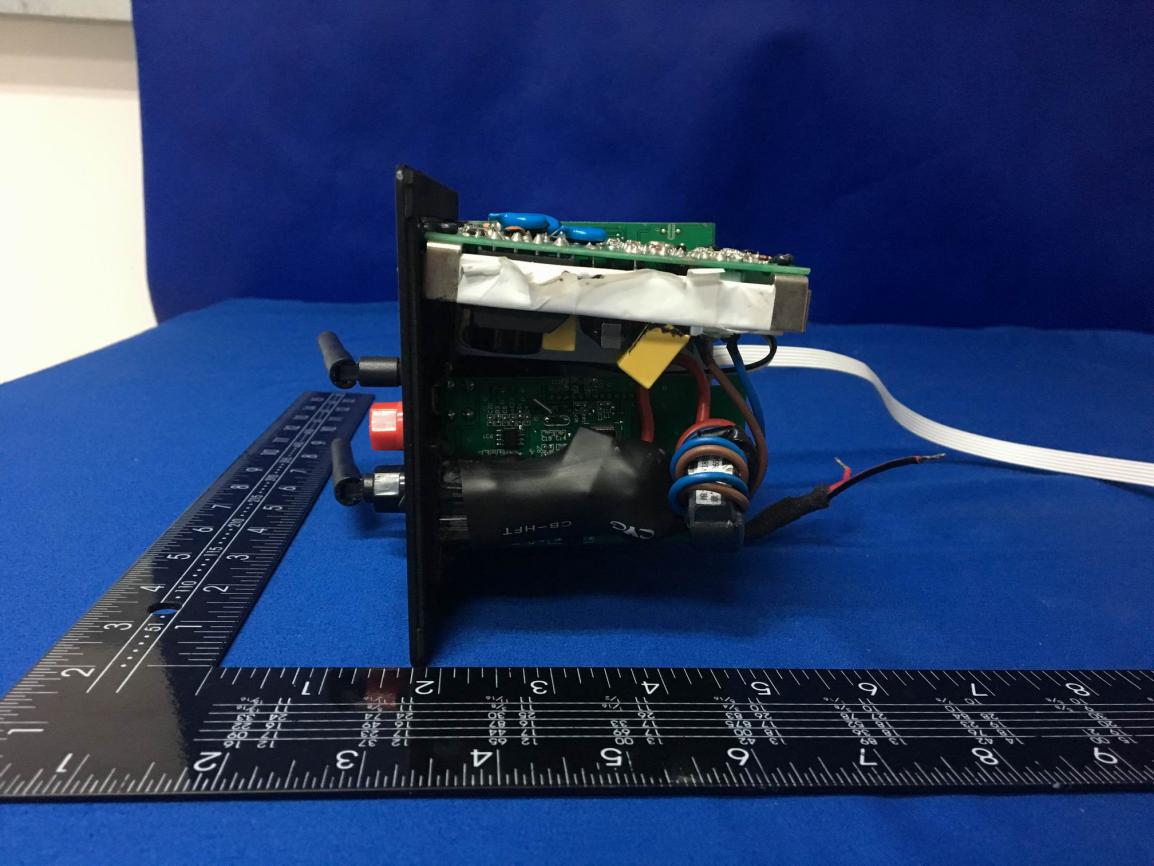

| External Photos | External Photos | 2017-03-20 | PDF 1.3 MB |
| Label & Label Location | ID Label/Location Info | 2017-03-20 | PDF 288.7 KB |

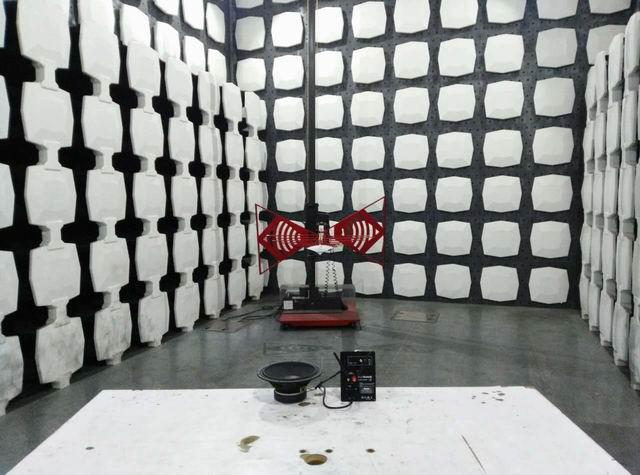

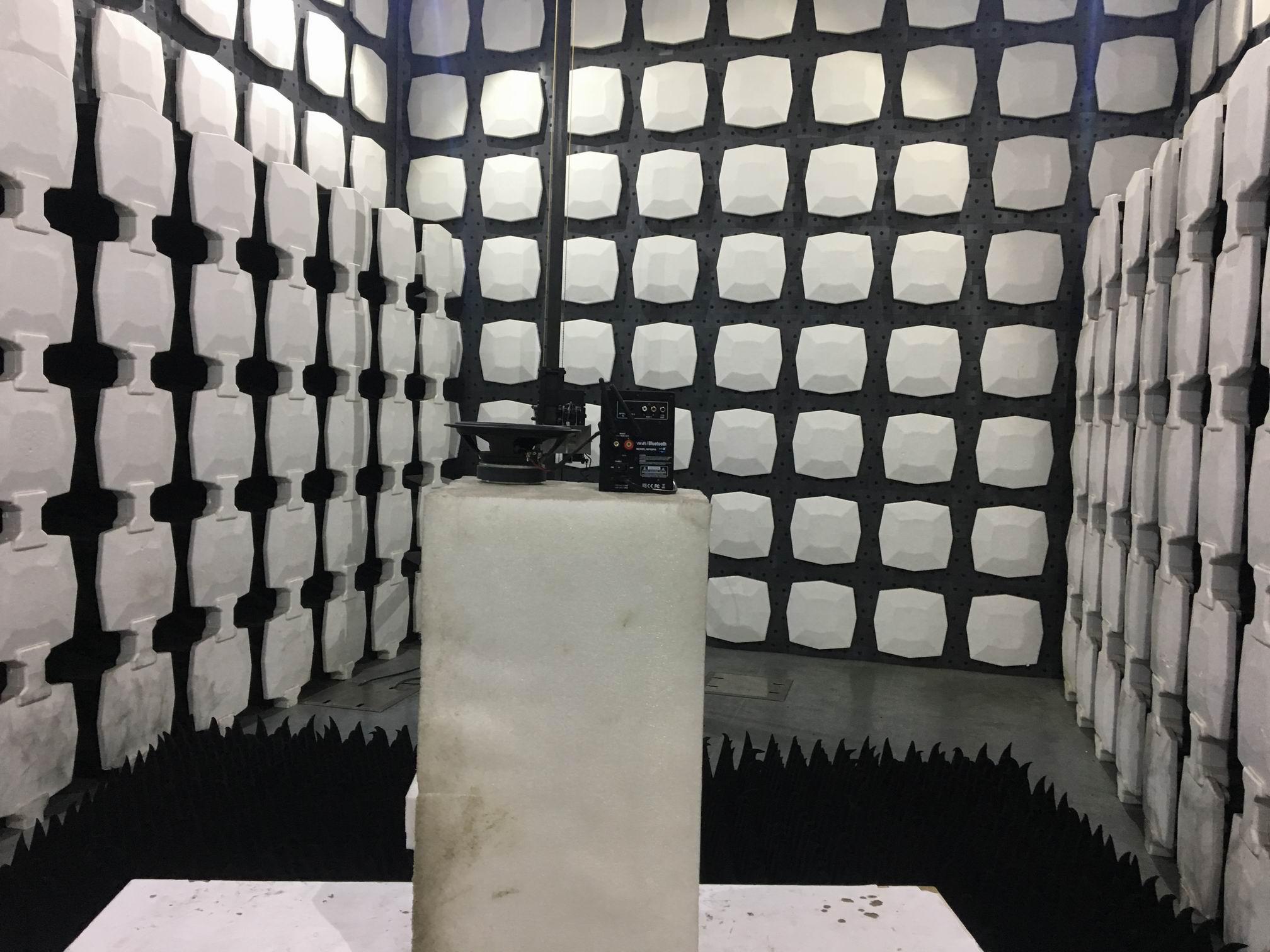

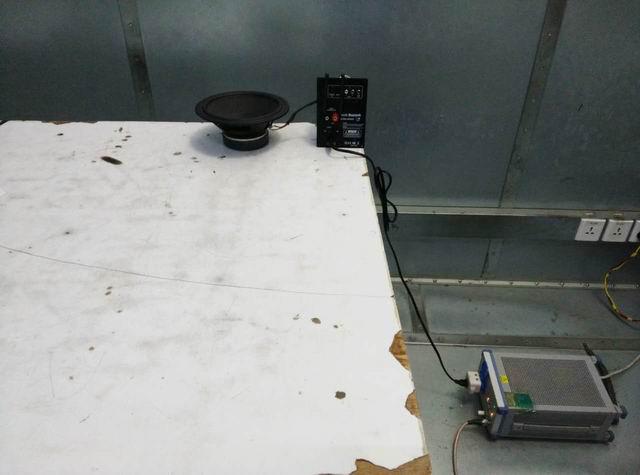

| RF Test Set-up Photos | Test Setup Photos | 2017-03-20 | PDF 405.9 KB |
| RF Test Report-BLE | Test Report | 2017-03-20 | PDF 2.5 MB |
| RF Test Report-WIFI-1 | Test Report | 2017-03-20 | PDF 4.2 MB |
| RF Test Report-WIFI-2 | Test Report | 2017-03-20 | PDF 5.5 MB |
| Authorization Letter | Cover Letter(s) | 2017-03-20 | PDF 77.7 KB |
| DTS Ch 12&13 Declaration letter | Cover Letter(s) | 2017-03-20 | PDF 147.7 KB |
| LTC Letter | Cover Letter(s) | 2017-03-20 | PDF 109.7 KB |
| MPE Report | RF Exposure Info | 2017-03-20 | PDF 108.2 KB |
| Block Diagram Metadata only | Block Diagram | PDF 59.3 KB | |
| Schematics Metadata only | Schematics | PDF 191 KB | |
| Operational Description Metadata only | Operational Description | PDF 96.1 KB |
Application Information
| Application ID | /Q8GFADW52WUp/ttZRb55Q== |
|---|---|
| Final Action Date | 2017-03-20 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0021113782 |
| Model | WF60PA |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | AMPLIFIER |
| Responsible Party | Brian Myers, Product Development Manager, brianm@parts-express.com , 937-550-0229 |
| Test Firm | Jade Yang, Keyway Testing Technology Co., Ltd., jade.yang@keywaytest.com  , 86-769-87182258 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum conducted output power. The device has 20MHz and 40MHz bandwidth, MIMO2X2 The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
