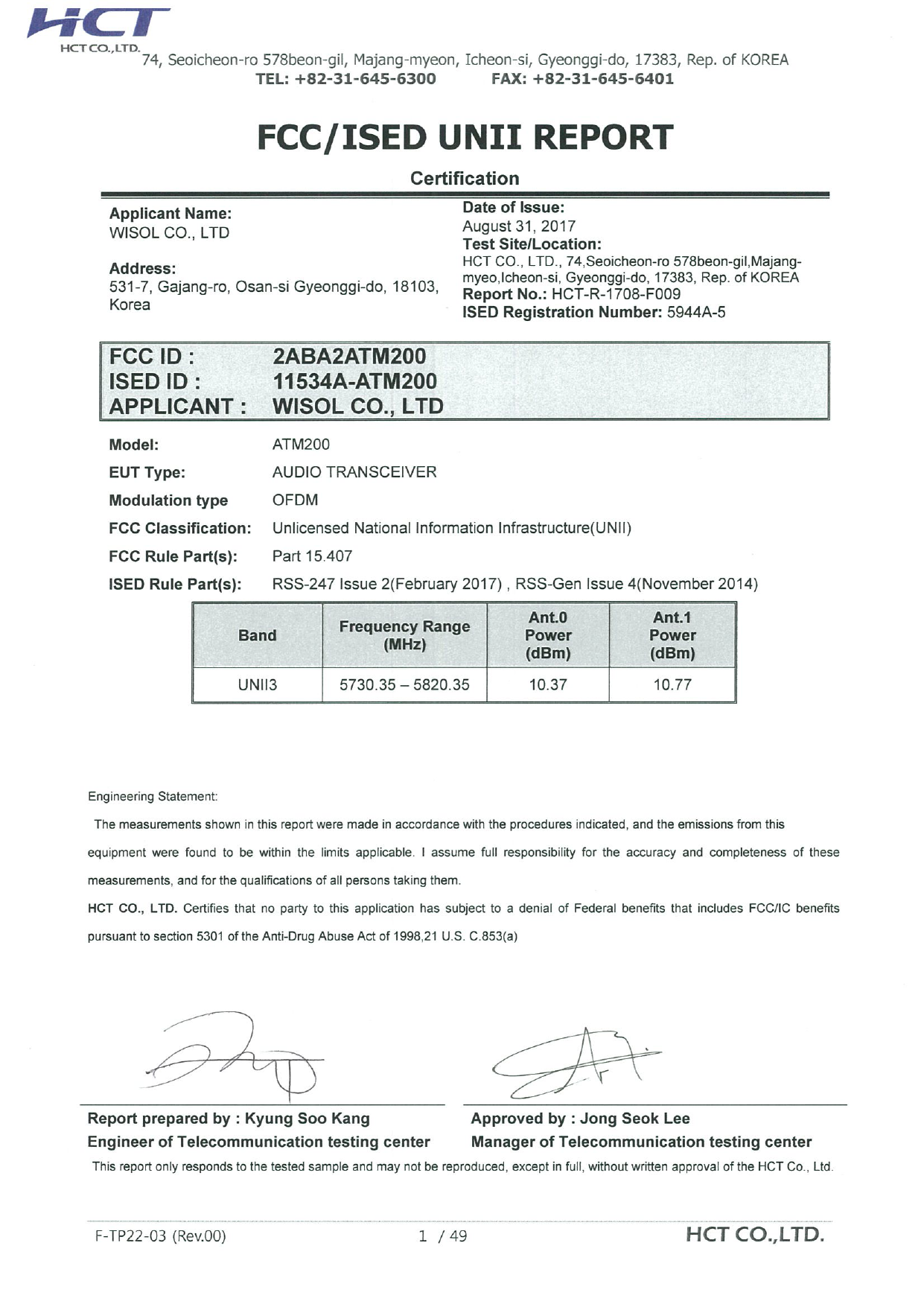

FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Version
TEST REPORT NO.
HCT-R-1708-F009
F-TP22-03 (Rev.00)
DATE
DESCRIPTION
August 31, 2017
- First Approval Report
2 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Table of Contents
1. GENERAL INFORMATION .......................................................................................................................... 4
2. EUT DESCRIPTION ..................................................................................................................................... 4
3. TEST METHODOLOGY ............................................................................................................................... 5
3.1 EUT CONFIGURATION ...................................................................................................................... 5
3.2 EUT EXERCISE .................................................................................................................................. 5
3.3 GENERAL TEST PROCEDURES ...................................................................................................... 5
3.4 DESCRIPTION OF TEST MODES ..................................................................................................... 5
4. INSTRUMENT CALIBRATION..................................................................................................................... 6
5. FACILITIES AND ACCREDITATIONS ......................................................................................................... 6
5.1 FACILITIES ......................................................................................................................................... 6
5.2 EQUIPMENT ....................................................................................................................................... 6
6. ANTENNA REQUIREMENTS ...................................................................................................................... 6
7.MEASUREMENT UNCERTAINTY ............................................................................................................... 7
8. SUMMARY OF TEST RESULTS ................................................................................................................. 8
8.1 FCC Part ............................................................................................................................................. 8
8.2 IC Part ................................................................................................................................................. 9
9. TEST RESULT ......................................................................................................................................... 10
9.1 DUTY CYCLE.................................................................................................................................. 10
9.2 EMISSION BANDWIDTH AND MINIMUM EMISSION BANDWIDTH MEASUREMENT .............. 11
9.3 99% BANDWIDTH MEASUREMENT ............................................................................................. 15
9.4 OUTPUT POWER MEASUREMENT .............................................................................................. 17
9.5 POWER SPECTRAL DENSITY ...................................................................................................... 20
9.6 FREQUENCY STABILITY .............................................................................................................. 23
9.7 RADIATED MEASUREMENT......................................................................................................... 25
9.7.1 RADIATED SPURIOUS EMISSIONS................................................................................... 25
9.7.2 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ............................................. 39
9.7.3 RECEIVER SPURIOUS EMISSIONS ................................................................................... 42
9.8 POWERLINE CONDUCTED EMISSIONS ..................................................................................... 43
10. LIST OF TEST EQUIPMENT ................................................................................................................. 48
10.1 LIST OF TEST EQUIPMENT(Conducted Test) .......................................................................... 48
10.2 LIST OF TEST EQUIPMENT(Radiated Test) .............................................................................. 49
F-TP22-03 (Rev.00)
3 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
1. GENERAL INFORMATION
Applicant:
WISOL CO., LTD
Address:
531-7, Gajang-ro, Osan-si Gyeonggi-do, 18103, Korea
FCC ID:
2ABA2ATM200
ISED ID:
11534A-ATM200
EUT Type:
AUDIO TRANSCEIVER
Model:
ATM200
Date(s) of Tests:
July 25, 2017 ~ August 17, 2017
Place of Tests:
HCT Co., Ltd.
74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea
2. EUT DESCRIPTION
Model
ATM200
EUT Type
AUDIO TRANSCEIVER
Power Supply
DC 5 V
Frequency Range
TX_20 MHz
BW:
5730.35 – 5820.35 MHz (UNII 3)
RX_20 MHz
BW:
5730.35 – 5820.35 MHz (UNII 3)
Modulation Type
OFDM
Antenna
Manufacturer: Wisol
Specification
Antenna type: PCB Printed
Peak Gain : 2.2 dBi (UNII 3)
F-TP22-03 (Rev.00)
4 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
3. TEST METHODOLOGY
The measurement procedure described in FCC KDB 789033 D02 General UNII Test Procedures
New Rules v01r04 dated May 2, 2017 entitled “Guidelines for Compliance Testing of Unlicensed
National Information Infrastructure (U-NII) Devices Part15, Subpart E” and ANSI C63.10(Version :
2013) ‘the American National Standard of Procedures for Compliance Testing of Unlicensed
Wireless Devices’ were used in the measurement.
3.1 EUT CONFIGURATION
The EUT configuration for testing is installed on RF field strength measurement to meet the
Commissions requirement and operating in a manner that intends to maximize its emission
characteristics in a continuous normal application.
3.2 EUT EXERCISE
The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of
the measurements. According to its specifications, the EUT must comply with the requirements of
the Section 15.207, 15.209 and 15.407 under the FCC Rules Part 15 Subpart E / RSS-Gen issue 4,
RSS-247 issue 2.
3.3 GENERAL TEST PROCEDURES
Conducted Emissions
The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the
requirements in Section 6.2 of ANSI C63.10. (Version :2013) Conducted emissions from the EUT
measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and
average detector modes.
Radiated Emissions
The EUT is placed on a turn table, which is 0.8 m above ground plane below 1GHz. Above 1GHz
with 1.5m using absorbers between the EUT and receive antenna. The turntable shall rotate 360
degrees to determine the position of maximum emission level. EUT is set 3.75 m away from the
receiving antenna, which varied from 1 m to 4 m to find out the highest emission. And also, each
emission was to be maximized by changing the polarization of receiving antenna both horizontal
and vertical. In order to find out the max. emission, the relative positions of this hand-held
transmitter (EUT) was rotated through three orthogonal axes according to the requirements in
Section 8 of ANSI C63.10. (Version: 2013)
Conducted Antenna Terminal
See Section from 8.1 to 8.4.( KDB 789033 D02 v01r04)
3.4 DESCRIPTION OF TEST MODES
The EUT has been tested under operating condition. Test program used to control the EUT for
staying in continuous transmitting and receiving mode is programmed.
Channel low, mid and high with highest data rate (worst case) is chosen for full testing.
F-TP22-03 (Rev.00)
5 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
4. INSTRUMENT CALIBRATION
The measuring equipment, which was utilized in performing the tests documented herein, has
been calibrated in accordance with the manufacturer's recommendations for utilizing calibration
equipments, which is traceable to recognized national standards
Espectially, all antenna for measurement is calibrated in accordance with the requirements of
C63.5 (Version : 2006).
5. FACILITIES AND ACCREDITATIONS
5.1 FACILITIES
The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the
radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si,
Gyeonggi-do, Korea. The site is constructed in conformance with the requirements of ANSI C63.4.
(Version :2014) and CISPR Publication 22. Detailed description of test facility was submitted to the
Commission and accepted dated July 07, 2015 (Registration Number: 90661)
5.2 EQUIPMENT
Radiated emissions are measured with one or more of the following types of Linearly polarized
antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum
analyzers with pre-selectors and quasi-peak detectors are used to perform radiated measurements.
Conducted emissions are measured with Line Impedance Stabilization Networks and EMI Test
Receivers. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also
used for making measurements.
All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring
Apparatus and Measurement Methods.”
6. ANTENNA REQUIREMENTS
According to FCC 47 CFR §15.203, §15.407 / RSS-Gen(Issue 4) Section 8.3
“An intentional radiator antenna shall be designed to ensure that no antenna other than that
furnished by the responsible party can be used with the device. The use of a permanently attached
antenna or of an antenna that uses a unique coupling to the intentional radiator shall be
considered sufficient to comply with the provisions of this section.”
* The antennas of this E.U.T are permanently attached.
* The E.U.T Complies with the requirement of §15.203, §15.407 / RSS-Gen
F-TP22-03 (Rev.00)
6 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
7. MEASUREMENT UNCERTAINTY
The measurement uncertainties shown below were calculated in accordance with the requirements
of ANSI C63.4:2014.
All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 %
level of confidence.
Parameter
Expanded Uncertainty (±dB)
Conducted Disturbance (150 kHz ~ 30 MHz)
1.82
Radiated Disturbance (9 kHz ~ 30 MHz)
3.40
Radiated Disturbance (30 MHz ~ 1 GHz)
4.80
Radiated Disturbance (1 GHz ~ 18 GHz)
5.70
F-TP22-03 (Rev.00)
7 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
8. SUMMARY OF TEST RESULTS
8.1 FCC Part
Test Description
FCC Part
Test Limit
Section(s)
Test
Test
Condition
Result
26dB Bandwidth
§15.407
(for Power
Measurement)
N/A
PASS
6 dB Bandwidth
§15.407(e)
>500 kHz
(5725-5850 MHz)
PASS
§15.407(a)(1)
< 250 mW
(5150-5250 MHz)
< 250 mW or 11+10 log log 10 (BW) dBm
(5250-5350 MHz)
< 250 mW or 11+10 log log 10 (BW) dBm
(5470-5725 MHz)
<1 W
(5725-5850 MHz)
PASS
Maximum Conducted Output Power
CONDUCTED
Peak Power Spectral Density
§15.407(a)(1),(5)
<11 dBm/ MHz (5150-5250 MHz)
<11 dBm/ MHz (5250-5350 MHz)
<11 dBm/ MHz (5470-5725 MHz)
<30 dBm/500 kHz(5725-5850 MHz)
Frequency Stability
§15.407(g)
NA
PASS
AC Conducted Emissions
150 kHz-30 MHz
15.207
 500 kHz
(5725~5850 MHz)
< 250 mW or 11+10 log 10 (BW)
dBm
(5250-5350 MHz)
< 250 mW or 11+10 log 10 (BW)
dBm
(5470-5600, 5650-5725 MHz)
Whichever power is less
RSS-247, 6.2.4 1
Maximum e.i.r.p
Test
RADIATED
RSS-Gen
section 8.9 table 4, 5
section 8.10 table 6
PASS
RSS-Gen section 7.1.2 table 2
PASS
RSS-Gen, 8.9
RSS-Gen, 8.10
RSS-Gen, 5
Receiver Spurious Emissions
RSS-Gen, 7.1.2
F-TP22-03 (Rev.00)
9 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9. TEST RESULT
9.1 DUTY CYCLE
The zero-span mode on a spectrum analyzer or EMI receiver ,if the response time and spacing
between bins on the sweep are sufficient to permit accurate measurements of the on and off times
of the transmitted signal. Set the center frequency of the instrument to the center frequency of the
transmission. Set RBW ≥ EBW if possible; otherwise, set RBW to the largest available value. Set
VBW ≥ RBW. Set detector = peak or average. The zero-span measurement method shall not be
used unless both RBW and VBW are > 50/T, where T is defined in section B)1)a), and the number
of sweep points across duration T exceeds 100. (For example, if VBW and/or RBW are limited to 3
MHz, then the zero-span method of measuring duty cycle shall not be used if T ≤ 16.7
microseconds.)
▣ TEST CONFIGURATION
▣ TEST PROCEDURE
The transmitter output is connected to the Spectrum Analyzer. We tested according to the zerospan measurement method, (B.2 in KDB 789033 D02 v01r04)
The largest available value of RBW is 8 MHz and VBW is 50 MHz. The zero-span method of
measuring duty cycle shall not be used if T ≤ 6.25 microseconds. (50/6.25 = 8)
The zero-span method was used becaure all measured T data are > 6.25 microseconds and both
RBW and VBW are > 50/T.
1. RBW = 8 MHz (the largest available value)
2. VBW = 8 MHz (≥ RBW)
3. SPAN = 0 Hz
4. Detector = Peak
5. Number of points in sweep > 100
6. Trace mode = Clear write
7. Measure Ttotal and Ton
8. Calculate Duty Cycle = Ton/ Ttotal and Duty Cycle Factor = 10*log(1/Duty Cycle)
▣ Duty Cycle Factor
Frequency
5730.35~5820.35MHz
F-TP22-03 (Rev.00)
Ton
Ttotal
(ms)
(ms)
10 / 49
Duty Cycle
Duty Cycle Factor
(dB)
100
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.2 EMISSION BANDWIDTH AND MINIMUM EMISSION BANDWIDTH MEASUREMENT
The bandwidth at 26 dB down from the highest in-band spectral density is measured with a
spectrum analyzer connected to the antenna terminal while the EUT is operating at its maximum
power control level, as defined in KDB 789033 D02 v01r04, at the appropriate frequencies. The
spectrum analyzer’s bandwidth measurement function is configured to measure the 26 dB
bandwidth.
The 26 dB bandwidth is used to determine the conducted power limits.
▣ TEST CONFIGURATION
▣ TEST PROCEDURE (26dB Bandwidth)
The transmitter output is connected to the Spectrum Analyzer.
The Spectrum Analyzer is set to( C.1 in KDB 789033 D02 v01r04)
1. RBW = approximately 1 % of the emission bandwidth
2. VBW > RBW
3. Detector = Peak
4. Trace mode = max hold
5. Measure the maximum width of the emission that is 26 dB down from the maximum of
the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and
repeat measurement as needed until the RBW/EBW ratio is approximately 1 %.
Note : We tested 26 dB bandwidth using the automatic bandwidth measurement capability of a
spectrum analyzer. X dB is set 26 dB.
In order to simplify the report, attached plots were only the most wide channel.
F-TP22-03 (Rev.00)
11 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST PROCEDURE (for the band 5.725-5.85 GHz, 6 dB Bandwidth)
The transmitter output is connected to the Spectrum Analyzer.
The Spectrum Analyzer is set to( C.2 in KDB 789033 D02 v01r04)
1. RBW = 100 kHz
2. VBW ≥ 3*RBW
3. Detector = Peak
4. Trace mode = max hold
5. Allow the trace to stabilize
6. Measure the maximum width of the emission that is constrained by the frequencies
associated with the two outermost amplitude points(upper and lower frequencies) that
are attenuated by 6 dB relative to the maximum lever measured in the fundamental
emission.
Note : We tested 6 dB bandwidth using the automatic bandwidth measurement capability of a
spectrum analyzer. X dB is set 6 dB.
F-TP22-03 (Rev.00)
12 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST RESULTS
Conducted 26 dB Bandwidth Measurements for Ant.0
Channel
Measured Bandwidth
Minimum Bandwidth
No.
[MHz]
[MHz]
5730.35
Low
2.48
N/A
Pass
5776.35
Mid
2.48
N/A
Pass
5820.35
High
2.48
N/A
Pass
Frequency [MHz]
Pass / Fail
Conducted 26 dB Bandwidth Measurements for Ant.1
Channel
Measured Bandwidth
Minimum Bandwidth
No.
[MHz]
[MHz]
5730.35
Low
2.47
N/A
Pass
5776.35
Mid
2.48
N/A
Pass
5820.35
High
2.47
N/A
Pass
Frequency [MHz]
Pass / Fail
▣ TEST Plot
26dB Bandwidth for Ant.0 (CH. Low)
26dB Bandwidth for Ant.1 (CH. Mid)
Note : In order to simplify the report, attached plots were only the most wide channel.
F-TP22-03 (Rev.00)
13 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST RESULTS
Conducted 6 dB Bandwidth Measurements for Ant.0
Frequency [MHz]
Channel
No.
Measured Bandwidth
[MHz]
Minimum Bandwidth
[MHz]
5730.35
Low
1.69
0.5
Pass
5776.35
Mid
1.70
0.5
Pass
5820.35
High
1.69
0.5
Pass
Pass / Fail
Conducted 6 dB Bandwidth Measurements for Ant.1
Frequency [MHz]
Channel
No.
Measured Bandwidth
[MHz]
Minimum Bandwidth
[MHz]
5730.35
Low
1.70
0.5
Pass
5776.35
Mid
1.66
0.5
Pass
5820.35
High
1.72
0.5
Pass
Pass / Fail
▣ TEST Plot
BAND 6dB Bandwidth for Ant.0 (CH.Mid)
6dB Bandwidth for Ant.1 (CH.High)
Note : In order to simplify the report, attached plots were only the most wide channel.
F-TP22-03 (Rev.00)
14 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.3 99% BANDWIDTH MEASUREMENT
None; for IC reporting purposes only
The 99 % bandwidth is used to determine the conducted power limits(for IC).
▣ TEST CONFIGURATION
▣ TEST PROCEDURE
The transmitter output is connected to the spectrum analyzer. The RBW is set to as close to 1% of
the selected span. The VBW is set to 3 times the RBW. The sweep time is coupled. The spectrum
analyzer internal 99% bandwidth function is utilized.
RBW = 1% of the total span
VBW ≥ 3 x RBW
Detector = Peak
Trace mode = max hold
Sweep = auto couple
Allow the trace to stabilize
F-TP22-03 (Rev.00)
15 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST RESULTS
99% Bandwidth Measurements for Ant.0
Channel
Measured Bandwidth
No.
[MHz]
5730.35
Low
1.903
5776.35
Mid
1.891
5820.35
High
1.898
Frequency [MHz]
99% Bandwidth Measurements for Ant.1
Channel
Measured Bandwidth
No.
[MHz]
5730.35
Low
1.893
5776.35
Mid
1.904
5820.35
High
1.903
Frequency [MHz]
▣ TEST Plot
99% Bandwidth for Ant.0 (CH. Low)
99% Bandwidth for Ant.1 (CH. Mid)
Note : In order to simplify the report, attached plots were only the most wide channel.
F-TP22-03 (Rev.00)
16 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.4 OUTPUT POWER MEASUREMENT
Test Requirements and limit, §15.407(a)(1) / RSS-247 6.2
A transmitter antenna terminal of EUT is connected to the input of a Power meter or Spectrum
Analyzer .Measurement is made while the EUT is operating in transmission mode at the
appropriate frequencies.
▣ LIMIT
Limit
Band
(dBm)
UNII 3
30.00
▣ TEST CONFIGURATION(20 MHz BW)
▣ TEST PROCEDURE(20 MHz BW)
▪ Average Power (Procedure E.3.a in KDB 789033 D02 v01r04).
1. Measure the duty cycle.
2. Measure the average power of the transmitter. This measurement is an average over both
the on and off periods of the transmitter.
3. Add 10 log (1/x), where x is the duty cycle, to the measured power in order to compute the
average power during the actual transmission times.
Note :
1. Actual value of loss for the attenuator and cable combination is below table.
Band
Loss(dB)
UNII 3
12.1
(Actual value of loss for the attenuator and cable combination)
F-TP22-03 (Rev.00)
17 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST PROCEDURE(40 MHz BW & 80 MHz BW)
▣ TEST PROCEDURE(40 MHz BW & 80 MHz BW)
▪ Average Power
The transmitter output is connected to the Spectrum Analyzer. We use the spectrum analyzer’s
integrated band power measurement function. We tested according to Method SA-2 in KDB
789033 D02 v01r04.
The Spectrum Analyzer is set to
1. Measure the duty cycle.
2. Set span to encompass the 26 dB EBW of the signal.
3. RBW = 1 MHz.
4. VBW ≥ 3 MHz.
5. Number of points in sweep ≥ 2*span/RBW.
6. Sweep time = auto.
7. Detector = RMS.
8. Do not use sweep triggering. Allow the sweep to “free run”.
9. Trace average at least 100 traces in power averaging(RMS) mode
10. Integrated bandwidth = OBW
11. Add 10log(1/x), where x is the duty cycle, to the measured power in order to compute the
average power during the actual transmission times.
▣ SAMPLE CALCULATION (Conducted)
Output Power = Reading Value + ATT loss + Cable loss(1 ea) + Duty Cycle Factor
Note: 1. Spectrum reading values are not plot data. The power results in plot is already including the actual
values of loss for the attenuator and cable combination.
2. Spectrum offset = Attenuator loss + Cable loss
3. Actual value of loss for the attenuator and cable combination is below table.
Band
Loss(dB)
UNII 3
12.1
(Actual value of loss for the attenuator and cable combination)
F-TP22-03 (Rev.00)
18 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST RESULTS
Conducted Output Power Measurements for Ant.0
Frequency
[MHz]
Channel
No.
Measured
Power
(dBm)
5730.35
Low
10.32
0.00
Measured
Power(dBm)
Duty Cycle
Factor(dB)
10.32
5776.35
Mid
10.37
0.00
10.37
30
5820.35
High
10.30
0.00
10.30
30
Duty Cycle
Factor
(dB)
Limit
(dBm)
30
Conducted Output Power Measurements for Ant.1
Frequency
[MHz]
Channel
No.
Measured
Power
(dBm)
5730.35
Low
10.77
0.00
Measured
Power(dBm)
Duty Cycle
Factor(dB)
10.77
5776.35
Mid
10.47
0.00
10.47
30
5820.35
High
10.16
0.00
10.16
30
Duty Cycle
Factor
(dB)
Limit
(dBm)
30
▣ TEST Plot
Average Power for Ant.0 (CH. Mid)
F-TP22-03 (Rev.00)
Average Power for Ant.1 (CH. Low)
19 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.5 POWER SPECTRAL DENSITY
The peak power density is measured with a spectrum analyzer connected to the antenna terminal
while the EUT is operating in transmission mode at the appropriate frequencies. The maximum
permissible peak power spectral density is 11 dBm/ MHz for UNII 1 and 30 dBm/500 kHz for UNII 3.
▣ LIMIT
Power Spectral Density
Band
Limit
UNII 3
30 dBm/500 kHz
F-TP22-03 (Rev.00)
20 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST CONFIGURATION
▣ TEST PROCEDURE
We tested according to Method in KDB 789033 D02 v01r04.
The spectrum analyzer is set to :
1. Set span to encompass the entire emission bandwidth(EBW) of the signal.
2. RBW = 1 MHz(510 kHz for UNII 3)
3. VBW ≥ 3 MHz
4. Number of points in sweep ≥ 2*span/RBW.
5. Sweep time = auto.
6. Detector = RMS(i.e., power averaging), if available. Otherwise, use sample detector mode.
7. Do not use sweep triggering. Allow the sweep to “free run”.
8. Trace average at least 100 traces in power averaging(RMS) mode
9. Use the peak search function on the spectrum analyzer to find the peak of the spectrum.
10. If Method SA-2 was used, add 10 log(1/x), where x is the duty cycle, to the peak of the
spectrum.
▣ SAMPLE CALCULATION
PSD = Reading Value + ATT loss + Cable loss(1 ea) + Duty Cycle Factor
Output Power = 5 dBm + 10 dB + 0.8 dB + 0.21 dB = 16.01 dBm
Note :
1. Spectrum reading values are not plot data. The PSD results in plot is already including the actual values of
loss for the attenuator and cable combination.
2. Spectrum offset = Attenuator loss + Cable loss
3. We apply to the offset in the 5.2 GHz, 5.3 GHz and 5.6 GHz range that was rounded off to the closest
tenth dB. Actual value of loss for the attenuator and cable combination is below table.
Band
Loss(dB)
UNII 3
12.1
(Actual value of loss for the attenuator and cable combination)
F-TP22-03 (Rev.00)
21 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ TEST RESULTS
Conducted Power Density Measurements for Ant.0
Test Result
Measured
Duty Cycle
Frequency
Channel
Power
Factor
(MHz)
No.
Density
(dB)
(dBm)
Measured
Power
Density(dBm)
Duty Cycle
Limit
Pass/Fail
(dBm)
Factor
5730.35
Low
6.712
0.000
6.712
5776.35
Mid
6.783
0.000
6.783
5820.35
High
6.763
0.000
6.763
Pass
30
Pass
Pass
Conducted Power Density Measurements for Ant.1
Test Result
Measured
Duty Cycle
Frequency
Channel
Power
Factor
(MHz)
No.
Density
(dB)
(dBm)
Measured
Power
Density(dBm)
Duty Cycle
Limit
Pass/Fail
(dBm)
Factor
5730.35
Low
7.212
0.000
7.212
5776.35
Mid
7.004
0.000
7.004
5820.35
High
6.587
0.000
6.587
Pass
30
Pass
Pass
▣ TEST Plot
PSD for Ant.0 (CH. Mid)
F-TP22-03 (Rev.00)
PSD for Ant.1 (CH. Low)
22 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.6 FREQUENCY STABILITY
The EUT was placed inside an environmental chamber as the temperature in the chamber was
varied between -30 ℃ and 50 ℃. The temperature was incremented by 10 ℃ intervals and the unit
was allowed to stabilize at each temperature before each measurement. The center frequency of
the transmitting channel was evaluated at each temperature and the frequency deviation from the
channel’s center frequency was recorded.
Ant.0
OPERATING BAND:
UNII Band 3
OPERATING FREQUENCY:
5.776.350,000 Hz
REFERENCE VOLTAGE:
5 VDC
Voltage
Power
Temp.
Frequency
Frequency
(%)
(VDC)
(℃)
(kHz)
Error (kHz)
100%
+20(Ref)
5776377.20
27.20
100%
-30
5776298.10
-51.90
100%
-20
5776304.70
-45.30
100%
-10
5776311.10
-38.90
5776318.20
-31.80
100%
+10
5776325.00
-25.00
100%
+30
5776338.10
-11.90
100%
+40
5776345.00
-5.00
100%
+50
5776351.00
1.00
100%
5.00
MAX
5.50
+20
5776323.40
-26.60
MIN
4.50
+20
5776318.70
-31.30
Note:
Based on the results of the frequency stability test shown above the frequency deviation results measured
are very small. As such it is determined that the channels at the band edge would remain in-band when the
maximum measured frequency error noted during the frequency stability tests is applied. Therefore the
device is determined to remain operating in band over the temperature and voltage range as tested.
F-TP22-03 (Rev.00)
23 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Ant.1
OPERATING BAND:
UNII Band 3
OPERATING FREQUENCY:
5.776.350,000 Hz
REFERENCE VOLTAGE:
5 VDC
Voltage
Power
Temp.
Frequency
Frequency
(%)
(VDC)
(℃)
(kHz)
Error (kHz)
100%
+20(Ref)
5776377.27
27.27
100%
-30
5776300.10
-49.90
100%
-20
5776305.40
-44.60
100%
-10
5776309.60
-40.40
5776317.20
-32.80
100%
+10
5776322.50
-27.50
100%
+30
5776335.10
-14.90
100%
+40
5776340.50
-9.50
100%
+50
5776345.30
-4.70
100%
5.00
MAX
5.50
+20
5776322.90
-27.10
MIN
4.50
+20
5776314.20
-35.80
Note:
Based on the results of the frequency stability test shown above the frequency deviation results measured
are very small. As such it is determined that the channels at the band edge would remain in-band when the
maximum measured frequency error noted during the frequency stability tests is applied. Therefore the
device is determined to remain operating in band over the temperature and voltage range as tested.
F-TP22-03 (Rev.00)
24 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.7 RADIATED MEASUREMENT
9.7.1 RADIATED SPURIOUS EMISSIONS.
Test Requirements and limit, §15.205, §15.209, §15.407 / RSS-247 6.2
Frequency (MHz)
Field Strength (uV/m)
Measurement Distance (m)
0.009 – 0.490
2400/F(kHz)
300
0.490 – 1.705
24000/F(kHz)
30
1.705 – 30
30
30
30-88
100
88-216
150
216-960
200
Above 960
500
▣ §15.407, KDB 789033 D02
All harmonics that do not lie in a restricted band are subject to a peak limit of -27 dBm/MHz. At a distance of
3 meters the field strength limit in dBµV/m can be determined by adding a “conversion” factor of 95.2 dB to
the EIRP limit of -27 dBm/MHz to obtain the limit for out of band spurious emissions of 68.2 dBµV/m.
Espectally, for transmitter operating in the 5725 Mhz – 5850 MHz : all emissions within the frequency range
from the band edge to 10 MHz above or below the band edge shall not exceed an e.i.r.p. of -17 dBm/MHz;
for frequency 10 MHz or greater above or below the band edge, emissions shall not exceed an e.i.r.p. of -27
dBm/MHz.
F-TP22-03 (Rev.00)
25 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
TEST CONFIGURATION
Below 30 MHz
30 MHz - 1 GHz
F-TP22-03 (Rev.00)
26 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Above 1 GHz
TEST PROCEDURE USED
ANSI C63.10:2013
Method G)5) in KDB 789033 D02 v01r04 (Peak)
Method G)6)d) in KDB 789033 D02 v01r04 (Average)
. Spectrum setting:
- Peak.
1. RBW = 1 MHz
2. VBW ≥ 3 MHz
3. Detector = Peak
4. Sweep Time = auto
5. Trace mode = max hold
6. Allow sweeps to continue until the trace stabilizes.
7. Note that if the transmission is not continuous, the time required for the trace to stabilize will increase by
a factor of approximately 1/x, where x is the duty cycle.
- Average (Method VB :Averaging using reduced video bandwidth)
1. RBW = 1 MHz
2. VBW
2.1. If the EUT is configured to transmit with duty cycle ≥ 98 percent, set VBW ≤ RBW/100(i.e., 10 kHz)
but not less than 10 Hz.
2.2. If the EUT duty cycle is < 98 percent, set VBW ≥ 1/T, where T is the minimum transmission
F-TP22-03 (Rev.00)
27 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
duration.
3. The analyzer is set to linear detector mode.
4. Detector = Peak.
5. Sweep time = auto.
6. Trace mode = max hold.
7. Allow max hold to run for at least 50 traces if the transmitted signal is continuous or has at least 98
percent duty cycle. For lower duty cycles, increase the minimym number of traces by a factor of 1/x,
where x is the duty cycle.
Note :
1. We used the Method VB to perform the average filed strength measurements.
2. According to SVSWR requirement in ANSI 63.4-2014, We performed the radiated test at 3.75 m distance
from center of turn table. So, we applied the distance factor( reference distance : 3 m).
3. Distance extrapolation factor = 20 log (test distance / specific distance) (dB)
The actual
Frequency
Ton
Ttotal
Duty Cycle
(ms)
(ms)
(%)
setting
value of
VBW
(Hz)
5730.35~5820.35 MHz
F-TP22-03 (Rev.00)
100
28 / 49
1000
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
TEST RESULTS
9 kHz – 30MHz
Operation Mode: Normal Mode
Frequency
Reading
Ant. factor
Cable loss
Ant. POL
Total
Limit
Margin
㎒
dB㎶
dB /m
dB
(H/V)
dB㎶/m
dB㎶/m
dB
No Critical peaks found
Notes:
1. Measuring frequencies from 9 kHz to the 30MHz.
2. The reading of emissions are attenuated more than 20 dB below the permissible
limits or the field strength is too small to be measured.
3. Distance extrapolation factor = 40 log (specific distance / test distance) (dB)
4. Limit line = specific Limits (dBuV) + Distance extrapolation factor
5. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna.
6. The test results for below 30 MHz is correlated to an open site.
The result on OATS is about 2 dB higher than semi-anechoic chamber (10 m chamber)
F-TP22-03 (Rev.00)
29 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
TEST RESULTS
Below 1 GHz
Operation Mode: Normal Mode
Frequency
Reading
Ant. factor
Cable loss
Ant. POL
Total
Limit
Margin
㎒
dB㎶
dB /m
dB
(H/V)
dB㎶/m
dB㎶/m
dB
No Critical peaks found
Notes:
1. Measuring frequencies from 30 MHz to the 1 GHz.
2. Radiated emissions measured in frequency range from 30 MHz to 1000 MHz were made
with an instrument using Quasi peak detector mode.
3. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna.
F-TP22-03 (Rev.00)
30 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Above 1 GHz
[Ant.0]
Band :
UNII 3
Operating Frequency
5730.35MHz
Channel No.
Low Channel
AN.+CL-Amp
Frequency
Reading
G.+D.F.
ANT. POL
Total
Limit
Margin
Measurement
[MHz]
[dBuV]
[dB]
[H/V]
[dBuV/m]
[dBuV/m]
[dB]
Type
11460.7
57.60
-2.34
55.26
73.98
18.72
PK
11460.7
49.89
-2.34
47.55
53.98
6.43
AV
17235
55.32
1.78
57.10
68.20
11.10
PK
11460.7
58.94
-2.34
56.60
73.98
17.38
PK
11460.7
51.69
-2.34
49.35
53.98
4.63
AV
17235
55.50
1.78
57.28
68.20
10.92
PK
*AN. : Antenna Factor / CL : Cable Loss / Amp.G. : Amplifier Gain / D.F. : Distance Factor
Notes:
1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.
2. Measurements above show only up to 6 maximum emissions noted, or would be lesser if
no specific emissions from the EUT are recorded (ie: margin > 20 dB from the applicable
limit) and considered that's already beyond the background noise floor.
3. Radiated emissions measured in frequency above 1000MHz were made with an
instrument using Peak detector mode and average detector mode of the emission shown
in Actual FS column.
4. Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain
5. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna.
6. Distance extrapolation factor = 20 log (test distance / specific distance) (dB)
F-TP22-03 (Rev.00)
31 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Band :
UNII 3
Operating Frequency
5776.35 MHz
Channel No.
Middle Channel
AN.+CL-Amp
Frequency
Reading
G.+D.F.
ANT. POL
Total
Limit
Margin
Measurement
[MHz]
[dBuV]
[dB]
[H/V]
[dBuV/m]
[dBuV/m]
[dB]
Type
11552.7
56.14
-2.49
53.65
73.98
20.33
PK
11552.7
47.29
-2.49
44.80
53.98
9.18
AV
17355
55.41
1.66
57.07
68.20
11.13
PK
11552.7
57.19
-2.49
54.70
73.98
19.28
PK
11552.7
50.41
-2.49
47.92
53.98
6.06
AV
17355
55.47
1.66
57.13
68.20
11.07
PK
*AN. : Antenna Factor / CL : Cable Loss / Amp.G. : Amplifier Gain / D.F. : Distance Factor
Notes:
1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.
2. Measurements above show only up to 6 maximum emissions noted, or would be lesser if
no specific emissions from the EUT are recorded (ie: margin > 20 dB from the applicable
limit) and considered that's already beyond the background noise floor.
3. Radiated emissions measured in frequency above 1000MHz were made with an
instrument using Peak detector mode and average detector mode of the emission shown
in Actual FS column.
4. Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain
5. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna.
6. Distance extrapolation factor = 20 log (test distance / specific distance) (dB)
F-TP22-03 (Rev.00)
32 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Band :
UNII 3
Operating Frequency
5820.32 MHz
Channel No.
High Channel
AN.+CL-Amp
Frequency
Reading
G.+D.F.
ANT. POL
Total
Limit
Margin
Measurement
[MHz]
[dBuV]
[dB]
[H/V]
[dBuV/m]
[dBuV/m]
[dB]
Type
11640.7
56.49
-2.23
54.26
73.98
19.72
PK
11640.7
47.50
-2.23
45.27
53.98
8.71
AV
17475
55.28
4.01
59.29
68.20
8.91
PK
11640.7
57.62
-2.23
55.39
73.98
18.59
PK
11640.7
50.60
-2.23
48.37
53.98
5.61
AV
17475
55.41
4.01
59.42
68.20
8.78
PK
*AN. : Antenna Factor / CL : Cable Loss / Amp.G. : Amplifier Gain / D.F. : Distance Factor
Notes:
1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.
2. Measurements above show only up to 6 maximum emissions noted, or would be lesser if
no specific emissions from the EUT are recorded (ie: margin > 20 dB from the applicable
limit) and considered that's already beyond the background noise floor.
3. Radiated emissions measured in frequency above 1000MHz were made with an
instrument using Peak detector mode and average detector mode of the emission shown
in Actual FS column.
4. Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain
5. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna
6. Distance extrapolation factor = 20 log (test distance / specific distance) (dB)
F-TP22-03 (Rev.00)
33 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
[Ant.1]
Band :
UNII 3
Operating Frequency
5730.35 MHz
Channel No.
Low Channel
AN.+CL-Amp
Frequency
Reading
G.+D.F.
ANT. POL
Total
Limit
Margin
Measurement
[MHz]
[dBuV]
[dB]
[H/V]
[dBuV/m]
[dBuV/m]
[dB]
Type
11460.7
57.04
-2.34
54.70
73.98
19.28
PK
11460.7
50.01
-2.34
47.67
53.98
6.31
AV
17235
55.41
1.78
57.19
68.20
11.01
PK
11460.7
58.15
-2.34
55.81
73.98
18.17
PK
11460.7
51.48
-2.34
49.14
53.98
4.84
AV
17235
55.59
1.78
57.37
68.20
10.83
PK
*AN. : Antenna Factor / CL : Cable Loss / Amp.G. : Amplifier Gain / D.F. : Distance Factor
Notes:
1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.
2. Measurements above show only up to 6 maximum emissions noted, or would be lesser if
no specific emissions from the EUT are recorded (ie: margin > 20 dB from the applicable
limit) and considered that's already beyond the background noise floor.
3. Radiated emissions measured in frequency above 1000MHz were made with an
instrument using Peak detector mode and average detector mode of the emission shown
in Actual FS column.
4. Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain
5. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna.
6. Distance extrapolation factor = 20 log (test distance / specific distance) (dB)
F-TP22-03 (Rev.00)
34 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Band :
UNII 3
Operating Frequency
5776.35 MHz
Channel No.
Middle Channel
AN.+CL-Amp
Frequency
Reading
G.+D.F.
ANT. POL
Total
Limit
Margin
Measurement
[MHz]
[dBuV]
[dB]
[H/V]
[dBuV/m]
[dBuV/m]
[dB]
Type
11552.7
57.16
-2.49
54.67
73.98
19.31
PK
11552.7
49.70
-2.49
47.21
53.98
6.77
AV
17355
55.40
1.66
57.06
68.20
11.14
PK
11552.7
57.31
-2.49
54.82
73.98
19.16
PK
11552.7
50.05
-2.49
47.56
53.98
6.42
AV
17355
55.47
1.66
57.13
68.20
11.07
PK
*AN. : Antenna Factor / CL : Cable Loss / Amp.G. : Amplifier Gain / D.F. : Distance Factor
Notes:
1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.
2. Measurements above show only up to 6 maximum emissions noted, or would be lesser if
no specific emissions from the EUT are recorded (ie: margin > 20 dB from the applicable
limit) and considered that's already beyond the background noise floor.
3. Radiated emissions measured in frequency above 1000MHz were made with an
instrument using Peak detector mode and average detector mode of the emission shown
in Actual FS column.
4. Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain
5. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna
6. Distance extrapolation factor = 20 log (test distance / specific distance) (dB)
F-TP22-03 (Rev.00)
35 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Band :
UNII 3
Operating Frequency
5820.32 MHz
Channel No.
High Channel
AN.+CL-Amp
Frequency
Reading
G.+D.F.
ANT. POL
Total
Limit
Margin
Measurement
[MHz]
[dBuV]
[dB]
[H/V]
[dBuV/m]
[dBuV/m]
[dB]
Type
11640.7
56.92
-2.23
54.69
73.98
19.29
PK
11640.7
48.80
-2.23
46.57
53.98
7.41
AV
17475
55.41
4.01
59.42
68.20
8.78
PK
11640.7
57.27
-2.23
55.04
73.98
18.94
PK
11640.7
49.91
-2.23
47.68
53.98
6.30
AV
17475
55.44
4.01
59.45
68.20
8.75
PK
*AN. : Antenna Factor / CL : Cable Loss / Amp.G. : Amplifier Gain / D.F. : Distance Factor
Notes:
1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency.
2. Measurements above show only up to 6 maximum emissions noted, or would be lesser if
no specific emissions from the EUT are recorded (ie: margin > 20 dB from the applicable
limit) and considered that's already beyond the background noise floor.
3. Radiated emissions measured in frequency above 1000MHz were made with an
instrument using Peak detector mode and average detector mode of the emission shown
in Actual FS column.
4. Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain
5. We have done x, y, z planes in EUT and horizontal and vertical polarization in detecting antenna
6. Distance extrapolation factor = 20 log (test distance / specific distance) (dB)
F-TP22-03 (Rev.00)
36 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ RESULT PLOTS for Ant.0 (Worst case : Z-H)
Radiated Spurious Emissions plot – Average Reading (Ch.Low 2nd Harmonic)
* RBW 1 MHz
* VBW 1 kHz
Ref
* Att
107 dBµV
10 dB
SWT 20 ms
Marker 1 [T1 ]
51.69 dBµV
11.458160000 GHz
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
60
SWP
100 of
100
50
40
30
20
10
Center 11.458 GHz
Date: 9.AUG.2017
500 kHz/
Span 5 MHz
03:34:53
Radiated Spurious Emissions plot – Peak Reading (Ch.Low 2nd Harmonic)
* RBW 1 MHz
* VBW 3 MHz
Ref
* Att
107 dBµV
10 dB
SWT 20 ms
Marker 1 [T1 ]
58.94 dBµV
11.458290000 GHz
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
60
SWP
100 of
100
50
40
30
20
10
Center 11.458 GHz
Date: 9.AUG.2017
500 kHz/
Span 5 MHz
03:35:25
Note : Only the worst case plots for Radiated Spurious Emissions.
F-TP22-03 (Rev.00)
37 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ RESULT PLOTS for Ant.1 (Worst case : Z-H)
Radiated Spurious Emissions plot – Average Reading (Ch.Low 2nd Harmonic)
* RBW 1 MHz
* VBW 1 kHz
Ref
* Att
107 dBµV
10 dB
SWT 20 ms
Marker 1 [T1 ]
51.48 dBµV
11.458190000 GHz
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
60
SWP
100 of
100
50
40
30
20
10
Center 11.45792 GHz
Date: 9.AUG.2017
500 kHz/
Span 5 MHz
01:43:47
Radiated Spurious Emissions plot – Peak Reading (Ch.Low 2nd Harmonic)
* RBW 1 MHz
* VBW 3 MHz
Ref
* Att
107 dBµV
10 dB
SWT 20 ms
Marker 1 [T1 ]
58.15 dBµV
11.458160000 GHz
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
60
SWP
100 of
100
50
40
30
20
10
Center 11.45792 GHz
Date: 9.AUG.2017
500 kHz/
Span 5 MHz
01:42:52
Note : Only the worst case plots for Radiated Spurious Emissions.
F-TP22-03 (Rev.00)
38 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.7.2 RADIATED RESTRICTED BAND EDGE MEASUREMENTS
Test Requirements and limit, §15.247(d) §15.205, §15.209
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum is operating, the radio
frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz
bandwidth within the band that contains the highest level of the desired power, based on either an RF
conducted or a radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is
not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also
comply with the radiated emission limits specified in section 15.209(a) (See section 15.205(c)).
F-TP22-03 (Rev.00)
39 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ RESULT PLOTS (UNII 3)
Radiated Restricted Band Edges plot – Peak Reading for Ant.0
* RBW 1 MHz
* VBW 3 MHz
Ref
107 dBµV
* Att
10 dB
SWT 20 ms
Marker 1 [T1 ]
57.93 dBµV
5.725000000 GHz
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
CH149
60
50
40
30
20
F1
10
Start 5.64 GHz
Date: 8.AUG.2017
10 MHz/
23:11:40
* RBW 1 MHz
* VBW 3 MHz
Ref
107 dBµV
Stop 5.74 GHz
* Att
10 dB
SWT 20 ms
Marker 1 [T1 ]
50.75 dBµV
5.850000000 GHz
CH165
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
60
50
40
30
20
F1
10
Start 5.81 GHz
Date: 9.AUG.2017
F-TP22-03 (Rev.00)
12 MHz/
Stop 5.93 GHz
00:21:37
40 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Radiated Restricted Band Edges plot – Peak Reading for Ant.1
* RBW 1 MHz
* VBW 3 MHz
Ref
* Att
107 dBµV
10 dB
SWT 20 ms
Marker 1 [T1 ]
59.67 dBµV
5.725000000 GHz
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
CH149
60
SWP
100 of
100
50
40
30
20
F1
10
Center 5.685 GHz
Date: 9.AUG.2017
11 MHz/
01:14:42
* RBW 1 MHz
* VBW 3 MHz
Ref
107 dBµV
Span 110 MHz
* Att
10 dB
SWT 20 ms
Marker 1 [T1 ]
50.99 dBµV
5.850000000 GHz
CH165
100
1 PK
MAXH
90
2 PK *
80
CLRWR
70
60
50
40
30
20
F1
10
Center 5.87 GHz
Date: 9.AUG.2017
F-TP22-03 (Rev.00)
12 MHz/
Span 120 MHz
00:32:33
41 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.7.3 RECEIVER SPURIOUS EMISSIONS
ISED Rule(s):
RSS-Gen
Test Requirements:
Blow the table
Operating conditions:
Under normal test conditions
Method of testing:
Radiated
F < 1 GHz: RBW: 120 kHz, VBW: 300 kHz (Quasi Peak)
S/A. Settings:
Mode of operation:
F > 1 GHz: RBW: 1 MHz, VBW: 1 MHz (Peak)
Receive
Frequency
Field Strength
(MHz)
(microvolts/m at 3 meters)
30 – 88
100
88 - 216
150
216 – 960
200
Above 960
500
Operation Mode: Receive:
30 MHz ~ 1 GHz
Frequency
Reading
Ant. factor
Cable loss
Ant. POL
Total
Limit
Margin
MHz
dB㎶
dB /m
dB
(H/V)
dB㎶/m
dB㎶/m
dB
No critical peaks found
Above 1 GHz
Frequency
Reading
Ant. factor
Cable loss
Ant. POL
Total
Limit
Margin
MHz
dB㎶
dB /m
dB
(H/V)
dB㎶/m
dB㎶/m
dB
No critical peaks found
F-TP22-03 (Rev.00)
42 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
9.8 POWERLINE CONDUCTED EMISSIONS
Test Requirements and limit, §15.207
For an intentional radiator which is designed to be connected to the public utility (AC) power line,
the radio frequency voltage that is conducted back onto the AC power line on any frequency or
frequencies within the band 150 kHz to 30 MHz shall not exceed 250 microvolts (The limit
decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz). The
limits at specific frequency range is listed as follows:
Limits (dBμV)
Frequency Range (MHz)
Quasi-peak
Average
0.15 to 0.50
66 to 56
56 to 46
0.50 to 5
56
46
5 to 30
60
50
Compliance with this provision shall be based on the measurement of the radio frequency
voltage between each power line (LINE and NEUTRAL) and ground at the power terminals.
TEST CONFIGURATION
See test photographs attached in Appendix 1 for the actual connections between EUT and support
equipment.
TEST PROCEDURE
1. The EUT is placed on a wooden table 80 cm above the reference groundplane.
2. The EUT is connected via LISN to a test power supply.
3. The measurement results are obtained as described below:
4. Detectors – Quasi Peak and Average Detector.
SAMPLE CALCULATION
Quasi-peak(Final Result) = Reading Value + Correction Factor
F-TP22-03 (Rev.00)
43 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
▣ RESULT PLOTS
Conducted Emissions (Line 1)
F-TP22-03 (Rev.00)
44 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
F-TP22-03 (Rev.00)
45 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
Conducted Emissions (Line 2)
F-TP22-03 (Rev.00)
46 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
F-TP22-03 (Rev.00)
47 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
10. LIST OF TEST EQUIPMENT
10.1 LIST OF TEST EQUIPMENT(Conducted Test)
Manufacturer
Calibration
Calibration
Date
Interval
Model / Equipment
Serial No.
Rohde & Schwarz
ENV216 / LISN
12/23/2016
Annual
100073
Rohde & Schwarz
ESCI / Test Receiver
12/23/2016
Annual
100584
Agilent
N9020A / Signal Analyzer
06/13/2017
Annual
MY51110085
Agilent
N9030A / Signal Analyzer
11/30/2016
Annual
MY49431210
Agilent
N1911A / Power Meter
04/17/2017
Annual
MY45100523
Agilent
N1921A / Power Sensor
04/17/2017
Annual
MY52260025
Agilent
87300B / Directional Coupler
11/23/2016
Annual
3116A03621
Hewlett Packard
11667B / Power Splitter
06/12/2017
Annual
05001
Hewlett Packard
E3632A / DC Power Supply
06/30/2017
Annual
KR75303960
Agilent
8493C / Attenuator(10 dB)
07/10/2017
Annual
07560
Rohde & Schwarz
EMC32 / Software
F-TP22-03 (Rev.00)
48 / 49
HCT CO.,LTD.
FCC ID : 2ABA2ATM200 /
ISED ID : 11534A-ATM200
Report No.: HCT-R-1708-F009
10.2 LIST OF TEST EQUIPMENT(Radiated Test)
Manufacturer
Calibration
Calibration
Date
Interval
Model / Equipment
Serial No.
Audix
AM4000 / Antenna Position Tower
N/A
N/A
N/A
Audix
Turn Table
N/A
N/A
N/A
Audix
EM1000 / Controller
N/A
N/A
060520
Rohde & Schwarz
Loop Antenna
04/19/2017
Biennial
1513-175
Schwarzbeck
VULB 9168 / Hybrid Antenna
04/06/2017
Biennial
760
Schwarzbeck
BBHA 9120D / Horn Antenna
08/25/2016
Biennial
9120D-1300
09/04/2015
Biennial
BBHA9170541
Schwarzbeck
BBHA9170 /
Horn Antenna(15 GHz ~ 40 GHz)
Rohde & Schwarz
FSP / Spectrum Analyzer
09/10/2016
Annual
100688
Rohde & Schwarz
FSV40-N / Spectrum Analyzer
09/23/2016
Annual
101068-SZ
Wainwright Instruments
WHK3.0/18G-10EF / High Pass Filter
06/12/2017
Annual
Wainwright Instruments
WHFX7.0/18G-8SS / High Pass Filter
05/15/2017
Annual
29
06/30/2017
Annual
01/24/2017
Annual
Wainwright Instruments
Wainwright Instruments
WRCJV2400/2483.5-2370/2520-60/12SS /
Band Reject Filter
WRCJV5100/5850-40/50-8EEK /
Band Reject Filter
Api tech.
18B-03 / Attenuator (3 dB)
06/12/2017
Annual
Agilent
8493C-10 / Attenuator(10 dB)
07/19/2017
Annual
08285
CERNEX
CBLU1183540 / Power Amplifier
07/11/2017
Annual
22964
CERNEX
CBL06185030 / Power Amplifier
07/11/2017
Annual
22965
CERNEX
CBL18265035 / Power Amplifier
01/23/2017
Annual
22966
CERNEX
CBL26405040 / Power Amplifier
06/30/2017
Annual
25956
F-TP22-03 (Rev.00)
49 / 49
HCT CO.,LTD.
Download: ATM200 AUDIO TRANSCEIVER Test Report ATM200_UNII _Rev00 WISOL CO., LTD
Mirror Download [FCC.gov]ATM200 AUDIO TRANSCEIVER Test Report ATM200_UNII _Rev00 WISOL CO., LTD
Document ID3557771
Application IDXf/mY616cMwLMG9BDzeQuw==
Document DescriptionRF Test Report - UNII
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize161.67kB (2020918 bits)
Date Submitted2017-09-12 00:00:00
Date Available2017-09-12 00:00:00
Creation Date2017-08-31 09:38:31
Producing SoftwareAcrobat Distiller 9.0.0 (Windows)
Document Lastmod2017-09-06 15:32:59
Document TitleATM200_UNII Test Report_Rev00
Document CreatorPScript5.dll Version 5.2.2
Document Author:

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          :
Create Date                     : 2017:08:31 09:38:31+09:00
Modify Date                     : 2017:09:06 15:32:59+09:00
XMP Toolkit                     : Adobe XMP Core 4.2.1-c041 52.342996, 2008/05/07-20:48:00
Creator Tool                    : PScript5.dll Version 5.2.2
Metadata Date                   : 2017:09:06 15:32:59+09:00
Producer                        : Acrobat Distiller 9.0.0 (Windows)
Format                          : application/pdf
Title                           : Microsoft Word - ATM200_UNII Test Report_Rev00
Creator                         :
Document ID                     : uuid:9e68ff35-8d22-4bd2-9d1a-47601d92f1f6
Instance ID                     : uuid:83d52941-52c4-4dc7-9e5f-3659269578df
Page Count                      : 49

Facebook Twitter Google+ RSS © FCCID.io 2017
