FCC ID 2AD8UFW2FADPM01
Nokia FW2FA LTE Module
by Nokia Solutions and Networks, OY
Grantee Code: 2AD8U Product Code: FW2FADPM01
Latest application date: 2016-03-18
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 1932.5-1987.5 MHz | Original Equipment | 2016-03-18 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

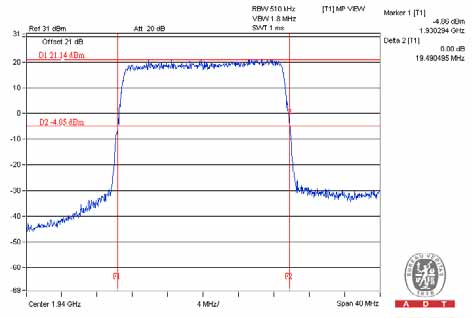

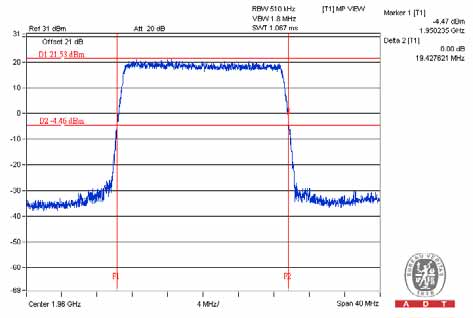

| External Photos rev.pdf | External Photos | 2016-09-14 | PDF 675.8 KB |
| ID Label Location Information.pdf | ID Label/Location Info | 2016-03-18 | PDF 244.4 KB |
| Test Setup Photo.pdf | Test Setup Photos | 2016-09-14 | PDF 277.8 KB |
| Test Report rev rev.pdf | Test Report | 2016-03-18 | PDF 3.6 MB |
| Confidentiality Request - Long Term.pdf | Cover Letter(s) | 2016-03-18 | PDF 24.8 KB |
| Confidentiality Request - Short Term.pdf | Cover Letter(s) | 2016-03-18 | PDF 94.4 KB |
| Confidentiality request - NON-DISCLOSURE AGREEMENT.pdf | Cover Letter(s) | 2016-03-18 | PDF 63.4 KB |
| Cover Letter - Agent Authorization.pdf | Cover Letter(s) | 2016-03-18 | PDF 71.2 KB |
| Cover Letter - Declaration Letter.pdf | Cover Letter(s) | 2016-03-18 | PDF 154.5 KB |
| Cover letter - Modular Approval Request.pdf | Cover Letter(s) | 2016-03-18 | PDF 28.9 KB |
| RF Exposure Information (MPE) rev.pdf | RF Exposure Info | 2016-03-18 | PDF 406.4 KB |
| User Manual.pdf Metadata only | Users Manual | PDF 845.4 KB | |
| Internal Photos rev.pdf Metadata only | Internal Photos | PDF 1.9 MB | |
| Block Diagram.pdf Metadata only | Block Diagram | PDF 727.4 KB | |
| Schematics rev.pdf Metadata only | Schematics | PDF 1.7 MB | |
| Operational description.pdf Metadata only | Operational Description | PDF 30.2 KB | |
| Parts List rev.pdf Metadata only | Parts List/Tune Up Info | PDF 787.5 KB | |
| Tune-up procedure template.pdf Metadata only | Parts List/Tune Up Info | PDF 113.4 KB |
Application Information
| Application ID | OcY6HSvwpOOFK1J1HcpdRw== |
|---|---|
| Final Action Date | 2016-03-18 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0031452253 |
| Model | FW2FADPM01 |
| Frequency Range | 1932.5-1987.5 MHz |
| Equipment Class | PCB - PCS Licensed Transmitter |
| Device Description | Nokia FW2FA LTE Module |
| Responsible Party | Lee Klinkenborg, R&D; Engineer, lee.klinkenborg@nokia.com  , 2242217580 |
| Test Firm | Richard Chen, Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch, richard.chen@bureauveritas.com  , +886-(0)3-260-0884 |
| TCB Email | certification@curtis-straus.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 09/14/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is EIRP. Limited Modular Approval for evaluated specific BTS (NOKIA, S/N: EB162010012 & EB154510043) as described in this filing or same series of host with similar RF Characteristic. The antenna(s) used with this module must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except as documented in filings under this FCC ID and/or in accordance with FCC multi-transmitter product guidelines. Compliance of this device in all final product configurations is the responsibility of the Grantee. OEM integrators must be provided with antenna installation instructions. OEM integrators and end users must be provided with transmitter operating instructions for satisfying RF exposure compliance. This grant is valid only when this module is sold to OEM integrators. OEM integrators must ensure that end users are not provided with instructions to remove or install this module. Only those antenna listed in this filing can be used. Use of additional antenna(s) are subject to the requirements of 15.204(c)(4). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| OcY6HSvwpOOFK1J1HcpdRw== | 2016-03-18 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 1932.5-1987.5 MHz | 0.583 | 0.002ppm | 4M52W7D | 24E | MO |
| 1932.5-1987.5 MHz | 0.513 | 0.002ppm | 4M51W7D | 24E | MO |
| 1935-1985 MHz | 0.624 | 0.002ppm | 9M02G7D | 24E | MO |
| 1935-1985 MHz | 0.571 | 0.002ppm | 9M02W7D | 24E | MO |
| 1935-1985 MHz | 0.494 | 0.002ppm | 9M04W7D | 24E | MO |
| 1937.5-1982.5 MHz | 0.625 | 0.002ppm | 13M5G7D | 24E | MO |
| 1937.5-1982.5 MHz | 0.571 | 0.002ppm | 13M5W7D | 24E | MO |
| 1937.5-1982.5 MHz | 0.511 | 0.002ppm | 13M5W7D | 24E | MO |
| 1940-1980 MHz | 0.619 | 0.002ppm | 17M9G7D | 24E | MO |
| 1940-1980 MHz | 0.56 | 0.002ppm | 17M9W7D | 24E | MO |
| 1940-1980 MHz | 0.497 | 0.002ppm | 17M9W7D | 24E | MO |
Grants
TCB Grant - Application OcY6HSvwpOOFK1J1HcpdRw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 03/18/2016 Application Dated: 03/18/2016 |
| Nokia Solutions and Networks, OY |
| 2000 W. Lucent Lane |
| Naperville, IL 60563 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFW2FADPM01 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Nokia FW2FA LTE Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 24E | 1932.5 - 1987.5 | 0.635 | 0.002 PM | 4M51G7D |
| MO | 24E | 1932.5 - 1987.5 | 0.583 | 0.002 PM | 4M52W7D |
| MO | 24E | 1932.5 - 1987.5 | 0.513 | 0.002 PM | 4M51W7D |
| MO | 24E | 1935.0 - 1985.0 | 0.624 | 0.002 PM | 9M02G7D |
| MO | 24E | 1935.0 - 1985.0 | 0.571 | 0.002 PM | 9M02W7D |
| MO | 24E | 1935.0 - 1985.0 | 0.494 | 0.002 PM | 9M04W7D |
| MO | 24E | 1937.5 - 1982.5 | 0.625 | 0.002 PM | 13M5G7D |
| MO | 24E | 1937.5 - 1982.5 | 0.571 | 0.002 PM | 13M5W7D |
| MO | 24E | 1937.5 - 1982.5 | 0.511 | 0.002 PM | 13M5W7D |
| MO | 24E | 1940.0 - 1980.0 | 0.619 | 0.002 PM | 17M9G7D |
| MO | 24E | 1940.0 - 1980.0 | 0.56 | 0.002 PM | 17M9W7D |
| MO | 24E | 1940.0 - 1980.0 | 0.497 | 0.002 PM | 17M9W7D |
| Output power listed is EIRP. Limited Modular Approval for evaluated specific BTS (NOKIA, S/N: EB162010012 & EB154510043) as described in this filing or same series of host with similar RF Characteristic. The antenna(s) used with this module must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except as documented in filings under this FCC ID and/or in accordance with FCC multi-transmitter product guidelines. Compliance of this device in all final product configurations is the responsibility of the Grantee. OEM integrators must be provided with antenna installation instructions. OEM integrators and end users must be provided with transmitter operating instructions for satisfying RF exposure compliance. This grant is valid only when this module is sold to OEM integrators. OEM integrators must ensure that end users are not provided with instructions to remove or install this module. Only those antenna listed in this filing can be used. Use of additional antenna(s) are subject to the requirements of 15.204(c)(4). |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application OcY6HSvwpOOFK1J1HcpdRw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Nokia Solutions and Networks, OY 2000 W. Lucent Lane Naperville, IL 60563 United States |
Date of Grant: 03/18/2016 Application Dated: 03/18/2016 |
| Attention: Lee Klinkenborg , R&D Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AD8UFW2FADPM01 |
| Name of Grantee: | Nokia Solutions and Networks, OY |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Nokia FW2FA LTE Module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 24E | 1932.5 - 1987.5 | 0.635 | 0.002 PM | 4M51G7D |
| MO | 24E | 1932.5 - 1987.5 | 0.583 | 0.002 PM | 4M52W7D |
| MO | 24E | 1932.5 - 1987.5 | 0.513 | 0.002 PM | 4M51W7D |
| MO | 24E | 1935.0 - 1985.0 | 0.624 | 0.002 PM | 9M02G7D |
| MO | 24E | 1935.0 - 1985.0 | 0.571 | 0.002 PM | 9M02W7D |
| MO | 24E | 1935.0 - 1985.0 | 0.494 | 0.002 PM | 9M04W7D |
| MO | 24E | 1937.5 - 1982.5 | 0.625 | 0.002 PM | 13M5G7D |
| MO | 24E | 1937.5 - 1982.5 | 0.571 | 0.002 PM | 13M5W7D |
| MO | 24E | 1937.5 - 1982.5 | 0.511 | 0.002 PM | 13M5W7D |
| MO | 24E | 1940.0 - 1980.0 | 0.619 | 0.002 PM | 17M9G7D |
| MO | 24E | 1940.0 - 1980.0 | 0.56 | 0.002 PM | 17M9W7D |
| MO | 24E | 1940.0 - 1980.0 | 0.497 | 0.002 PM | 17M9W7D |
| Output power listed is EIRP. Limited Modular Approval for evaluated specific BTS (NOKIA, S/N: EB162010012 & EB154510043) as described in this filing or same series of host with similar RF Characteristic. The antenna(s) used with this module must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except as documented in filings under this FCC ID and/or in accordance with FCC multi-transmitter product guidelines. Compliance of this device in all final product configurations is the responsibility of the Grantee. OEM integrators must be provided with antenna installation instructions. OEM integrators and end users must be provided with transmitter operating instructions for satisfying RF exposure compliance. This grant is valid only when this module is sold to OEM integrators. OEM integrators must ensure that end users are not provided with instructions to remove or install this module. Only those antenna listed in this filing can be used. Use of additional antenna(s) are subject to the requirements of 15.204(c)(4). |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
