FCC ID 2AFENXEC09
LED Projector
by Chengdu XGIMI Technology Co.,Ltd.
Grantee Code: 2AFEN Product Code: XEC09
Latest application date: 2015-12-11
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-12-11 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual pt 1 | Users Manual | 2015-12-11 | PDF 587.9 KB |
| User Manual pt 2 | Users Manual | 2015-12-11 | PDF 18.3 KB |

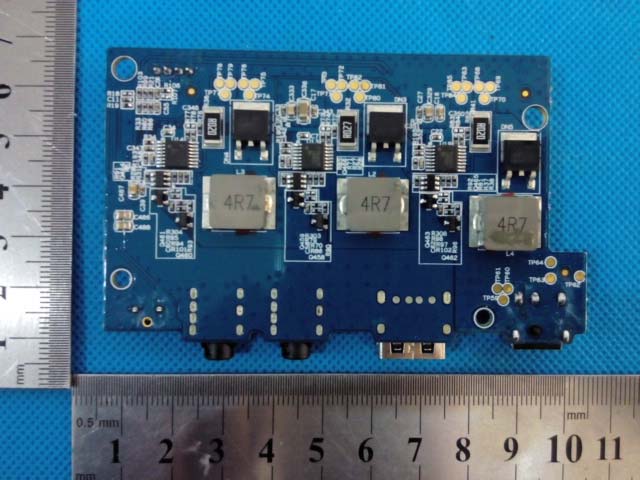

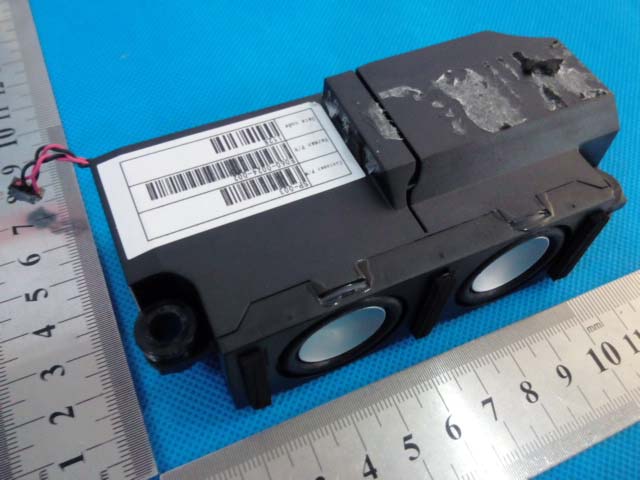

| Internal Photos | Internal Photos | 2015-12-11 | PDF 997.6 KB |

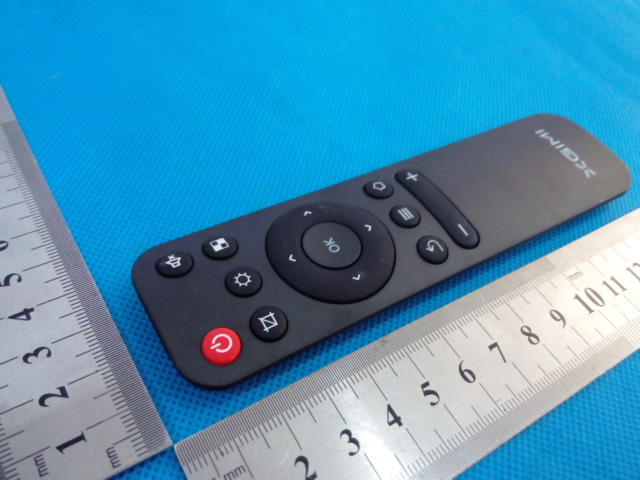

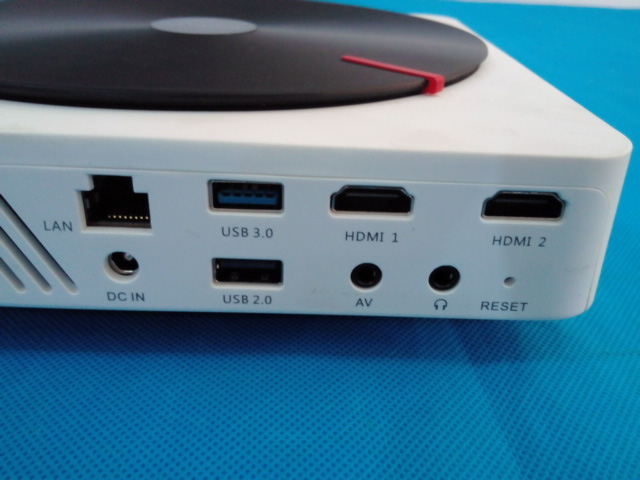

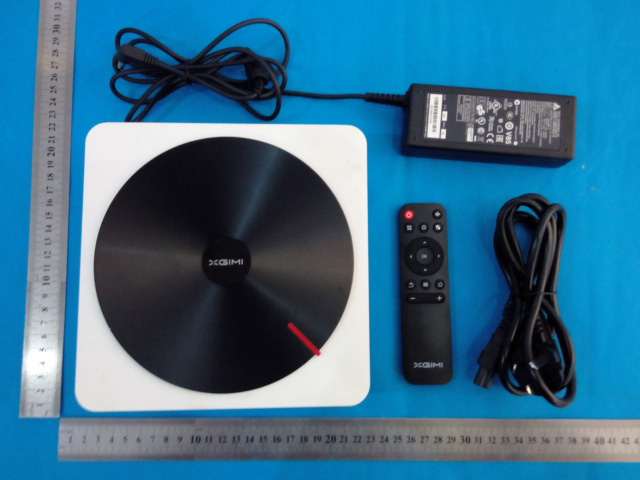

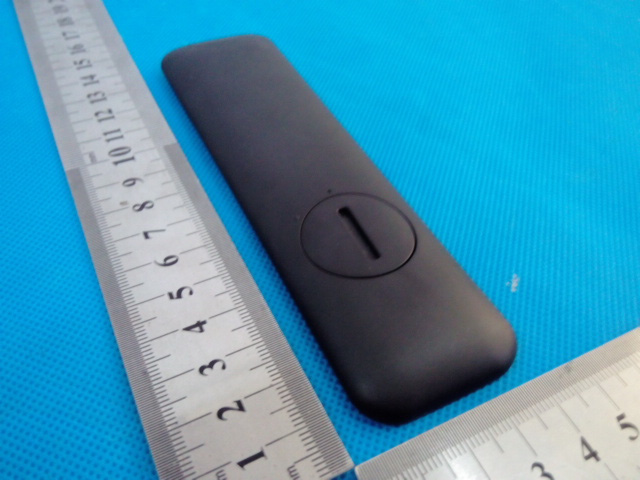

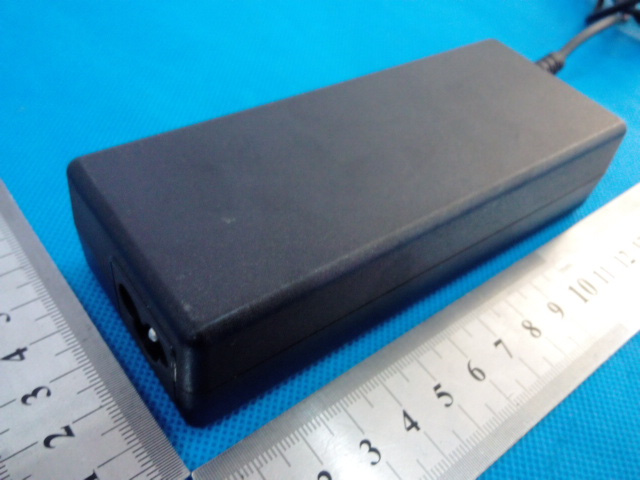

| External Photos | External Photos | 2015-12-11 | PDF 894.8 KB |
| Label Info/Location | ID Label/Location Info | 2015-12-11 | PDF 123.7 KB |
| Label Location/Info | ID Label/Location Info | 2015-12-11 | PDF 123.7 KB |
| Test Setup Photos | Test Setup Photos | 2015-12-11 | PDF 717 KB |
| Test setup Photos | Test Setup Photos | 2015-12-11 | PDF 273 KB |
| Test Report | Test Report | 2015-12-11 | PDF 439 KB |
| Test Report - DSS | Test Report | 2015-12-11 | PDF 1 MB |
| Test Report - DTS | Test Report | 2015-12-11 | PDF 980 KB |
| Authorization | Cover Letter(s) | 2015-12-11 | PDF 94.7 KB |
| Confidentiality Request | Cover Letter(s) | 2015-12-11 | PDF 158.8 KB |
| Block Diagram - 1 Metadata only | Block Diagram | PDF 116.9 KB | |
| Block Diagram - 2 Metadata only | Block Diagram | PDF 65.9 KB | |
| Block Diagram - 3 Metadata only | Block Diagram | PDF 80 KB | |
| Block diagram - 3 Metadata only | Block Diagram | PDF 80 KB | |
| Schematics - 1 Metadata only | Schematics | PDF 986 KB | |
| Schematics - 2 Metadata only | Schematics | PDF 63.1 KB | |
| Schematics - 3 Metadata only | Schematics | PDF 102.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 59.8 KB |
Application Information
| Application ID | 1vKVx2D/JbU26ab8IWhpew== |
|---|---|
| Final Action Date | 2015-12-11 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023414089 |
| Model | XEC09 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | LED Projector |
| Responsible Party | Andy Pan, safety manager, andy.pan@xgimi.com  , +86-18898771731 |
| Technical Contact | Mark Koop, Teleconformity, mark.koop@teleconformity.com  , (31)848395867 |
| Test Firm | Jason Chen, Shenzhen NTEK Testing Technology Co., Ltd., jason.chen@ntek.org.cn  , (86)-0755-61156588 |
| TCB Email | certification@micomlabs.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. The antenna used with this transmitter must be installed to provided a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device; except in accordance with accepted multi-transmitter operating procedure. End-users and installers must be provided with installation instructions and operating procedures for satisfying RF exposure compliance. |
