XEC09 LED Projector Test Setup Photos - FCC ID 2AFENXEC09
FCC ID 2AFENXEC09

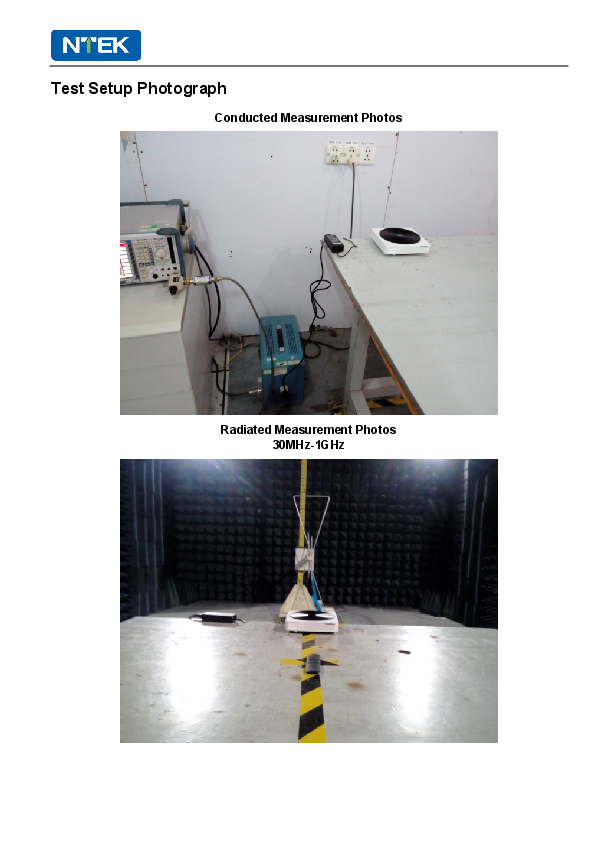

Test setup Photos
LED Projector
Document preview loads when visible.
Document Details
| FCC ID | 2AFENXEC09 |
|---|---|
| Document ID | 2839160 |
| Document Type | Test Setup Photos |
| Description | Test setup Photos |
| Document Title | 13.XEC09-Setup Photo |
| Applicant | Chengdu XGIMI Technology Co.,Ltd. |
| Equipment Class | LED Projector |
| Product Code | XEC09 |
| Application ID | 1vKVx2D/JbU26ab8IWhpew== |
| Application Purpose | Original Equipment |
| Application Date | 2015-12-11 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0023414089 |
| Test Firm | Shenzhen NTEK Testing Technology Co., Ltd. |
| Certified By | Mark Koop Manager, Teleconformity |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2015-12-11 |
| Available | 2015-12-11 |
| Created | 2015-10-29 |
| Modified | 2015-10-29 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 279518 |
| File SHA-256 | 313c3dfcfa4e5d4138845871ddc97586fa839ae5281b3f79cd3bcfa8ecf6419b |
| PDF Metadata Author | Fred.Zhu |
| PDF Metadata Producer | Acrobat Distiller 9.0.0 (Windows) Fred.Zhu |
| FCC.gov Sources | FCC.gov 2839160 |
