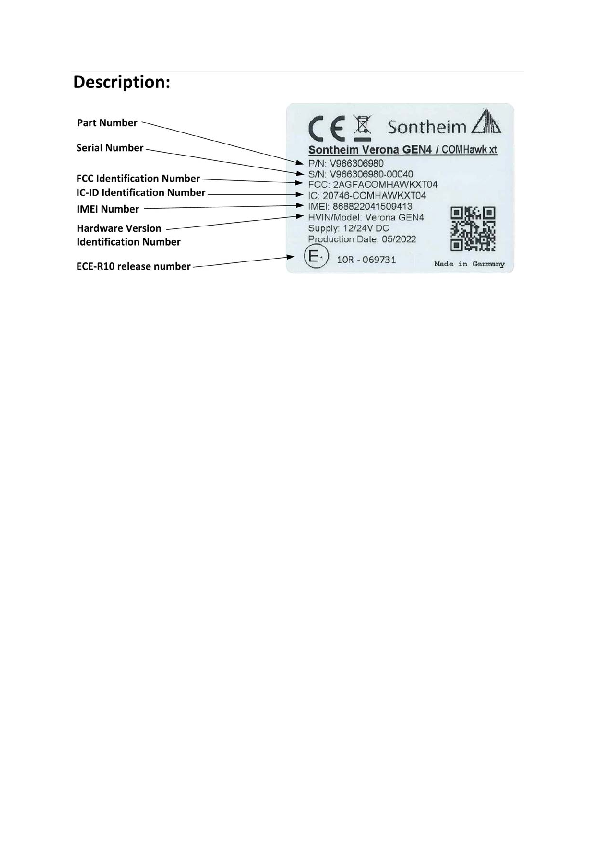

COMHAWKXT04 COMhawk xt Label Diagram - FCC ID 2AGFACOMHAWKXT04

FCC ID 2AGFACOMHAWKXT04

Label

COMhawk xt

by Sontheim Industrie Elektronik GmbH

IMEI information

Validated IMEI values extracted from this public FCC exhibit.

IMEITAC lookupSource
86882204150941386882204Decoded image barcode

Barcode information

Validated product identifiers extracted from the generated document image; label documents may also include identifiers from available document text.

QR Code ]Q1

Barcode typeQR Code ]Q1
Decoded value 868822041509413

Document preview loads when visible.

Document Details

FCC ID2AGFACOMHAWKXT04
Document ID5883634
Document TypeID Label/Location Info
DescriptionLabel
ApplicantSontheim Industrie Elektronik GmbH
Equipment ClassCOMhawk xt
Product CodeCOMHAWKXT04
Application ID6ZrAyAUkoE+O1975a0ur2g==
Application PurposeOriginal Equipment
Application Date2022-05-18
Frequency Range2412-2462 MHz
FRN0024986119
Test FirmCTC advanced GmbH
Certified ByFederico Sontheim
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2022-05-18
Available2022-05-18
Created2022-05-16
Modified2022-05-16
Pages1
File TypeAdobe Acrobat PDF
File Size94649
File SHA-256f0d77fa63eb773668f2966c377d4e932ec648ae6515d35cefeff7f33a3149b52
PDF Metadata AuthorHausknecht, Dirk CTC advanced GmbH
PDF Metadata ProducerHausknecht, Dirk Adobe PDF Library 11.0
FCC.gov SourcesFCC.gov 5883634, FCC.gov 5883478
