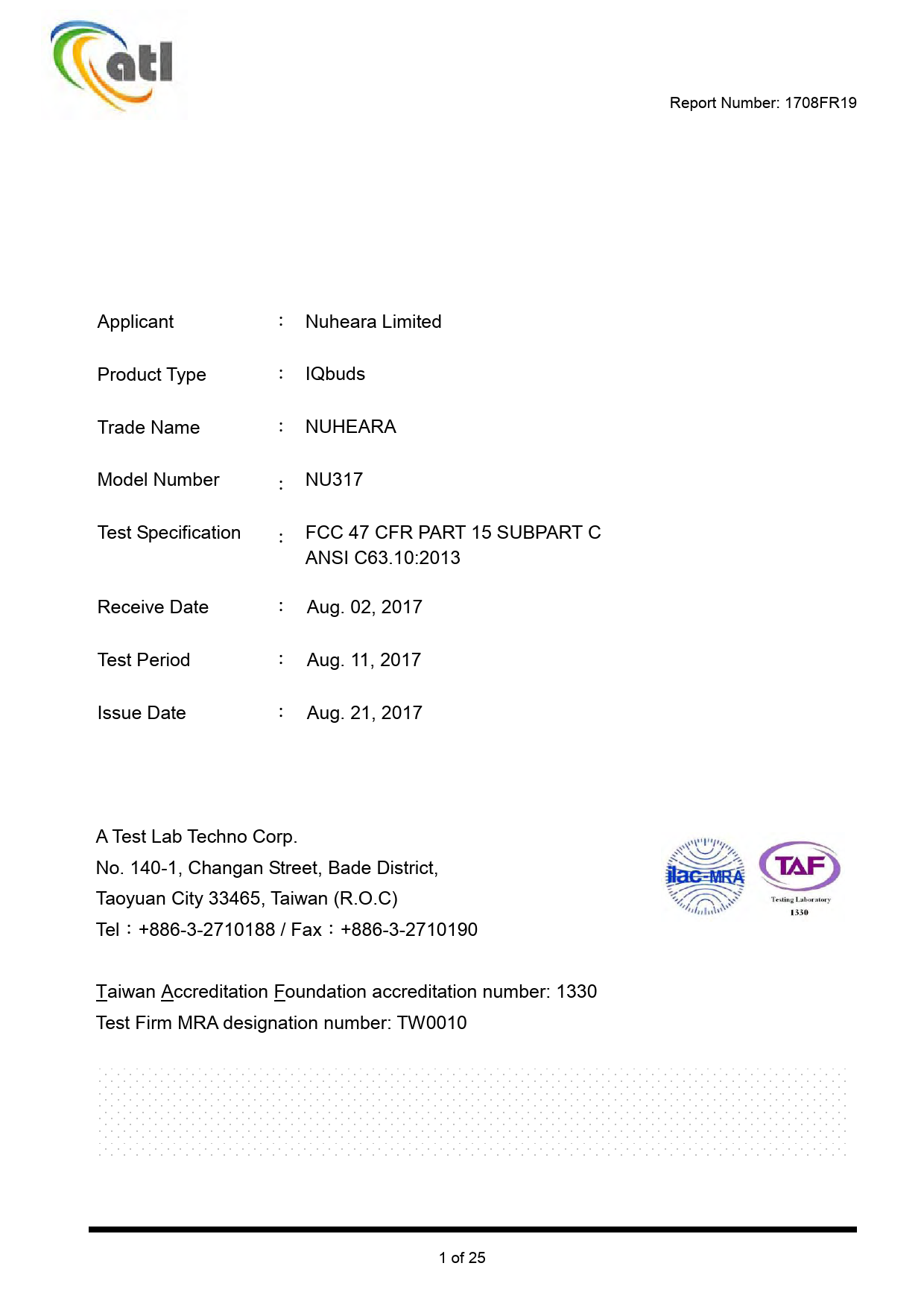

Report Number: 1708FR19
RF Test Report
Applicant
: Nuheara Limited
Product Type
: IQbuds
Trade Name
: NUHEARA
Model Number
: NU317
Test Specification
: FCC 47 CFR PART 15 SUBPART C
ANSI C63.10:2013
Receive Date
: Aug. 02, 2017
Test Period
: Aug. 11, 2017
Issue Date
: Aug. 21, 2017
Issue by
A Test Lab Techno Corp.
No. 140-1, Changan Street, Bade District,
Taoyuan City 33465, Taiwan (R.O.C)
Tel:+886-3-2710188 / Fax:+886-3-2710190
Taiwan Accreditation Foundation accreditation number: 1330
Test Firm MRA designation number: TW0010
Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno
Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be
noted in the revision section of the document. The client should not use it to claim product endorsement by
TAF, or any government agencies. The test results in the report only apply to the tested sample.
1 of 25
Report Number: 1708FR19
Revision History
Rev.
Issue Date
00
Aug. 21, 2017
Revisions
Initial Issue
Revised By
Nina Lin
2 of 25
Report Number: 1708FR19
Ve r if ica t ion of C omplia nc e
Issued Date: Aug. 21, 2017
Applicant
Nuheara Limited
Product Type
IQbuds
Trade Name
NUHEARA
Model Number
NU317
FCC ID
2AKMG00000NU317
EUT Rated Voltage
DC 4.2V, 100mA
Test Voltage
DC 3.7V
Applicable Standard
FCC 47 CFR PART 15 SUBPART C
ANSI C63.10:2013
Test Result
Complied
Performing Lab.
A Test Lab Techno Corp.
No. 140-1, Changan Street, Bade District,
Taoyuan City 33465, Taiwan (R.O.C)
Tel:+886-3-2710188 / Fax:+886-3-2710190
Taiwan Accreditation Foundation accreditation number: 1330
http://www.atl-lab.com.tw/e-index.htm
A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above
standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on
interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are
published for informational purposes only. The test results show that the equipment tested is capable of
demonstrating compliance with the requirements as documented in this report.
Approved By
(Manager)
Reviewed By
:
(Fly Lu)
(Testing Engineer)
3 of 25
:
(Eric Ou Yang)
Report Number: 1708FR19
TABLE OF CONTENTS
1 General Information ......................................................................................................... 5
2 EUT Description................................................................................................................ 6
3 Test Methodology ............................................................................................................. 7
3.1. Mode of Operation ...................................................................................................... 7
3.2. EUT Exercise Software .............................................................................................. 7
3.3. Configuration of Test System Details .......................................................................... 8
3.4. Test Site Environment................................................................................................. 8
4 Radiated Emission Measurement ................................................................................... 9
5 Antenna Measurement ................................................................................................... 25
4 of 25
Report Number: 1708FR19
General Information
1.1 Summary of Test Result
Standard
Item
Result
Remark
15.207
AC Power Conducted Emission
N/A
-----
15.247(d)
Transmitter Radiated Emissions
PASS
-----
15.247(b)(3)
Max. Output Power
N/A
-----
15.247(a)(2)
6dB RF Bandwidth
N/A
-----
15.247(e)
Power Spectral Density
N/A
-----
15.247(d)
Out of Band Conducted Spurious
Emission
N/A
-----
PASS
-----
15.203
Antenna Requirement
The test results of this report relate only to the tested sample(s) identified in this report. Manufacturer or whom it may
concern should recognize the pass or fail of the test result.
Note: The devise adding new type antenna and Max. Gain to do Class II Permissive Change report so it only test
transmitter radiated emissions and band edge measurement.
1.2 Measurement Uncertainty
Test Item
Conducted Emission
Radiated Emission
Frequency Range
Uncertainty (dB)
9kHz ~ 150KHz
2.7
150kHz ~ 30MHz
2.7
9kHz ~ 30MHz
1.7
30MHz ~ 1000MHz
5.7
1000MHz ~ 18000MHz
5.5
18000MHz ~ 26500MHz
4.8
26500MHz ~ 40000MHz
4.8
Conducted Output Power
+0.27 dB / -0.28 dB
RF Bandwidth
4.96%
Power Spectral Density
+0.71 dB / -0.77 dB
5 of 25
Report Number: 1708FR19
EUT Description
Applicant
Nuheara Limited
Unit 5, 28 John St Northbridge, 6003, Australia
Manufacturer
Flextronics, Zhuhai
Xin Qing Science & Technology Industrial Park,
China
Product Type
IQbuds
Trade Name
NUHEARA
Model No.
NU317
FCC ID
2AKMG00000NU317
Class II Permissive
Change
Adding new type antenna and Max. Gain
Frequency Range
2402 ~ 2480 MHz
Modulation Type
GFSK
Operate Temp. Range
0 ~ +50 ℃
Antenna information
RF Output Power
Jing An, Doumen, Zhuhai, P.R.
Type
Max. Gain (dBi)
Fluid conductive silver Antenna
-3.68
0.00429 W
6 of 25
Report Number: 1708FR19
Test Methodology
3.1. Mode of Operation
Decision of Test ATL has verified the construction and function in typical operation. All the test modes were carried out
with the EUT in normal operation, which was shown in this test report and defined as:
Test Mode
Mode 1: Transmit mode
Mode 2: Bluetooth LE Continuous TX mode
Software used to control the EUT for staying in continuous transmitting mode was programmed.
After verification, all tests were carried out with the worst case test modes as shown below except radiated spurious
emission below 1GHz and power line conducted emissions below 30MHz, which worst case was in TX mode only.
By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X
axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this
report.
Note: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than
98%.
3.2. EUT Exercise Software
Setup the EUT shown on 3.3.
Turn on the power of all equipment.
Turn on Bluetooth function and link to Bluetooth tester
EUT run test program.
Measurement Software
EZ-EMC Ver. ATL-03A1-1
7 of 25
Report Number: 1708FR19
3.3. Configuration of Test System Details
Radiated Emissions
EUT
3.4. Test Site Environment
Items
Required (IEC 60068-1)
Actual
Temperature (C)
15-35
26
Humidity (%RH)
25-75
60
860-1060
950
Barometric pressure (mbar)
8 of 25
Report Number: 1708FR19

Radiated Emission Measurement
Limit
According to §15.209(a), except as provided elsewhere in this subpart, the emissions from an intentional radiator shall
not exceed the field strength levels specified in the following table:
Frequency
Field Strength
Measurement Distance
(MHz)
(μV/m at meter)
(meters)
0.009 – 0.490
2400 / F (kHz)
300
0.490 – 1.705
24000 / F (kHz)
30
1.705 – 30.0
30
30
30 - 88
100**
88-216
150**
216-960
200**
Above 960
500
** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section
shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz.
However,
operation within these frequency bands is permitted under other sections of this Part, e.g., Sections 15.231 and
15.241.

Test Instruments
3 Meter Chamber
Equipment
Manufacturer
Model Number
Serial Number
Cal. Date
Cal. Period
RF Pre-selector
Agilent
N9039A
MY46520256
04/24/2017
1 year
Spectrum Analyzer
Agilent
E4446A
MY46180578
04/24/2017
1 year
Pre Amplifier
Agilent
8449B
3008A02237
10/11/2016
1 year
Pre Amplifier
Agilent
8447D
2944A11119
01/12/2017
1 year
Broadband Antenna
Schwarzbeck
VULB9168
416
10/13/2016
1 year
Horn Antenna
(1~18GHz)
SCHWARZBECK
MESS-ELEKTRONIK
BBHA9120D
9120D-550
06/22/2017
1 year
Horn Antenna
(18~40GHz)
ETS
3116
86467
09/05/2016
1 year
Loop Antenna
COM-POWER
CORPORATION
AL-130
121014
01/26/2017
1 year
Microwave Cable
EMCI
EMC102-KM-KM-14000
151001
02/20/2017
1 year
Microwave Cable
EMCI
EMC-104-SM-SM-14000
140202
02/20/2017
1 year
Microwave Cable
EMCI
EMC104-SM-SM-600
140301
02/20/2017
1 year
Test Site
ATL
TE01
888001
08/29/2016
1 year
Note: N.C.R. = No Calibration Request.
9 of 25
Report Number: 1708FR19

Setup
9kHz ~ 30MHz
Below 1GHz
10 of 25
Report Number: 1708FR19
Above 1GHz
11 of 25
Report Number: 1708FR19

Test Procedure
Final radiation measurements were made on a three-meter, Semi Anechoic Chamber. The EUT system was placed
on a nonconductive turntable which is 0.8 or 1.5 meters height(below 1GHz use 0.8m turntable / above 1GHz use
1.5m turntable, top surface 1.0 x 1.5 meter. The spectrum was examined from 250 MHz to 2.5 GHz in order to cover
the whole spectrum below 10th harmonic which could generate from the EUT. During the test, EUT was set to transmit
continuously & Measurements spectrum range from 9 kHz to 26.5 GHz is investigated.
For measurements below 1 GHz the resolution bandwidth is set to 100 kHz for peak detection measurements or 120
kHz for quasi-peak detection measurements. Peak detection is used unless otherwise noted as quasi-peak.
For measurements above 1 GHz the resolution bandwidth is set to 1 MHz, and then the video bandwidth is set to 1
MHz for peak measurements and 10 Hz for average measurements when Duty cycle >98% / 1/T for average
measurements when Duty cycle <98%. A nonconductive material surrounded the EUT to supporting the EUT for
standing on tree orthogonal planes. At each condition, the EUT was rotated 360 degrees, and the antenna was raised
and lowered from one to four meters to find the maximum emission levels. Measurements were taken using both
horizontal and vertical antenna polarization.
SCHWARZBECK MESS-ELEKTRONIK Biconilog Antenna at 3 Meter and the SCHWARZBECK Double Ridged
Guide Antenna was used in frequencies 1 – 26.5 GHz at a distance of 1 meter. All test results were extrapolated to
equivalent signal at 3 meters utilizing an inverse linear distance extrapolation Factor (20dB/decade).
For testing above 1GHz, the emission level of the EUT in peak mode was 20dB lower than average limit (that means
the emission level in peak mode also complies with the limit in average mode), then testing will be stopped and peak
values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported.
Appropriate preamplifiers were used for improving sensitivity and precautions were taken to avoid overloading or
desensitizing the spectrum analyzer. No post – detector video filters were used in the test.
The spectrum analyzer’s 6 dB bandwidth was set to 1 MHz, and the analyzer was operated in the peak detection
mode, for frequencies both below and up 1 GHz. The average levels were obtained by subtracting the duty cycle
correction factor from the peak readings.
The following procedures were used to convert the emission levels measured in decibels referenced to 1 microvolt
(dBuV) into field intensity in micro volts pre meter (uV/m).
The actual field intensity in decibels referenced to 1 microvolt in to field intensity in micro colts per meter (dBuV/m).
12 of 25
Report Number: 1708FR19
The actual field is intensity in referenced to 1 microvolt per meter (dBuV/m) is determined
by algebraically adding
the measured reading in dBuV, the antenna factor (dB), and cable loss (dB) and Subtracting the gain of preamplifier
(dB) is auto calculate in spectrum analyzer.
(1) Amplitude (dBuV/m) = FI (dBuV) +AF (dBuV) +CL (dBuV)-Gain (dB)
FI= Reading of the field intensity.
AF= Antenna factor.
CL= Cable loss.
P.S Amplitude is auto calculate in spectrum analyzer.
(2) Actual Amplitude (dBuV/m) = Amplitude (dBuV)-Dis(dB)
The FCC specified emission limits were calculated according the EUT operating frequency and by following
linear interpolation equations:
(a) For fundamental frequency : Transmitter Output < +30dBm
(b) For spurious frequency : Spurious emission limits = fundamental emission limit /10
Data of measurement within this frequency range without mark in the table above means the reading of emissions are
attenuated more than 20dB below the permissible limits or the field strength is too small to be measured.
13 of 25
Report Number: 1708FR19

Test Result
Below 1GHz
Standard:
FCC Part 15.247
Test Distance:
3m
Test Mode:
Mode 1
Power:
DC 3.7V
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Date:
08/11/2017
Frequency
Reading
Correct Factor
Result
Limit
Margin
Remark
Ant.Polar.
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
232.7300
35.44
-5.47
29.97
46.00
-16.03
QP
355.9200
31.75
-1.72
30.03
46.00
-15.97
QP
516.9400
31.34
1.55
32.89
46.00
-13.11
QP
582.9000
28.31
2.97
31.28
46.00
-14.72
QP
730.3400
27.10
5.75
32.85
46.00
-13.15
QP
859.3500
26.68
8.14
34.82
46.00
-11.18
QP
232.7300
35.32
-5.47
29.85
46.00
-16.15
QP
322.9400
32.31
-2.33
29.98
46.00
-16.02
QP
499.4800
31.29
1.19
32.48
46.00
-13.52
QP
613.9400
27.77
3.54
31.31
46.00
-14.69
QP
736.1600
27.96
5.89
33.85
46.00
-12.15
QP
884.5700
26.09
8.70
34.79
46.00
-11.21
QP
H/V
Note: 1. Result (dBuV) = Correction factor (dB) + Reading(dBuV).
2. Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. No emission found between lowest internal used/generated frequencies to 30MHz (9 kHz~30MHz).
14 of 25
Report Number: 1708FR19
Above 1GHz
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Harmonic
Power:
DC 3.7V
Frequency:
2402MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Horizontal
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
4804.000
49.24
-6.40
42.84
74.00
-31.16
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
15 of 25
Remark
peak
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Harmonic
Power:
DC 3.7V
Frequency:
2402MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Vertical
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
4804.000
49.01
-6.40
42.61
74.00
-31.39
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
16 of 25
Remark
peak
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Harmonic
Power:
DC 3.7V
Frequency:
2440MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Horizontal
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
4880.000
48.93
-6.13
42.80
74.00
-31.20
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
17 of 25
Remark
peak
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Harmonic
Power:
DC 3.7V
Frequency:
2440MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Vertical
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
4880.000
50.88
-6.13
44.75
74.00
-29.25
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
18 of 25
Remark
peak
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Harmonic
Power:
DC 3.7V
Frequency:
2480MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Horizontal
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
4960.000
49.30
-5.86
43.44
74.00
-30.56
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
19 of 25
Remark
peak
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Harmonic
Power:
DC 3.7V
Frequency:
2480MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Vertical
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
4960.000
48.82
-5.86
42.96
74.00
-31.04
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
20 of 25
Remark
peak
Report Number: 1708FR19
Band Edge
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Band edge
Power:
DC 3.7V
Frequency:
2402MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Horizontal
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
2371.380
41.81
0.08
41.89
74.00
-32.11
peak
2390.000
40.75
0.15
40.90
74.00
-33.10
peak
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
21 of 25
Remark
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Band edge
Power:
DC 3.7V
Frequency:
2402MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Vertical
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
2387.220
41.45
0.14
41.59
74.00
-32.41
peak
2390.000
37.56
0.15
37.71
74.00
-36.29
peak
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
22 of 25
Remark
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Band edge
Power:
DC 3.7V
Frequency:
2480MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Horizontal
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
2483.500
41.52
0.55
42.07
74.00
-31.93
peak
2490.940
45.09
0.58
45.67
74.00
-28.33
peak
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
23 of 25
Remark
Report Number: 1708FR19
Standard:
FCC Part 15.247
Test Distance:
3m
Test item:
Band edge
Power:
DC 3.7V
Frequency:
2480MHz
Temp.(℃)/Hum.(%RH):
26(℃)/60%RH
Mode:
Mode 2
Date:
08/11/2017
Ant.Polar.:
Vertical
No.
Frequency
Reading
Correct Factor
Result
Limit
Margin
(MHz)
(dBuV)
(dB/m)
(dBuV/m)
(dBuV/m)
(dB)
2483.500
42.33
0.55
42.88
74.00
-31.12
peak
2499.240
45.71
0.62
46.33
74.00
-27.67
peak
Note:1.Result (dBuV/m) = Correct Factor (dB/m) + Reading(dBuV).
2.Correction factor (dB/m) = Antenna Factor (dB/m) + Cable loss (dB) – Pre-Amplifier gain (dB).
3. When the peak results are less than average limit, so not need to evaluate the average.
24 of 25
Remark
Report Number: 1708FR19

Antenna Measurement
Limit
For intentional device, according to 15.203, an intentional radiator shall be designed to ensure that no antenna other
than that furnished by the responsible party shall be used with the device.
And According to 15.247 (b), if transmitting antennas of directional gain greater than 6 dBi are used, the power
be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi.

Antenna Connector Construction
See section 2 – antenna information.
25 of 25
shall
Download: 00000NU317 IQbuds Test Report CE EMC Nuheara Limited
Mirror Download [FCC.gov]00000NU317 IQbuds Test Report CE EMC Nuheara Limited
Document ID3556302
Application IDsFrkK0qnHJd9/BcyQsMTRg==
Document DescriptionRF Test Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize87.77kB (1097072 bits)
Date Submitted2017-09-12 00:00:00
Date Available2017-09-12 00:00:00
Creation Date2017-08-18 19:00:37
Producing SoftwareMicrosoft® Word 2010
Document Lastmod2017-08-28 14:47:37
Document TitleCE EMC TEST REPORT
Document CreatorMicrosoft® Word 2010
Document Author: julia.wei

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : Yes
Encryption                      : Standard V2.3 (128-bit)
User Access                     : Print, Extract, Print high-res
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 4.0-c316 44.253921, Sun Oct 01 2006 17:14:39
Create Date                     : 2017:08:18 19:00:37+08:00
Creator Tool                    : Microsoft® Word 2010
Modify Date                     : 2017:08:28 14:47:37+08:00
Metadata Date                   : 2017:08:28 14:47:37+08:00
Format                          : application/pdf
Creator                         : julia.wei
Title                           : CE EMC TEST REPORT
Producer                        : Microsoft® Word 2010
Document ID                     : uuid:f68dc994-6273-4c50-86d0-97a8532131a4
Instance ID                     : uuid:664c686a-6415-4470-84fb-08c48ce06220
Has XFA                         : No
Page Count                      : 25
Language                        : zh-TW
Author                          : julia.wei

Facebook Twitter Google+ RSS © FCCID.io 2017
