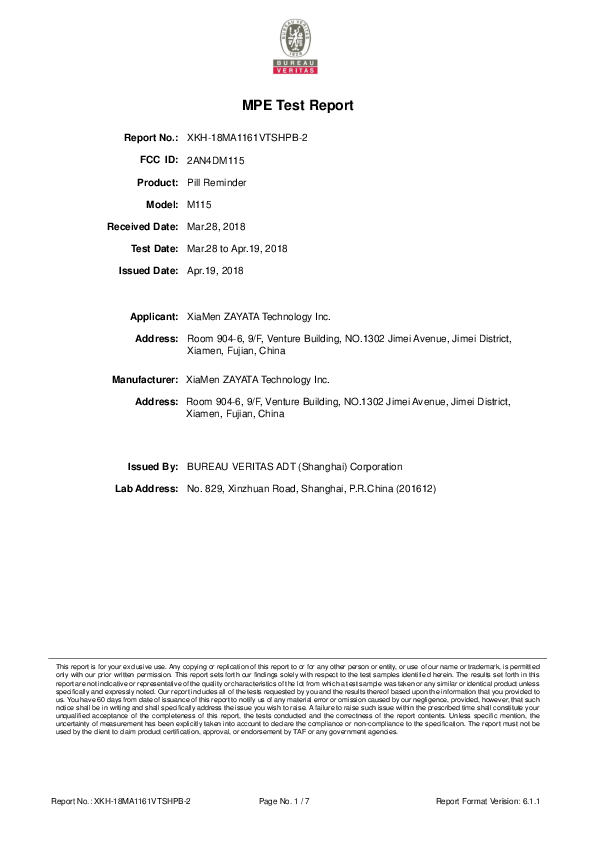

MPE Test Report
Report No.: XKH-18MA1161VTSHPB-2
FCC ID: 2AN4DM115
Product: Pill Reminder
Model: M115
Received Date: Mar.28, 2018
Test Date: Mar.28 to Apr.19, 2018
Issued Date: Apr.19, 2018
Applicant: XiaMen ZAYATA Technology Inc.
Address: Room 904-6, 9/F, Venture Building, NO.1302 Jimei Avenue, Jimei District,
Xiamen, Fujian, China
Manufacturer: XiaMen ZAYATA Technology Inc.
Address: Room 904-6, 9/F, Venture Building, NO.1302 Jimei Avenue, Jimei District,
Xiamen, Fujian, China
Issued By: BUREAU VERITAS ADT (Shanghai) Corporation
Lab Address: No. 829, Xinzhuan Road, Shanghai, P.R.China (201612)
This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted
only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this
report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless
specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to
us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such
notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your
unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the
uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be
used by the client to claim product certification, approval, or endorsement by TAF or any government agencies.
Report No.: XKH-18MA1161VTSHPB-2
Page No. 1 / 7
Report Format Verision: 6.1.1
Table of Contents
Release Control Record .................................................................................................................................... 3
Certificate of Conformity ......................................................................................................................... 4
General Information ................................................................................................................................ 5
2.1
General Description of EUT ................................................................................................................ 5
Test Standards and Limits ....................................................................................................................... 6
3.1
Limits For FCC Radiofrequency radiation exposure: .......................................................................... 6
Measurement and Calculation ................................................................................................................ 7
4.1
Maximum transmit power .................................................................................................................... 7
Report No.: XKH-18MA1161VTSHPB-2
Page No. 2 / 7
Report Format Verision: 6.1.1
Release Control Record
Issue No.
Description
Date Issued
XKH-18MA1161VTSHPB-2
Original release
Apr.19, 2018
Report No.: XKH-18MA1161VTSHPB-2
Page No. 3 / 7
Report Format Verision: 6.1.1
1 Certificate of Conformity
Product: Pill Reminder
Brand: -Model: M115
Applicant: XiaMen ZAYATA Technology Inc.
Test Date: Mar.28 to Apr.19, 2018
Standards: FCC Part 2 (Section 2.1093)
KDB 447498 D01 General RF Exposure Guidance v06
The above equipment has been tested by BUREAU VERITAS ADT (Shanghai) Corporation, and found
compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under
Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the
sample’s EMC characteristics under the conditions specified in this report.
Prepared by :
Date:
Apr.19, 2018
Date:
Apr.19, 2018
Bing YE
Testing Engineer
Approved by :
Joy ZHU
Testing Manager
Report No.: XKH-18MA1161VTSHPB-2
Page No. 4 / 7
Report Format Verision: 6.1.1
2 General Information
2.1
General Description of EUT
Product
Pill Reminder
Brand
--
Test Model
M115
Model Difference
--
Power Rating
DC5V for Pill Reminder, 100-240V~, 50/60Hz,0.3A for adapter
Modulation Type
GFSK
Modulation Technology
Bluetooth Low Energy 4.2
Operating Frequency
2.402 ~ 2.480GHz
Number of Channel
40
Antenna Type
PCB antenna
Antenna Connector
--
Antenna Gain
1 dBi
Note: For more details, please refer to the User’s manual of the EUT.
Report No.: XKH-18MA1161VTSHPB-2
Page No. 5 / 7
Report Format Verision: 6.1.1
3 Test Standards and Limits
3.1
Limits For FCC Radiofrequency radiation exposure:
According to §15.247 (i) and §1.1307(b)(1),systems operating under the provisions of this section shall be
operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of
the Commission’s guidelines.
The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm
are determined by:
[(max power of channel)/(min test separation distance)]*[√f(GHz)]≤3.0 for 1-g SAR and ≤7.5 for 10-g
extremity SAR, where

f(GHz) is the RF channel transmit frequency in GHz

Power and distance are rounded to the nearest Mw and mm

The result is rounded to one decimal place for comparison
The test exclusions are applicable only when the minimum test separation distance is ≤ 50mm, and for
transmission frequencies between 100 MHz and 6GHz. When the minimum test separation distance is < 5
mm, a distance of 5 mm is applied to determine SAR test exclusion.
Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer
simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than
the applicable low threshold require SAR evaluation to qualify for TCB approval.
Report No.: XKH-18MA1161VTSHPB-2
Page No. 6 / 7
Report Format Verision: 6.1.1
4 Measurement and Calculation
4.1
Maximum transmit power
The Power Data is based on the RF Test Report XKH-18MA1161VTSHPB-1
CH
Test Channel
Power[dBm]
Max Tune Up
Max Tune Up
Power [dBm]
Power [mW]
Result
Limit
Low
2402
-13.59
-11.59
0.069
0.0169
Mid
2440
-14.62
-12.62
0.054
0.0133
High
2480
-15.26
-13.26
0.047
0.0117
One antenna is available for the EUT (BLE antenna).
Test Result: Pass
No SAR measurement is required.
--- END ---
