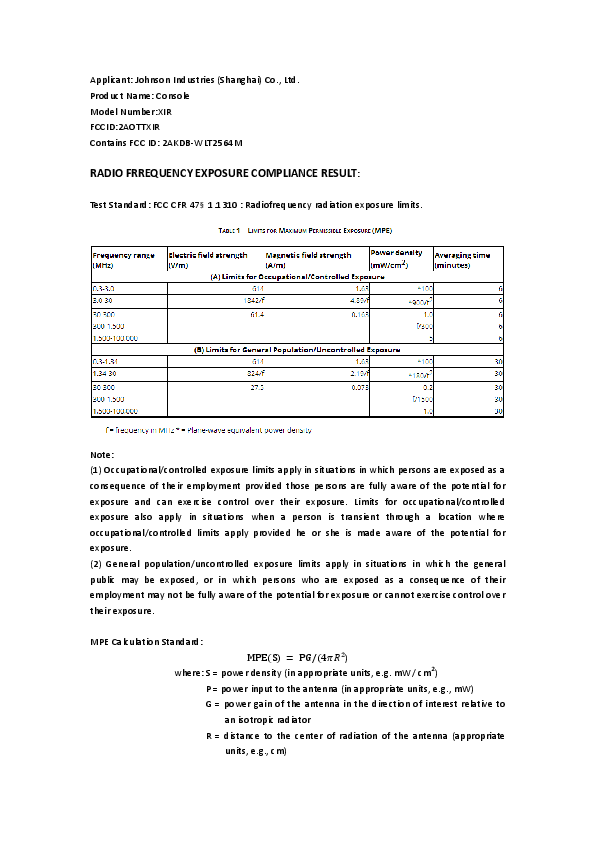

Page 1 of XIR CONSOLE RF Exposure Info  JOHNSON INDUSTRIES (SHANGHAI) CO., LTD.
Page 2 of XIR CONSOLE RF Exposure Info  JOHNSON INDUSTRIES (SHANGHAI) CO., LTD.

Applicant: Johnson Industries (Shanghai) Co., Ltd.
Product Name: Console
Model Number:XIR
FCCID:2AOTTXIR
Contains FCC ID: 2AKDB‐WLT2564M
RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT:
Test Standard: FCC CFR 47§1.1310 : Radiofrequency radiation exposure limits.
Note:
(1) Occupational/controlled exposure limits apply in situations in which persons are exposed as a
consequence of their employment provided those persons are fully aware of the potential for
exposure and can exercise control over their exposure. Limits for occupational/controlled
exposure also apply in situations when a person is transient through a location where
occupational/controlled limits apply provided he or she is made aware of the potential for
exposure.
(2) General population/uncontrolled exposure limits apply in situations in which the general
public may be exposed, or in which persons who are exposed as a consequence of their
employment may not be fully aware of the potential for exposure or cannot exercise control over
their exposure.
MPE Calculation Standard:
MPE S
PG/ 4
where: S = power density (in appropriate units, e.g. mW/ cm2)
P = power input to the antenna (in appropriate units, e.g., mW)
G = power gain of the antenna in the direction of interest relative to
an isotropic radiator
R = distance to the center of radiation of the antenna (appropriate
units, e.g., cm)
Calculation Result:
For this EUT, General population/uncontrolled exposure limits applied.
The limit value 1.0mW/cm2 is available for this EUT.
The EUT with BLE of WLT2564M and BT/IEEE802.11 of AP6210 can transmit at the same time, the
simultaneous MPE is considered in the Calculation Result.
AP6210:
IEEE 802.11:
Modulation
PeakOutput Power
Antenna Gain
MPE
Limit
(dBm)
(mW)
(dBi)
(Numeric)
(mW/cm )
(mW/cm2)
802.11b
17.47
55.85
1.58
0.017555
1.0
802.11g
22.34
171.4
1.58
0.053876
1.0
802.11n20
20.58
114.29
1.58
0.035925
1.0
MPE
Limit
BT:
Modulation
PeakOutput Power
Antenna Gain
(dBm)
(mW)
(dBi)
(Numeric)
(mW/cm )
(mW/cm2)
DH1
‐4.315
0.37
1.58
0.000116
1.0
DH3
‐3.908
0.41
1.58
0.000129
1.0
DH5
‐4.314
0.37
1.58
0.000116
1.0
3DH1
‐4.509
0.35
1.58
0.000110
1.0
3DH3
‐4.154
0.38
1.58
0.000119
1.0
3DH5
‐4.509
0.35
1.58
0.000110
1.0
Mixed MPE of AP6210
AP6210
Mixed
Limit
IEEE 802.11
BT
(mW/cm )
(mW/cm2)
0.053876
0.000129
0.054005
1.0
WLT2564M: (According FCC ID: 2AKDB‐WLT2564M) (BLE mode only in XIR)
BLE:
MPE
Limit
(mW/cm )
(mW/cm2)
0.0022
1.0
Mixed MPE of XIR (AP6210 + WLT2564M):
MPE
Mixed
Limit
AP6210
WLT2564M
(mW/cm )
(mW/cm2)
0.054005
0.0022
0.056205
1.0
For R = 20cm
