FCC ID A3LSMA510M
Multi-Band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: SMA510M
Latest application date: 2015-11-27
Device Images
FCC ID Device Details
| FCC ID | A3LSMA510M |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | SMA510M |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | Multi-Band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ |
| Test Firm | PCTEST Engineering Laboratory, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-11-27 |
| 706.5-713.5 MHz | Original Equipment | 2015-11-27 |
| 5180-5240 MHz | Original Equipment | 2015-11-27 |
| 2402-2480 MHz | Original Equipment | 2015-11-27 |
| 13.56 MHz | Original Equipment | 2015-11-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-05-25 | PDF 458.3 KB |
| Internal Photographs | Internal Photos | 2016-05-25 | PDF 969.2 KB |
| External Photographs | External Photos | 2016-05-25 | PDF 196.4 KB |
| FCC ID Label Statement Letter | Attestation Statements | 2015-11-27 | PDF 153.8 KB |
| FCC ID Label and Location | ID Label/Location Info | 2015-11-27 | PDF 137.5 KB |

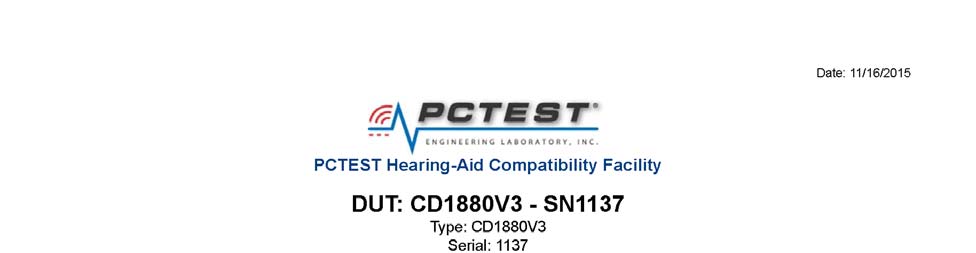

| HAC RFE Test Setup Photographs | Test Setup Photos | 2016-05-25 | PDF 153.1 KB |
| SAR Test Setup Photographs | Test Setup Photos | 2016-05-25 | PDF 427.4 KB |
| Test Setup Photographs | Test Setup Photos | 2016-05-25 | PDF 591.3 KB |
| Test Setup Photographs | Test Setup Photos | 2016-05-25 | PDF 161.9 KB |
| Test Setup Photographs | Test Setup Photos | 2016-05-25 | PDF 232.1 KB |
| HAC RFE Test Report | Test Setup Photos | 2015-11-27 | PDF 2.1 MB |
| ANT+ Test Report | Test Report | 2015-11-27 | PDF 1.2 MB |
| Bluetooth LE Test Report | Test Report | 2015-11-27 | PDF 1.5 MB |
| DFS Test Report | Test Report | 2015-11-27 | PDF 912.1 KB |
| LTE Test Report 1 | Test Report | 2015-11-27 | PDF 3.5 MB |
| LTE Test Report 2 | Test Report | 2015-11-27 | PDF 3.3 MB |
| NFC Test Report | Test Report | 2015-11-27 | PDF 961.6 KB |
| Test Report | Test Report | 2015-11-27 | PDF 5 MB |
| Test Report | Test Report | 2015-11-27 | PDF 531.3 KB |
| Test Report | Test Report | 2015-11-27 | PDF 3.6 MB |
| UNII Test Report | Test Report | 2015-11-27 | PDF 4.1 MB |
| WLAN Test Report | Test Report | 2015-11-27 | PDF 2.4 MB |
| Authorization Letter | Attestation Statements | 2015-11-27 | PDF 85.3 KB |
| HAC Key Feature Letter | Attestation Statements | 2015-11-27 | PDF 30.4 KB |
| LTE Attestation Letter | Attestation Statements | 2015-11-27 | PDF 99.2 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-11-27 | PDF 85.7 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-11-27 | PDF 86.6 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-11-27 | PDF 73.9 KB |
| RF Exposure Info 1 | RF Exposure Info | 2015-11-27 | PDF 4.9 MB |
| RF Exposure Info 2 | RF Exposure Info | 2015-11-27 | PDF 5.7 MB |
| Block Diagram Metadata only | Block Diagram | PDF 583.6 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 1.4 MB | |
| Schematics Metadata only | Schematics | PDF 878.4 KB | |
| ANT+ Operational Description Metadata only | Operational Description | PDF 760 KB | |
| Antenna Separation Distance Metadata only | Operational Description | PDF 720.2 KB | |
| NFC Operational Description Metadata only | Operational Description | PDF 782.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 5.6 MB | |
| Operational Description Metadata only | Operational Description | PDF 5.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 1.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 5.6 MB | |
| Parts List and Tune-Up Procedure Metadata only | Parts List/Tune Up Info | PDF 918.5 KB |
Application Information
| Application ID | wCySvJMyrOBM0mN5YtHE5g== |
|---|---|
| Final Action Date | 2015-11-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0005810205 |
| Model | SMA510M |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Multi-Band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Technical Contact | Randy Ortanez, PCTEST Engineering Laboratory, Inc., tcb@pctestlab.com  , 410-290-6652 |
| Test Firm | Randy Ortanez, PCTEST Engineering Laboratory, Inc., lab@pctestlab.com , 410-290-6652 |
| TCB Email | tcb@pctestlab.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 05/25/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output is conducted. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| wCySvJMyrOBM0mN5YtHE5g== | 2015-11-27 | Original Equipment |
| ujQzfWhik7Zg00Kcyscjow== | 2015-11-27 | Original Equipment |
| sPhyjJEmbj27N0jGFuaUPw== | 2015-11-27 | Original Equipment |
| lprpJ0uMH+WpSN+AR9B4kw== | 2015-11-27 | Original Equipment |
| dD8ik13eaNTq322zAxFa4A== | 2015-11-27 | Original Equipment |
| VLMqORCsccWD6ceijscCPQ== | 2015-11-27 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | 16, CC | ||||
| 13.56 MHz | 15C | CC | |||
| 706.5-713.5 MHz | 0.037 | 2.5ppm | 4M53G7D | 27 | HC |
| 706.5-713.5 MHz | 0.027 | 2.5ppm | 4M53W7D | 27 | HC |
| 709-711 MHz | 0.032 | 2.5ppm | 8M99G7D | 27 | HC |
| 709-711 MHz | 0.025 | 2.5ppm | 8M99W7D | 27 | HC |
| 824.7-848.3 MHz | 0.051 | 2.5ppm | 1M15G7D | 22H | HC |
| 824.7-848.3 MHz | 0.042 | 2.5ppm | 1M14W7D | 22H | HC |
| 825.5-847.5 MHz | 0.057 | 2.5ppm | 2M72G7D | 22H | HC |
| 825.5-847.5 MHz | 0.044 | 2.5ppm | 2M73W7D | 22H | HC |
| 826.5-846.5 MHz | 0.062 | 2.5ppm | 4M53G7D | 22H | HC |
| 826.5-846.5 MHz | 0.048 | 2.5ppm | 4M52W7D | 22H | HC |
| 829-844 MHz | 0.052 | 2.5ppm | 9M00G7D | 22H | HC |
| 829-844 MHz | 0.041 | 2.5ppm | 8M99W7D | 22H | HC |
| 1710.7-1754.3 MHz | 0.172 | 2.5ppm | 1M15G7D | 27 | HC |
| 1710.7-1754.3 MHz | 0.135 | 2.5ppm | 1M15W7D | 27 | HC |
| 1711.5-1753.5 MHz | 0.181 | 2.5ppm | 2M73G7D | 27 | HC |
| 1711.5-1753.5 MHz | 0.136 | 2.5ppm | 2M73W7D | 27 | HC |
| 1712.5-1752.5 MHz | 0.199 | 2.5ppm | 4M52G7D | 27 | HC |
| 1712.5-1752.5 MHz | 0.148 | 2.5ppm | 4M52W7D | 27 | HC |
| 1715-1750 MHz | 0.171 | 2.5ppm | 9M01G7D | 27 | HC |
| 1715-1750 MHz | 0.125 | 2.5ppm | 9M01W7D | 27 | HC |
| 1717.5-1747.5 MHz | 0.182 | 2.5ppm | 13M5G7D | 27 | HC |
| 1717.5-1747.5 MHz | 0.139 | 2.5ppm | 13M5W7D | 27 | HC |
| 1720-1745 MHz | 0.171 | 2.5ppm | 18M0G7D | 27 | HC |
| 1720-1745 MHz | 0.129 | 2.5ppm | 18M0W7D | 27 | HC |
| 1850.2-1909.8 MHz | 1.018 | 2.5ppm | 244KGXW | 24E | HC |
| 1850.2-1909.8 MHz | 0.391 | 2.5ppm | 245KG7W | 24E | HX |
| 1850.7-1909.3 MHz | 0.168 | 2.5ppm | 1M14G7D | 24E | HC |
| 1850.7-1909.3 MHz | 0.132 | 2.5ppm | 1M14W7D | 24E | HC |
| 1851.5-1908.5 MHz | 0.186 | 2.5ppm | 2M73G7D | 24E | HC |
| 1851.5-1908.5 MHz | 0.141 | 2.5ppm | 2M73W7D | 24E | HC |
| 1852.4-1907.6 MHz | 0.159 | 2.5ppm | 4M13F9W | 24E | HC |
| 1852.5-1907.5 MHz | 0.195 | 2.5ppm | 4M53G7D | 24E | HC |
| 1852.5-1907.5 MHz | 0.146 | 2.5ppm | 4M52W7D | 24E | HC |
| 1855-1905 MHz | 0.191 | 2.5ppm | 8M99G7D | 24E | HC |
| 1855-1905 MHz | 0.145 | 2.5ppm | 9M00W7D | 24E | HC |
| 1857.5-1902.5 MHz | 0.187 | 2.5ppm | 13M5G7D | 24E | HC |
| 1857.5-1902.5 MHz | 0.143 | 2.5ppm | 13M5W7D | 24E | HC |
| 1860-1900 MHz | 0.174 | 2.5ppm | 18M0G7D | 24E | HC |
| 1860-1900 MHz | 0.134 | 2.5ppm | 18M0W7D | 24E | HC |
| 2402-2480 MHz | 0.0110000 | 15C | CC | ||
| 2402-2480 MHz | 0.003 | 15C | CC | ||
| 2402-2480 MHz | 15C | CC | |||
| 2412-2472 MHz | 0.049 | 15C | CC, HX | ||
| 5180-5240 MHz | 0.016 | 15E | 38, CC, HX | ||
| 5260-5320 MHz | 0.016 | 15E | 38, CC, HX | ||
| 5500-5720 MHz | 0.016 | 15E | 38, CC, HX | ||
| 5745-5825 MHz | 0.017 | 15E | 38, CC, HX |
Grants
TCB Grant - Application wCySvJMyrOBM0mN5YtHE5g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PCTEST Engineering Laboratory, LLC 7185 Oakland Mills Road Columbia, MD 21046 |
Date of Grant: 11/27/2015 Application Dated: 11/27/2015 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LSMA510M |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Multi-Band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.011 |
| Power output is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
