parmmmmmmm ocm                 mmmm n                   mmmm mm mn »memmmmseememmenmmmameny

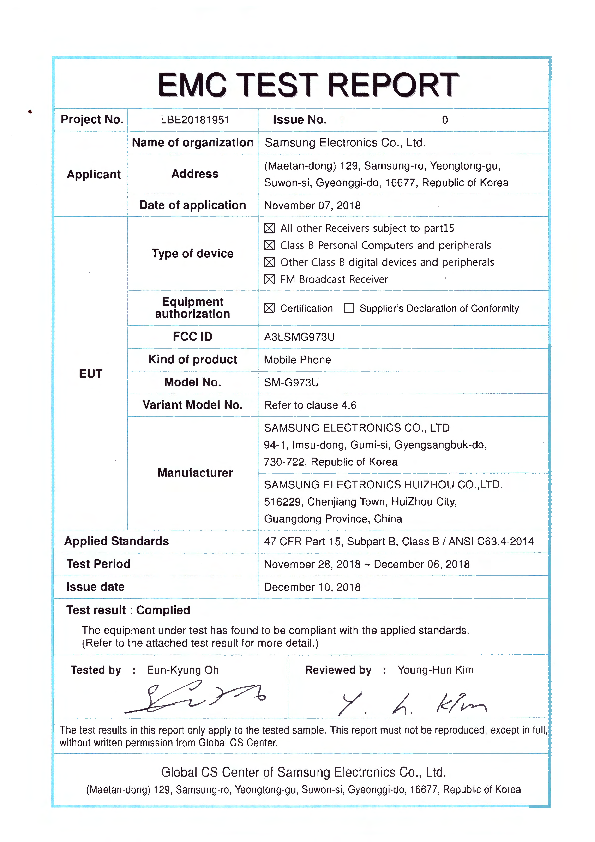

                        EMC TEST REPORT
Project No.             LBE20181951                   IssueNo            |                         0
                                                 |
               | Name of organization                 Samsung Electronics Co., Ltd.
                                                      (Maetan—dong) 129, Samsung—ro, Yeongtong—gu,
 Appli                     Address
   pplicant                                          Suwon—si, Gyeonggi—do, 16677, Republic of Korea

                     Date of appllcatlon November 07, 2018
                                                X\ AII other Receivers subject to partlS
                                                 [ Class B Personal Computers and peripherals
                       Type of device
                                                     E4 Other Class B digital devices and peripherals
                                                     [X] FM Broadcast Receiver                      «

                       aE?huc:'r)irzl;et;:)tn        [X] Certification       [_] Supplier‘s Declaration of Conformity

                            FCC ID                   A3LSMGQ73U
                Klnd of product Moblle Phone
    EUT         [      iog            es                                         Te n
                  $ Model No.  SMG973U
                     Variant Model No.               Refer to clause 4.6
                                                     SAMSUNG ELECTRONICS CO., LTD
                                                     94—1, Imsu—dong, Gumi—si, Gyengsangbuk—do,
                                                     730—722, Republic of Korea
                        Manufacturer             i—           3.             C
                                                     SAMSUNG ELECTRONICS HUIZHOU CO.,LTD.
                                                     516229, Chenjiang Town, HuiZhou City,
                                                     Guangdong Provmce, China

 Applied Standards                                   47 CFR Part 15 Subpart B, Class B / ANSI C63.4—2014
 Test Period                                         November 28, 2018 December 06, 2018
 Issue date                                          December 10 2018
 Test result : Complled
     The equipment under test has found to be compliant with the applied standards.
     (Refer to the attached test result for more detail.)

  Tested by      :    Eun—Kyung On                             Reviewed by            _:   Young—Hun Kim



               _A                    PR Y . fko
The test results in this report only apply to the tested sample. This report must not be reproduced, except in full,
without written permlsswn Irom Global CS Cenler

                        Global CS Center of Samsung Electronics Co., Ltd.
      (Maetan—dong) 129,
                       Samsung to, Yeongtong—gu, Suwon—si, Gyeoanggi—do, 16677,
                                                                              Repubhc of Korea


                                                   Project No. : LBE20181951
                                                         Mobile Phone : SM-G973U




                                          Table of contents
1. Report Information
   1.1 Revision history ------------------------------------------------------------------------------------------------------------------          3


2. Summary of test results
   2.1 Emission -------------------------------------------------------------------------------------------------------------------------------     3


3. General Information
   3.1 Test facility ----------------------------------------------------------------------------------------------------------------------------   3


4. Test Configuration
   4.1 Test Peripherals -----------------------------------------------------------------------------------------------------------------           4
   4.2 EUT operating mode --------------------------------------------------------------------------------------------------------                  5
   4.3 Details of Sampling -----------------------------------------------------------------------------------------------------------              5
   4.4 Used cable description ----------------------------------------------------------------------------------------------------                  6
   4.5 Test arrangement --------------------------------------------------------------------------------------------------------------              7
   4.6 EUT Description ----------------------------------------------------------------------------------------------------------------- 10
   4.7 EUT Frequencies ------------------------------------------------------------------------------------------------------------                 10
   4.8 Test configuration and condition ---------------------------------------------------------------------------------- 11
   4.9 Measurement uncertainty ----------------------------------------------------------------------------------------------                       11


5. Result of individual tests
   5.1 Conducted disturbance --------------------------------------------------------------------------------------------------- 12
   5.2 Radiated disturbance ------------------------------------------------------------------------------------------------------- 18



                                                                      -2/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




1. Report Information
  1.1 Revision history

        No.                                      Revised detailed information

      Issue 0     There are no revisions and this version is basic test report.


  1.2 RSE test report no.

           No.                                                  Remark

   1M1810250195-15       The cellular receiver mode refers to the radiated spurious emissions test report.



2. Summary of test results
  2.1 Emission
  The EUT has been tested according to the following specifications:

   Applied              Test type                            Applied standard                       Result

                 Conducted Disturbance
                                                                                                   Complied
                      (Mains port)            47 CFR Part 15 Subpart B / ANSI C63.4-2014
                                              (Class B)
                 Radiated Disturbance                                                              Complied




3. General Information
  3.1 Test facility
  The Global CS Center is located on Samsung Electronics Co., Ltd. at (Maetan-dong)
  129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Republic of Korea.
  All testing are performed in Semi-anechoic chambers conforming to the site attenuation
  characteristics defined by ANSI C63.4, CISPR 32, CISPR 16-1-4 and Shielded rooms.
  And all antennas are properly calibrated using ANSI C63.5:2017.
  The Global CS Center is operated as testing laboratory in accordance with the requirements of
  ISO/IEC 17025:2005.




                                                    -3/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                           Mobile Phone : SM-G973U




4. Test Setup configuration
  4.1 Test Peripherals
  The cables used for these peripherals are either permanently attached by the peripheral
  manufacturer or coupled with an assigned cable as defined below.
  The following is a listing of the EUT and peripherals utilized during the performance of EMC test:

                                                                            Manufacture
    Mark     Description          Model No.              Serial No.              r/               FCC ID
                                                                             Trademark

      A      Mobile Phone        SM-G973U                     -              SAMSUNG          A3LSMG973U
      B         Battery        EB-BG973ABU                    -              SAMSUNG                    -
     C          Headset           EO-IG955                    -              SAMSUNG                    -
                               EP-DG970BBE                    -              SAMSUNG                    -
     D        Data Cable
                                   JCA141           BW2K1709000770           J5CREATE
      E     Micro SD Card           64GB                      -              SAMSUNG                    -
      F     Travel Adapter        EP-TA200          R37KAVA00S1DK3           SAMSUNG                    -

               Desk-Top           DM-C410          HFGD97AB700278X           SAMSUNG                    -
     G
               Computer            DM300S               A20100622            SAMSUNG                    -
                                  S22E200N          0AZSHLLG900906T          SAMSUNG                    -
     H      LCD TV Monitor
                                   EM23TS          NC26H1KSB01550B           SAMSUNG                    -
      I       DP Monitor           27DU88            711NTQD8H004                 LG
      J      Power Supply          LCAP31         EH8NN629490055062               LG
                                                      TAKD125024 V           SAMSUNG                    -
                                 SML-210PB
      K         Mouse                                 TAKD124911 M           SAMSUNG                    -
                                    B138                 Z5F8353             SAMSUNG                    -
                                                         8M001183            SAMSUNG                    -
      L        Keyboard          SDM8500P
                                                        8M001033             SAMSUNG                    -
                                                       CN33FQ703Q                 HP                    -
     M     Gigabit Switch 8        J9794A
                                                       CN33FQ71XK                 HP                    -
                                                     DIKD1245096741             Delta                   -
     N       Power Supply       EADP-15DC A
                                                     DIKD1245096576             Delta                   -
     O       OTG Gender           EE-UG970                    -              SAMSUNG                    -




                                                    -4/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




  4.2 EUT operating mode
  To achieve compliance applied standard specification, the following mode(s) were made during
  compliance testing:

  4.2.1 Conducted Emission
    No.    Operating mode

     1     Camera (rear) + Charging (w/ TA) + Cellular receiver (GSM850 Center Frequency) + FM (Low Ch.)

     2     Camera (front) + Charging (w/ TA) + FM (Mid Ch.)

     3     Charging (w/ TA) + FM (High Ch.)

     4     Video + Audio playback from internal memory data + Charging (w/ TA)

     5     USB Data Communication with PC (from external memory data)


  4.2.2 Radiated Emission
    No.    Operating mode

     1     Camera (rear) + Charging (w/ TA) + FM (Low Ch.)

     2     Camera (front) +USB OTG (w/USB gender: mouse) + FM (Mid Ch.)

     3     FM (High Ch.)

     4     Video + Audio playback from internal memory data + Display out(Direct DP Cable)

     5     USB Data Communication with PC (from external memory data)



  4.3 Details of Sampling
  Customer selected, single unit.




                                                    -5/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                           Mobile Phone : SM-G973U




  4.4 Used cable description
  The EUT is configured, installed, arranged and operated in a manner consistent with typical
  applications. Interface cables/loads/devices are connected to at least one of each type of interface
  port of the EUT, and where practical, each cable shall be terminated in a device typical of actual
  usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to
  which these were connected:

                                  Length       Shielded
     No.    Connected cable                                                       Note
                                    [m]         [Y/N]

      1        Data Cable           1.0          Yes                 From EUT to Desk-Top Computer
      2         DP Cable            1.1          Yes                     From EUT to DP Monitor
      3          Headset            1.2           No                             For EUT
      4           Power             1.8           No                     For Desk-Top Computer
      5           Power             1.2           No                 From DP Monitor to Power Supply
      6           Power             1.6           No                        For Power Supply
      7           Power             1.8           No                       For LCD TV Monitor
      8           Power             1.8           No             From Gigabit Switch 8 to Power Supply
      9           Power             1.8           No                        For Power Supply
     10            LAN              1.5           No          From Desk-Top Computer to Gigabit Switch 8
     11            LAN              1.5           No          From Gigabit Switch 8 to Local Area Network
     12            RGB              1.8          Yes          From Desk-Top Computer to LCD TV Monitor
     13            PS/2             1.5          Yes               From Desk-Top Computer to Mouse
     14            PS/2             1.5          Yes             From Desk-Top Computer to Keyboard
     15            USB              1.5          Yes                      For USB OTG Gender




                                                    -6/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                        Project No. : LBE20181951
                                           Mobile Phone : SM—G973U




  4.5 Test arrangement
  4.5.1 Conducted Emission




                                  3/C




                  3/¢




                                                 [ Mode 5 ]




                                                    —7/29—
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA—TRF—46/7


                                         Project No. : LBE20181951
                                            Mobile Phone : SM—G973U




  4.5.2 Radiated Emission




                                  3/C




                                                 [ Mode 1 ]




                                   3/¢                                     o

                                                                                    15/K




                                                 [ Mode 2 ]




                                    3/C




                                                 [ Mode 3 ]



                                                     —8/29—
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA—TRF—46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




                                                [ Mode 4 ]




                                                [ Mode 5 ]




                                                    -9/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




  4.6 EUT Description
  The EUT is a bar type Mobile Phone which can operate on GSM850/900/1800/1900,
  WCDMA FDD1/2/4/5/8, LTE FDD1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/29/30/66/71,
  LTE TDD38/39/40/41/46/48, CDMA BC0/1/10, CDMA 1x EV-DO BC0/1/10, TD-SCDMA B34/39
  and Incorporates a camera, Bluetooth, ANT+, Wi-Fi, FM Radio, GNSS, NFC, Wireless Charging,
  MST, OTG, DP and MP3/MP4 player.

  4.6.1 The variant models
  - SM-G973U1, SM-G973W, SM-G973XU


  4.7 EUT Frequencies

                  The highest frequencies
                                                                            Frequency [ MHz ]
                    (Generated and used)

                             Wi-Fi                                                 5 825




                                                   -10/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




  4.8 Test configuration and condition
  The system was configured for testing in a typical fashion that a customer would normally use.
  Cables were attached to each of the available I/O Ports. Where applicable, peripherals were
  attached to the I/O cables. All the external I/O ports are exercised, as well as internal and
  the external SD card, by writing and reading arbitrary data or charging with TA.
  The EUT was investigated in three orientations and the worst case orientation is reported.
  RX mode(850MHz) radiated testing was performed with the GSM850 RX Test mode at center
  frequency. All licensed communication (850MHz) RX mode, GSM/WCDMA/LTE, test results are
  not significantly different.
  The FM radio mode radiated testing was performed with the Low/Mid/High channel.
  The video and music were repetitively played connected to the earphone.
  The video and music were played on monitor through Display Out function using direct DP Cable
  or DP converter.
  The EUT was connected to USB mouse using USB OTG gender
  The camera of the EUT was operated continuously.

  Power source for the EUT operating was supplied by CVCF made by the Pacific Corp.

  - Test Voltage : AC 120 V, 60 Hz


  4.9 Measurement uncertainty
  Where relevant, the following measurement uncertainty levels have been estimated for tests
  performed on the apparatus: (According to CISPR 16-4-2 and UKAS M3003)

  4.9.1 Emission


                                                                               Measurement uncertainty
                                 Test type
                                                                                  (C.L. 95 %, k = 2)

   Conducted disturbance                               AC Mains                          3.52 dB

   Radiated Disturbance                                Horizontal                        4.99 dB
   (Below 1 GHz)                                        Vertical                         4.90 dB

   Radiated Disturbance                                Horizontal                        5.33 dB
   (Above 1 GHz)                                        Vertical                         5.32 dB




                                                   -11/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                       Project No. : LBE20181951
                                           Mobile Phone : SM-G973U




5. Results of individual test
  5.1 Conducted disturbance
  The EUT was connected to the Desk-Top Computer which was powered from one LISN for the
  measurements. The support equipment power cables were connected to a second LISN.
  Both conducted lines are measured in Quasi-Peak and CISPR-Average mode, including the
  worst-case data points for each tested configuration. The EUT measured in accordance with the
  methods described in standards.

  Limits for conducted disturbance at the mains ports of Class B ITE

       Frequency range Limits            Resolution Bandwidth                        Limits [ dB(μV) ]
              [ MHz ]                           [ kHz ]                  Quasi-peak                   Average
             0,15 to 0,50                           9                      66 to 56                   56 to 46
                 0,50 to 5                          9                           56                       46
                 5 to 30                            9                           60                       50
   NOTE 1 The lower limit shall apply at the transition frequency.
   NOTE 2 The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz.


  5.1.1 Test instrumentation
                                                                                                 Calibration
   EMC No.       Test Instrument       Model name       Manufacturer     Serial No.                          Interval
                                                                                               Date
                                                                                                             (Month)

                 Universal Radio
   E5I-002                             CMU200           R&S             100612            2018-08-31     12
                 Communicator

   E5I-043       LISN                  ENV216           R&S             101630            2018-08-17     12

   E5I-017       EMI Test Receiver     ESU8             R&S             100483            2018-01-12     12

   E5I-127       LISN                  ENV216           R&S             102061            2018-07-23     12

   -             Test software         EMC32            R&S             Ver 9.26.01       -              -


  5.1.2 Temperature and humidity condition
    Test date                        2018-12-06                Test engineer                  Eun-Kyung Oh

                             Ambient temperature              (23.5 ~ 23.8) ℃           Limit (15.0 to 35.0) ℃

    Climate condition        Relative humidity            (45.3 ~ 45.6) % R.H.        Limit (25.0 to 75.0) % R.H.

                             Atmospheric pressure          (101.8 ~ 102.1) kPa         Limit (86.0 to 106.0) kPa

    Test place                                                Shield Room (SR8)




                                                    -12/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                                   Project No. : LBE20181951
                                                      Mobile Phone : SM-G973U




  5.1.3 Test results
  □ Operating Mode 1: AC Mains


                         70

                         65
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s Q P
                         60

                         55
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s A V
                         50

                         45
          Level in dBμ




                         40

                         35

                         30

                         25

                         20

                         15

                         10

                         5

                         0
                         150k   3 0 0 4 0 05 0 0    8 0 01 M        2M       3M 4M 5M 6          8 10M            20M     30M
                                                               F re q u e n c y in H z



  Note 1) Two graphs measured for both Live(L1) and Neutral(N) of the LISN are combined into one graph.

   QP / CAV final measurement results table:
      Frequency                   QP                CAV             Limit            Margin                                 Corr.
                                                                                                         Line
        (MHz)                   (dBμV)             (dBμV)          (dBμV)             (dB)                                  (dB)
         0.213                   40.9                ---             63.1                22.2              N                10.0
         0.213                    ---                23.3            53.1                29.8              L1               10.0
         0.676                    ---                27.1            46.0                18.9              L1               10.2
         0.678                   34.4                ---             56.0                21.6              L1               10.2
         3.014                   32.5                ---             56.0                23.5              L1               10.0
         3.089                    ---                21.0            46.0                25.0              L1               10.0
         5.013                   34.7                ---             60.0                25.3              L1               10.0
         5.017                    ---                22.1            50.0                27.9              L1               10.0
         6.500                    ---                24.8            50.0                25.2              L1               10.0
         6.926                   36.4                ---             60.0                23.6              L1               10.0
         9.530                   34.4                ---             60.0                25.6              L1               10.1
         9.647                    ---                23.8            50.0                26.2              L1               10.1

  Note 2) Level (QP and/or CAV) = Meter Reading (QP and/or CAV) + Corr. (LISN Insertion Loss + Cable Loss)
          Margin (QP and/or CAV) = Limit – Level (QP and/or CAV)
          QP = Quasi-Peak, CAV = CISPR-Average, Corr. = Correction Factor



                                                                -13/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                                   Project No. : LBE20181951
                                                      Mobile Phone : SM-G973U




  □ Operating Mode 2: AC Mains


                         70

                         65
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s Q P
                         60

                         55
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s A V
                         50

                         45
          Level in dBμ




                         40

                         35

                         30

                         25

                         20

                         15

                         10

                         5

                         0
                         150k   3 0 0 4 0 05 0 0    8 0 01 M        2M       3M 4M 5M 6          8 10M            20M     30M
                                                               F re q u e n c y in H z


  Note 1) Two graphs measured for both Live(L1) and Neutral(N) of the LISN are combined into one graph.

   QP / CAV final measurement results table:
      Frequency                   QP                CAV            Limit             Margin                                 Corr.
                                                                                                         Line
        (MHz)                   (dBμV)             (dBμV)         (dBμV)              (dB)                                  (dB)
        0.213                    41.0                 ---           63.1                 22.1              N                10.0
        0.213                     ---                23.2           53.1                 29.9              N                10.0
        0.676                     ---                27.1           46.0                 18.9              L1               10.2
        0.678                    34.3                 ---           56.0                 21.7              L1               10.2
        2.974                    32.1                 ---           56.0                 23.9              L1               10.0
        3.047                     ---                20.9           46.0                 25.1              N                 9.9
        5.011                    34.5                 ---           60.0                 25.5              L1               10.0
        5.015                     ---                22.3           50.0                 27.7              L1               10.0
        6.369                     ---                24.9           50.0                 25.1              L1               10.0
        6.926                    36.0                 ---           60.0                 24.0              L1               10.0
        12.727                   32.4                 ---           60.0                 27.6              L1               10.3
        12.893                    ---                21.0           50.0                 29.0              L1               10.3

  Note 2) Level (QP and/or CAV) = Meter Reading (QP and/or CAV) + Corr. (LISN Insertion Loss + Cable Loss)
          Margin (QP and/or CAV) = Limit – Level (QP and/or CAV)
          QP = Quasi-Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                               -14/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                                   Project No. : LBE20181951
                                                      Mobile Phone : SM-G973U




  □ Operating Mode 3: AC Mains


                         70

                         65
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s Q P
                         60

                         55
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s A V
                         50

                         45
          Level in dBμ




                         40

                         35

                         30

                         25

                         20

                         15

                         10

                         5

                         0
                         150k   3 0 0 4 0 05 0 0    8 0 01 M        2M       3M 4M 5M 6          8 10M            20M     30M
                                                               F re q u e n c y in H z


  Note 1) Two graphs measured for both Live(L1) and Neutral(N) of the LISN are combined into one graph.

   QP / CAV final measurement results table:
      Frequency                   QP                CAV            Limit             Margin                                Corr.
                                                                                                         Line
        (MHz)                   (dBμV)             (dBμV)         (dBμV)              (dB)                                 (dB)
         0.168                    ---                24.6           55.1                 30.5             L1                 9.9
         0.170                   43.1                 ---           65.0                 21.9             N                  9.9
         0.676                    ---                27.1           46.0                 18.9             L1                10.2
         0.677                   34.4                 ---           56.0                 21.6             L1                10.2
         3.008                   33.0                 ---           56.0                 23.0             L1                10.0
         3.089                    ---                21.4           46.0                 24.6             L1                10.0
         5.001                   33.9                 ---           60.0                 26.1             L1                10.0
         5.017                    ---                22.1           50.0                 27.9             L1                10.0
         6.383                   36.2                 ---           60.0                 23.8             L1                10.0
         6.412                    ---                24.8           50.0                 25.2             L1                10.0
         9.562                   34.7                 ---           60.0                 25.3             L1                10.1
         9.643                    ---                23.8           50.0                 26.2             L1                10.1

  Note 2) Level (QP and/or CAV) = Meter Reading (QP and/or CAV) + Corr. (LISN Insertion Loss + Cable Loss)
          Margin (QP and/or CAV) = Limit – Level (QP and/or CAV)
          QP = Quasi-Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                               -15/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                                   Project No. : LBE20181951
                                                      Mobile Phone : SM-G973U




  □ Operating Mode 4: AC Mains


                         70

                         65
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s Q P
                         60

                         55
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s A V
                         50

                         45
          Level in dBμ




                         40

                         35

                         30

                         25

                         20

                         15

                         10

                         5

                         0
                         150k   3 0 0 4 0 05 0 0    8 0 01 M        2M       3M 4M 5M 6          8 10M            20M     30M
                                                               F re q u e n c y in H z


  Note 1) Two graphs measured for both Live(L1) and Neutral(N) of the LISN are combined into one graph.

  QP / CAV final measurement results table:
      Frequency                   QP                CAV            Limit             Margin                                 Corr.
                                                                                                         Line
        (MHz)                   (dBμV)             (dBμV)         (dBμV)              (dB)                                  (dB)
        0.170                     ---                25.6           55.0                 29.4              N                 9.9
        0.178                    51.8                 ---           64.6                 12.8              N                10.0
        0.255                     ---                22.6           51.6                 29.0              N                 9.8
        0.268                    47.0                 ---           61.2                 14.2              N                 9.8
        0.423                     ---                20.2           47.4                 27.2              N                10.2
        0.446                    39.4                 ---           57.0                 17.6              N                10.2
        3.930                    36.1                 ---           56.0                 19.9              L1               10.0
        3.944                     ---                11.4           46.0                 34.6              L1               10.0
        6.333                    38.1                 ---           60.0                 21.9              L1               10.0
        6.412                     ---                24.4           50.0                 25.6              N                10.0
        12.389                   38.2                 ---           60.0                 21.8              L1               10.2
        12.847                    ---                20.4           50.0                 29.6              L1               10.3


  Note 2) Level (QP and/or CAV) = Meter Reading (QP and/or CAV) + Corr. (LISN Insertion Loss + Cable Loss)
  Margin (QP and/or CAV) = Limit – Level (QP and/or CAV)
          QP = Quasi-Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                               -16/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                                   Project No. : LBE20181951
                                                      Mobile Phone : SM-G973U




  □ Operating Mode 5: AC Mains


                         70

                         65
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s Q P
                         60

                         55
                                                                                  E N 5 5 0 3 2 _ C la s sB _ V o lta g e o n M a in s A V
                         50

                         45
          Level in dBμ




                         40

                         35

                         30

                         25

                         20

                         15

                         10

                         5

                         0
                         150k   3 0 0 4 0 05 0 0    8 0 01 M        2M       3M 4M 5M 6          8 10M            20M     30M
                                                               F re q u e n c y in H z


  Note 1) Two graphs measured for both Live(L1) and Neutral(N) of the LISN are combined into one graph.

  QP / CAV final measurement results table:
      Frequency                   QP                CAV            Limit             Margin                                 Corr.
                                                                                                         Line
        (MHz)                   (dBμV)             (dBμV)         (dBμV)              (dB)                                  (dB)
         0.150                   48.8                 ---           66.0                 17.2              N                 9.7
         0.164                   46.8                 ---           65.3                 18.5              L1                9.8
         0.186                    ---                34.8           54.2                 19.4              L1                9.9
         0.208                    ---                41.3           53.3                 12.0              L1                9.9
         0.238                   39.3                 ---           62.2                 22.9              L1                9.7
         0.277                    ---                25.1           50.9                 25.8              L1                9.7
         0.694                   29.2                 ---           56.0                 26.8              N                 9.9
         0.694                    ---                24.5           46.0                 21.5              N                 9.9
         1.318                    ---                23.3           46.0                 22.7              N                 9.7
         1.324                   25.3                 ---           56.0                 30.7              N                 9.7
         4.096                    ---                26.0           46.0                 20.0              N                 9.7
         4.106                   30.2                 ---           56.0                 25.8              L1                9.8


  Note 2) Level (QP and/or CAV) = Meter Reading (QP and/or CAV) + Corr. (LISN Insertion Loss + Cable Loss)
  Margin (QP and/or CAV) = Limit – Level (QP and/or CAV)
          QP = Quasi-Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                               -17/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                       Project No. : LBE20181951
                                           Mobile Phone : SM-G973U




  5.2 Radiated disturbance
  The following data lists the significant emission frequencies, measured levels, correction factors
  (for antenna and cables), orientation of table, polarization and height of antenna, the corrected
  reading, the limit, and the amount of margin.

  Peak measurements were made over the changeable frequency range 30 MHz to 1 GHz at a
  measurement distance of 10 m for the following antenna and turntable arrangements:

                                                         Resolution          Video
    Antenna Height                                                                        Turntable position
                           Antenna Polarisation          Bandwidth         Bandwidth
        [ cm ]                                                                               [ degrees ]
                                                           [ kHz ]           [ kHz ]

        100 ~ 400           Horizontal, Vertical            120                300           Continuous


  Measurements within 6 dB of the limit were then maximized by adjusting turntable position.
  Final measurements were made using quasi-peak detector.

  Peak/CISPR-Average measurements were made over the changeable frequency range 1 GHz to
  40 GHz or 5th harmonics of the highest frequency generated or used in the device or on which the
  device operate or tunes at a measurement distance of 3 m for the following antenna and turntable
  arrangements. The measurements above 1 GHz were performed with the bore-sighting antenna
  aimed at the EUT.

                                                         Resolution          Video
    Antenna Height
                           Antenna Polarisation          Bandwidth         Bandwidth      Turntable position
        [ cm ]
                                                          [ MHz ]           [ MHz ]

        100 ~ 400           Horizontal, Vertical               1                  3          Continuous


  Measurements within 6 dB of the limit were then maximized by adjusting turntable position.
  Final measurements were made using peak and CISPR-average detectors.

  Limits for radiated disturbance of Class B ITE at a measuring distance of 3 m and 10 m


       Frequency range Limits                                          Field Strength

                [ MHz ]                     3 m [ μV/m ]              3 m [ dB(μV/m) ]    10 m [ dB(μV/m) ]

                30 to 88                           100                     40.0                  29.5
               88 to 216                           150                     43.5                  33.0
              216 to 960                           200                     46.0                  35.5
              Above 960                            500                     54.0                  43.5

  Results checked manually; and points close to the limit line were re-measured.




                                                     -18/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




  5.2.1 Test instrumentation

                                                                                                Calibration
   EMC No.       Test Instrument     Model name       Manufacturer      Serial No.
                                                                                                            Interval
                                                                                              Date
                                                                                                            (Month)

                 Universal Radio
   E5I-002                           CMU200           R&S              100612            2018-08-31     12
                 Communicator

   E5I-016       EMI Test Receiver   ESU8             R&S              100482            2018-06-08     12

   E5I-021       EMI Test Receiver   ESU40            R&S              100376            2018-01-31     12

   E5I-149       Horn Antenna        HF907            R&S              102525            2018-06-15     24

                 Signal
   E5I-039                           SCU-18           R&S              10211             2018-01-22     12
                 Conditioning Unit
                 Wide Band Horn
   E5I-037                           WBH 18-40K       R&S              11201             2017-10-13     24
                 Antenna
                 Signal
   E5I-042                           SCU-40A          R&S              10004             2018-09-05     12
                 Conditioning Unit
   E5I-120       BiLog Antenna       CBL6112D         TESEQ            36997             2018-04-23     24
   E5I-072       BiLog Antenna       CBL6112D         TESEQ            36009             2018-04-23     24

   E5I-073       Preamplifier        310N             SONOMA           332016            2018-05-09     12

   E5I-074       Preamplifier        310N             SONOMA           332017            2018-05-09     12
   -             Test software       EP7RE            TOYO             Ver 5.8.2         -              -
   -             Test software       EMC32            R&S              Ver 9.25.00       -              -




  5.2.2 Temperature and humidity condition
    Test date               2018-11-28, 2018-12-04           Test engineer                   Eun-Kyung Oh

                            Ambient temperature              (23.5 ~ 23.8) ℃           Limit (15.0 to 35.0) ℃

    Climate condition       Relative humidity            (45.3 ~ 45.6) % R.H.        Limit (25.0 to 75.0) % R.H.

                            Atmospheric pressure         (101.8 ~ 102.1) kPa          Limit (86.0 to 106.0) kPa

    Test place                                      Semi-Anechoic Chamber (SAC4)




                                                   -19/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                       Project No. : LBE20181951
                                            Mobile Phone : SM-G973U




  5.2.3 Test results
  □ Operating Mode 1

  - Frequencies below 1 GHz


                                                          <<>>


       Model         : SM-G973U                             Limit      :
       Serial Number :                                      Remark1    : RCAM+Charging+FM(Low)
       Operator      : OEK                                  Remark2    :
       AC Power      :                                      Remark3    :
       Temp, Humid :                                        Remark4    :
     [dB(uV/m)]
          60                                                                          <FCC B 30-1000 MHz 10m>
                                                                                               QP
                                                                                      <SM-G973U_REB_RCAM+CHA+FM(Low)>
                                                                                               Range(H,PK)
              50                                                                               Range(V,PK)
                                                                                               Final Item(H,QP)
                                                                                               Final Item(V,QP)
              40
      Level




              30


              20


              10


               0
              30.000   50.000     100.000                         500.000     1000.000
                                            Frequency                          [MHz]


        Final Result

        No. Frequency (P) Reading     c.f      Result      Limit      Margin Height    Angle System
                             QP                  QP         QP          QP
              [MHz]       [dB(uV)] [dB(1/m)] [dB(uV/m)] [dB(uV/m)]     [dB]   [cm]     [deg]
          1    32.425 V      25.1     -8.1       17.0       29.5       12.5     100      258    2
          2    41.155 H      22.8    -12.0       10.8       29.5       18.7     200        2    1
          3    53.401 H      29.7    -18.3       11.4       29.5       18.1     400      331    1
          4    87.958 V      41.1    -16.2       24.9       29.5        4.6     100      282    2
          5   114.026 H      22.0    -12.9        9.1       33.0       23.9     100      172    1
          6   979.751 H      19.9      0.9       20.8       43.5       22.7     400      254    1

  * Radiated emissions (Rx frequency 87.958 MHz) from the transceiver shall be ignored

  Note1) Receiving antenna polarization : Horizontal, Vertical
         Test Distance : 10 m, Antenna Height : 1 to 4 meters
         Result (QP) = Reading (QP) + c.f (Antenna Factor + Cable Loss - Amp. Gain)
         Margin (QP) = Limit – Level (QP)
         QP = Quasi-Peak, c.f = Correction Factor




                                                        -20/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




  - Frequencies above 1 GHz


                           80
                                                                                      F CC CL A S S B P K

                           70



                           60
                                                                                      F CC CL A S S B A V

                           50
          Level in dBμV/




                           40



                           30



                           20


                           10



                           0
                            1G     2G          3G       4G       5G     6     8   10G              18G
                                                    F re q u e n c y in H z




  Note 1) We have also tested from 18 GHz to 30 GHz and found no emissions
  Note 2) Receiving antenna polarization : Horizontal, Vertical
         Test Distance : 3 m, Antenna Height : 1 to 4 meters
         Level (PK and/or CAV) = Reading (PK and/or CAV) + Corr. (Antenna Factor + Cable Loss - Amp. Gain)
         Margin (PK and/or CAV) = Limit – Level (PK and/or CAV)
         PK = Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                    -21/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                        Project No. : LBE20181951
                                             Mobile Phone : SM-G973U


  □ Operating Mode 2

  - Frequencies below 1 GHz


                                                           <<>>


        Model         : SM-G973U                             Limit      :
        Serial Number :                                      Remark1    : FCAM+FM(Mid)+OTG
        Operator      : OEK                                  Remark2    :
        AC Power      :                                      Remark3    :
        Temp, Humid :                                        Remark4    :
      [dB(uV/m)]
           60                                                                          <FCC B 30-1000 MHz 10m>
                                                                                                QP
                                                                                       <SM-G973U_REB_FCAM+FM(Mid)+OTG>
                                                                                                Range(H,PK)
              50                                                                                Range(V,PK)
                                                                                                Final Item(H,QP)
                                                                                                Final Item(V,QP)
              40
      Level




              30


              20


              10


               0
              30.000   50.000      100.000                         500.000     1000.000
                                             Frequency                          [MHz]


        Final Result

        No. Frequency (P) Reading     c.f      Result      Limit       Margin Height    Angle System
                             QP                  QP         QP           QP
              [MHz]       [dB(uV)] [dB(1/m)] [dB(uV/m)] [dB(uV/m)]      [dB]   [cm]     [deg]
          1    32.668 H      22.9     -8.3       14.6       29.5        14.9     100      359    1
          2    37.760 H      22.5    -10.3       12.2       29.5        17.3     100      211    1
          3    45.278 H      22.4    -14.5        7.9       29.5        21.6     100      248    1
          4    97.900 V      34.8    -14.2       20.6       33.0        12.4     200      181    2
          5   570.169 H      21.5     -4.1       17.4       35.5        18.1     100       17    1
          6   987.632 H      19.9      1.2       21.1       43.5        22.4     400      124    1

  * Radiated emissions (Rx frequency 97.900 MHz) from the transceiver shall be ignored

  Note1) Receiving antenna polarization : Horizontal, Vertical
       Test Distance : 10 m, Antenna Height : 1 to 4 meters
       Result (QP) = Reading (QP) + c.f (Antenna Factor + Cable Loss - Amp. Gain)
       Margin (QP) = Limit – Level (QP)
       QP = Quasi-Peak, c.f = Correction Factor
  .




                                                         -22/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                              Project No. : LBE20181951
                                                 Mobile Phone : SM-G973U




  - Frequencies above 1 GHz


                           80
                                                                                                    F CC CL A S S B P K

                           70



                           60
                                                                                                    F CC CL A S S B A V

                           50
          Level in dBμV/




                           40



                           30



                           20


                           10



                           0
                            1G              2G         3G       4G       5G     6        8     10G              18G
                                                            F re q u e n c y in H z




     Frequency                      PK        CAV        Limit          Margin        Height            Azimuth     Corr.
                                                                                               Pol
       (MHz)                     (dBμV/m)   (dBμV/m)   (dBμV/m)          (dB)          (cm)              (deg)      (dB)
     3 131.000                      ---       27.0       54.0            27.0         100.0     H         41.0       0.9
     3 131.500                     41.8        ---       74.0            32.2         100.0     H         48.0       0.9

  Note 1) We have also tested from 18 GHz to 30 GHz and found no emissions
  Note 2) Receiving antenna polarization : Horizontal, Vertical
        Test Distance : 3 m, Antenna Height : 1 to 4 meters
        Level (PK and/or CAV) = Reading (PK and/or CAV) + Corr. (Antenna Factor + Cable Loss - Amp. Gain)
        Margin (PK and/or CAV) = Limit – Level (PK and/or CAV)
        PK = Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                            -23/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                       Project No. : LBE20181951
                                            Mobile Phone : SM-G973U


  □ Operating Mode 3

  - Frequencies below 1 GHz


                                                          <<>>


       Model         : SM-G973U                             Limit      :
       Serial Number :                                      Remark1    : FM(High)
       Operator      : OEK                                  Remark2    :
       AC Power      :                                      Remark3    :
       Temp, Humid :                                        Remark4    :
     [dB(uV/m)]
          60                                                                          <FCC B 30-1000 MHz 10m>
                                                                                               QP
                                                                                      <SM-G973U_REB_FM(High)>
                                                                                               Range(H,PK)
              50                                                                               Range(V,PK)
                                                                                               Final Item(H,QP)
                                                                                               Final Item(V,QP)
              40
      Level




              30


              20


              10


               0
              30.000   50.000     100.000                         500.000     1000.000
                                            Frequency                          [MHz]


        Final Result
        No. Frequency (P) Reading     c.f      Result      Limit      Margin Height    Angle System
                             QP                  QP         QP          QP
              [MHz]       [dB(uV)] [dB(1/m)] [dB(uV/m)] [dB(uV/m)]     [dB]   [cm]     [deg]
          1    31.819 H      23.0     -8.0       15.0       29.5       14.5     400        4     1
          2    42.368 V      22.1    -12.4        9.7       29.5       19.8     100       14     2
          3   107.964 V      37.2    -12.9       24.3       33.0        8.7     100        5     2
          4   327.305 H      21.6     -9.6       12.0       35.5       23.5     300       15     1
          5   548.950 H      21.6     -4.0       17.6       35.5       17.9     300      296     1
          6   998.060 H      19.7      1.4       21.1       43.5       22.4     300      355     1

  * Radiated emissions (Rx frequency 107.964 MHz) from the transceiver shall be ignored

  Note1) Receiving antenna polarization : Horizontal, Vertical
       Test Distance : 10 m, Antenna Height : 1 to 4 meters
       Result (QP) = Reading (QP) + c.f (Antenna Factor + Cable Loss - Amp. Gain)
       Margin (QP) = Limit – Level (QP)
       QP = Quasi-Peak, c.f = Correction Factor




                                                        -24/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                      Project No. : LBE20181951
                                          Mobile Phone : SM-G973U




  - Frequencies above 1 GHz


                           80
                                                                                      F CC CL A S S B P K

                           70



                           60
                                                                                      F CC CL A S S B A V

                           50
          Level in dBμV/




                           40



                           30



                           20


                           10



                           0
                            1G     2G          3G       4G       5G     6     8   10G              18G
                                                    F re q u e n c y in H z




  Note 1) We have also tested from 18 GHz to 30 GHz and found no emissions
  Note 2) Receiving antenna polarization : Horizontal, Vertical
        Test Distance : 3 m, Antenna Height : 1 to 4 meters
        Level (PK and/or CAV) = Reading (PK and/or CAV) + Corr. (Antenna Factor + Cable Loss - Amp. Gain)
        Margin (PK and/or CAV) = Limit – Level (PK and/or CAV)
        PK = Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                    -25/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                         Project No. : LBE20181951
                                            Mobile Phone : SM-G973U


□ Operating Mode 4

- Frequencies below 1 GHz


                                                     <<>>


    Model         : SM-G973U                           Limit        :
    Serial Number :                                    Remark1      : VIDEO+AUDIO+DP
    Operator      : OEK                                Remark2      :
    AC Power      :                                    Remark3      :
    Temp, Humid :                                      Remark4      :
  [dB(uV/m)]
       60                                                                          <FCC B 30-1000 MHz 10m>
                                                                                            QP
                                                                                   <SM-G973U_REB_VIDEO+AUDIO+DP>
                                                                                            Range(H,PK)
           50                                                                               Range(V,PK)
                                                                                            Final Item(H,QP)
                                                                                            Final Item(V,QP)
           40
   Level




           30


           20


           10


            0
           30.000   50.000     100.000                         500.000     1000.000
                                         Frequency                          [MHz]


     Final Result
     No. Frequency (P) Reading     c.f      Result      Limit      Margin Height    Angle System
                          QP                  QP         QP          QP
           [MHz]       [dB(uV)] [dB(1/m)] [dB(uV/m)] [dB(uV/m)]     [dB]   [cm]     [deg]
       1    35.699 V      26.0     -9.2       16.8       29.5       12.7     100      103    2
       2    92.201 V      30.6    -15.3       15.3       33.0       17.7     100       60    2
       3   392.659 V      37.8     -7.1       30.7       35.5        4.8     100      304    2
       4   517.183 H      30.8     -5.1       25.7       35.5        9.8     100      161    1
       5   597.571 H      27.7     -4.2       23.5       35.5       12.0     200       20    1
       6   804.909 H      30.5     -1.8       28.7       35.5        6.8     100       50    1


Note1) Receiving antenna polarization : Horizontal, Vertical
     Test Distance : 10 m, Antenna Height : 1 to 4 meters
     Result (QP) = Reading (QP) + c.f (Antenna Factor + Cable Loss - Amp. Gain)
     Margin (QP) = Limit – Level (QP)
     QP = Quasi-Peak, c.f = Correction Factor




                                                     -26/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                              Project No. : LBE20181951
                                                 Mobile Phone : SM-G973U




  - Frequencies above 1 GHz


                           80
                                                                                                    F CC CL A S S B P K

                           70



                           60
                                                                                                    F CC CL A S S B A V

                           50
          Level in dBμV/




                           40



                           30



                           20


                           10



                           0
                            1G              2G         3G       4G       5G     6        8     10G              18G
                                                            F re q u e n c y in H z




     Frequency                      PK        CAV        Limit          Margin        Height            Azimuth     Corr.
                                                                                               Pol
       (MHz)                     (dBμV/m)   (dBμV/m)   (dBμV/m)          (dB)          (cm)              (deg)      (dB)
     1 231.000                      ---       28.4       54.0            25.6         100.0     H        115.0       7.1
     1 242.700                     39.0        ---       74.0            35.0         100.0     V        164.0       7.2
     2 353.600                      ---       32.6       54.0            21.4         100.0     H        124.0      13.5
     2 363.500                     45.1        ---       74.0            28.9         100.0     H        123.0      13.6
     3 564.000                      ---       33.2       54.0            20.8         100.0     H        154.0       1.9
     3 572.000                     44.5        ---       74.0            29.5         100.0     H        140.0       1.8
     5 400.000                     50.8        ---       74.0            23.2         100.0     H        125.0       6.5
     5 400.000                      ---       48.2       54.0             5.8         100.0     H        126.0       6.5

  Note 1) We have also tested from 18 GHz to 30 GHz and found no emissions
  Note 2) Receiving antenna polarization : Horizontal, Vertical
        Test Distance : 3 m, Antenna Height : 1 to 4 meters
        Level (PK and/or CAV) = Reading (PK and/or CAV) + Corr. (Antenna Factor + Cable Loss - Amp. Gain)
        Margin (PK and/or CAV) = Limit – Level (PK and/or CAV)
        PK = Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                            -27/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                         Project No. : LBE20181951
                                            Mobile Phone : SM-G973U




□ Operating Mode 5

- Frequencies below 1 GHz


                                                     <<>>


    Model         : SM-G973U                           Limit        :
    Serial Number :                                    Remark1      : USB
    Operator      : OEK                                Remark2      :
    AC Power      :                                    Remark3      :
    Temp, Humid :                                      Remark4      :
  [dB(uV/m)]
        60                                                                          <FCC B 30-1000 MHz 10m>
                                                                                             QP
                                                                                    <SM-G973U_REB_USB>
                                                                                             Range(H,PK)
           50                                                                                Range(V,PK)
                                                                                             Final Item(H,QP)
                                                                                             Final Item(V,QP)
           40
   Level




           30


           20


           10


            0
           30.000   50.000     100.000                         500.000      1000.000
                                         Frequency                           [MHz]


     Final Result
     No. Frequency (P) Reading     c.f      Result      Limit       Margin Height      Angle System
                          QP                  QP         QP           QP
           [MHz]       [dB(uV)] [dB(1/m)] [dB(uV/m)] [dB(uV/m)]      [dB]   [cm]       [deg]
       1    61.283 V      36.6    -19.0       17.6       29.5        11.9     100         77    2
       2    75.590 V      40.7    -18.2       22.5       29.5         7.0     200          0    2
       3   227.274 V      38.0    -12.7       25.3       35.5        10.2     100          5    2
       4   269.711 V      32.1    -10.8       21.3       35.5        14.2     100        146    2
       5   362.225 H      32.7     -7.4       25.3       35.5        10.2     200        192    1
       6   479.959 H      30.6     -4.8       25.8       35.5         9.7     200        207    1
       7   608.241 H      22.6     -2.7       19.9       35.5        15.6     100        146    1
       8   955.380 V      19.2      0.6       19.8       35.5        15.7     100        309    2


Note1) Receiving antenna polarization : Horizontal, Vertical
     Test Distance : 10 m, Antenna Height : 1 to 4 meters
     Result (QP) = Reading (QP) + c.f (Antenna Factor + Cable Loss - Amp. Gain)
     Margin (QP) = Limit – Level (QP)
     QP = Quasi-Peak, c.f = Correction Factor




                                                     -28/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7


                                              Project No. : LBE20181951
                                                 Mobile Phone : SM-G973U




  - Frequencies above 1 GHz


                           80
                                                                                                    F CC CL A S S B P K

                           70



                           60
                                                                                                    F CC CL A S S B A V

                           50
          Level in dBμV/




                           40



                           30



                           20


                           10



                           0
                            1G              2G         3G       4G       5G     6        8     10G              18G
                                                            F re q u e n c y in H z




     Frequency                      PK        CAV        Limit          Margin        Height            Azimuth     Corr.
                                                                                               Pol
       (MHz)                     (dBμV/m)   (dBμV/m)   (dBμV/m)          (dB)          (cm)              (deg)      (dB)
     1 064.700                      ---       28.6       54.0            25.4         100.0     H        287.0       6.5
     1 065.200                     49.6        ---       74.0            24.4         100.0     V        185.0       6.5
     1 095.400                      ---       22.8       54.0            31.2         100.0     H        244.0       6.5
     1 103.300                     35.7        ---       74.0            38.3         100.0     H        297.0       6.5
     1 237.400                     45.5        ---       74.0            28.5         100.0     V        165.0       7.2
     1 239.600                      ---       22.9       54.0            31.1         100.0     H        174.0       7.2
     1 487.700                     38.2        ---       74.0            35.8         100.0     V        176.0       9.4
     1 500.000                      ---       28.5       54.0            25.5         100.0     H        328.0       9.5
     2 125.100                      ---       32.3       54.0            21.7         100.0     H        210.0      12.9
     2 125.200                     50.1        ---       74.0            23.9         100.0     H        220.0      12.9
     3 191.500                      ---       31.9       54.0            22.1         100.0     H        241.0       0.8
     3 200.000                     50.2        ---       74.0            23.8         100.0     H        241.0       0.8

  Note 1) We have also tested from 18 GHz to 30 GHz and found no emissions
  Note 2) Receiving antenna polarization : Horizontal, Vertical
        Test Distance : 3 m, Antenna Height : 1 to 4 meters
        Level (PK and/or CAV) = Reading (PK and/or CAV) + Corr. (Antenna Factor + Cable Loss - Amp. Gain)
        Margin (PK and/or CAV) = Limit – Level (PK and/or CAV)
        PK = Peak, CAV = CISPR-Average, Corr. = Correction Factor




                                                            -29/29-
This report must not be reproduced, except in full, without written permission from Global CS Center.
Form No.: SRA-TRF-46/7



Document Created: 2019-03-27 01:56:54
Document Modified: 2019-03-27 01:56:54
Download: SMG973U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report / Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMG973U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report / Samsung Electronics Co Ltd
Document ID4148167
Application IDuiKGD/BK8eSbW2XKjAwtbg==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize176.09kB (2201106 bits)
Date Submitted2019-01-28 00:00:00
Date Available2019-02-01 00:00:00
Creation Date2018-12-18 13:49:44
Producing SoftwareMicrosoft Word 2010
Document Lastmod2019-01-28 11:56:56
Document TitleTest Report /
Document CreatorMicrosoft Word 2010
Document Author: heesung
