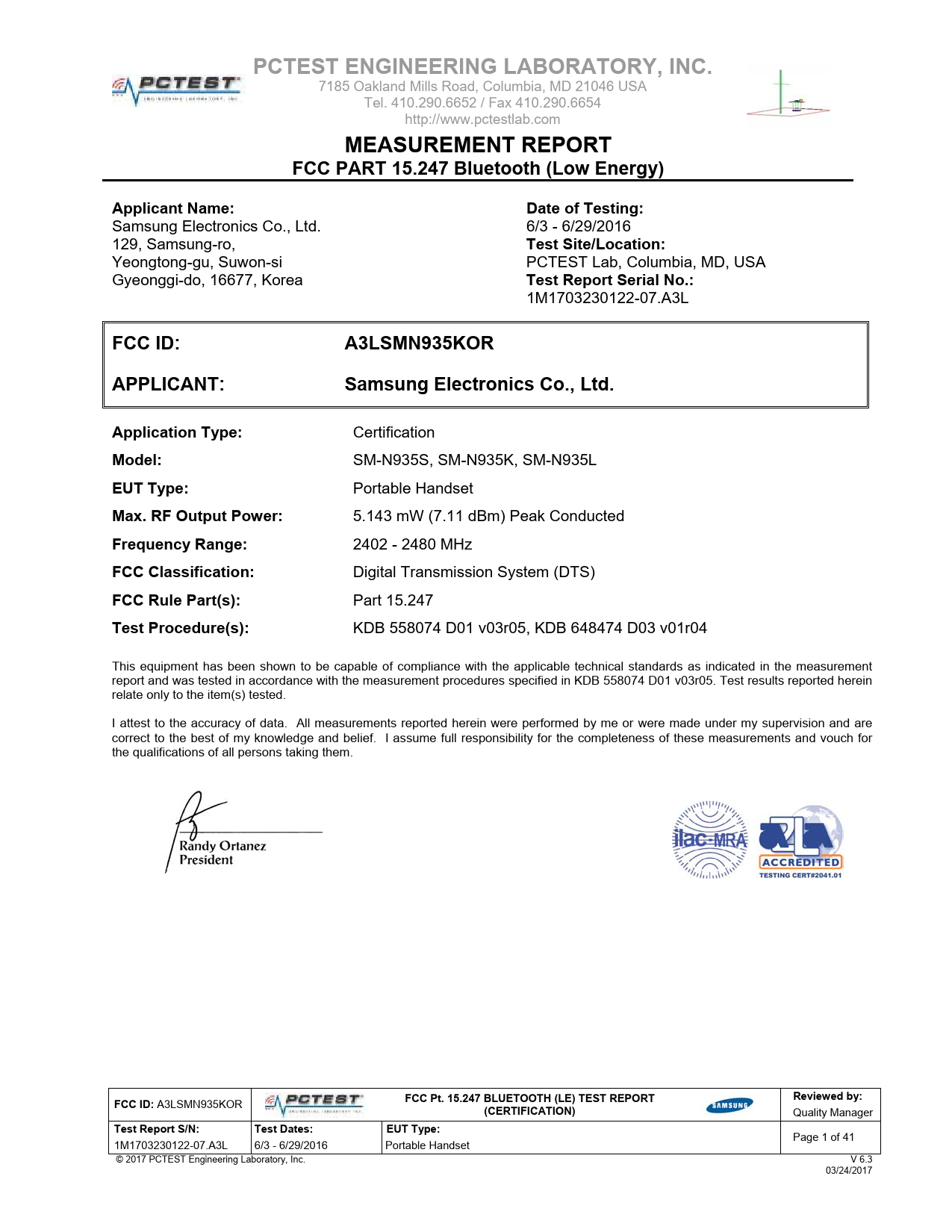

MEASUREMENT REPORT
FCC PART 15.247 Bluetooth (Low Energy)
Applicant Name:
Samsung Electronics Co., Ltd.
129, Samsung-ro,
Yeongtong-gu, Suwon-si
Gyeonggi-do, 16677, Korea
Date of Testing:
6/3 - 6/29/2016
Test Site/Location:
PCTEST Lab, Columbia, MD, USA
Test Report Serial No.:
1M1703230122-07.A3L
FCC ID:
A3LSMN935KOR
APPLICANT:
Samsung Electronics Co., Ltd.
Application Type:
Certification
Model:
SM-N935S, SM-N935K, SM-N935L
EUT Type:
Portable Handset
Max. RF Output Power:
5.143 mW (7.11 dBm) Peak Conducted
Frequency Range:
2402 - 2480 MHz
FCC Classification:
Digital Transmission System (DTS)
FCC Rule Part(s):
Part 15.247
Test Procedure(s):
KDB 558074 D01 v03r05, KDB 648474 D03 v01r04
This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement
report and was tested in accordance with the measurement procedures specified in KDB 558074 D01 v03r05. Test results reported herein
relate only to the item(s) tested.
I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are
correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for
the qualifications of all persons taking them.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 1 of 41
V 6.3
03/24/2017
T A B L E
O F
C O N T E N T S
FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3
1.0
2.0
3.0
INTRODUCTION......................................................................................................................................4
1.1
Scope ............................................................................................................................................................. 4
1.2
PCTEST Test Location ................................................................................................................................... 4
PRODUCT INFORMATION .....................................................................................................................5
2.1
Equipment Description ................................................................................................................................... 5
2.2
Device Capabilities ......................................................................................................................................... 5
2.3
Test Configuration .......................................................................................................................................... 5
2.4
EMI Suppression Device(s)/Modifications ...................................................................................................... 5
DESCRIPTION OF TESTS ......................................................................................................................6
3.1
Evaluation Procedure ..................................................................................................................................... 6
3.2
AC Line Conducted Emissions ....................................................................................................................... 6
3.3
Radiated Emissions ........................................................................................................................................ 7
3.4
Environmental Conditions .............................................................................................................................. 7
4.0
ANTENNA REQUIREMENTS ..................................................................................................................8
5.0
MEASUREMENT UNCERTAINTY ..........................................................................................................9
6.0
TEST EQUIPMENT CALIBRATION DATA ............................................................................................10
7.0
TEST RESULTS ....................................................................................................................................10
8.0
7.1
Summary ...................................................................................................................................................... 11
7.2
6dB Bandwidth Measurement – Bluetooth (LE) ........................................................................................... 12
7.3
Output Power Measurement – Bluetooth (LE) .............................................................................................. 15
7.4
Power Spectral Density – Bluetooth (LE) ..................................................................................................... 18
7.5
Conducted Emissions at the Band Edge ...................................................................................................... 21
7.6
Conducted Spurious Emissions.................................................................................................................... 23
7.7
Radiated Spurious Emission Measurements ................................................................................................ 28
7.8
Radiated Restricted Band Edge Measurements........................................................................................... 33
7.9
Line-Conducted Test Data ........................................................................................................................... 37
CONCLUSION .......................................................................................................................................41
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 2 of 41
V 6.3
03/24/2017
MEASUREMENT REPORT
FCC Part 15.247
§ 2.1033 General Information
APPLICANT:
Samsung Electronics Co., Ltd.
APPLICANT ADDRESS:
129, Samsung-ro,
Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea
TEST SITE:
PCTEST ENGINEERING LABORATORY, INC.
TEST SITE ADDRESS:
7185 Oakland Mills Road, Columbia, MD 21046 USA
FCC RULE PART(S):
Part 15.247
BASE MODEL:
SM-N935S
FCC ID:
A3LSMN935KOR
FCC CLASSIFICATION:
Digital Transmission System (DTS)
Test Device Serial No.:
066AA, 05A93, 0548E
DATE(S) OF TEST:
6/2 - 6/28/2016
TEST REPORT S/N:
1M1703230122-07.A3L
Production
Pre-Production
Engineering
Test Facility / Accreditations
Measurements were performed at PCTEST Engineering Lab located in Columbia, MD 21046, U.S.A.




PCTEST facility is an FCC registered (PCTEST Reg. No. 159966) test facility with the
site description report on file and has met all the requirements specified in Section 2.948
of the FCC Rules and Industry Canada (2451B-1).
PCTEST Lab is accredited to ISO 17025 by U.S. National Institute of Standards and
Technology (NIST) under the National Voluntary Laboratory Accreditation Program
(NVLAP Lab code: 100431-0) in EMC, FCC and Telecommunications.
PCTEST Lab is accredited to ISO 17025-2005 by the American Association for
Laboratory Accreditation (A2LA) in Specific Absorption Rate (SAR) testing, Hearing Aid
Compatibility (HAC) testing, CTIA Test Plans, and wireless testing for FCC and Industry
Canada Rules.
PCTEST Lab is a recognized U.S. Conformity Assessment Body (CAB) in EMC and
R&TTE (n.b. 0982) under the U.S.-EU Mutual Recognition Agreement (MRA).

PCTEST TCB is a Telecommunication Certification Body (TCB) accredited to ISO/IEC
Guide 65 by the American National Standards Institute (ANSI) in all scopes of FCC Rules
and Industry Canada Standards (RSS).

PCTEST facility is an IC registered (2451B-1) test laboratory with the site description on
file at Industry Canada.

PCTEST is a CTIA Authorized Test Laboratory (CATL) for AMPS, CDMA, and EvDO
wireless devices and for Over-the-Air (OTA) Antenna Performance testing for AMPS,
CDMA, GSM, GPRS, EGPRS, UMTS (W-CDMA), CDMA 1xEVDO, and CDMA 1xRTT.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 3 of 41
V 6.3
03/24/2017
1.0
1.1
INTRODUCTION
Scope
Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including
intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal
Communications Commission and the Industry Canada Certification and Engineering Bureau.
1.2
PCTEST Test Location
The map below shows the location of the PCTEST LABORATORY, its proximity to the FCC Laboratory, the
Columbia vicinity are, the Baltimore-Washington Internt’l (BWI) airport, the city of Baltimore and the
Washington, DC area. (See Figure 1-1).
These measurement tests were conducted at the PCTEST Engineering Laboratory, Inc. facility located at
7185 Oakland Mills Road, Columbia, MD 21046. The site coordinates are 39o 10’23” N latitude and 76o 49’50”
W longitude. The facility is 0.4 miles North of the FCC laboratory, and the ambient signal and ambient signal
strength are approximately equal to those of the FCC laboratory. The detailed description of the measurement
facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4-2014 on
January 22, 2015.
Figure 1-1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 4 of 41
V 6.3
03/24/2017
2.0
2.1
PRODUCT INFORMATION
Equipment Description
The Equipment Under Test (EUT) is the Samsung Portable Handset FCC ID: A3LSMN935KOR. The data
found in this test report was taken with the EUT operating in Bluetooth low energy mode. While in low energy
mode, the Bluetooth transmitter hops pseudo-randomly between 40 channels, three of which are “advertising
channels”. When the transmitter is hopping only between the three advertising channels, the EUT does not fall
under the category of a “hopper” as defined in 15.247(a)(iii) which states that a “frequency hopping systems in
the 2400–2483.5 MHz band shall use at least 15 channels.” As operation on only the advertising channels
does not qualify the EUT as a hopper, the EUT is certified as a DTS device in this mode. The data found in
this report is representative of the device when it transmits on its advertising channels. Typical Bluetooth
operation is covered under the DSS report found with this application.
2.2
Device Capabilities
This device contains the following capabilities:
1900 GPRS/EDGE, 850/1900 WCDMA/HSPA, Multi-band LTE, 802.11b/g/n WLAN, 802.11a/n/ac UNII,
Bluetooth (1x, EDR, LE), NFC, ANT+
2.3
Test Configuration
The Samsung Portable Handset FCC ID: A3LSMN935KOR was tested per the guidance of KDB 558074 D01
v03r05. ANSI C63.10-2013 was used to reference the appropriate EUT setup for radiated spurious emissions
testing and AC line conducted testing. See Sections 3.2 for AC line conducted emissions test setups, 3.3 for
radiated emissions test setups, and 7.2, 7.3, 7.4, 7.5, and 7.6 for antenna port conducted emissions test
setups.
This device supports wireless charging capability and, thus, is subject to the test requirements of KDB 648474
D03 v01r04. Additional radiated spurious emission measurements were performed with the EUT lying flat on a
certified wireless charging pad (WCP) while operating under normal conditions in a simulated call or data
transmission configuration. The worst case radiated emissions data is shown in this report.
2.4
EMI Suppression Device(s)/Modifications
No EMI suppression device(s) were added and/or no modifications were made during testing.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 5 of 41
V 6.3
03/24/2017
3.0
3.1
DESCRIPTION OF TESTS
Evaluation Procedure
The measurement procedures described in the American National Standard of Procedures for Compliance
Testing of Unlicensed Wireless Devices (ANSI C63.10-2013) and the guidance provided in KDB 558074 D01
v03r05 were used in the measurement of the Samsung Portable Handset FCC ID: A3LSMN935KOR.
Deviation from measurement procedure…………………………………………….....................................None
3.2
AC Line Conducted Emissions
The line-conducted facility is located inside a 10'x16'x9' shielded enclosure. The shielded enclosure is
manufactured by ETS Lindgren RF Enclosures. The shielding effectiveness of the shielded room is in
accordance with MIL-Std-285 or NSA 65-5. A 1m x 1.5m wooden table 80cm high is placed 40cm away from
the vertical wall and 80cm away from the sidewall of the shielded room. Two 10kHz-30MHz, 50/50H LineImpedance Stabilization Networks (LISNs) are bonded to the shielded room floor. Power to the LISNs is
filtered by external high-current high-insertion loss power line filters. The external power line filter is an ETS
Lindgren Model LPRX-4X30 (100dB Attenuation, 14kHz-18GHz) and the two EMI/RFI filters are ETS Lindgren
Model LRW-2030-S1 (100dB Minimum Insertion Loss, 14kHz – 10GHz). These filters attenuate ambient signal
noise from entering the measurement lines. These filters are also bonded to the shielded enclosure.
The EUT is powered from one LISN and the support equipment is powered from the second LISN. If the EUT
is a DC-powered device, power will be derived from the source power supply it normally will be powered from
and this supply line(s) will be connected to the second LISN. All interconnecting cables more than 1 meter
were shortened to a 1 meter length by non-inductive bundling (serpentine fashion) and draped over the back
edge of the test table. All cables were at least 40cm above the horizontal reference groundplane. Power
cables for support equipment were routed down to the second LISN while ensuring that that cables were not
draped over the second LISN.
Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up
to their normal operating condition. The RF output of the LISN was connected to the spectrum analyzer and
exploratory measurements were made to determine the frequencies producing the maximum emission from
the EUT. The spectrum was scanned from 150kHz to 30MHz with a spectrum analyzer. The detector function
was set to peak mode for exploratory measurements while the bandwidth of the analyzer was set to 10kHz.
The EUT, support equipment, and interconnecting cables were arranged and manipulated to maximize each
emission. Once the worst case emissions have been identified, the one EUT cable configuration/arrangement
and mode of operation that produced these emissions is used for final measurements on the same test site.
The analyzer is set to CISPR quasi-peak and average detectors with a 9kHz resolution bandwidth for final
measurements.
Line conducted emissions test results are shown in Section 7.9. The EMI Receiver mode of the Agilent MXE
was used to perform AC line conducted emissions testing.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 6 of 41
V 6.3
03/24/2017
3.3
Radiated Emissions
The radiated test facilities consisted of an indoor 3 meter semi-anechoic chamber used for final measurements
and exploratory measurements, when necessary. The measurement area is contained within the semianechoic chamber which is shielded from any ambient interference. The test site inside the chamber is a 6m x
5.2m elliptical, obstruction-free area in accordance with Figure 5.7 of Clause 5 in ANSI C63.4-2014. A raised
turntable is used for radiated measurement. It is a continuously rotatable, remote-controlled, metallic turntable
and 2 meters (6.56 ft.) in diameter. The turn table is flush with the raised floor of the chamber in order to
maintain its function as a ground plane. Absorbers are arranged on the floor between the turn table and the
antenna mast in such a way so as to maximize the reduction of reflections for measurements above 1GHz. A
72.4cm high PVC support structure is placed on top of the turntable. A 3” (~7.6cm) sheet of high density
polystyrene is used as the table top and is placed on top of the PVC supports to bring the total height of the
table to 80cm. For measurements above 1GHz, a high density expanded polystyrene block is placed on top of
the test table to bring the total table height to 1.5m.
For all measurements, the spectrum was scanned through all EUT azimuths and from 1 to 4 meter receive
antenna height using a broadband antenna from 30MHz up to the upper frequency shown in 15.33(b)(1)
depending on the highest frequency generated or used in the device or on which the device operates or tunes.
For frequencies above 1GHz, linearly polarized double ridge horn antennas were used. For frequencies below
30MHz, a calibrated loop antenna was used. When exploratory measurements were necessary, they were
performed at 1 meter test distance inside the semi-anechoic chamber using broadband antennas, broadband
amplifiers, and spectrum analyzers to determine the frequencies and modes producing the maximum
emissions. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them
to warm up to their normal operating condition. The test set-up was placed on top of the 1 x 1.5 meter table.
The EUT, support equipment, and interconnecting cables were arranged and manipulated to maximize each
emission. Appropriate precaution was taken to ensure that all emissions from the EUT were maximized and
investigated. The system configuration, mode of operation, turntable azimuth, and receive antenna height was
noted for each frequency found.
Final measurements were made in the semi-anechoic chamber using calibrated, linearly polarized broadband
and horn antennas. The test setup was configured to the setup that produced the worst case emissions. The
spectrum analyzer was set to investigate all frequencies required for testing to compare the highest radiated
disturbances with respect to the specified limits. The turntable containing the EUT was rotated through 360
degrees and the height of the receive antenna was varied 1 to 4 meters and stopped at the azimuth and height
producing the maximum emission. Each emission was maximized by changing the orientation of the EUT
through three orthogonal planes and changing the polarity of the receive antenna, whichever produced the
worst-case emissions.
3.4
Environmental Conditions
The temperature is controlled within range of 15oC to 35oC. The relative humidity is controlled within range of
10% to 75%. The atmospheric pressure is monitored within the range 86-106kPa (860-1060mbar).
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 7 of 41
V 6.3
03/24/2017
4.0
ANTENNA REQUIREMENTS
Excerpt from §15.203 of the FCC Rules/Regulations:
“An intentional radiator antenna shall be designed to ensure that no antenna other than that furnished by the
responsible party can be used with the device. The use of a permanently attached antenna or of an antenna
that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the
provisions of this section.”

The antenna(s) of the Portable Handset are permanently attached.

There are no provisions for connection to an external antenna.
Conclusion:
The Samsung Portable Handset FCC ID: A3LSMN935KOR unit complies with the requirement of §15.203.
Ch.
Frequency (MHz)
19
2440
39
2480
2402
Table 4-1. Frequency / Channel Operations
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 8 of 41
V 6.3
03/24/2017
5.0
MEASUREMENT UNCERTAINTY
The measurement uncertainties shown below were calculated in accordance with the requirements of
ANSI C63.4-2014. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a
95% level of confidence. The measurement data shown herein meets or exceeds the UCISPR measurement
uncertainty values specified in CISPR 16-4-2 and, thus, can be compared directly to specified limits to
determine compliance.
Contribution
Expanded Uncertainty (±dB)
Conducted Bench Top
Measurements
1.13
Line Conducted Disturbance
3.09
Radiated Disturbance (<1GHz)
4.98
Radiated Disturbance (>1GHz)
5.07
Radiated Disturbance (>18GHz)
5.09
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 9 of 41
V 6.3
03/24/2017
6.0
TEST EQUIPMENT CALIBRATION DATA
Test Equipment Calibration is traceable to the National Institute of Standards and Technology (NIST).
Manufacturer
Model
Description
Cal Date
‐
RE1
Radiated Emissions Cable Set (UHF/EHF) 4/28/2015
‐
WL25‐1
Conducted Cable Set (25GHz)
4/8/2015
Agilent
8447D
Broadband Amplifier
6/12/2015
Agilent
E4448A
PSA (3Hz‐50GHz) Spectrum Analyzer
3/1/2016
Agilent
N9020A
MXA Signal Analyzer
11/5/2015
Agilent
N9038A
MXE EMI Receiver
4/21/2016
Agilent
N9030A
PXA Signal Analyzer (44GHz)
3/1/2016
Anritsu
ML2495A
Power Meter
10/16/2015
Anritsu
MA2411B
Pulse Power Sensor
10/14/2015
Com‐Power
AL‐130
9kHz ‐ 30MHz Loop Antenna
7/30/2015
Emco
3115
Horn Antenna (1‐18GHz)
3/10/2016
Espec
ESX‐2CA
Environmental Chamber
3/4/2016
ETS Lindgren
3117
1‐18 GHz DRG Horn (Medium)
4/26/2016
ETS Lindgren
3160‐09
18‐26.5 GHz Standard Gain Horn
6/17/2014
ETS Lindgren
3160‐10
26.5‐40 GHz Standard Gain Horn
6/17/2014
ETS‐Lindgren
3816/2NM
Line Impedance Stabilization Network 11/11/2014
Huber+Suhner
Sucoflex 102A
40GHz Radiated Cable
4/20/2015
K&L
11SH10‐3075/U18000
High Pass Filter
7/18/2015
Pasternack
NMLC‐1
Line Conducted Emissions Cable (NM)
4/28/2015
Rhode & Schwarz
TS‐PR18
Pre‐Amplifier
3/7/2016
Rohde & Schwarz
TS‐PR18
1‐18 GHz Pre‐Amplifier
3/7/2016
Rohde & Schwarz
TS‐PR26
18‐26.5 GHz Pre‐Amplifier
3/7/2016
Rohde & Schwarz
ESU26
EMI Test Receiver (26.5GHz)
3/12/2015
Rohde & Schwarz
TS‐PR40
26.5‐40 GHz Pre‐Amplifier
3/7/2016
Rohde & Schwarz
ESU40
EMI Test Receiver (40GHz)
7/17/2015
Rohde & Schwarz
FSW67
Signal / Spectrum Analyzer
6/2/2015
Sunol
JB5
Bi‐Log Antenna (30M ‐ 5GHz)
3/14/2016
Cal Interval
Annual
Annual
Annual
Annual
Annual
Annual
Annual
Biennial
Biennial
Biennial
Biennial
Annual
Biennial
Biennial
Biennial
Biennial
Annual
Annual
Annual
Annual
Annual
Annual
Annual
Annual
Annual
Annual
Biennial
Cal Due
Serial Number
7/28/2016
RE1
7/8/2016
WL25‐1
6/12/2016
1937A03348
3/1/2017
US42510244
11/5/2016
US46470561
4/21/2017
MY51210133
3/1/2017
MY52350166
10/16/2017
941001
10/14/2017
846215
7/30/2017
121034
3/10/2018
9704‐5182
3/4/2017
17620
4/26/2018
125518
6/17/2016
135427
6/17/2016
130993
11/11/2016
114451
7/20/2016
251425001
7/18/2016 11SH10‐3075/U18000‐2
7/28/2016
NMLC‐1
3/7/2017
101622
3/7/2017
100071
3/7/2017
100040
6/12/2016
100342
3/7/2017
100037
7/17/2016
100348
6/2/2016
103200
3/14/2018
A051107
Table 6-1. Annual Test Equipment Calibration Schedule
Note:
For equipment listed above that has a calibration date or calibration due date that falls within the test date
range, care was taken to ensure that this equipment was used after the calibration date and before the
calibration due date.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 10 of 41
V 6.3
03/24/2017
7.0
TEST RESULTS
7.1
Summary
Company Name:
Samsung Electronics Co., Ltd.
FCC ID:
A3LSMN935KOR
FCC Classification:
Digital Transmission System (DTS)
Number of Channels:
40
FCC Part
Section(s)
Test Description
Test Limit
Test
Condition
Test
Result
Reference
TRANSMITTER MODE (TX)
15.247(a)(2)
6dB Bandwidth
> 500kHz
PASS
Section 7.2
15.247(b)(3)
Transmitter Output Power
 1 Watt
PASS
Sections 7.3
15.247(e)
Transmitter Power Spectral
Density
 8dBm / 3kHz Band
PASS
Section 7.4
15.247(d)
Band Edge /
Out-of-Band Emissions
≥ 20dBc
PASS
Sections 7.5,
7.6
15.205
15.209
General Field Strength Limits
(Restricted Bands and
Radiated Emission Limits)
Emissions in restricted bands
must meet the radiated limits
detailed in 15.209
RADIATED
PASS
Sections 7.7,
7.8
15.207
AC Conducted Emissions
150kHz – 30MHz
< FCC 15.207 limits
LINE
CONDUCTED
PASS
Section 7.9
CONDUCTED
Table 7-1. Summary of Test Results
Notes:
1. All modes of operation were investigated. The test results shown in the following sections represent the
worst case emissions.
2. The analyzer plots shown in this section were all taken with a correction table loaded into the analyzer.
The correction table was used to account for the losses of the cables and attenuators used as part of the
system to connect the EUT to the analyzer at all frequencies of interest.
3. All antenna port conducted emissions testing was performed on a test bench with the antenna port of the
EUT connected to the spectrum analyzer through calibrated cables and attenuators.
4. For conducted spurious emissions, automated test software was used to measure emissions and capture
the corresponding plots necessary to show compliance. The measurement software utilized is PCTEST
“Bluetooth LE Automation,” Version 3.0.
5. For radiated band edge, automated test software was used to measure emissions and capture the
corresponding plots necessary to show compliance. The measurement software utilized is PCTEST
“Chamber Automation,” Version 1.1.5.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 11 of 41
V 6.3
03/24/2017
7.2
6dB Bandwidth Measurement – Bluetooth (LE)
§15.247(a.2)
Test Overview and Limit
The bandwidth at 6dB down from the highest in-band spectral density is measured with a spectrum analyzer
connected to the transmitter antenna terminal of the EUT while the EUT is operating at maximum power and
at the appropriate frequencies. All modes of operation were investigated and the worst case configuration
results are reported in this section.
The minimum permissible 6dB bandwidth is 500 kHz.
Test Procedure Used
KDB 558074 D01 v03r05 – Section 8.2 Option 2
Test Settings
1. The signal analyzers’ automatic bandwidth measurement capability of the spectrum analyzer was
used to perform the 6dB bandwidth measurement. The “X” dB bandwidth parameter was set to X = 6.
The bandwidth measurement was not influenced by any intermediate power nulls in the fundamental
emission.
2. RBW = 100kHz
3. VBW ≥ 3 x RBW
4. Detector = Peak
5. Trace mode = max hold
6. Sweep = auto couple
7. The trace was allowed to stabilize
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-1. Test Instrument & Measurement Setup
Test Notes
None
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 12 of 41
V 6.3
03/24/2017
Measured Minimum
Frequency Channel Bluetooth
Bandwidth Bandwidth Pass / Fail
[MHz]
No.
Mode
[kHz]
[kHz]
2402
LE
644.2
500
Pass
2440
19
LE
654.7
500
Pass
2480
39
LE
652.1
500
Pass
Table 7-2. Conducted Bandwidth Measurements
Plot 7-1. 6dB Bandwidth Plot (Bluetooth (LE) – Ch. 0)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 13 of 41
V 6.3
03/24/2017
Plot 7-2. 6dB Bandwidth Plot (Bluetooth (LE) – Ch. 19)
Plot 7-3. 6dB Bandwidth Plot (Bluetooth (LE) – Ch. 39)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 14 of 41
V 6.3
03/24/2017
7.3
Output Power Measurement – Bluetooth (LE)
§15.247(b.3)
Test Overview and Limits
The transmitter antenna terminal of the EUT is connected to the input of a spectrum analyzer. Measurements
are made while the EUT is operating at maximum power and at the appropriate frequencies.
The maximum permissible conducted output power is 1 Watt.
Test Procedure Used
KDB 558074 D01 v03r05 – Section 9.1.1
Test Settings
1. RBW = 3MHz
2. VBW = 50MHz
3. Span ≥ 3 x RBW
4. Sweep = auto couple
5. Detector = Peak
6. Trace mode = max hold
7. The trace was allowed to stabilize
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-2. Test Instrument & Measurement Setup
Test Notes
None
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 15 of 41
V 6.3
03/24/2017
Frequency Channel Bluetooth
[MHz]
No.
Mode
Peak Conducted
Power
[dBm]
[mW]
2402
LE
6.21
4.182
2440
19
LE
7.11
5.143
2480
39
LE
5.72
3.728
Table 7-3. Conducted Output Power Measurements (Bluetooth (LE))
Plot 7-4. Peak Power Plot (Bluetooth (LE) – Ch. 0)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 16 of 41
V 6.3
03/24/2017
Plot 7-5. Peak Power Plot (Bluetooth (LE) – Ch. 19)
Plot 7-6. Peak Power Plot (Bluetooth (LE) – Ch. 39)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 17 of 41
V 6.3
03/24/2017
7.4
Power Spectral Density – Bluetooth (LE)
§15.247(e)
Test Overview and Limit
The peak power density is measured with a spectrum analyzer connected to the antenna terminal of the EUT
while the EUT is operating at maximum power and at the appropriate frequencies.
The maximum permissible power spectral density is 8 dBm in any 3 kHz band.
Test Procedure Used
KDB 558074 D01 v03r05 – Section 10.2 Method PKPSD
Test Settings
1. Analyzer was set to the center frequency of the DTS channel under investigation
2. Span = 1.5 times the DTS channel bandwidth
3. RBW = 10kHz
4. VBW = 1MHz
5. Detector = peak
6. Sweep time = auto couple
7. Trace mode = max hold
8. Trace was allowed to stabilize
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-3. Test Instrument & Measurement Setup
Test Notes
None
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 18 of 41
V 6.3
03/24/2017
Frequency Channel Bluetooth
[MHz]
No.
Mode
Maximum
Measured
Margin
Permissible
Power
[dB]
Power Density
Spectral
Density [dBm] [dBm / 3kHz]
2402
LE
0.00
8.0
-8.00
2440
19
LE
0.88
8.0
-7.12
2480
39
LE
-0.52
8.0
-8.52
Table 7-4. Conducted Power Density Measurements
Plot 7-7. Power Spectral Density Plot (Bluetooth (LE) – Ch. 0)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 19 of 41
V 6.3
03/24/2017
Plot 7-8. Power Spectral Density Plot (Bluetooth (LE) – Ch. 19)
Plot 7-9. Power Spectral Density Plot (Bluetooth (LE) – Ch. 39)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 20 of 41
V 6.3
03/24/2017
7.5
Conducted Emissions at the Band Edge
§15.247(d)
Test Overview and Limit
For the following out of band conducted spurious emissions plots at the band edge, the EUT was set to
transmit at maximum power with the largest packet size available. These settings produced the worst-case
emissions.
The limit for out-of-band spurious emissions at the band edge is 20dB below the fundamental
emission level, as determined from the in-band power measurement of the DTS channel performed in
a 100kHz bandwidth.
Test Procedure Used
KDB 558074 D01 v03r05 – Section 11.3
Test Settings
1. Start and stop frequency were set such that the band edge would be placed in the center of the plot
2. Span was set large enough so as to capture all out of band emissions near the band edge
3. RBW = 100kHz
4. VBW = 300kHz
5. Detector = Peak
6. Number of sweep points ≥ 2 x Span/RBW
7. Trace mode = max hold
8. Sweep time = auto couple
9. The trace was allowed to stabilize
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-4. Test Instrument & Measurement Setup
Test Notes
None
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 21 of 41
V 6.3
03/24/2017
Plot 7-10. Band Edge Plot (Bluetooth (LE) – Ch. 0)
Plot 7-11. Band Edge Plot (Bluetooth (LE) – Ch. 39)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 22 of 41
V 6.3
03/24/2017
7.6
Conducted Spurious Emissions
§15.247(d)
Test Overview and Limit
For the following out of band conducted spurious emissions plots, the EUT was set to transmit at maximum
power with the largest packet size available. The worst case spurious emissions were found in this
configuration.
The limit for out-of-band spurious emissions at the band edge is 20dB below the fundamental
emission level, as determined from the in-band power measurement of the DTS channel performed in
a 100kHz bandwidth per the procedure in Section 11.1 of KDB 558074 D01 v03r05.
Test Procedure Used
KDB 558074 D01 v03r05 – Section 11.3
Test Settings
1. Start frequency was set to 30MHz and stop frequency was set to 25GHz (separated into two plots per
channel)
2. RBW = 1MHz
3. VBW = 3MHz
4. Detector = Peak
5. Trace mode = max hold
6. Sweep time = auto couple
7. The trace was allowed to stabilize
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-5. Test Instrument & Measurement Setup
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 23 of 41
V 6.3
03/24/2017
Test Notes
1. RBW was set to 1MHz rather than 100kHz in order to increase the measurement speed.
2. The display line shown in the following plots denotes the limit at 20dB below the fundamental emission
level measured in a 100kHz bandwidth. However, since the traces in the following plots are measured
with a 1MHz RBW, the display line may not necessarily appear to be 20dB below the level of the
fundamental in a 1MHz bandwidth.
3. For plots showing conducted spurious emissions near the limit, the frequencies were investigated with
a reduced RBW to ensure that no emissions were present.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 24 of 41
V 6.3
03/24/2017
Plot 7-12. Conducted Spurious Plot (Bluetooth (LE) – Ch. 0)
Plot 7-13. Conducted Spurious Plot (Bluetooth (LE) – Ch. 0)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 25 of 41
V 6.3
03/24/2017
Plot 7-14. Conducted Spurious Plot (Bluetooth (LE) – Ch. 19)
Plot 7-15. Conducted Spurious Plot (Bluetooth (LE) – Ch. 19)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 26 of 41
V 6.3
03/24/2017
Plot 7-16. Conducted Spurious Plot (Bluetooth (LE) – Ch. 39)
Plot 7-17. Conducted Spurious Plot (Bluetooth (LE) – Ch. 39)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 27 of 41
V 6.3
03/24/2017
7.7
Radiated Spurious Emission Measurements
§15.205 §15.209 §15.247(d)
Test Overview and Limit
All out of band radiated spurious emissions are measured with a spectrum analyzer connected to a receive
antenna while the EUT is operating at maximum power and at the appropriate frequencies. Only the radiated
emissions of the configuration that produced the worst case emissions are reported in this section.
All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47
CFR must not exceed the limits shown in Table 7-5 per Section 15.209.
Frequency
Field Strength
[V/m]
Measured Distance
[Meters]
0.009 – 0.490 MHz
0.490 – 1.705 MHz
1.705 – 30.00 MHz
30.00 – 88.00 MHz
88.00 – 216.0 MHz
216.0 – 960.0 MHz
Above 960.0 MHz
2400/F (kHz)
24000/F (kHz)
30
100
150
200
500
300
30
30
Table 7-5. Radiated Limits
Test Procedures Used
KDB 558074 D01 v03r05 – Section 12.1, 12.2.7
Test Settings
Average Field Strength Measurements per Section 12.2.5.3 of KDB 558074 D01 v03r05
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW = 1MHz
3. VBW = 3kHz > 1/T
4. Averaging type was set to RMS to ensure that video filtering was applied in the power domain
5. Detector = peak
6. Sweep time = auto
7. Trace mode = max hold
8. Trace was allowed to run for at least 50 times (1/duty cycle) traces
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 28 of 41
V 6.3
03/24/2017
Peak Field Strength Measurements per Section 12.2.4 of KDB 558074 D01 v03r05
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW is set depending on measurement frequency, as specified in Table 7-6 below
3. VBW = 3MHz
4. Detector = peak
5. Sweep time = auto couple
6. Trace mode = max hold
7. Trace was allowed to stabilize
Frequency
RBW
9 – 150kHz
200 – 300Hz
0.15 – 30MHz
9 – 10kHz
30 – 1000MHz
100 – 120kHz
> 1000MHz
1MHz
Table 7-6. RBW as a Function of Frequency
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-6. Radiated Test Setup >1GHz
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 29 of 41
V 6.3
03/24/2017
Test Notes
1. The optional test procedures for antenna port conducted measurements of unwanted emissions per
the guidance of KDB 558074 D01 v03r05 were not used to evaluate this device for compliance to
radiated limits. All radiated spurious emissions levels were measured in a radiated test setup.
2. All emissions lying in restricted bands specified in §15.205 are below the limit shown in Table 7-5.
3. The antenna is manipulated through typical positions, polarity and length during the tests. The EUT is
manipulated through three orthogonal planes.
4. This unit was tested with its standard battery.
5. The spectrum is measured from 9kHz to the 10th harmonic of the fundamental frequency of the
transmitter using CISPR quasi peak detector below 1GHz. Above 1 GHz, average and peak
measurements were taken using linearly polarized horn antennas. The worst-case emissions are
reported however emissions whose levels were not within 20dB of the respective limits were not
reported.
6. Average measurements were recorded using a VBW of 3kHz, per Section 12.2.5.3 of KDB 558074
D01 v03r05, since 1/T is equal to just under 3kHz. This method was used because the EUT could not
be configured to operate with a duty cycle > 98%. Both average and peak measurements were made
using a peak detector
7. Emissions below 18GHz were measured at a 3 meter test distance while emissions above 18GHz
were measured at a 1 meter test distance with the application of a distance correction factor.
8. No significant radiated band edge emissions were found in the 2310 – 2390MHz restricted band.
9. The "-" shown in the following RSE tables are used to denote a noise floor measurement.
Sample Calculations
Determining Spurious Emissions Levels
Field Strength Level [dBV/m] = Analyzer Level [dBm] + 107 + AFCL [dB/m]
AFCL [dB/m] = Antenna Factor [dB/m] + Cable Loss [dB]
Margin [dB] = Field Strength Level [dBV/m] – Limit [dBV/m]
Radiated Band Edge Measurement Offset
The amplitude offset shown in the radiated restricted band edge plots in Section 7.7 was
calculated using the formula:
Offset (dB) = (Antenna Factor + Cable Loss + 10 dB Attenuator) – Preamplifier Gain
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 30 of 41
V 6.3
03/24/2017
Radiated Spurious Emission Measurements
§15.205 §15.209 §15.247(d)
Bluetooth Mode:
Distance of Measurements:
Operating Frequency:
Channel:
LE
3 Meters
2402MHz
Ant. Antenna Turntable Analyzer
Frequency
Detector Pol. Height
Azimuth
Level
[MHz]
[H/V]
[cm]
[degree]
[dBm]
AFCL
[dB/m]
Field
Limit
Margin
Strength
[dBμV/m]
[dB]
[dBμV/m]
4804.00
Avg
-109.61
40.43
37.82
53.98
-16.16
4804.00
Peak
-97.82
40.43
49.61
73.98
-24.37
12010.00
Avg
-110.29
51.20
47.90
53.98
-6.07
12010.00
Peak
-98.50
51.20
59.69
73.98
-14.28
Table 7-7. Radiated Measurements @ 3 meters
Bluetooth Mode:
Distance of Measurements:
Operating Frequency:
Channel:
LE
3 Meters
2440MHz
19
Ant. Antenna Turntable Analyzer
Frequency
Detector Pol. Height
Azimuth
Level
[MHz]
[cm]
[degree]
[H/V]
[dBm]
AFCL
[dB/m]
Field
Limit
Margin
Strength
[dBμV/m]
[dB]
[dBμV/m]
4880.00
Avg
-109.65
39.95
37.30
53.98
-16.68
4880.00
Peak
-97.86
39.95
49.09
73.98
-24.89
7320.00
Avg
-111.60
43.78
39.19
53.98
-14.79
7320.00
Peak
-99.81
43.78
50.98
73.98
-23.00
12200.00
Avg
-108.04
51.19
50.15
53.98
-3.83
12200.00
Peak
-98.37
51.19
59.82
73.98
-14.16
Table 7-8. Radiated Measurements @ 3 meters
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 31 of 41
V 6.3
03/24/2017
Radiated Spurious Emission Measurements
§15.205 §15.209 §15.247(d)
Bluetooth Mode:
Distance of Measurements:
Operating Frequency:
Channel:
LE
3 Meters
2480MHz
39
Ant. Antenna Turntable Analyzer
Frequency
Azimuth
Detector Pol. Height
Level
[MHz]
[H/V]
[cm]
[degree]
[dBm]
AFCL
[dB/m]
Field
Limit
Margin
Strength
[dBμV/m]
[dB]
[dBμV/m]
4960.00
Avg
-109.63
40.02
37.39
53.98
-16.59
4960.00
Peak
-97.97
40.02
49.05
73.98
-24.93
7440.00
Avg
-111.53
44.42
39.88
53.98
-14.09
7440.00
Peak
-99.63
44.42
51.78
73.98
-22.19
12400.00
Avg
-108.92
51.65
49.73
53.98
-4.25
12400.00
Peak
-97.19
51.65
61.46
73.98
-12.52
Table 7-9. Radiated Measurements @ 3 meters
Bluetooth Mode:
Distance of Measurements:
Operating Frequency:
Channel:
LE
3 Meters
2480MHz
39
Ant. Antenna Turntable Analyzer
Frequency
Detector Pol. Height
Azimuth
Level
[MHz]
[H/V]
[cm]
[degree]
[dBm]
AFCL
[dB/m]
Field
Limit
Margin
Strength
[dBμV/m]
[dB]
[dBμV/m]
4960.00
Avg
-109.99
40.02
37.03
53.98
-16.95
4960.00
Peak
-98.02
40.02
49.00
73.98
-24.98
7440.00
Avg
-111.83
44.42
39.58
53.98
-14.39
7440.00
Peak
-99.46
44.42
51.95
73.98
-22.02
12400.00
Avg
-108.86
51.65
49.79
53.98
-4.19
12400.00
Peak
-97.30
51.65
61.35
73.98
-12.63
Table 7-10. Radiated Measurements with WCP @ 3 meters
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 32 of 41
V 6.3
03/24/2017
7.8
Radiated Restricted Band Edge Measurements
§15.205 §15.209
The radiated restricted band edge measurements are measured with an EMI test receiver connected to the
receive antenna while the EUT is transmitting.
The amplitude offset shown in the following plots for average measurements was calculated using the formula:
Offset (dB) = (Antenna Factor + Cable Loss + 10 dB Attenuator) – Preamplifier Gain
Bluetooth Mode:
LE
Measurement Distance:
3 Meters
Operating Frequency:
2480MHz
Channel:
39
* RBW 1 MHz
* VBW 3 kHz
Ref
* Att
120.5 dBµV
120 Offset
0 dB
SWT 10 ms
Marker 1 [T1 ]
50.20 dBµV
2.483500000 GHz
13.5 dB
LIMIT CHECK
PASS
110
SGL
100
LVL
1 PK
MAXH
90
PS
80
70
SWP
100 of
100
3DB
AC
60
FCC15CAV
50
40
30
Center
2.4835 GHz
Date: 29.JUN.2016
1 MHz/
Span
10 MHz
16:23:52
Plot 7-18. Radiated Restricted Upper Band Edge Measurement (Average)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 33 of 41
V 6.3
03/24/2017
Radiated Restricted Band Edge Measurements
§15.205 §15.209
The amplitude offset shown in the following plots for average measurements was calculated using the formula:
Offset (dB) = (Antenna Factor + Cable Loss + 10 dB Attenuator) – Preamplifier Gain
* RBW 1 MHz
* VBW 3 MHz
Ref
120.5 dBµV
120 Offset
* Att
0 dB
SWT 2.5 ms
13.5 dB
LIMIT CHECK
2 PK
MAXH
Marker 2 [T2 ]
56.55 dBµV
2.483500000 GHz
PASS
110
SGL
100
LVL
90
PS
80
FCC15CPK
70
60
3DB
AC
50
40
30
Center
2.4835 GHz
Date: 29.JUN.2016
1 MHz/
Span
10 MHz
16:24:01
Plot 7-19. Radiated Restricted Upper Band Edge Measurement (Peak)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 34 of 41
V 6.3
03/24/2017
Radiated Restricted Band Edge Measurements
§15.205 §15.209
Bluetooth Mode:
LE
Measurement Distance:
3 Meters
Operating Frequency:
2480MHz
Channel:
39
* RBW 1 MHz
* VBW 3 kHz
Ref
* Att
120.5 dBµV
120 Offset
0 dB
SWT 10 ms
Marker 1 [T1 ]
50.30 dBµV
2.483500000 GHz
13.5 dB
LIMIT CHECK
PASS
110
SGL
100
LVL
1 PK
MAXH
90
PS
80
70
SWP
100 of
100
3DB
AC
60
FCC15CAV
50
40
30
Center
2.4835 GHz
Date: 29.JUN.2016
1 MHz/
Span
10 MHz
16:18:56
Plot 7-20. Radiated Restricted Upper Band Edge Measurement with WCP (Average)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 35 of 41
V 6.3
03/24/2017
Radiated Restricted Band Edge Measurements
§15.205 §15.209
* RBW 1 MHz
* VBW 3 MHz
Ref
120.5 dBµV
120 Offset
* Att
0 dB
SWT 2.5 ms
13.5 dB
LIMIT CHECK
2 PK
MAXH
Marker 2 [T2 ]
56.08 dBµV
2.483516026 GHz
PASS
110
SGL
100
LVL
90
PS
80
FCC15CPK
70
3DB
AC
60
50
40
30
Center
2.4835 GHz
Date: 29.JUN.2016
1 MHz/
Span
10 MHz
16:19:08
Plot 7-21. Radiated Restricted Upper Band Edge Measurement with WCP (Peak)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 36 of 41
V 6.3
03/24/2017
7.9
Line-Conducted Test Data
§15.207
Test Overview and Limit
All AC line conducted spurious emissions are measured with a receiver connected to a grounded LISN while
the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All
data rates and modes were investigated for conducted spurious emissions. Only the conducted emissions of
the configuration that produced the worst case emissions are reported in this section.
All conducted emissions must not exceed the limits shown in the table below, per 15.207.
Frequency of emission
(MHz)
Conducted Limit (dBV)
Quasi-peak
66 to 56*
56
60
0.15 – 0.5
0.5 – 5
5 – 30
Average
56 to 46*
46
50
Table 7-11. Conducted Limits
*Decreases with the logarithm of the frequency.
Test Procedures Used
ANSI C63.10-2013, Section 6.2
Test Settings
Quasi-Peak Field Strength Measurements
1. Analyzer center frequency was set to the frequency of the spurious emission of interest
2. RBW = 9kHz (for emissions from 150kHz – 30MHz)
3. Detector = quasi-peak
4. Sweep time = auto couple
5. Trace mode = max hold
6. Trace was allowed to stabilize
Average Field Strength Measurements
1. Analyzer center frequency was set to the frequency of the spurious emission of interest
2. RBW = 9kHz (for emissions from 150kHz – 30MHz)
3. Detector = RMS
4. Sweep time = auto couple
5. Trace mode = max hold
6. Trace was allowed to stabilize
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 37 of 41
V 6.3
03/24/2017
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-7. Test Instrument & Measurement Setup
Test Notes
1.
All modes of operation were investigated and the worst-case emissions are reported using mid channel.
The emissions found were not affected by the choice of channel used during testing.
2.
The limit for an intentional radiator from 150kHz to 30MHz are specified in RSS-Gen (8.8).
3.
Corr. (dB) = Cable loss (dB) + LISN insertion factor (dB)
4.
QP/AV Level (dBV) = QP/AV Analyzer/Receiver Level (dBV) + Corr. (dB)
5.
Margin (dB) = QP/AV Limit (dBV) - QP/AV Level (dBV)
6.
Traces shown in plot are made using a peak detector.
7.
Deviations to the Specifications: None.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 38 of 41
V 6.3
03/24/2017
Line-Conducted Test Data
§15.207
Plot 7-22. Line Conducted Plot with Bluetooth LE (L1)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 39 of 41
V 6.3
03/24/2017
Line-Conducted Test Data
§15.207
Plot 7-23. Line Conducted Plot with Bluetooth LE (N)
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 40 of 41
V 6.3
03/24/2017
8.0
CONCLUSION
The data collected relate only the item(s) tested and show that the Samsung Portable Handset
FCC ID: A3LSMN935KOR is in compliance with Part 15C of the FCC Rules.
FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
1M1703230122-07.A3L
6/3 - 6/29/2016
Portable Handset
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 41 of 41
V 6.3
03/24/2017
Download: SMN935KOR Multi-band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report Bluetooth LE Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMN935KOR Multi-band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report Bluetooth LE Samsung Electronics Co Ltd
Document ID3370853
Application IDtr/ysv83aEKH4I0nlFLuhg==
Document DescriptionBluetooth LE Test Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize134.61kB (1682569 bits)
Date Submitted2017-04-25 00:00:00
Date Available2017-05-04 00:00:00
Creation Date2017-04-20 18:26:23
Producing SoftwareAcrobat Distiller 10.1.16 (Windows)
Document Lastmod2017-04-25 16:39:22
Document TitleBluetooth LE Test Report
Document CreatorPScript5.dll Version 5.2.2

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          :
Create Date                     : 2017:04:20 18:26:23-04:00
Modify Date                     : 2017:04:25 16:39:22-04:00
XMP Toolkit                     : Adobe XMP Core 5.2-c001 63.139439, 2010/09/27-13:37:26
Creator Tool                    : PScript5.dll Version 5.2.2
Metadata Date                   : 2017:04:25 16:39:22-04:00
Producer                        : Acrobat Distiller 10.1.16 (Windows)
Format                          : application/pdf
Creator                         :
Title                           :
Document ID                     : uuid:835bd896-65d6-4009-a971-d2fdceb4e344
Instance ID                     : uuid:f3c83518-d21f-4f13-837b-34a8a91968ac
Page Count                      : 41

Facebook Twitter Google+ RSS © FCCID.io 2017
