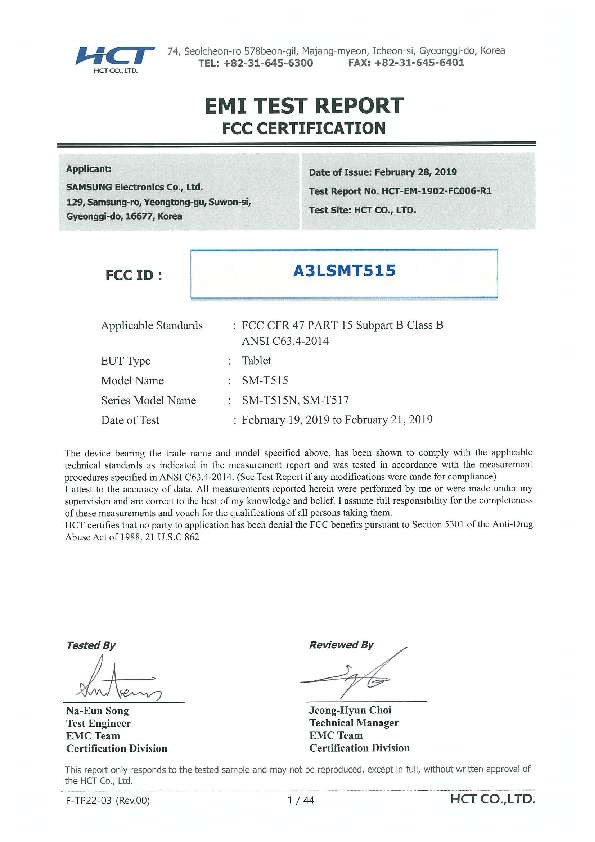

SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd

Samsung Electronics Co Ltd Tablet

Page 1 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 2 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 3 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 4 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 5 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 6 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 7 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 8 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 9 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 10 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 11 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 12 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 13 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 14 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 15 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 16 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 17 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 18 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 19 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 20 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 21 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 22 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 23 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 24 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 25 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 26 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 27 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 28 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 29 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 30 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 31 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 32 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 33 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 34 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 35 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 36 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 37 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 38 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 39 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 40 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 41 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 42 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 43 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Page 44 of SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd

FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
REVISION HISTORY
The revision history for this document is shown in table.
Report No.
HCT-EM-1902-FC006
Issue Date
February 22, 2019
Information About Changes
Initial Release
HCT-EM-1902-FC006-R1
February 28, 2019
Revised Operating Mode
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
2 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
TABLE OF CONTENTS
PAGE
1. GENERAL INFORMATION .................................................................................................. 4
1.1 Description of EUT ........................................................................................................... 4
1.2 Equipment Units Tested ..................................................................................................... 4
1.3 Cable Description .............................................................................................................. 5
1.4 Noise Suppression Parts on Cable (I/O Cable) .................................................................. 5
1.5. Test Facility ...................................................................................................................... 6
1.6 Calibration of Measuring Instrument................................................................................. 6
1.7 Measurement Uncertainty.................................................................................................. 6
2. LIST OF TEST EQUIPMENT ................................................................................................ 7
3. DESCRIPTION OF MEASUREMENTS ............................................................................... 8
3.1 Measurement of Conducted Emission ............................................................................... 8
3.2 Measurement of Radiated Emission .................................................................................. 9
4. PRELIMINARY TEST ......................................................................................................... 11
4.1 Conducted Emission ........................................................................................................ 11
4.2 Radiated Emission ........................................................................................................... 11
5. CONDUCTED AND RADIATED EMISSION TEST SUMMARY .................................... 12
5.1 Conducted Emission ........................................................................................................ 12
5.2 Radiated Emission ........................................................................................................... 37
6. CONCLUSION ..................................................................................................................... 43
7. APPENDIX A. TEST SETUP PHOTOGRAPHS................................................................. 44
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
3 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
1. GENERAL INFORMATION
1.1 Description of EUT
Its basic purpose is used for communications.
FCC ID
A3LSMT515
Model name
SM-T515
Series model name
SM-T515N, SM-T517
EUT type
Tablet
Frequency band
GSM 850/1900, WCDMA 850/1700/1900, LTE B2/4/5/12/17/66,
WLAN 2.4 GHz / 5 GHz
Power rating
Travel adaptor: Input: AC 100 to 240 V, 50/60 Hz, 0.3 A
Travel adaptor: Output: DC 5.0 V 1.55 A
1.2 Equipment Units Tested
All equipment descriptions used in the tested system (including inserted cards) are:
Device Type
Model Name
Serial Number
Manufacturer
FCC ID / DoC
EUT
SM-T515
SAMSUNG
A3LSMT515
Notebook PC
ProBook6560b
5CB2053MXF
HP
Notebook PC
adaptor
Series PPP009L-E
LITE-ON
TECHNOLOGY
(CHANGZHOU)
Gateway
TL-WR747N
TP Link
Gateway adaptor
T090060-2H1
TP Link
Serial mouse
Serial 2 Button
mouse
02031069
Radio Shack
FSUGMZE3
RJ45 cable
TA
EP-TA50EWE
DONGYANG E&P
Data Cable
ECB-DU68WE
RFTech
Earphone
EO-EG920BW
BUJEON
Micro SD card
(64 GB)
SAMSUNG
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
4 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
1.3 Cable Description
Power Cord
Shielded (Y/N)
I/O Cable Shielded
(Y/N)
(P,D) 1.0
Earphone
N/A
(D) 1.2
RJ 45
N/A
(D) 1.6
Serial(Mouse)
N/A
(D) 1.8
DC IN
N/A
(P) 1.8
DC IN
N/A
(P) 1.8
Product Name
Port
USB Type C
Length (m)
EUT
Notebook PC
Gateway
* The marked “(D)” means the data cable and “(P)” means the power cable.
1.4 Noise Suppression Parts on Cable (I/O Cable)
Product Name
Port
Ferrite Bead
(Y/N)
Location
Metal Hood
(Y/N)
USB Type C
N/A
Both End
Earphone
N/A
EUT End
RJ 45
N/A
N/A
Serial(Mouse)
N/A
Notebook End
Location
EUT
Notebook PC
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
5 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
1.5. Test Facility
Test site is located at 74, SEOICHEON-RO, 578BEON-GIL, MAJANG-MYEON, ICHEON-SI,
GYEONGGI-DO, SOUTH KOREA. Those measurement facilities are constructed in conformance with
the requirements of ANSI C63.4-2014. The Normalized site attenuations (30 MHz to 1 GHz) and Site
validation (1 GHz to 18 GHz) were performed in accordance with the standard in ANSI C63.4-2014
Measurement Facilities
Radiated Field strength measurement facility
3 m Semi Anechoic chamber
Radiated Field strength measurement facility
10 m Semi Anechoic chamber
Registration Number
90661
1.6 Calibration of Measuring Instrument
The measuring equipment, which was utilized in performing the tests documented herein, has been
calibrated in accordance with the manufacturers recommendations for utilizing calibration equipment,
which is traceable to recognized national standards.
Espectially, all antenna for measurement is calibrated in accordance with the requirements of C63.5
(Version : 2006).
1.7 Measurement Uncertainty
The measurement uncertainties shown below were calculated in accordance with the requirements
of ANSI C63.4-2014.
All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 %
level of confidence. The measurement data shown herein meets or exceeds the U CISPR measurement
uncertainty values specified in CISPR 16-4-2 and, thus, can be compared directly to specified limits to
determine compliance.
Parameter
Expanded Uncertainty (dB)
Conducted Emission (0.15 MHz to 30 MHz)
1.82 dB
Radiated Emissions (30 MHz to 1 GHz)
5.20 dB
Radiated Emissions (1 GHz to 18 GHz)
5.24 dB
Radiated Emissions (18 GHz to 40 GHz)
5.40 dB
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
6 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
2. LIST OF TEST EQUIPMENT
Type
Calibration
Cycle
Manufacturer
Model Name
Serial Number
CAL Date
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
ESCI
ENV216
ENV216
100584
102245
100073
1 year
1 year
1 year
06.25.2018
12.12.2018
05.03.2018
ANRITSU
MT8820C
6201138643
1 year
08.21.2018
Schwarzbeck
USLP9142
VSLP 9142-200
Rohde & Schwarz
EMC32 VER8.54.0
ESU40
VULB 9168
MA4640-XP-ET
100524
00847
CO3000/870/
35990515/L
CO2000/095/
7590304/L
1 year
2 year
N/A
07.27.2018
04.13.2018
N/A
N/A
N/A
Conducted Emission
EMI Test Receiver
LISN
LISN
Radio communication
analyzer
Antenna
(for Communication)
Software
Radiated Emission
-For measurement below 1 GHz
EMI Test Receiver
Trilog Antenna
Antenna master
Rohde & Schwarz
Schwarzbeck
INNCO Systems
Antenna master controller INNCO Systems
CO 3000
Turn Table
INNCO Systems
1060
Turn Table controller
INNCO Systems
CO2000
ANRITSU
MT8820C
6201138643
1 year
08.21.2018
Schwarzbeck
USLP9142
VSLP 9142-200
Rohde & Schwarz
EMC32 VER8.40.0
ESU40
MA4640-XP-ET
1 year
N/A
07.27.2018
N/A
N/A
N/A
2 year
1 year
1 year
2 year
05.14.2018
03.06.2018
12.17.2018
12.05.2017
Radio communication
analyzer
Antenna
(for Communication)
Software
-For measurement above 1 GHz
EMI Test Receiver
Antenna master
Rohde & Schwarz
INNCO Systems
Antenna master controller INNCO Systems
CO3000
Turn Table
INNCO Systems
1060
Turn Table controller
INNCO Systems
CO2000
Horn Antenna
Low Noise Amplifier
Power Amplifier
Horn Antenna
Radio communication
analyzer
Antenna
(for Communication)
Highpass Filter
Software
Schwarzbeck
TESTEK
TESTEK
Schwarzbeck
BBHA 9120D
TK-PA18H
TK-PA1840H
BBHA 9170
100524
CO3000/870/
35990515/L
CO2000/095/
7590304/L
01836
170034-L
170030-L
BBHA9170#786
ANRITSU
MT8820C
6201138643
1 year
08.21.2018
Schwarzbeck
USLP9142
VSLP 9142-200
42
1 year
08.02.2018
Wainwright Instruments WHKX1.0/15G-12SS
Rohde & Schwarz
EMC32 VER8.40.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
7 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
3. DESCRIPTION OF MEASUREMENTS
3.1 Measurement of Conducted Emission
The test procedure was in accordance with ANSI C63.4-2014, Clause 7.3
a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being
connected to the power mains through a line impedance stabilization network (LISN).
If the EUT is connected to the PC through USB, the AC power-line adapter of the PC is directly
connected to a line impedance stabilization network (LISN).
Other support units were connected to the power mains through another LISN. The two LISNs provide
50 Ohm/ 50uH of coupling impedance for the measuring instrument.
b. Both conducted lines are measured in Quasi-Peak and Average mode, including the worst-case
data points for each tested configuration.
c. The frequency range from 150 kHz to 30 MHz was searched.
[ Conducted Emission Limits ]
Frequency
(MHz)
0.15 to 0.5
Resolution Bandwidth
(kHz)
Quasi-Peak
(dB(μV))
Average
(dB(μV))
66 to 56*
56 to 46*
0.5 to 5
56
46
5 to 30
60
50
*Decreases with the logarithm of the frequency.
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
8 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
3.2 Measurement of Radiated Emission
The test procedure was in accordance with ANSI C63.4-2014, Clause 8.3
a. The EUT was placed on the top of a turn table 0.8 meters above the ground at a semi-anechoic chamber.
The table was rotated 360 degrees to determine the position of the highest radiation.
b. The EUT was set 3 m away from the interference-receiving antenna, which was mounted on
the top of a variable-height antenna tower.
c. The antenna height is varied from 1 m to 4 m above the ground to determine the maximum
value of the field strength. Both horizontal and vertical polarizations of the antenna are set to
make the measurement.
d. For each suspected emission, the EUT was arranged to its worst case and then the antenna
was tuned to heights from 1 m to 4 m and the turn table was turned from 0 degrees to 360
degrees to find the maximum reading.
e. The test-receiver system was set to Quasi-Peak detect function and specified bandwidth with
maximum hold mode when the test frequency is below 1 GHz.
f. The test-receiver system was set to Peak and Average detect function and specified
bandwidth with maximum hold mode when the test frequency is above 1 GHz.
g. Place the measurement antenna away from each area of the EUT determined to be a source of
emissions at the specified measurement distance, while keeping the measurement antenna aimed
at the source of emissions at each frequency of significant emissions, with polarization oriented
for maximum response.(1 GHz to 40 GHz)
[ Radiated Emission Limits ]
Frequency
(MHz)
30 to 88
Antenna Distance
(m)
Field Strength
(μV/m)
100
Quasi-Peak
(dB(μV)/m)
40.0
88 to 216
150
43.5
216 to 960
200
46.0
Above 960
Frequency
(MHz)
Above 1 000
Antenna Distance
(m)
500
Peak
(dB(μV)/m)
74
54.0
Average
(dB(μV)/m)
54
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
9 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
3.2.1 Frequency Range of Radiated Measurements
An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest
radio frequency signal generated or used in the device, without going below the lowest frequency for
which a Radiated Emission limit is specified, up to the frequency shown in the following table
Highest frequency generated or used in the device
or on which the device operates or tunes
(MHz)
Below 1.705
Upper frequency of measurement range
(MHz)
30
1.705 to 108
1 000
108 to 500
2 000
500 to 1 000
5 000
5th harmonic of the highest frequency
or 40 ㎓, whichever is lower
Above 1 000
3.3 Configuration of Tested System
Data Communication mode
Gateway
Adaptor
EUT
Notebook PC
Earphone
Notebook PC
adaptor
Serial Mouse
Camera / MP4 / Receiver mode
Travel
adaptor
EUT
Earphone
Non-Conductive Table
Power Line: 120 VAC, 60 Hz
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
10 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
4. PRELIMINARY TEST
During preliminary tests, the following operating mode was investigated.
Data Communication
Rear / Front Camera (Preview/Recording)
MP4 Play
LTE B5 Idle (Middle CH)
WCDMA 850 Idle (Middle CH)
GSM 850 Idle (Middle CH)
LTE B12+B17 Idle (Low/Middle/High CH)
4.1 Conducted Emission
It was tested the following operating mode, after connecting all peripheral devices.
Operating Modes:
Data Communication
Rear Camera Preview / Front Camera Preview / MP4 Play
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
NOTE.
1. The worst case of operating mode is reported.
4.2 Radiated Emission
It was tested the following operating mode, after connecting all peripheral devices.
Operating Modes:
-For Measurement Below 1 GHz
Data Communication
Rear Camera Preview / Front Camera Preview / MP4 Play
Receiver mode (LTE B5 Low CH Idle)
Receiver mode (LTE B5 Middle CH Idle)
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Receiver mode (LTE B12+B17 Low CH Idle)
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
Receiver mode (LTE B12+B17 High CH Idle)
-For Measurement Above 1 GHz
Data Communication
Rear Camera Preview / Front Camera Preview / MP4 Play
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
NOTE.
1. Three orientations have been investigated and the worst case orientation is reported.
2. The worst case of operating mode is reported.
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
11 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
5. CONDUCTED AND RADIATED EMISSION TEST SUMMARY
5.1 Conducted Emission
The test results of conducted emission at mains ports provide the following information:
Applicable Standards
FCC PART 15 Subpart B Class B
ANSI C63.4-2014
Detector
Quasi-Peak, CISPR-Average
Bandwidth
9 kHz (6 dB)
Worst Case of
Operating Mode
Data Communication
MP4 Play
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
Kind of Test Site
Shielded Room
Temperature
20.6 °C
Relative Humidity
41.5 %
Test Date
February 20, 2019
- Calculation Formula:
1. Conductor L1 = Hot, Conductor N = Neutral
2. Corr. = LISN Factor + Cable Loss
3. QuasiPeak or CAverage= Receiver Reading + Corr.
4. Margin = Limit – QuasiPeak or CAverage
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
12 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 1: Conducted Emission, Data Communication, Line (L1)
FCC CLASS B
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
13 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (L1)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.150000
44.1
9.000
L1
9.6
21.9
66.0
0.156000
43.4
9.000
L1
9.6
22.3
65.7
0.160000
44.9
9.000
L1
9.6
20.6
65.5
0.164000
46.2
9.000
L1
9.6
19.0
65.3
0.172000
45.6
9.000
L1
9.6
19.3
64.9
0.202000
36.8
9.000
L1
9.7
26.7
63.5
4.510000
27.0
9.000
L1
9.8
29.0
56.0
4.650000
27.5
9.000
L1
9.8
28.5
56.0
4.672000
26.5
9.000
L1
9.8
29.5
56.0
4.692000
26.5
9.000
L1
9.8
29.5
56.0
4.724000
24.0
9.000
L1
9.8
32.0
56.0
4.756000
25.1
9.000
L1
9.8
30.9
56.0
9.420000
31.9
9.000
L1
10.0
28.1
60.0
9.432000
31.7
9.000
L1
10.0
28.3
60.0
9.458000
32.1
9.000
L1
10.0
27.9
60.0
9.466000
32.1
9.000
L1
10.0
27.9
60.0
9.556000
32.3
9.000
L1
10.0
27.7
60.0
9.724000
31.8
9.000
L1
10.0
28.2
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
14 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (L1)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.150000
22.5
9.000
L1
9.6
33.5
56.0
0.156000
24.5
9.000
L1
9.6
31.2
55.7
0.160000
26.4
9.000
L1
9.6
29.0
55.5
0.164000
31.3
9.000
L1
9.6
24.0
55.3
0.186000
29.0
9.000
L1
9.7
25.2
54.2
0.190000
28.2
9.000
L1
9.7
25.9
54.0
4.510000
19.4
9.000
L1
9.8
26.6
46.0
4.672000
17.5
9.000
L1
9.8
28.5
46.0
4.692000
17.0
9.000
L1
9.8
29.0
46.0
4.704000
16.9
9.000
L1
9.8
29.1
46.0
4.724000
16.9
9.000
L1
9.8
29.1
46.0
4.756000
16.9
9.000
L1
9.8
29.1
46.0
9.420000
25.2
9.000
L1
10.0
24.8
50.0
9.426000
25.6
9.000
L1
10.0
24.4
50.0
9.432000
25.2
9.000
L1
10.0
24.8
50.0
9.452000
25.1
9.000
L1
10.0
24.9
50.0
9.466000
25.4
9.000
L1
10.0
24.6
50.0
9.556000
25.2
9.000
L1
10.0
24.8
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
15 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 2: Conducted Emission, Data Communication, Line (N)
FCC CLASS B
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
16 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (N)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.152000
45.2
9.000
9.6
20.7
65.9
0.158000
44.4
9.000
9.6
21.2
65.6
0.164000
43.7
9.000
9.6
21.5
65.3
0.168000
43.2
9.000
9.6
21.9
65.1
0.172000
46.6
9.000
9.6
18.2
64.9
0.184000
45.6
9.000
9.6
18.7
64.3
3.492000
30.7
9.000
9.8
25.3
56.0
3.546000
30.3
9.000
9.8
25.7
56.0
3.662000
29.1
9.000
9.8
26.9
56.0
3.696000
28.6
9.000
9.8
27.4
56.0
3.720000
27.8
9.000
9.8
28.2
56.0
3.786000
27.2
9.000
9.8
28.8
56.0
9.374000
36.1
9.000
9.9
23.9
60.0
9.482000
36.4
9.000
9.9
23.6
60.0
9.516000
36.7
9.000
9.9
23.3
60.0
9.520000
36.1
9.000
9.9
23.9
60.0
9.526000
36.5
9.000
9.9
23.5
60.0
9.534000
36.2
9.000
9.9
23.8
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
17 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (N)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.154000
23.1
9.000
9.6
32.7
55.8
0.158000
23.8
9.000
9.6
31.7
55.6
0.162000
26.7
9.000
9.6
28.7
55.4
0.168000
26.9
9.000
9.6
28.2
55.1
0.184000
34.0
9.000
9.6
20.3
54.3
0.188000
33.2
9.000
9.6
20.9
54.1
3.292000
23.7
9.000
9.8
22.3
46.0
3.390000
23.7
9.000
9.8
22.3
46.0
3.546000
22.2
9.000
9.8
23.8
46.0
3.602000
21.4
9.000
9.8
24.6
46.0
3.696000
20.0
9.000
9.8
26.0
46.0
3.720000
19.4
9.000
9.8
26.6
46.0
9.460000
29.5
9.000
9.9
20.5
50.0
9.482000
29.1
9.000
9.9
20.9
50.0
9.516000
29.2
9.000
9.9
20.8
50.0
9.526000
29.3
9.000
9.9
20.7
50.0
9.534000
29.0
9.000
9.9
21.0
50.0
9.566000
28.8
9.000
9.9
21.2
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
18 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 3: Conducted Emission, MP4 Play, Line (L1)
FCC CLASS B_Exten Cable
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
19 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (L1)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.468000
46.0
9.000
L1
9.8
10.6
56.5
0.474000
43.3
9.000
L1
9.8
13.1
56.4
0.482000
44.6
9.000
L1
9.8
11.7
56.3
0.846000
42.7
9.000
L1
9.8
13.4
56.0
0.852000
42.3
9.000
L1
9.8
13.7
56.0
0.866000
41.9
9.000
L1
9.8
14.1
56.0
1.170000
42.3
9.000
L1
9.8
13.7
56.0
1.234000
42.8
9.000
L1
9.8
13.2
56.0
1.304000
43.9
9.000
L1
9.9
12.1
56.0
1.344000
43.6
9.000
L1
9.9
12.4
56.0
1.348000
43.9
9.000
L1
9.9
12.1
56.0
1.352000
43.9
9.000
L1
9.9
12.1
56.0
17.814000
43.3
9.000
L1
10.5
16.7
60.0
18.398000
43.1
9.000
L1
10.5
16.9
60.0
19.198000
43.1
9.000
L1
10.6
16.9
60.0
19.382000
43.2
9.000
L1
10.6
16.8
60.0
19.398000
43.4
9.000
L1
10.6
16.6
60.0
19.838000
42.9
9.000
L1
10.6
17.1
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
20 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (L1)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.468000
30.8
9.000
L1
9.8
15.7
46.5
0.472000
31.9
9.000
L1
9.8
14.6
46.5
0.476000
32.7
9.000
L1
9.8
13.7
46.4
0.480000
33.5
9.000
L1
9.8
12.8
46.3
0.888000
31.1
9.000
L1
9.8
14.9
46.0
0.892000
30.8
9.000
L1
9.8
15.2
46.0
1.108000
32.6
9.000
L1
9.8
13.4
46.0
1.170000
32.8
9.000
L1
9.8
13.2
46.0
1.234000
33.2
9.000
L1
9.8
12.8
46.0
1.304000
32.1
9.000
L1
9.9
13.9
46.0
1.344000
31.1
9.000
L1
9.9
14.9
46.0
1.352000
31.6
9.000
L1
9.9
14.4
46.0
18.304000
34.0
9.000
L1
10.5
16.0
50.0
18.338000
33.8
9.000
L1
10.5
16.2
50.0
19.198000
33.7
9.000
L1
10.6
16.3
50.0
19.382000
34.1
9.000
L1
10.6
15.9
50.0
19.398000
34.1
9.000
L1
10.6
15.9
50.0
19.798000
34.1
9.000
L1
10.6
15.9
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
21 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 4: Conducted Emission, MP4 Play, Line (N)
FCC CLASS B_Exten Cable
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
22 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (N)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.468000
39.7
9.000
9.9
16.9
56.5
0.480000
40.2
9.000
9.9
16.1
56.3
0.486000
41.6
9.000
9.9
14.7
56.2
0.496000
41.6
9.000
9.9
14.5
56.1
0.854000
38.6
9.000
10.0
17.4
56.0
0.884000
37.8
9.000
10.0
18.2
56.0
1.210000
38.2
9.000
10.0
17.8
56.0
1.252000
39.5
9.000
10.0
16.5
56.0
1.300000
40.4
9.000
10.0
15.6
56.0
1.330000
38.8
9.000
10.1
17.2
56.0
1.348000
39.9
9.000
10.1
16.1
56.0
1.414000
38.8
9.000
10.1
17.2
56.0
16.886000
34.8
9.000
10.7
25.2
60.0
17.058000
34.4
9.000
10.8
25.6
60.0
17.908000
36.5
9.000
10.8
23.5
60.0
18.220000
36.8
9.000
10.8
23.2
60.0
18.658000
36.4
9.000
10.8
23.6
60.0
18.706000
36.7
9.000
10.8
23.3
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
23 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (N)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.486000
32.7
9.000
9.9
13.5
46.2
0.490000
32.0
9.000
9.9
14.2
46.2
0.494000
29.5
9.000
9.9
16.6
46.1
0.498000
25.7
9.000
9.9
20.4
46.0
0.800000
28.2
9.000
9.9
17.8
46.0
0.848000
27.7
9.000
10.0
18.3
46.0
1.210000
30.4
9.000
10.0
15.6
46.0
1.252000
30.3
9.000
10.0
15.7
46.0
1.300000
29.7
9.000
10.0
16.3
46.0
1.330000
28.9
9.000
10.1
17.1
46.0
1.348000
28.4
9.000
10.1
17.6
46.0
1.414000
27.7
9.000
10.1
18.3
46.0
16.886000
26.8
9.000
10.7
23.2
50.0
17.058000
26.8
9.000
10.8
23.2
50.0
18.220000
29.2
9.000
10.8
20.8
50.0
18.658000
29.2
9.000
10.8
20.8
50.0
18.706000
29.3
9.000
10.8
20.7
50.0
19.706000
30.2
9.000
10.9
19.8
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
24 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 5: Conducted Emission, Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording, Line
(L1)
FCC CLASS B_Exten Cable
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
25 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (L1)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.468000
45.9
9.000
L1
9.8
10.6
56.5
0.482000
44.4
9.000
L1
9.8
11.9
56.3
0.846000
42.9
9.000
L1
9.8
13.1
56.0
0.856000
41.8
9.000
L1
9.8
14.2
56.0
0.864000
41.9
9.000
L1
9.8
14.1
56.0
0.868000
41.4
9.000
L1
9.8
14.6
56.0
1.172000
41.7
9.000
L1
9.8
14.3
56.0
1.234000
43.3
9.000
L1
9.8
12.7
56.0
1.296000
43.3
9.000
L1
9.9
12.7
56.0
1.304000
43.7
9.000
L1
9.9
12.3
56.0
1.344000
43.6
9.000
L1
9.9
12.4
56.0
1.348000
44.0
9.000
L1
9.9
12.0
56.0
18.232000
43.3
9.000
L1
10.5
16.7
60.0
18.498000
43.3
9.000
L1
10.5
16.7
60.0
19.386000
43.3
9.000
L1
10.6
16.7
60.0
19.404000
43.3
9.000
L1
10.6
16.7
60.0
19.562000
43.5
9.000
L1
10.6
16.5
60.0
19.972000
42.9
9.000
L1
10.6
17.1
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
26 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (L1)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.470000
31.4
9.000
L1
9.8
15.1
46.5
0.474000
32.2
9.000
L1
9.8
14.3
46.4
0.478000
33.2
9.000
L1
9.8
13.2
46.4
0.482000
33.7
9.000
L1
9.8
12.6
46.3
0.846000
31.5
9.000
L1
9.8
14.5
46.0
0.866000
27.8
9.000
L1
9.8
18.2
46.0
1.172000
32.6
9.000
L1
9.8
13.4
46.0
1.192000
32.8
9.000
L1
9.8
13.2
46.0
1.306000
31.6
9.000
L1
9.9
14.4
46.0
1.344000
31.1
9.000
L1
9.9
14.9
46.0
1.350000
31.4
9.000
L1
9.9
14.6
46.0
1.402000
32.4
9.000
L1
9.9
13.6
46.0
18.062000
33.7
9.000
L1
10.5
16.3
50.0
18.288000
33.8
9.000
L1
10.5
16.2
50.0
18.824000
33.9
9.000
L1
10.6
16.1
50.0
19.326000
33.9
9.000
L1
10.6
16.1
50.0
19.478000
34.4
9.000
L1
10.6
15.6
50.0
19.972000
33.9
9.000
L1
10.6
16.1
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
27 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 6: Conducted Emission, Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording, Line
(N)
FCC CLASS B_Exten Cable
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
28 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (N)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.480000
40.3
9.000
9.9
16.1
56.3
0.486000
41.5
9.000
9.9
14.7
56.2
0.496000
41.6
9.000
9.9
14.5
56.1
0.838000
37.4
9.000
10.0
18.6
56.0
0.842000
38.5
9.000
10.0
17.5
56.0
0.852000
39.5
9.000
10.0
16.5
56.0
1.246000
38.4
9.000
10.0
17.6
56.0
1.250000
39.3
9.000
10.0
16.7
56.0
1.300000
40.6
9.000
10.0
15.4
56.0
1.348000
40.0
9.000
10.1
16.0
56.0
1.372000
39.4
9.000
10.1
16.6
56.0
1.396000
39.2
9.000
10.1
16.8
56.0
16.310000
34.7
9.000
10.7
25.3
60.0
17.770000
36.2
9.000
10.8
23.8
60.0
17.916000
36.5
9.000
10.8
23.5
60.0
18.054000
36.8
9.000
10.8
23.2
60.0
18.240000
36.6
9.000
10.8
23.4
60.0
18.264000
37.0
9.000
10.8
23.0
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
29 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (N)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.466000
21.3
9.000
9.9
25.2
46.6
0.470000
24.7
9.000
9.9
21.8
46.5
0.486000
32.8
9.000
9.9
13.5
46.2
0.838000
28.5
9.000
10.0
17.5
46.0
0.842000
28.4
9.000
10.0
17.6
46.0
0.850000
27.2
9.000
10.0
18.8
46.0
1.210000
30.3
9.000
10.0
15.7
46.0
1.250000
30.3
9.000
10.0
15.7
46.0
1.258000
29.4
9.000
10.0
16.6
46.0
1.372000
29.4
9.000
10.1
16.6
46.0
1.396000
27.5
9.000
10.1
18.5
46.0
1.420000
29.8
9.000
10.1
16.2
46.0
17.610000
28.6
9.000
10.8
21.4
50.0
18.190000
29.4
9.000
10.8
20.6
50.0
18.240000
29.4
9.000
10.8
20.6
50.0
18.256000
29.3
9.000
10.8
20.7
50.0
18.472000
29.4
9.000
10.8
20.6
50.0
18.996000
29.1
9.000
10.8
20.9
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
30 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 7: Conducted Emission, Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera
Recording, Line (L1)
FCC CLASS B_Exten Cable
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
31 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (L1)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.468000
45.9
9.000
L1
9.8
10.6
56.5
0.472000
43.3
9.000
L1
9.8
13.1
56.5
0.482000
44.5
9.000
L1
9.8
11.8
56.3
0.852000
42.4
9.000
L1
9.8
13.6
56.0
0.862000
42.3
9.000
L1
9.8
13.7
56.0
0.868000
41.7
9.000
L1
9.8
14.3
56.0
1.122000
42.5
9.000
L1
9.8
13.5
56.0
1.290000
43.8
9.000
L1
9.9
12.2
56.0
1.302000
44.0
9.000
L1
9.9
12.0
56.0
1.344000
43.6
9.000
L1
9.9
12.4
56.0
1.348000
43.9
9.000
L1
9.9
12.1
56.0
1.352000
44.0
9.000
L1
9.9
12.0
56.0
18.194000
43.5
9.000
L1
10.5
16.5
60.0
19.168000
43.1
9.000
L1
10.6
16.9
60.0
19.180000
43.2
9.000
L1
10.6
16.8
60.0
19.364000
43.4
9.000
L1
10.6
16.6
60.0
19.382000
43.5
9.000
L1
10.6
16.5
60.0
19.646000
43.4
9.000
L1
10.6
16.6
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
32 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (L1)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.478000
33.2
9.000
L1
9.8
13.2
46.4
0.482000
33.7
9.000
L1
9.8
12.6
46.3
0.844000
31.5
9.000
L1
9.8
14.5
46.0
0.850000
31.1
9.000
L1
9.8
14.9
46.0
0.862000
28.9
9.000
L1
9.8
17.1
46.0
0.870000
27.3
9.000
L1
9.8
18.7
46.0
1.066000
34.1
9.000
L1
9.8
11.9
46.0
1.122000
32.6
9.000
L1
9.8
13.4
46.0
1.288000
33.1
9.000
L1
9.9
12.9
46.0
1.344000
31.2
9.000
L1
9.9
14.8
46.0
1.348000
31.4
9.000
L1
9.9
14.6
46.0
1.352000
31.7
9.000
L1
9.9
14.3
46.0
17.696000
33.2
9.000
L1
10.5
16.8
50.0
17.992000
33.7
9.000
L1
10.5
16.3
50.0
18.194000
34.0
9.000
L1
10.5
16.0
50.0
19.382000
34.1
9.000
L1
10.6
15.9
50.0
19.482000
34.3
9.000
L1
10.6
15.7
50.0
19.726000
34.1
9.000
L1
10.6
15.9
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
33 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Figure 8: Conducted Emission, Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera
Recording, Line (N)
FCC CLASS B_Exten Cable
90
80
70
60
Level in dBμ
50
40
30
20
10
-10
150k
300
400 500
800 1M
2M
3M
4M 5M 6
8 10M
20M
30M
Frequency in Hz
FCC CLASS B_QP
Preview Result 2-AVG
FCC CLASS B_ AV
Final Result 1-QPK
Preview Result 1-PK+
Final Result 2-CAV
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
34 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
QuasiPeak Final Result, Line (N)
Frequency
(MHz)
QuasiPeak
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.468000
39.6
9.000
9.9
17.0
56.5
0.480000
40.2
9.000
9.9
16.1
56.3
0.488000
41.9
9.000
9.9
14.3
56.2
0.494000
40.5
9.000
9.9
15.6
56.1
0.498000
41.3
9.000
9.9
14.8
56.0
0.850000
39.3
9.000
10.0
16.7
56.0
1.242000
39.0
9.000
10.0
17.0
56.0
1.286000
39.1
9.000
10.0
16.9
56.0
1.298000
40.0
9.000
10.0
16.0
56.0
1.302000
40.7
9.000
10.0
15.3
56.0
1.348000
39.9
9.000
10.1
16.1
56.0
1.372000
39.4
9.000
10.1
16.6
56.0
17.690000
36.2
9.000
10.8
23.8
60.0
18.178000
36.9
9.000
10.8
23.1
60.0
18.264000
37.0
9.000
10.8
23.0
60.0
18.308000
37.0
9.000
10.8
23.0
60.0
18.446000
36.7
9.000
10.8
23.3
60.0
19.428000
36.9
9.000
10.9
23.1
60.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
35 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
CAverage Final Result, Line (N)
Frequency
(MHz)
CAverage
(dBuV)
Bandwidth
(kHz)
Line
Corr.
(dB)
Margin
(dB)
Limit
(dBuV)
0.486000
32.7
9.000
9.9
13.5
46.2
0.490000
32.0
9.000
9.9
14.2
46.2
0.494000
29.5
9.000
9.9
16.6
46.1
0.498000
25.7
9.000
9.9
20.3
46.0
0.804000
28.0
9.000
9.9
18.0
46.0
0.850000
27.1
9.000
10.0
18.9
46.0
1.198000
30.5
9.000
10.0
15.5
46.0
1.242000
30.1
9.000
10.0
15.9
46.0
1.286000
29.6
9.000
10.0
16.4
46.0
1.298000
29.5
9.000
10.0
16.5
46.0
1.302000
29.5
9.000
10.0
16.5
46.0
1.372000
29.5
9.000
10.1
16.5
46.0
17.690000
28.6
9.000
10.8
21.4
50.0
18.002000
29.1
9.000
10.8
20.9
50.0
18.178000
29.2
9.000
10.8
20.8
50.0
18.250000
29.2
9.000
10.8
20.8
50.0
18.266000
29.4
9.000
10.8
20.6
50.0
19.308000
29.9
9.000
10.9
20.1
50.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
36 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
5.2 Radiated Emission
The test results of radiated emission provide the following information:
-For Measurement Below 1 GHz
Applicable Standards
FCC PART 15 Subpart B Class B
ANSI C63.4-2014
Detector
Quasi-Peak
Bandwidth
120 kHz (6 dB)
Worst Case of
Operating Mode
Data Communication
MP4 Play
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
Kind of Test Site
3 m semi anechoic chamber
Temperature
22.3 / 22.0 / 23.1 °C
Relative Humidity
42.2 / 42.1 / 43.5 %
Test Date
February 19 / February 20 / February 21, 2019
- Calculation Formula:
1. POL. H = Horizontal, POL. V = Vertical
2. QuasiPeak = Reading (Receiver Reading) + Corr.
3. Corr. (Correction Factor) = Antenna Factor + Cable Loss
4. Margin = Limit - QuasiPeak
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
37 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Data Communication
Frequency
(MHz)
Quasi Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
74.399200
31.9
291.9
331.0
17.2
8.1
40.0
500.024000
38.6
100.0
233.0
25.2
7.4
46.0
599.946400
36.9
100.0
355.0
27.3
9.1
46.0
749.984800
38.5
100.0
154.0
30.0
7.5
46.0
800.003200
38.9
100.0
107.0
30.1
7.1
46.0
874.999200
40.2
100.0
232.0
30.9
5.8
46.0
Frequency
(MHz)
Quasi Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
44.136800
25.0
100.0
56.0
20.1
15.0
40.0
59.820800
33.6
100.0
43.0
19.6
6.4
40.0
88.661600
28.2
225.2
0.0
14.6
15.3
43.5
102.552800
26.0
100.0
18.0
15.7
17.5
43.5
148.021600
23.8
125.1
222.0
19.9
19.7
43.5
695.651200
28.4
174.7
328.0
28.7
17.6
46.0
MP4 Play
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Frequency
(MHz)
Quasi Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
41.491200
24.3
100.0
43.0
20.0
15.7
40.0
60.284000
33.9
100.0
41.0
19.5
6.1
40.0
88.367200
27.8
191.9
0.0
14.6
15.7
43.5
102.743200
25.4
100.0
1.0
15.7
18.1
43.5
138.659200
23.6
100.0
200.0
19.6
19.9
43.5
678.017600
28.3
199.7
188.0
28.5
17.7
46.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
38 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
Frequency
(MHz)
Quasi Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
42.900000
24.0
119.8
0.0
20.1
16.0
40.0
60.014400
33.9
100.0
36.0
19.5
6.1
40.0
88.484800
28.1
191.9
0.0
14.6
15.4
43.5
103.855200
26.3
274.9
8.0
15.9
17.2
43.5
146.571200
24.4
100.0
254.0
19.9
19.1
43.5
679.612000
28.3
225.3
154.0
28.5
17.7
46.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
39 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
-For Measurement Above 1 GHz
Applicable Standards
FCC PART 15 Subpart B Class B
ANSI C63.4-2014
Detector
Peak mode: Peak (RBW: 1 MHz, VBW: 3 MHz)
CISPR-Average mode: Peak (RBW: 1 MHz, VBW: 10 Hz)
Highest Frequency
5 825 MHz
Tested Frequency Range 1 GHz to 30 GHz
Worst Case of
Operating Mode
Data Communication
MP4 Play
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
Kind of Test Site
3 m semi anechoic chamber
Temperature
23.1 °C
Relative Humidity
43.5 %
Test Date
February 21, 2019
- Calculation Formula:
1. POL. H = Horizontal, POL. V = Vertical
2. Peak or CAverage = Reading (Receiver Reading) + Corr.
3. Corr. (Correction Factor) = Antenna Factor+ Cable Loss –Amplifier Gain
4. Margin = Limit - Peak or CAverage
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
40 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Data Communication
Frequency
(MHz)
Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
1399.940000
48.4
217.5
197.0
-28.2
25.6
74.0
1995.460000
50.3
113.6
58.0
-26.7
23.7
74.0
2660.840000
50.4
100.0
0.0
-24.2
23.6
74.0
2814.720000
33.5
249.9
72.0
-23.6
40.5
74.0
5991.110000
43.9
100.0
356.0
-17.1
30.1
74.0
14758.390000
46.9
138.8
20.0
-1.4
27.1
74.0
Frequency
(MHz)
CAverage
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
1399.940000
47.0
217.5
197.0
-28.2
7.0
54.0
1995.460000
25.0
113.6
58.0
-26.7
29.0
54.0
2660.840000
22.9
100.0
0.0
-24.2
31.1
54.0
2814.720000
20.6
249.9
72.0
-23.6
33.4
54.0
5991.110000
27.7
100.0
356.0
-17.1
26.3
54.0
14758.390000
34.2
138.8
20.0
-1.4
19.8
54.0
Frequency
(MHz)
Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
3047.035000
33.5
125.7
50.0
-22.7
40.5
74.0
5306.090000
36.8
149.5
22.0
-18.1
37.2
74.0
7347.830000
40.9
149.9
298.0
-13.3
33.1
74.0
9864.895000
44.5
199.6
184.0
-9.5
29.5
74.0
11146.890000
45.3
138.5
329.0
-5.4
28.7
74.0
14707.775000
46.8
126.6
116.0
-1.4
27.2
74.0
Frequency
(MHz)
CAverage
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
3047.035000
21.0
125.7
50.0
-22.7
33.0
54.0
5306.090000
23.9
149.5
22.0
-18.1
30.1
54.0
7347.830000
28.1
149.9
298.0
-13.3
25.9
54.0
9864.895000
30.8
199.6
184.0
-9.5
23.2
54.0
11146.890000
32.5
138.5
329.0
-5.4
21.5
54.0
14707.775000
34.2
126.6
116.0
-1.4
19.8
54.0
MP4 Play
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
41 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
Receiver mode (LTE B5 High CH Idle) + Rear Camera Recording
Frequency
(MHz)
Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
3137.890000
33.6
140.6
69.0
-22.6
40.4
74.0
5251.365000
38.1
149.5
289.0
-18.2
35.9
74.0
7304.075000
40.2
161.5
325.0
-13.5
33.8
74.0
10011.085000
43.3
100.0
261.0
-9.3
30.7
74.0
10961.460000
45.4
163.5
82.0
-5.7
28.6
74.0
14744.260000
47.1
188.6
296.0
-1.4
26.9
74.0
Frequency
(MHz)
CAverage
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
3137.890000
21.2
140.6
69.0
-22.6
32.8
54.0
5251.365000
24.2
149.5
289.0
-18.2
29.8
54.0
7304.075000
27.9
161.5
325.0
-13.5
26.1
54.0
10011.085000
30.9
100.0
261.0
-9.3
23.1
54.0
10961.460000
32.6
163.5
82.0
-5.7
21.4
54.0
14744.260000
33.8
188.6
296.0
-1.4
20.2
54.0
Receiver mode (LTE B12+B17 Middle CH Idle) + Front Camera Recording
Frequency
(MHz)
Peak
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
3027.225000
33.4
150.0
139.0
-22.8
40.6
74.0
5625.125000
37.7
150.0
250.0
-17.6
36.3
74.0
7427.760000
41.2
149.9
174.0
-12.9
32.8
74.0
9868.580000
43.0
100.0
335.0
-9.5
31.0
74.0
10654.585000
45.5
191.4
41.0
-6.7
28.5
74.0
14768.635000
46.6
245.4
320.0
-1.4
27.4
74.0
Frequency
(MHz)
CAverage
(dBμV/m)
Antenna
Height
(cm)
POL.
(H/V)
Azimuth
(deg)
Corr.
(dB)
Margin
(dB)
Limit
(dBμV/m)
3027.225000
20.9
150.0
139.0
-22.8
33.1
54.0
5625.125000
24.1
150.0
250.0
-17.6
29.9
54.0
7427.760000
28.5
149.9
174.0
-12.9
25.5
54.0
9868.580000
30.9
100.0
335.0
-9.5
23.1
54.0
10654.585000
32.5
191.4
41.0
-6.7
21.5
54.0
14768.635000
33.8
245.4
320.0
-1.4
20.2
54.0
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
42 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
6. CONCLUSION
The data collected shows that the EUT Type: Tablet, FCC ID: A3LSMT515,
Model: SM-T515 complies with §15.107 and §15.109 of the FCC rules.
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
43 / 44
HCT CO.,LTD.
FCC ID: A3LSMT515
Report No.: HCT-EM-1902-FC006-R1
7. APPENDIX A. TEST SETUP PHOTOGRAPHS
Please refer to Appendix A
This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd.
F-TP22-03 (Rev.00)
44 / 44
HCT CO.,LTD.
Download: SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMT515 Tablet Test Report FCC CERTIFICATION B Samsung Electronics Co Ltd
Document ID4192144
Application IDifb+/pOgsWpdwyhV6xubKQ==
Document DescriptionSAMSUNG_SM-T515_EMI Report_Rev.1
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize115.7kB (1446256 bits)
Date Submitted2019-03-06 00:00:00
Date Available2019-03-06 00:00:00
Creation Date2019-02-28 15:32:44
Producing SoftwareAdobe PDF Library 15.0
Document Lastmod2019-02-28 15:54:00
Document TitleFCC CERTIFICATION B
Document CreatorWordìš© Acrobat PDFMaker 15
Document Author: 권고운

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : 권고운
Company                         :
Create Date                     : 2019:02:28 15:32:44+09:00
Modify Date                     : 2019:02:28 15:54:00+09:00
Source Modified                 : D:20190228061922
Subject                         :
Tagged PDF                      : No
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Metadata Date                   : 2019:02:28 15:54+09:00
Creator Tool                    :  Word용 Acrobat PDFMaker 15
Document ID                     : uuid:43d4d34f-6ebd-4738-92b7-973bbd582ce0
Instance ID                     : uuid:34962b01-5130-4628-999b-2ab30038543a
Format                          : application/pdf
Title                           : FCC CERTIFICATION B
Description                     :
Creator                         : 권고운
Producer                        : Adobe PDF Library 15.0
Keywords                        :
Page Layout                     : OneColumn
Page Count                      : 44
