Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515

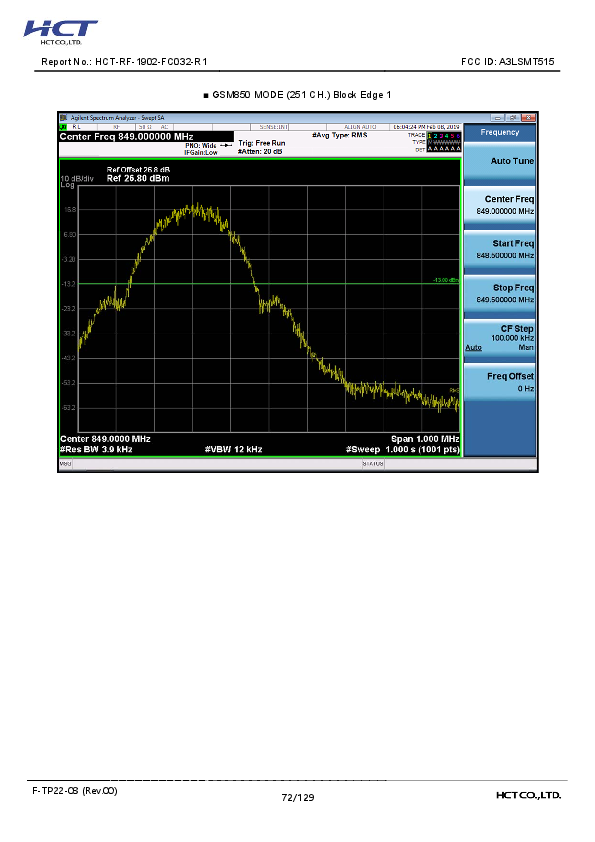

■ GSM850 MODE (251 CH.) Block Edge 1
F-TP22-03 (Rev.00)
72/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM850 MODE (251 CH.) Block Edge 2
F-TP22-03 (Rev.00)
73/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM850 MODE (251 CH.) Block Edge 3
F-TP22-03 (Rev.00)
74/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (128 CH.) Block Edge 1
F-TP22-03 (Rev.00)
75/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (128 CH.) Block Edge 2
F-TP22-03 (Rev.00)
76/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (128 CH.) Block Edge 3
F-TP22-03 (Rev.00)
77/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (251 CH.) Block Edge 1
F-TP22-03 (Rev.00)
78/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (251 CH.) Block Edge 2
F-TP22-03 (Rev.00)
79/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (251 CH.) Block Edge 3
F-TP22-03 (Rev.00)
80/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM1900 MODE (512 CH.) Block Edge 1
F-TP22-03 (Rev.00)
81/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM1900 MODE (512 CH.) Block Edge 2
F-TP22-03 (Rev.00)
82/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM1900 MODE (512 CH.) Block Edge 3
Note : We used a narrower RBW in order to increase accuracy.
Calculation
F-TP22-03 (Rev.00)
= Reading Value + 10*log(1 MHz/100 kHz) dB = -51.59 dBm + 10 dB = -41.59 dBm
83/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM1900 MODE (810 CH.) Block Edge 1
F-TP22-03 (Rev.00)
84/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM1900 MODE (810 CH.) Block Edge 2
F-TP22-03 (Rev.00)
85/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ GSM1900 MODE (810 CH.) Block Edge 3
Note : We used a narrower RBW in order to increase accuracy.
Calculation
F-TP22-03 (Rev.00)
= Reading Value + 10*log(1 MHz/100 kHz) dB = -51.026 dBm + 10 dB = -41.026 dBm
86/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (512 CH.) Block Edge 1
F-TP22-03 (Rev.00)
87/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (512 CH.) Block Edge 2
F-TP22-03 (Rev.00)
88/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (512 CH.) Block Edge 3
Note : We used a narrower RBW in order to increase accuracy.
Calculation
F-TP22-03 (Rev.00)
= Reading Value + 10*log(1 MHz/100 kHz) dB = -51.82 dBm + 10 dB = -41.82 dBm
89/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (810 CH.) Block Edge 1
F-TP22-03 (Rev.00)
90/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (810 CH.) Block Edge 2
F-TP22-03 (Rev.00)
91/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ EDGE MODE (810 CH.) Block Edge 3
Note : We used a narrower RBW in order to increase accuracy.
Calculation
F-TP22-03 (Rev.00)
= Reading Value + 10*log(1 MHz/100 kHz) dB = -51.846 dBm + 10 dB = -41.846 dBm
92/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA850 MODE (4132 CH.) Block Edge
F-TP22-03 (Rev.00)
93/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA850 MODE (4132 CH.) – 4 MHz Span
F-TP22-03 (Rev.00)
94/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA850MODE (4233 CH.) Block Edge
F-TP22-03 (Rev.00)
95/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA850MODE (4233 CH.) – 4 MHz Span
F-TP22-03 (Rev.00)
96/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1900 MODE (9262 CH.) Block Edge
F-TP22-03 (Rev.00)
97/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1900 MODE (9262 CH.) – 4 MHz Span
F-TP22-03 (Rev.00)
98/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1900 MODE (9538 CH.) Block Edge
F-TP22-03 (Rev.00)
99/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1900 MODE (9538 CH.) – 4 MHz Span
F-TP22-03 (Rev.00)
100/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1700 MODE (1312 CH.) Block Edge
F-TP22-03 (Rev.00)
101/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1700 MODE (1312 CH.) – 4 MHz Span
F-TP22-03 (Rev.00)
102/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1700 MODE (1513 CH.) Block Edge
F-TP22-03 (Rev.00)
103/129
Report No.: HCT-RF-1902-FC032-R1
FCC ID: A3LSMT515
■ WCDMA1700 MODE (1513 CH.) – 4 MHz Span
F-TP22-03 (Rev.00)
104/129
