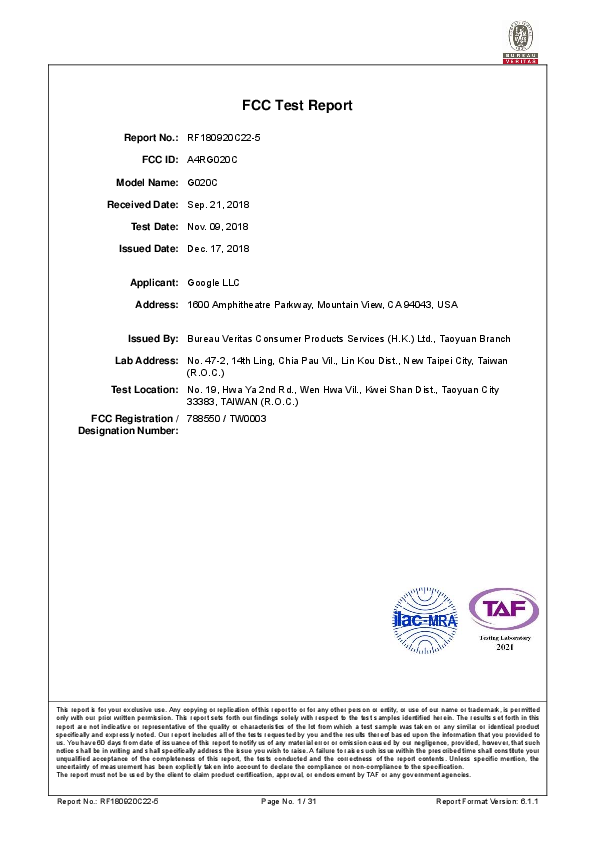

                                                               FCC Test Report

                       Report No.: RF180920C22-5

                             FCC ID: A4RG020C

                    Model Name: G020C

                 Received Date: Sep. 21, 2018

                         Test Date: Nov. 09, 2018

                     Issued Date: Dec. 17, 2018


                         Applicant: Google LLC

                           Address: 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA


                        Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

                    Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan
                                 (R.O.C.)
                  Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City
                                 33383, TAIWAN (R.O.C.)
         FCC Registration / 788550 / TW0003
       Designation Number:




This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted
only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this
report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product
specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to
us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such
notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your
unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the
uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification.
The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies.


Report No.: RF180920C22-5                                             Page No. 1 / 31                                            Report Format Version: 6.1.1


                                                                   Table of Contents
Release Control Record .................................................................................................................................. 3
1         Certificate of Conformity...................................................................................................................... 4
2         Summary of Test Results ..................................................................................................................... 5
    2.1      Measurement Uncertainty ................................................................................................................... 5
    2.2      Modification Record ............................................................................................................................ 5
3         General Information .............................................................................................................................. 6
    3.1      General Description of EUT ................................................................................................................ 6
    3.2      Description of Test Modes ................................................................................................................... 6
    3.2.1    Test Mode Applicability and Tested Channel Deta .............................................................................. 7
    3.3      Description of Support Units ............................................................................................................... 8
    3.3.1    Configuration of System under Test .................................................................................................... 8
    3.4      General Description of Applied Standards .......................................................................................... 8
4         Test Types and Results ........................................................................................................................ 9
    4.1      Radiated Emission Measurement ....................................................................................................... 9
    4.1.1    Limits of Radiated Emission Measurement ......................................................................................... 9
    4.1.2    Test Instruments ................................................................................................................................ 10
    4.1.3    Test Procedures.................................................................................................................................. 11
    4.1.4    Deviation from Test Standard ............................................................................................................. 11
    4.1.5    Test Set Up ........................................................................................................................................ 12
    4.1.6    EUT Operating Conditions................................................................................................................. 12
    4.1.7    Test Results ....................................................................................................................................... 13
    4.2      Conducted Emission Measurement .................................................................................................. 22
    4.2.1    Limits of Conducted Emission Measurement .................................................................................... 22
    4.2.2    Test Instruments ................................................................................................................................ 22
    4.2.3    Test Procedures................................................................................................................................. 23
    4.2.4    Deviation from Test Standard ............................................................................................................ 23
    4.2.5    Test Setup .......................................................................................................................................... 23
    4.2.6    EUT Operating Conditions................................................................................................................. 23
    4.2.7    Test Results ....................................................................................................................................... 24
    4.3      Frequency Stability ............................................................................................................................ 26
    4.3.1    Limits of Frequency Stability Measurement ...................................................................................... 26
    4.3.2    Test Setup .......................................................................................................................................... 26
    4.3.3    Test Instruments ................................................................................................................................ 26
    4.3.4    Test Procedure .................................................................................................................................. 26
    4.3.5    Deviation fromTest Standard ............................................................................................................. 27
    4.3.6    EUT Operating Conditions................................................................................................................. 27
    4.3.7    Test Result ......................................................................................................................................... 27
    4.4      20dB Bandwidth ................................................................................................................................ 28
    4.4.1    Limits of 20dB Bandwidth Measurement ........................................................................................... 28
    4.4.2    Test Setup .......................................................................................................................................... 28
    4.4.3    Test Instruments ................................................................................................................................ 28
    4.4.4    Test Procedures................................................................................................................................. 28
    4.4.5    Deviation from Test Standard ............................................................................................................ 28
    4.4.6    EUT Operating Conditions................................................................................................................. 28
    4.4.7    Test Results ....................................................................................................................................... 29
5         Pictures of Test Arrangements .......................................................................................................... 30
Appendix – Information on the Testing Laboratories ................................................................................ 31




Report No.: RF180920C22-5                                            Page No. 2 / 31                                             Report Format Version: 6.1.1


                                          Release Control Record


Issue No.              Description                                        Date Issued
RF180920C22-5          Original release                                   Dec. 17, 2018




Report No.: RF180920C22-5                    Page No. 3 / 31       Report Format Version: 6.1.1


1    Certificate of Conformity


            Product: Smartphone

       Model Name: G020C

    Sample Status: Identical Prototype

          Applicant: Google LLC

          Test Date: Nov. 09, 2018

         Standards: 47 CFR FCC Part 15, Subpart C (Section 15.225)
                        47 CFR FCC Part 15, Subpart C (Section 15.215)
                        ANSI C63.10:2013



The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd.,
Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data
evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts
of the measurements of the sample’s RF characteristics under the conditions specified in this report.




      Prepared by :                                             , Date:          Dec. 17, 2018
                               Polly Chien / Specialist




     Approved by :                                              , Date:          Dec. 17, 2018
                            Bruce Chen / Project Engineer




Report No.: RF180920C22-5                     Page No. 4 / 31                         Report Format Version: 6.1.1


2     Summary of Test Results

                            47 CFR FCC Part 15, Subpart C (Section 15.225, 15.215)
       FCC
                                Test Item                   Result                   Remarks
      Clause
                                                                     Meet the requirement of limit.
      15.207      Conducted emission test                    Pass    Minimum passing margin is -8.72dB at
                                                                     0.17744MHz
                                                                     Meet the requirement of limit.
                  The field strength of any emissions
    15.225 (a)                                               Pass    Minimum passing margin is –69.9dB at
                  within the band 13.553-13.567 MHz
                                                                     13.56MHz.
                  The field strength of any emissions
    15.225 (b)    within the bands 13.410-13.553             Pass    Meet the requirement of limit.
                  MHz and 13.567-13.710 MHz
                  The field strength of any emissions
    15.225 (c)    within the bands 13.110-13.410             Pass    Meet the requirement of limit.
                  MHz and 13.710-14.010 MHz
                  The field strength of any emissions                Meet the requirement of limit.
    15.225 (d)    appearing outside of the                   Pass    Minimum passing margin is -6.1dB at
                  13.110-14.010 MHz band                             66.84MHz.
    15.225 (e)    The frequency tolerance                    Pass    Meet the requirement of limit.

    15.215 (c)    20dB Bandwidth                             Pass    Meet the requirement of limit.


2.1    Measurement Uncertainty
Where relevant, the following measurement uncertainty levels have been estimated for tests performed on
the EUT as specified in CISPR 16-4-2:
                                                                                 Expanded Uncertainty
                  Measurement                               Frequency
                                                                                         (k=2) (±)
      Conducted Emissions at mains ports                150kHz ~ 30MHz                    2.94 dB
                                                        30MHz ~ 200MHz                    3.86 dB
        Radiated Emissions up to 1 GHz
                                                       200MHz ~1000MHz                    3.87 dB


2.2    Modification Record
There were no modifications required for compliance.




Report No.: RF180920C22-5                      Page No. 5 / 31                        Report Format Version: 6.1.1


3     General Information
3.1    General Description of EUT

 Product                      Smartphone
 Model Name                   G020C
 Sample Status                Identical Prototype
                              3.85Vdc (Battery)
 Power Supply Rating          5Vdc or 9Vdc (Adapter)
                              5Vdc (Host equipment)
 Modulation Type              ASK
                              Type A: 106 kbit/s
                              Type B: 106 kbit/s
 Data Rate
                              Type F: 212 kbit/s, 424 kbit/s
                              Type V: 848 kbit/s
 Operating Frequency          13.56MHz
 Field Strength               14.10dBuV/m
 Antenna Type                 Loop antenna
 Accessory Device             Refer to Note as below
 Data Cable Supplied          Refer to Note as below
Note:
1. There’re 2 configurations for the EUT listed as below.
     Main Sample: EUT + Battery 1
     2nd Sample: EUT + Battery 2
   After pre-tested with the EUT, only the worst configuration (main sample) was chosen for the final test.
2. The EUT accessories list refers to EUT Photo.pdf.


3.2    Description of Test Modes
1 channel is provided to this EUT
         Channel                                                 Freq. (MHz)
              1                                                    13.56




Report No.: RF180920C22-5                      Page No. 6 / 31                         Report Format Version: 6.1.1


3.2.1        Test Mode Applicability and Tested Channel Deta

 EUT Configure                           Applicable to
                                                                                                 Description
    Mode                RE              PLC           FS          EB
         -               √               √             √           √       -
Where         RE: Radiated Emission                                        PLC: Power Line Conducted Emission
              FS: Frequency Stability                                      EB: 20dB Bandwidth measurement


Note:
1. The EUT had been pre-tested on the positioned of each 3 axis. The worst case was found when positioned on Y-plane.
2. The EUT had been pre-tested on low, middle, high data rate. The worst case was found when data rate was low. Therefore, Type A
    was chosen for final test.


Radiated Emission Test:
     Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
     between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
     Following channel(s) was (were) selected for the final test as listed below.
     EUT Configure Mode                       Available Channel                Tested Channel               Modulation Type
                    -                                 1                              1                             ASK


Power Line Conducted Emission Test:
     Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
     between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
     Following channel(s) was (were) selected for the final test as listed below.
     EUT Configure Mode                       Available Channel                Tested Channel               Modulation Type
                    -                                 1                              1                             ASK


Frequency Stability:
     Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
     between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
     Following channel(s) was (were) selected for the final test as listed below.
     EUT Configure Mode                       Available Channel                Tested Channel               Modulation Type
                    -                                 1                              1                             ASK


20dB Bandwidth:
     Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
     between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
     Following channel(s) was (were) selected for the final test as listed below.
     EUT Configure Mode                       Available Channel                Tested Channel               Modulation Type
                    -                                 1                              1                             ASK


Test Condition:
        Applicable to               Environmental Conditions                    Input Power                     Tested by
              RE                             22 deg. C, 66% RH                  120Vac, 60Hz                    Adair Peng
              PLC                            25 deg. C, 70% RH                  120Vac, 60Hz                    Adair Peng
              FS                             22 deg. C, 66% RH                  120Vac, 60Hz                    Adair Peng
              BW                             22 deg. C, 66% RH                  120Vac, 60Hz                    Adair Peng




Report No.: RF180920C22-5                                    Page No. 7 / 31                             Report Format Version: 6.1.1


3.3     Description of Support Units
The EUT has been tested as an independent unit.

3.3.1    Configuration of System under Test



                       Earphone (EUT)                           EUT

                        Adapter (EUT)




3.4     General Description of Applied Standards
The EUT is a RF Product. According to the specifications of the manufacturer, it must comply with the
requirements of the following standards:

FCC Part 15, Subpart C (15.225)
FCC Part 15, Subpart C (15.215)
KDB 414788 D01 Radiated Test Site v01r01
ANSI C63.10-2013

All test items have been performed and recorded as per the above standards.




Report No.: RF180920C22-5                     Page No. 8 / 31                        Report Format Version: 6.1.1


4     Test Types and Results
4.1     Radiated Emission Measurement
4.1.1    Limits of Radiated Emission Measurement
The field strength of any emissions within the band 13.553-13.567 MHz shall not exceed 15,848
microvolts/meter at 30 meters.

Within the bands 13.410-13.553 MHz and 13.567-13.710 MHz, the field strength of any emissions shall not
exceed 334 microvolts/meter at 30 meters.

Within the bands 13.110-13.410 MHz and 13.710-14.010 MHz the field strength of any emissions shall not
exceed 106 microvolts/meter at 30 meters.

The field strength of any emissions appearing outside of the 13.110-14.010 MHz band shall not exceed the
general radiated emission limits in § 15.209.


         Frequencies (MHz)           Field Strength (microvolts/meter)   Measurement Distance (meters)

            0.009 ~ 0.490                      2400/F(kHz)                             300
            0.490 ~ 1.705                     24000/F(kHz)                             30
            1.705 ~ 30.0                             30                                30
               30 ~ 88                              100                                 3
              88 ~ 216                              150                                 3
              216 ~ 960                             200                                 3
             Above 960                              500                                 3
Note:
1.    The lower limit shall apply at the transition frequencies.
2.    Emission level (dBuV/m) = 20 log Emission level (uV/m).
3.    For frequencies above 1000MHz, the field strength limits are based on average detector, however, the
      peak field strength of any emission shall not exceed the maximum permitted average limits, specified
      above by more than 20dB under any condition of modulation.




Report No.: RF180920C22-5                    Page No. 9 / 31                       Report Format Version: 6.1.1


4.1.2   Test Instruments
  Description & Manufacturer         Model No.                    Serial No.     Cal. Date          Cal. Due
Test Receiver
                                       ESIB7                       100187      May 29, 2018      May 28, 2019
ROHDE & SCHWARZ
Spectrum Analyzer
                                      FSP40                        100041      Dec. 12, 2017 Dec. 11, 2018
ROHDE & SCHWARZ
BILOG Antenna
                                    VULB9168                      9168-171     Dec. 11, 2017 Dec. 10, 2018
SCHWARZBECK
HORN Antenna
                                       9120D                         209       Nov. 01, 2018     Oct. 31, 2019
SCHWARZBECK
HORN Antenna
                                    BBHA 9170               BBHA9170241        Dec. 01, 2017 Nov. 30, 2018
SCHWARZBECK
Loop Antenna
                                     HLA 6121                      45745       Jun. 14, 2018     Jun. 13, 2019
TESEQ
Preamplifier
Agilent                                8447D                 2944A10738        Aug. 21, 2018 Aug. 20, 2019
(Below 1GHz)
Preamplifier
Agilent                                8449B                 3008A02465        Apr. 03, 2018     Apr. 02, 2019
(Above 1GHz)
RF signal cable                                             Cable-CH3-03
                                  SUCOFLEX 104                                 Aug. 21, 2018 Aug. 20, 2019
HUBER+SUHNER                                                 (223653/4)
RF signal cable                    SUCOFLEX
                                                            Cable-CH3-03
HUBER+SUHNER&                   104&EMC104-SM-S                                Aug. 21, 2018 Aug. 20, 2019
                                                          (309224+170907)
EMCI                                 M-8000
Software                          ADT_Radiated_
                                                                     NA             NA                 NA
BV ADT                             V7.6.15.9.5
Antenna Tower
                                     MA 4000                       013303           NA                 NA
inn-co GmbH
Antenna Tower Controller
                                       AT100                 AT93021702             NA                 NA
BV ADT
Turn Table
                                       TT100                 TT93021702             NA                 NA
BV ADT
Turn Table Controller
                                      SC100                  SC93021702             NA                 NA
BV ADT
Boresight Antenna Fixture             FBA-01                  FBA-SIP01             NA                 NA

Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable
         to NML/ROC and NIST/USA.
      2. The test was performed in HwaYa Chamber 3.
      3. The horn antenna and preamplifier (model: 8449B) are used only for the measurement of emission
         frequency above 1GHz if tested.
      4. The FCC Designation Number is TW0003. The number will be varied with the Lab location and
         scope as attached.
      5. The IC Site Registration No. is 7450F-3.




Report No.: RF180920C22-5                      Page No. 10 / 31                        Report Format Version: 6.1.1


4.1.3   Test Procedures
For Radiated emission below 30MHz
a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter chamber
    room. The table was rotated 360 degrees to determine the position of the highest radiation.
b.   The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top
     of a variable-height antenna tower.
c.   Parallel, perpendicular, and ground-parallel orientations of the antenna are set to make the
     measurement.
d.   For each suspected emission, the EUT was arranged to its worst case and the rotatable table was turned
     from 0 degrees to 360 degrees to find the maximum reading.
e.   The test-receiver system was set to Quasi-Peak Detect Function and Specified Bandwidth with
     Maximum Hold Mode.
Note:
1.   The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 9kHz at frequency
     below 30MHz.

For Radiated emission above 30MHz
a. The EUT was placed on the top of a rotating table 0.8 meters (for 30MHz ~ 1GHz) / 1.5 meters (for above
    1GHz) above the ground at 3 meter chamber room for test. The table was rotated 360 degrees to
    determine the position of the highest radiation.
b.   The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top
     of a variable-height antenna tower.
c.   The height of antenna is varied from one meter to four meters above the ground to determine the
     maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to
     make the measurement.
d.   For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned
     to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to
     find the maximum reading.
e.   The test-receiver system was set to quasi-peak detect function and specified bandwidth with maximum
     hold mode when the test frequency is below 1 GHz.
f.   The test-receiver system was set to peak and average detect function and specified bandwidth with
     maximum hold mode when the test frequency is above 1 GHz. If the peak reading value also meets
     average limit, measurement with the average detector is unnecessary.
Note:
1. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120kHz for
    Quasi-peak detection (QP) at frequency below 1GHz.
2.   The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 3 MHz
     for Peak detection (PK) at frequency above 1GHz.
3.   The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and the video bandwidth is ≥ 1/T
     (Duty cycle < 98%) or 10Hz (Duty cycle ≥ 98%) for Average detection (AV) at frequency above 1GHz.
4.   All modes of operation were investigated and the worst-case emissions are reported.


4.1.4   Deviation from Test Standard
No deviation.




Report No.: RF180920C22-5                     Page No. 11 / 31                        Report Format Version: 6.1.1


4.1.5   Test Set Up
For Radiated emission below 30MHz


                                                                                   1m
            EUT&                               3m
            Support Units

                                    Turn Table

               80cm


                                           Ground Plane
                                            Test Receiver




For Radiated emission 30MHz to 1GHz

                                                               Ant. Tower
                                                                                      1-4m
                                                                                      Variable
              EUT&
                                               3m
                                                10m
              Support Units

                                         Turn Table

                  80cm


                                              Ground Plane

                                              Test Receiver




For the actual test configuration, please refer to the attached file (Test Setup Photo).

KDB 414788 OATS and Chamber Correlation Justification
- Based on FCC 15.31 (f) (2): measurements may be performed at a distance closer than that specified in
  regulations; however, an attempt should be made to avoid making measurements in the near field.
- Open-field site and chamber correlation testing had been performed and chamber measured test result is
  the worst case test result.

4.1.6   EUT Operating Conditions

a. Set the EUT under transmission condition continuously at specific channel frequency.




Report No.: RF180920C22-5                       Page No. 12 / 31                           Report Format Version: 6.1.1


4.1.7   Test Results

EUT Test Condition                                         Measurement Detail
Channel                         Channel 1                  Frequency Range                13.553 ~ 13.567MHz
Input Power                     120Vac, 60Hz               Detector Function              Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH                 Tested By                      Adair Peng

                            Antenna Polarity & Test Distance: Loop Antenna Open At 3m
                     Emission                                   Antenna          Table        Raw          Correction
          Freq.                        Limit      Margin
No.                    Level                                     Height         Angle         Value         Factor
         (MHz)                       (dBuV/m)      (dB)
                     (dBuV/m)                                     (m)          (Degree)      (dBuV)         (dB/m)
 1       *13.56      54.10 QP       124.00 QP     -69.90          1.00            181         32.30          21.80
Remarks:
           1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
           2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB)
           3. The other emission levels were very low against the limit.
           4. Margin value = Emission Level – Limit value
           5. “ * “ : Fundamental frequency
           6. Above limits have been translated by the formula

The measured field strength was extrapolated to distance 30 meters, using the formula that the limit of field
strength varies as the inverse distance square (40dB per decade of distance)
Example:
13.56MHz = 15848uV/m                     30m
             = 84dBuV/m                  30m
             = 84+20log(30/3)2           3m
             = 124dBuV/m




                            Antenna Polarity & Test Distance: Loop Antenna Open At 30m
                                 Emission
          Freq.                                                   Limit                           Margin
No.                                Level
         (MHz)                                                  (dBuV/m)                           (dB)
                                 (dBuV/m)
 1       *13.56                  14.10 QP                       84.00 QP                          -69.90
                                                                           2
Remarks: Emission Level at 30m = Emission Level at 3m + 20log(3/30)




Report No.: RF180920C22-5                        Page No. 13 / 31                           Report Format Version: 6.1.1


EUT Test Condition                                          Measurement Detail
Channel                         Channel 1                   Frequency Range               13.553 ~ 13.567MHz
Input Power                     120Vac, 60Hz                Detector Function             Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH                  Tested By                     Adair Peng

                            Antenna Polarity & Test Distance: Loop Antenna Close At 3m
                     Emission                                   Antenna          Table        Raw          Correction
          Freq.                        Limit      Margin
No.                    Level                                     Height         Angle         Value         Factor
         (MHz)                       (dBuV/m)      (dB)
                     (dBuV/m)                                     (m)          (Degree)      (dBuV)         (dB/m)
 1       *13.56      51.20 QP        124.00 QP     -72.80         1.00            241         29.40          21.80
Remarks:
           1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
           2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB)
           3. The other emission levels were very low against the limit.
           4. Margin value = Emission Level – Limit value
           5. “ * “ : Fundamental frequency
           6. Above limits have been translated by the formula

The measured field strength was extrapolated to distance 30 meters, using the formula that the limit of field
strength varies as the inverse distance square (40dB per decade of distance)
Example:
13.56MHz = 15848uV/m                     30m
             = 84dBuV/m                  30m
             = 84+20log(30/3)2           3m
             = 124dBuV/m




                            Antenna Polarity & Test Distance: Loop Antenna Close At 30m
                                 Emission
          Freq.                                                   Limit                           Margin
No.                                Level
         (MHz)                                                  (dBuV/m)                           (dB)
                                 (dBuV/m)
 1       *13.56                  11.20 QP                       84.00 QP                          -72.80
                                                                           2
Remarks: Emission Level at 30m = Emission Level at 3m + 20log(3/30)




Report No.: RF180920C22-5                        Page No. 14 / 31                           Report Format Version: 6.1.1


EUT Test Condition                                       Measurement Detail
Channel                     Channel 1                    Frequency Range                13.553 ~ 13.567MHz
Input Power                 120Vac, 60Hz                 Detector Function              Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH               Tested By                      Adair Peng

                    Antenna Polarity & Test Distance: Loop Antenna Ground-Parallel At 3m
                     Emission                                 Antenna          Table        Raw          Correction
          Freq.                       Limit     Margin
No.                    Level                                   Height         Angle         Value         Factor
         (MHz)                      (dBuV/m)     (dB)
                     (dBuV/m)                                   (m)          (Degree)      (dBuV)         (dB/m)
 1       *13.56      48.20 QP      124.00 QP    -75.80          1.00            123         26.40          21.80
Remarks:
           1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
           2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB)
           3. The other emission levels were very low against the limit.
           4. Margin value = Emission Level – Limit value
           5. “ * “ : Fundamental frequency
           6. Above limits have been translated by the formula

The measured field strength was extrapolated to distance 30 meters, using the formula that the limit of field
strength varies as the inverse distance square (40dB per decade of distance)
Example:
13.56MHz = 15848uV/m                     30m
             = 84dBuV/m                  30m
             = 84+20log(30/3)2           3m
             = 124dBuV/m




                    Antenna Polarity & Test Distance: Loop Antenna Ground-Parallel At 3m
                                Emission
          Freq.                                                 Limit                           Margin
No.                               Level
         (MHz)                                                (dBuV/m)                           (dB)
                                (dBuV/m)
 1       *13.56                 8.20 QP                       84.00 QP                          -75.80
                                                                         2
Remarks: Emission Level at 30m = Emission Level at 3m + 20log(3/30)




Report No.: RF180920C22-5                      Page No. 15 / 31                           Report Format Version: 6.1.1


EUT Test Condition                                         Measurement Detail
Channel                         Channel 1                  Frequency Range            Below 30MHz
Input Power                     120Vac, 60Hz               Detector Function          Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH                 Tested By                  Adair Peng

                            Antenna Polarity & Test Distance: Loop Antenna Open At 3m
                     Emission                                   Antenna      Table        Raw           Correction
          Freq.                         Limit     Margin
No.                    Level                                     Height     Angle         Value          Factor
         (MHz)                        (dBuV/m)     (dB)
                     (dBuV/m)                                     (m)      (Degree)      (dBuV)          (dB/m)
 1       3.33        41.30 QP         69.50 QP    -28.20            1.00      90          21.60           19.70
 2       7.60        36.00 QP         69.50 QP    -33.50            1.00       7          14.80           21.20
 3       10.82       35.50 QP         69.50 QP    -34.00            1.00      250         13.70           21.80
 4       19.52       43.10 QP         69.50 QP    -26.40            1.00       7          21.30           21.80
 5       23.80       36.60 QP         69.50 QP    -32.90            1.00      340         14.60           22.00
 6       27.79       36.20 QP         69.50 QP    -33.30            1.00       2          14.10           22.10


Remarks:
              1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
              2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB)
              3. The other emission levels were very low against the limit.
              4. Margin value = Emission Level – Limit value




                            Antenna Polarity & Test Distance: Loop Antenna Open At 30m
          Freq.                Emission Level                     Limit                        Margin
No.
         (MHz)                   (dBuV/m)                       (dBuV/m)                        (dB)
 1        3.33                    1.30 QP                        29.5 QP                       -28.20
 2        7.60                   -4.00 QP                        29.5 QP                       -33.50
 3       10.82                   -4.50 QP                        29.5 QP                       -34.00
 4       19.52                    3.10 QP                        29.5 QP                       -26.40
 5       23.80                   -3.40 QP                        29.5 QP                       -32.90
 6       27.79                   -3.80 QP                        29.5 QP                       -33.30
Remarks: Emission Level at 30m = Emission Level at 3m + 20log(3/30)2




Report No.: RF180920C22-5                        Page No. 16 / 31                        Report Format Version: 6.1.1


EUT Test Condition                                          Measurement Detail
Channel                         Channel 1                   Frequency Range            Below 30MHz
Input Power                     120Vac, 60Hz                Detector Function          Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH                  Tested By                  Adair Peng

                            Antenna Polarity & Test Distance: Loop Antenna Close At 3m
                     Emission                                   Antenna       Table        Raw          Correction
          Freq.                         Limit     Margin
No.                    Level                                     Height      Angle         Value         Factor
         (MHz)                        (dBuV/m)     (dB)
                     (dBuV/m)                                     (m)       (Degree)      (dBuV)         (dB/m)
 1        3.23       33.70 QP         69.50 QP     -35.80           1.00       246         14.10          19.60
 2        6.59       34.50 QP         69.50 QP     -35.00           1.00       250         13.60          20.90
 3       11.88       35.20 QP         69.50 QP     -34.30           1.00       67          13.40          21.80
 4       17.55       35.30 QP         69.50 QP     -34.20           1.00       283         13.50          21.80
 5       21.01       36.50 QP         69.50 QP     -33.00           1.00       45          14.60          21.90
 6       28.17       35.20 QP         69.50 QP     -34.30           1.00       25          13.10          22.10


Remarks:
           1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
           2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB)
           3. The other emission levels were very low against the limit.
           4. Margin value = Emission Level – Limit value




                            Antenna Polarity & Test Distance: Loop Antenna Close At 30m
          Freq.                Emission Level                     Limit                        Margin
No.
         (MHz)                   (dBuV/m)                       (dBuV/m)                        (dB)
 1        3.23                    -6.3 QP                        29.5 QP                       -35.80
 2        6.59                   -5.50 QP                        29.5 QP                       -35.00
 3       11.88                   -4.80 QP                        29.5 QP                       -34.30
 4       17.55                   -4.70 QP                        29.5 QP                       -34.20
 5       21.01                   -3.50 QP                        29.5 QP                       -33.00
 6       28.17                   -4.80 QP                        29.5 QP                       -34.30
Remarks: Emission Level at 30m = Emission Level at 3m + 20log(3/30)2




Report No.: RF180920C22-5                        Page No. 17 / 31                        Report Format Version: 6.1.1


EUT Test Condition                                      Measurement Detail
Channel                      Channel 1                  Frequency Range            Below 30MHz
Input Power                  120Vac, 60Hz               Detector Function          Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH              Tested By                  Adair Peng

                    Antenna Polarity & Test Distance: Loop Antenna Ground-Parallel At 3m
                     Emission                                Antenna      Table        Raw          Correction
          Freq.                      Limit     Margin
No.                    Level                                  Height     Angle         Value         Factor
         (MHz)                     (dBuV/m)     (dB)
                     (dBuV/m)                                  (m)      (Degree)      (dBuV)         (dB/m)
 1       3.23        44.10 QP      69.50 QP    -25.40            1.00      190         24.50          19.60
 2       8.52        35.80 QP      69.50 QP    -33.70            1.00      181         14.40          21.40
 3       12.22       38.40 QP      69.50 QP    -31.10            1.00       8          16.60          21.80
 4       19.47       47.80 QP      69.50 QP    -21.70            1.00      156         26.00          21.80
 5       24.86       40.50 QP      69.50 QP    -29.00            1.00      80          18.50          22.00
 6       28.13       41.30 QP      69.50 QP    -28.20            1.00      331         19.20          22.10


Remarks:
           1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
           2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB)
           3. The other emission levels were very low against the limit.
           4. Margin value = Emission Level – Limit value




                   Antenna Polarity & Test Distance: Loop Antenna Ground-Parallel At 30m
          Freq.             Emission Level                     Limit                       Margin
No.
         (MHz)                (dBuV/m)                       (dBuV/m)                       (dB)
 1        3.23                 4.10 QP                        29.5 QP                      -25.40
 2        8.52                -4.20 QP                        29.5 QP                      -33.70
 3       12.22                -1.60 QP                        29.5 QP                      -31.10
 4       19.47                 7.80 QP                        29.5 QP                      -21.70
 5       24.86                 0.50 QP                        29.5 QP                      -29.00
 6       28.13                 1.30 QP                        29.5 QP                      -28.20
Remarks: Emission Level at 30m = Emission Level at 3m + 20log(3/30)2




Report No.: RF180920C22-5                     Page No. 18 / 31                       Report Format Version: 6.1.1




EUT Test Condition                                         Measurement Detail
Channel                     Channel 1                      Frequency Range            Below 1000MHz
Input Power                 120Vac, 60Hz                   Detector Function          Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH                 Tested By                  Adair Peng

                                Antenna Polarity & Test Distance: Horizontal At 3m
                     Emission                                  Antenna       Table        Raw         Correction
          Freq.                       Limit       Margin
No.                    Level                                    Height      Angle         Value        Factor
         (MHz)                      (dBuV/m)       (dB)
                     (dBuV/m)                                     (m)      (Degree)      (dBuV)        (dB/m)
 1       49.34        29.2 QP         40.0        -10.8         1.49 H        286         38.5           -9.3
 2       175.72       29.7 QP         43.5        -13.8         1.00 H        288         39.4           -9.7
 3       364.32       24.1 QP         46.0        -21.9         1.00 H        268         30.3           -6.2
 4       527.64       26.6 QP         46.0        -19.4         1.49 H        15          29.7           -3.1
 5       677.35       29.7 QP         46.0        -16.3         1.00 H         11         29.6            0.1
 6       825.11       39.1 QP         46.0         -6.9         1.49 H        212         36.3            2.8


Remarks:
           1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
           2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB)
           3. The other emission levels were very low against the limit.
           4. Margin value = Emission Level – Limit value




Report No.: RF180920C22-5                       Page No. 20 / 31                        Report Format Version: 6.1.1


EUT Test Condition                                        Measurement Detail
Channel                     Channel 1                     Frequency Range            Below 1000MHz
Input Power                 120Vac, 60Hz                  Detector Function          Quasi-Peak
Environmental Conditions 22 deg. C, 66% RH                Tested By                  Adair Peng

                                Antenna Polarity & Test Distance: Vertical At 3m
                     Emission                                 Antenna       Table        Raw         Correction
          Freq.                      Limit       Margin
No.                    Level                                   Height      Angle         Value        Factor
         (MHz)                     (dBuV/m)       (dB)
                     (dBuV/m)                                    (m)      (Degree)      (dBuV)        (dB/m)
 1       66.84        33.9 QP        40.0         -6.1         1.01 V        301         44.4          -10.5
 2       148.50       24.8 QP        43.5        -18.7         1.01 V        285         33.8           -9.0
 3       418.76       25.3 QP        46.0        -20.7         1.51 V        12          30.3           -5.0
 4       638.46       29.0 QP        46.0        -17.0         1.01 V        16          29.4           -0.4
 5       729.84       35.4 QP        46.0        -10.6         1.01 V        16          34.1            1.3
 6       935.94       39.6 QP        46.0         -6.4         2.00 V        238         34.7            4.9


Remarks:
           1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
           2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB)
           3. The other emission levels were very low against the limit.
           4. Margin value = Emission Level – Limit value




Report No.: RF180920C22-5                      Page No. 21 / 31                        Report Format Version: 6.1.1


4.2     Conducted Emission Measurement
4.2.1    Limits of Conducted Emission Measurement
                                                            Conducted Limit (dBuV)
        Frequency (MHz)
                                               Quasi-peak                               Average
           0.15 - 0.5                             66 - 56                                56 - 46
           0.50 - 5.0                                56                                    46
           5.0 - 30.0                                60                                    50
Note: 1. The lower limit shall apply at the transition frequencies.
      2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50MHz.

4.2.2    Test Instruments

   Description & Manufacturer           Model No.                 Serial No.     Cal. Date          Cal. Due
Test Receiver
                                         ESCS30                    100291      Sep. 03, 2018 Sep. 02, 2019
ROHDE & SCHWARZ
RF signal cable
                                          5D-FB              Cable-cond1-01    Sep. 05, 2018 Sep. 04, 2019
Woken
LISN
ROHDE & SCHWARZ                          ENV216                    101826      Feb. 26, 2018 Feb. 25, 2019
(EUT)
LISN
ROHDE & SCHWARZ                         ESH3-Z5                    100311      Aug. 19, 2018 Aug. 18, 2019
(Peripheral)
Software                             BV ADT_Cond_
                                                                     NA              NA                NA
ADT                                     V7.3.7.4

Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable
         to NML/ROC and NIST/USA.
      2. The test was performed in HwaYa Shielded Room 1.
      3. The VCCI Site Registration No. is C-2040.




Report No.: RF180920C22-5                      Page No. 22 / 31                        Report Format Version: 6.1.1


4.2.3   Test Procedures
a.   The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being
     connected to the power mains through a line impedance stabilization network (LISN). Other support units
     were connected to the power mains through another LISN. The two LISNs provide 50 ohm/ 50uH of
     coupling impedance for the measuring instrument.
b.   Both lines of the power mains connected to the EUT were checked for maximum conducted interference.
c.   The frequency range from 150kHz to 30MHz was searched. Emission levels under (Limit - 20dB) was not
     recorded.
Note: The resolution bandwidth and video bandwidth of test receiver is 9kHz for quasi-peak detection (QP)
       and average detection (AV) at frequency 0.15MHz-30MHz.

4.2.4   Deviation from Test Standard
No deviation.

4.2.5   Test Setup
                                 Vertical Ground
                                  Reference Plane                                Test Receiver


                                  EUT
                      40cm




                                                        80cm
                      LISN



                                                                   Horizontal Ground
                                                                    Reference Plane

                       Note: 1.Support units were connected to second LISN.




For the actual test configuration, please refer to the attached file (Test Setup Photo).

4.2.6   EUT Operating Conditions
Same as 4.1.6.




Report No.: RF180920C22-5                       Page No. 23 / 31                           Report Format Version: 6.1.1


4.2.7   Test Results
                                                                                      Quasi-Peak (QP) /
Phase                              Line (L)                     Detector Function
                                                                                      Average (AV)

                         Corr.          Reading Value     Emission Level           Limit             Margin
           Freq.
 No                     Factor             [dB (uV)]         [dB (uV)]          [dB (uV)]             (dB)
          [MHz]             (dB)         Q.P.     AV.      Q.P.     AV.       Q.P.       AV.     Q.P.      AV.
  1      0.15782            9.73        42.12    22.68    51.85    32.41     65.58     55.58    -13.73 -23.17
  2      0.32614            9.74        38.43    17.34    48.17    27.08     59.55     49.55    -11.38 -22.47
  3      0.42370            9.75        30.12    15.93    39.87    25.68     57.38     47.38    -17.51 -21.70
  4      0.97501            9.68        30.91    18.07    40.59    27.75     56.00     46.00    -15.41 -18.25
  5      5.25255            9.81        16.96     8.46    26.77    18.27     60.00     50.00    -33.23 -31.73
  6      13.56521           9.91        25.59    21.24    35.50    31.15     60.00     50.00    -24.50 -18.85

Remarks:
               1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
               2. The emission levels of other frequencies were very low against the limit.
               3. Margin value = Emission level - Limit value
               4. Correction factor = Insertion loss + Cable loss
               5. Emission Level = Correction Factor + Reading Value.




Report No.: RF180920C22-5                          Page No. 24 / 31                       Report Format Version: 6.1.1


                                                                                     Quasi-Peak (QP) /
Phase                              Neutral (N)                 Detector Function
                                                                                     Average (AV)

                         Corr.         Reading Value     Emission Level           Limit             Margin
           Freq.
 No                     Factor            [dB (uV)]         [dB (uV)]          [dB (uV)]              (dB)
          [MHz]             (dB)        Q.P.     AV.      Q.P.     AV.       Q.P.       AV.      Q.P.      AV.
  1      0.17744            9.73       46.15    18.98    55.88    28.71     64.60     54.60     -8.72    -25.89
  2      0.24775            9.73       32.36    19.76    42.09    29.49     61.83     51.83    -19.74 -22.34
  3      0.48935            9.75       33.08    19.81    42.83    29.56     56.18     46.18    -13.35 -16.62
  4      0.79515            9.73       29.96    15.84    39.69    25.57     56.00     46.00    -16.31 -20.43
  5      2.35133            9.74       25.32    13.16    35.06    22.90     56.00     46.00    -20.94 -23.10
  6      13.56521           9.98       24.88    20.65    34.86    30.63     60.00     50.00    -25.14 -19.37

Remarks:
               1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
               2. The emission levels of other frequencies were very low against the limit.
               3. Margin value = Emission level - Limit value
               4. Correction factor = Insertion loss + Cable loss
               5. Emission Level = Correction Factor + Reading Value.




Report No.: RF180920C22-5                         Page No. 25 / 31                       Report Format Version: 6.1.1


4.3      Frequency Stability
4.3.1      Limits of Frequency Stability Measurement
The frequency tolerance of the carrier signal shall be maintained within +/- 0.01% of the operating frequency
over a temperature variation of –20 degrees to 50 degrees C at normal supply voltage, and for a variation in
the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C.

4.3.2      Test Setup

                 Temperature Chamber

      Spectrum Analyzer




                     DC Power Supply




4.3.3      Test Instruments
        Description &
                                       Model No.                  Serial No.       Cal. Date          Cal. Due
        Manufacturer
Spectrum Analyzer
                                        FSP40                         100039     Jun. 11, 2018     Jun. 10, 2019
ROHDE & SCHWARZ
WIT Standard
Temperature And Humidity               TH-4S-C                    W981030        Jun. 04, 2018     Jun. 03, 2019
Chamber
Digital Multimeter
                                         87-III                   70360742       Jun. 29, 2018     Jun. 28, 2019
Fluke
DC Power Supply
                                        6603D                         700637          NA                 NA
Topward

Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable
         to NML/ROC and NIST/USA.

4.3.4      Test Procedure
a.     The EUT was placed inside the environmental test chamber and powered by nominal DC voltage.
b.     Turned the EUT on and coupled its output to a spectrum analyzer.
c.     Turned the EUT off and set the chamber to the highest temperature specified.
d.     Allowed sufficient time (approximately 30 min) for the temperature of the chamber to stabilize then turned
       the EUT on and measured the operating frequency after 2, 5, and 10 minutes.
e.     Repeated step 2 and 3 with the temperature chamber set to the lowest temperature.
f.     The test chamber was allowed to stabilize at +20 degree C for a minimum of 30 minutes. The supply
       voltage was then adjusted on the EUT from 85% to 115% and the frequency record.



Report No.: RF180920C22-5                          Page No. 26 / 31                      Report Format Version: 6.1.1


4.3.5   Deviation fromTest Standard
No deviation.

4.3.6   EUT Operating Conditions
Same as Item 4.1.6.

4.3.7   Test Result

                                        Frequency Stability Versus Temp.

                        0 Minute                2 Minute                5 Minute                10 Minute
      Power
TEMP.        Measured Frequency Measured Frequency Measured Frequency Measured Frequency
      Supply
 (℃)         Frequency   Drift  Frequency   Drift  Frequency   Drift  Frequency   Drift
       (Vdc)
                   (MHz)           %       (MHz)           %        (MHz)          %        (MHz)           %

  50     3.85     13.55993   -0.00052     13.55993    -0.00052     13.55993   -0.00052    13.55994      -0.00044
  40     3.85     13.56002   0.00015      13.56001     0.00007     13.56001   0.00007     13.56002       0.00015
  30     3.85     13.55998   -0.00015     13.55999    -0.00007     13.55998   -0.00015    13.55998      -0.00015
  20     3.85     13.56004   0.00029      13.56004     0.00029     13.56004   0.00029     13.56004       0.00029
  10     3.85     13.56003   0.00022      13.56003     0.00022     13.56002   0.00015     13.56002       0.00015
   0     3.85     13.55997   -0.00022     13.55997    -0.00022     13.55997   -0.00022    13.55997      -0.00022
  -10    3.85     13.56001   0.00007      13.56002     0.00015     13.56002   0.00015     13.56002       0.00015
  -20    3.85     13.56003   0.00022      13.56003     0.00022     13.56002   0.00015     13.56004       0.00029


                                       Frequency Stability Versus Voltage

                        0 Minute                2 Minute                5 Minute                10 Minute
      Power
TEMP.        Measured Frequency Measured Frequency Measured Frequency Measured Frequency
      Supply
 (℃)         Frequency   Drift  Frequency   Drift  Frequency   Drift  Frequency   Drift
       (Vdc)
                   (MHz)           %       (MHz)           %        (MHz)          %        (MHz)           %
          4.4     13.56004   0.00029      13.56004     0.00029     13.56004   0.00029     13.56004       0.00029
  20     3.85     13.56004   0.00029      13.56004     0.00029     13.56004   0.00029     13.56004       0.00029
          3.6     13.56004   0.00029      13.56004     0.00029     13.56004   0.00029     13.56004       0.00029




Report No.: RF180920C22-5                       Page No. 27 / 31                         Report Format Version: 6.1.1


4.4     20dB Bandwidth
4.4.1    Limits of 20dB Bandwidth Measurement
The 20dB bandwidth shall be specified in operating frequency band.

4.4.2    Test Setup

         EUT                                              Spectrum
                                                          Analyzer
                                       Attenuator



4.4.3    Test Instruments
 Description & Manufacturer        Model No.                 Serial No.          Cal. Date          Cal. Due
SPECTRUM ANALYZER
                                     FSP40                    100041           Dec 12, 2017      Dec 11, 2018
R&S

Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable
         to NML/ROC and NIST/USA.

4.4.4    Test Procedures
The bandwidth of the fundamental frequency was measured by spectrum analyzer with 1kHz RBW and 3kHz
VBW. The 20dB bandwidth is defined as the total spectrum the power of which is higher than peak power
minus 20dB.

4.4.5    Deviation from Test Standard
No deviation.

4.4.6    EUT Operating Conditions
Same as Item 4.1.6.




Report No.: RF180920C22-5                      Page No. 28 / 31                        Report Format Version: 6.1.1


4.4.7    Test Results
                                                    Operating frequency band
    20dBc point (Low)       20dBc point (High)                                      Pass / Fail
                                                             (MHz)
        13.558525641         13.5611538461                   13.553~13.567             Pass

                                       Spectrum Plot of Value




Report No.: RF180920C22-5                 Page No. 29 / 31                     Report Format Version: 6.1.1


5    Pictures of Test Arrangements
Please refer to the attached file (Test Setup Photo).




Report No.: RF180920C22-5                      Page No. 30 / 31   Report Format Version: 6.1.1


Appendix – Information on the Testing Laboratories
We, Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, were founded in 1988 to
provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are FCC
recognized accredited test firms and accredited and approved according to ISO/IEC 17025.

If you have any comments, please feel free to contact us at the following:

Linko EMC/RF Lab                                      Hsin Chu EMC/RF/Telecom Lab
Tel: 886-2-26052180                                   Tel: 886-3-6668565
Fax: 886-2-26051924                                   Fax: 886-3-6668323

Hwa Ya EMC/RF/Safety Lab
Tel: 886-3-3183232
Fax: 886-3-3270892

Email: service.adt@tw.bureauveritas.com
Web Site: www.bureauveritas-adt.com

The address and road map of all our labs can be found in our web site also.



--- END ---




Report No.: RF180920C22-5                     Page No. 31 / 31                  Report Format Version: 6.1.1



Document Created: 2019-03-25 07:14:30
Document Modified: 2019-03-25 07:14:30
Download: G020C Smartphone Test Report RF180920C22-5_Google_G020C (Smartphone)_FCC 15.225_RFID 13.56MHz Google
Mirror Download [FCC.gov]G020C Smartphone Test Report RF180920C22-5_Google_G020C (Smartphone)_FCC 15.225_RFID 13.56MHz Google
Document ID4152922
Application ID8orZBbl1EJfgmWj6EXQXdg==
Document DescriptionTest Report_20190129_v1 - Test Report (RFID) rev 2
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize39.5kB (493812 bits)
Date Submitted2019-01-30 00:00:00
Date Available2019-02-25 00:00:00
Creation Date2019-01-29 13:34:55
Producing SoftwareAcrobat Distiller 11.0 (Windows)
Document Lastmod2019-01-29 13:35:21
Document TitleRF180920C22-5_Google_G020C (Smartphone)_FCC 15.225_RFID 13.56MHz
Document CreatorPScript5.dll Version 5.2.2
Document Author: pochien
