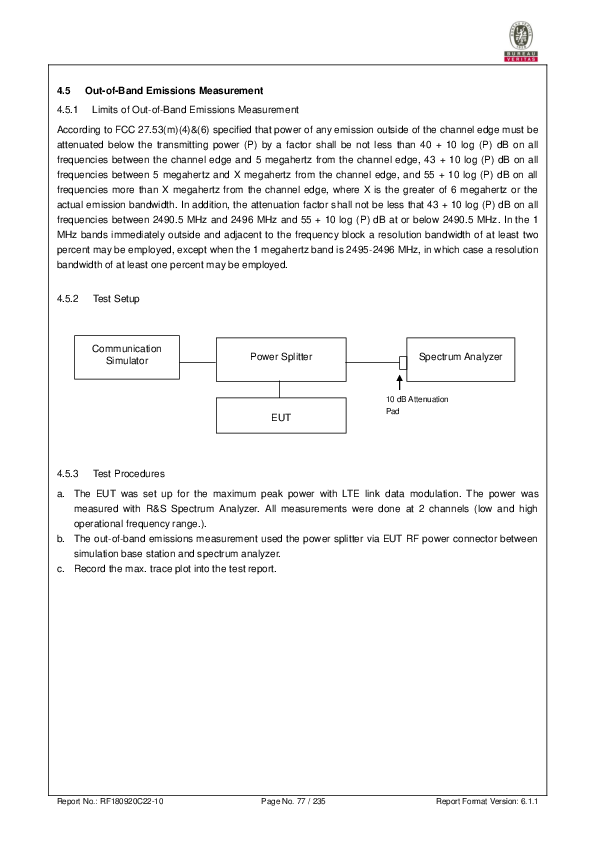

4.5     Out-of-Band Emissions Measurement
4.5.1     Limits of Out-of-Band Emissions Measurement

According to FCC 27.53(m)(4)&(6) specified that power of any emission outside of the channel edge must be
attenuated below the transmitting power (P) by a factor shall be not less than 40 + 10 log (P) dB on all
frequencies between the channel edge and 5 megahertz from the channel edge, 43 + 10 log (P) dB on all
frequencies between 5 megahertz and X megahertz from the channel edge, and 55 + 10 log (P) dB on all
frequencies more than X megahertz from the channel edge, where X is the greater of 6 megahertz or the
actual emission bandwidth. In addition, the attenuation factor shall not be less that 43 + 10 log (P) dB on all
frequencies between 2490.5 MHz and 2496 MHz and 55 + 10 log (P) dB at or below 2490.5 MHz. In the 1
MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least two
percent may be employed, except when the 1 megahertz band is 2495-2496 MHz, in which case a resolution
bandwidth of at least one percent may be employed.


4.5.2     Test Setup




          Communication
            Simulator                        Power Splitter                        Spectrum Analyzer



                                                                           10 dB Attenuation
                                                                           Pad
                                                 EUT




4.5.3     Test Procedures

a. The EUT was set up for the maximum peak power with LTE link data modulation. The power was
      measured with R&S Spectrum Analyzer. All measurements were done at 2 channels (low and high
      operational frequency range.).
b. The out-of-band emissions measurement used the power splitter via EUT RF power connector between
      simulation base station and spectrum analyzer.
c. Record the max. trace plot into the test report.




Report No.: RF180920C22-10                     Page No. 77 / 235                        Report Format Version: 6.1.1


4.5.4   Test Results
                                           LTE Band 7
                                 Channel Bandwidth: 5 MHz / QPSK
                                    <Out-of-Band Emissions>
    Channel              20775        1 RB           Channel       21425                1 RB




    Channel              20775        25 RB            Channel     21425                25 RB




Report No.: RF180920C22-10               Page No. 78 / 235                 Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 5 MHz / 16QAM
                                     <Out-of-Band Emissions>
    Channel              20775         1 RB          Channel        21425                1 RB




    Channel              20775        25 RB             Channel     21425                25 RB




Report No.: RF180920C22-10                Page No. 79 / 235                 Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 5 MHz / 64QAM
                                     <Out-of-Band Emissions>
    Channel              20775         1 RB          Channel        21425                1 RB




    Channel              20775        25 RB             Channel     21425                25 RB




Report No.: RF180920C22-10                Page No. 80 / 235                 Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 10 MHz / QPSK
                                     <Out-of-Band Emissions>
    Channel              20800         1 RB          Channel        21400                1 RB




    Channel              20800        50 RB             Channel     21400                50 RB




Report No.: RF180920C22-10                Page No. 81 / 235                 Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 10 MHz / 16QAM
                                     <Out-of-Band Emissions>
    Channel              20800         1 RB           Channel        21400                1 RB




    Channel              20800         50 RB            Channel      21400                50 RB




Report No.: RF180920C22-10                Page No. 82 / 235                  Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 10 MHz / 64QAM
                                     <Out-of-Band Emissions>
    Channel              20800         1 RB           Channel        21400                1 RB




    Channel              20800         50 RB            Channel      21400                50 RB




Report No.: RF180920C22-10                Page No. 83 / 235                  Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 15 MHz / QPSK
                                     <Out-of-Band Emissions>
    Channel              20825         1 RB          Channel        21375               1 RB




    Channel              20825        75 RB             Channel     21375                75 RB




Report No.: RF180920C22-10                Page No. 84 / 235                 Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 15 MHz / 16QAM
                                     <Out-of-Band Emissions>
    Channel              20825         1 RB           Channel        21375               1 RB




    Channel              20825         75 RB            Channel      21375                75 RB




Report No.: RF180920C22-10                Page No. 85 / 235                  Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 15 MHz / 64QAM
                                     <Out-of-Band Emissions>
    Channel              20825         1 RB           Channel        21375               1 RB




    Channel              20825         75 RB            Channel      21375                75 RB




Report No.: RF180920C22-10                Page No. 86 / 235                  Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 20 MHz / QPSK
                                     <Out-of-Band Emissions>
    Channel              20850         1 RB          Channel        21350                1 RB




    Channel              20850        100 RB            Channel     21350               100 RB




Report No.: RF180920C22-10                Page No. 87 / 235                 Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 20 MHz / 16QAM
                                     <Out-of-Band Emissions>
    Channel              20850         1 RB           Channel        21350                1 RB




    Channel              20850        100 RB            Channel      21350               100 RB




Report No.: RF180920C22-10                Page No. 88 / 235                  Report Format Version: 6.1.1


                                            LTE Band 7
                                 Channel Bandwidth: 20 MHz / 64QAM
                                     <Out-of-Band Emissions>
    Channel              20850         1 RB           Channel        21350                1 RB




    Channel              20850        100 RB            Channel      21350               100 RB




Report No.: RF180920C22-10                Page No. 89 / 235                  Report Format Version: 6.1.1


                                           LTE Band 38
                                 Channel Bandwidth: 5 MHz / QPSK
                                    <Out-of-Band Emissions>
    Channel              37775        1 RB           Channel       38225                1 RB




    Channel              37775        25 RB            Channel     38225                25 RB




Report No.: RF180920C22-10               Page No. 90 / 235                 Report Format Version: 6.1.1


                                           LTE Band 38
                                 Channel Bandwidth: 5 MHz / 16QAM
                                     <Out-of-Band Emissions>
    Channel              37775         1 RB          Channel        38225                1 RB




    Channel              37775        25 RB             Channel     38225                25 RB




Report No.: RF180920C22-10                Page No. 91 / 235                 Report Format Version: 6.1.1
