FCC ID BCG-E2694A
Cellular Phone with Bluetooth and WLAN Radios
by Apple Inc.
Grantee Code: BCG Product Code: E2694A
Latest application date: 2015-12-29

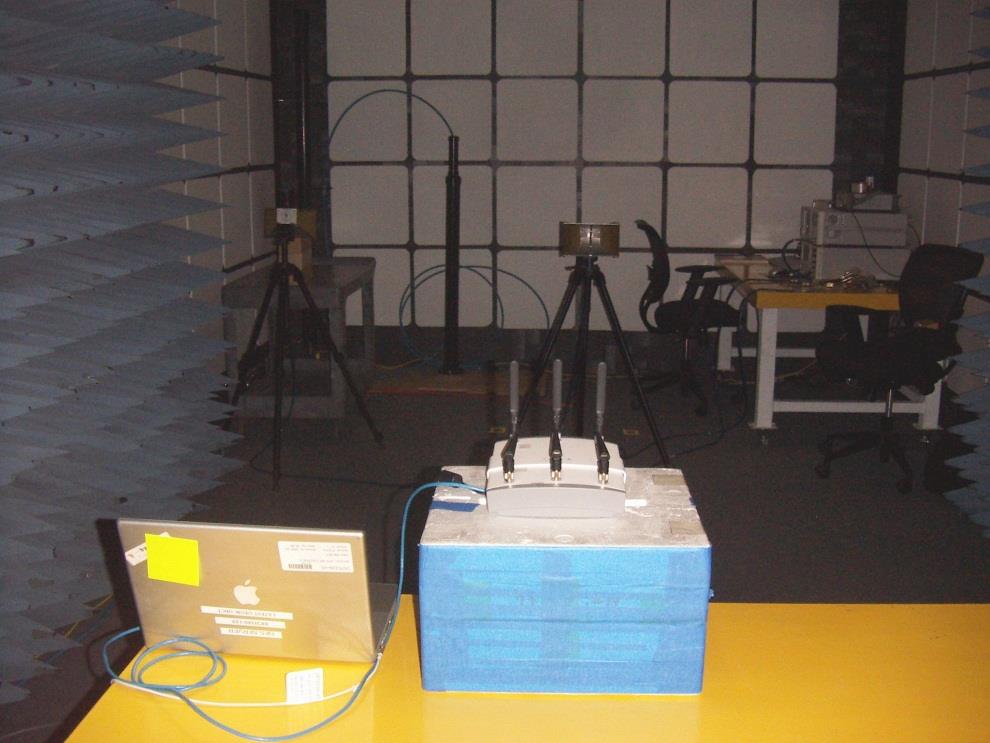

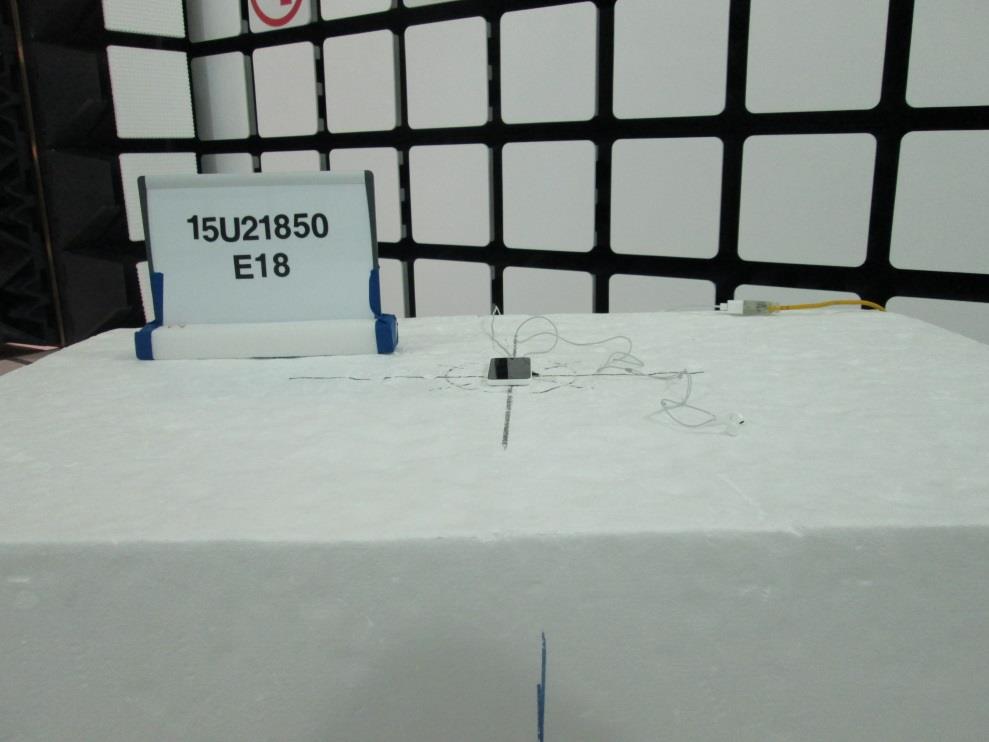

Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2015-12-29 |
| 2402-2480 MHz | Original Equipment | 2013-09-10 |
| 5180-5240 MHz | Original Equipment | 2013-09-10 |
| 2402-2480 MHz | Original Equipment | 2013-09-10 |
| 824-849 MHz | Original Equipment | 2013-09-10 |
Exhibits
Application Information
| Application ID | xEpC5V8doaOAJqLnYT0eZg== |
|---|---|
| Final Action Date | 2015-12-29 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005899216 |
| Model | E2694A |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Cellular Phone with Bluetooth and WLAN Radios |
| Responsible Party | Abhishek Rala, Regulatory Compliance Manager, arala@apple.com  , 408-996-1010 |
| Test Firm | Jay Kogoma, UL Verification Services Inc. (formerly UL CCS), jay.kogoma@ul.com  , 510-319-4135 |
| TCB Email | LST.FRE.CertNotice@ul.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II permissive change to show compliance with new UNII rules. Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.56 W/kg, and 1.57 W/kg, respectively. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| xEpC5V8doaOAJqLnYT0eZg== | 2015-12-29 | Class II permissive change or modification of presently authorized equipment |
| bPeh6ZIJpGsDGsNCWhWU2w== | 2013-09-10 | Original Equipment |
| Ug/Wy4t/bsuF1bjxVlfuWw== | 2013-09-10 | Original Equipment |
| P72lr4BhQzlOI0cuIZegAA== | 2013-09-10 | Original Equipment |
| G4wzntjH1uJB85cVR1ntXg== | 2013-09-10 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 824-849 MHz | 0.14 | 2.5ppm | 4M23F9W | 22H | HC |
| 824-849 MHz | 0.132 | 2.5ppm | 1M09G7D | 22H | HC |
| 824-849 MHz | 0.135 | 2.5ppm | 2M69G7D | 22H | HC |
| 824-849 MHz | 0.138 | 2.5ppm | 4M50G7D | 22H | HC |
| 824-849 MHz | 0.132 | 2.5ppm | 9M00G7D | 22H | HC |
| 1850-1910 MHz | 0.658 | 2.5ppm | 2M70G7D | 24E | HC |
| 1850-1910 MHz | 0.809 | 2.5ppm | 4M50G7D | 24E | HC |
| 1850-1910 MHz | 0.867 | 2.5ppm | 8M98G7D | 24E | HC |
| 1850-1910 MHz | 0.887 | 2.5ppm | 13M5G7D | 24E | HC |
| 1850-1910 MHz | 0.951 | 2.5ppm | 17M9G7D | 24E | HC |
| 1850-1910 MHz | 1.567 | 2.5ppm | 247KG7W | 24E | HC |
| 1850-1910 MHz | 0.297 | 2.5ppm | 4M22F9W | 24E | HC |
| 1850-1910 MHz | 0.646 | 2.5ppm | 1M10G7D | 24E | HC |
| 2402-2480 MHz | 0.0140000 | 15C | CC | ||
| 2402-2480 MHz | 0.022 | 15C | CC | ||
| 2412-2472 MHz | 0.328 | 15C | CC, HX | ||
| 5180-5240 MHz | 0.044 | 15E | 38, CC, HX | ||
| 5180-5240 MHz | 0.043 | 15E | CC, HX | ||
| 5260-5320 MHz | 0.042 | 15E | 38, CC, HX, ND | ||
| 5260-5320 MHz | 0.042 | 15E | CC, HX, ND | ||
| 5500-5700 MHz | 0.027 | 15E | 38, CC, HX, ND | ||
| 5500-5700 MHz | 0.026 | 15E | CC, HX, ND | ||
| 5745-5825 MHz | 0.166 | 15C | CC, HX | ||
| 5745-5825 MHz | 0.028 | 15E | 38, CC, HX |
Grants
TCB Grant - Application xEpC5V8doaOAJqLnYT0eZg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 12/29/2015 Application Dated: 12/14/2015 |
| Apple Inc. |
| One Apple Park Way |
| Cupertino, CA 95014 |
| Attention: Abhishek Rala , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC HX | 15E | 5180.0 - 5240.0 | 0.044 | ||
| 38 CC HX ND | 15E | 5260.0 - 5320.0 | 0.042 | ||
| 38 CC HX ND | 15E | 5500.0 - 5700.0 | 0.027 | ||
| 38 CC HX | 15E | 5745.0 - 5825.0 | 0.028 |
| Class II permissive change to show compliance with new UNII rules. Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.56 W/kg, and 1.57 W/kg, respectively. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application xEpC5V8doaOAJqLnYT0eZg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. One Apple Park Way Cupertino, CA 95014 United States |
Date of Grant: 12/29/2015 Application Dated: 12/14/2015 |
| Attention: Abhishek Rala , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC HX | 15E | 5180.0 - 5240.0 | 0.044 | ||
| 38 CC HX ND | 15E | 5260.0 - 5320.0 | 0.042 | ||
| 38 CC HX ND | 15E | 5500.0 - 5700.0 | 0.027 | ||
| 38 CC HX | 15E | 5745.0 - 5825.0 | 0.028 |
| Class II permissive change to show compliance with new UNII rules. Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.56 W/kg, and 1.57 W/kg, respectively. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Apple Inc. |
| 1 Infinite Loop |
| Cupertino, CA 95014-2084 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15E | 5180.0 - 5240.0 | 0.043 | ||
| CC HX ND | 15E | 5260.0 - 5320.0 | 0.042 | ||
| CC HX ND | 15E | 5500.0 - 5700.0 | 0.026 |
| Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. Operations in the 5.15-5.25 GHz band are for indoor use only. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.56 W/kg, and 1.57 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application Ug/Wy4t/bsuF1bjxVlfuWw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. 1 Infinite Loop Cupertino, CA 95014-2084 United States |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15E | 5180.0 - 5240.0 | 0.043 | ||
| CC HX ND | 15E | 5260.0 - 5320.0 | 0.042 | ||
| CC HX ND | 15E | 5500.0 - 5700.0 | 0.026 |
| Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. Operations in the 5.15-5.25 GHz band are for indoor use only. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.56 W/kg, and 1.57 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Apple Inc. |
| 1 Infinite Loop |
| Cupertino, CA 95014-2084 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15C | 2412.0 - 2472.0 | 0.328 | ||
| CC HX | 15C | 5745.0 - 5825.0 | 0.166 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.022 |
| Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band, and 20 MHz bandwidth in the 2.4 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 0.58 W/kg, 0.54 W/kg, 0.54 W/kg, and 1.55 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application P72lr4BhQzlOI0cuIZegAA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. 1 Infinite Loop Cupertino, CA 95014-2084 United States |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15C | 2412.0 - 2472.0 | 0.328 | ||
| CC HX | 15C | 5745.0 - 5825.0 | 0.166 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.022 |
| Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band, and 20 MHz bandwidth in the 2.4 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 0.58 W/kg, 0.54 W/kg, 0.54 W/kg, and 1.55 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Apple Inc. |
| 1 Infinite Loop |
| Cupertino, CA 95014-2084 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| HC | 22H | 824.0 - 849.0 | 1.718 | 2.5 PM | 254KG7W |
| HC | 22H | 824.0 - 849.0 | 0.14 | 2.5 PM | 4M23F9W |
| HC | 22H | 824.0 - 849.0 | 0.132 | 2.5 PM | 1M09G7D |
| HC | 22H | 824.0 - 849.0 | 0.135 | 2.5 PM | 2M69G7D |
| HC | 22H | 824.0 - 849.0 | 0.138 | 2.5 PM | 4M50G7D |
| HC | 22H | 824.0 - 849.0 | 0.132 | 2.5 PM | 9M00G7D |
| HC | 24E | 1850.0 - 1910.0 | 1.567 | 2.5 PM | 247KG7W |
| HC | 24E | 1850.0 - 1910.0 | 0.297 | 2.5 PM | 4M22F9W |
| HC | 24E | 1850.0 - 1910.0 | 0.646 | 2.5 PM | 1M10G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.658 | 2.5 PM | 2M70G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.809 | 2.5 PM | 4M50G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.867 | 2.5 PM | 8M98G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.887 | 2.5 PM | 13M5G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.951 | 2.5 PM | 17M9G7D |
| Output powers listed are ERP values for operations below 1 GHz and EIRP values for operations above 1 GHz. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for U.S. operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.19 W/kg, 1.15 W/kg, 1.18 W/kg, and 1.57 W/kg, respectively. HAC rating: M3T4-2011 |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
EAS Grant - Application G4wzntjH1uJB85cVR1ntXg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. 1 Infinite Loop Cupertino, CA 95014-2084 United States |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| HC | 22H | 824.0 - 849.0 | 1.718 | 2.5 PM | 254KG7W |
| HC | 22H | 824.0 - 849.0 | 0.14 | 2.5 PM | 4M23F9W |
| HC | 22H | 824.0 - 849.0 | 0.132 | 2.5 PM | 1M09G7D |
| HC | 22H | 824.0 - 849.0 | 0.135 | 2.5 PM | 2M69G7D |
| HC | 22H | 824.0 - 849.0 | 0.138 | 2.5 PM | 4M50G7D |
| HC | 22H | 824.0 - 849.0 | 0.132 | 2.5 PM | 9M00G7D |
| HC | 24E | 1850.0 - 1910.0 | 1.567 | 2.5 PM | 247KG7W |
| HC | 24E | 1850.0 - 1910.0 | 0.297 | 2.5 PM | 4M22F9W |
| HC | 24E | 1850.0 - 1910.0 | 0.646 | 2.5 PM | 1M10G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.658 | 2.5 PM | 2M70G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.809 | 2.5 PM | 4M50G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.867 | 2.5 PM | 8M98G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.887 | 2.5 PM | 13M5G7D |
| HC | 24E | 1850.0 - 1910.0 | 0.951 | 2.5 PM | 17M9G7D |
| Output powers listed are ERP values for operations below 1 GHz and EIRP values for operations above 1 GHz. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for U.S. operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.19 W/kg, 1.15 W/kg, 1.18 W/kg, and 1.57 W/kg, respectively. HAC rating: M3T4-2011 |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Apple Inc. |
| 1 Infinite Loop |
| Cupertino, CA 95014-2084 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.014 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application bPeh6ZIJpGsDGsNCWhWU2w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. 1 Infinite Loop Cupertino, CA 95014-2084 United States |
Date of Grant: 09/10/2013 Application Dated: 08/20/2013 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCG-E2694A |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Cellular Phone with Bluetooth and WLAN Radios |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.014 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
