FCC ID BCG-E2644A

Cellular Phone with Bluetooth and WLAN Radios

by Apple Inc.

Grantee Code: BCG Product Code: E2644A

Latest application date: 2015-12-29

Device Images

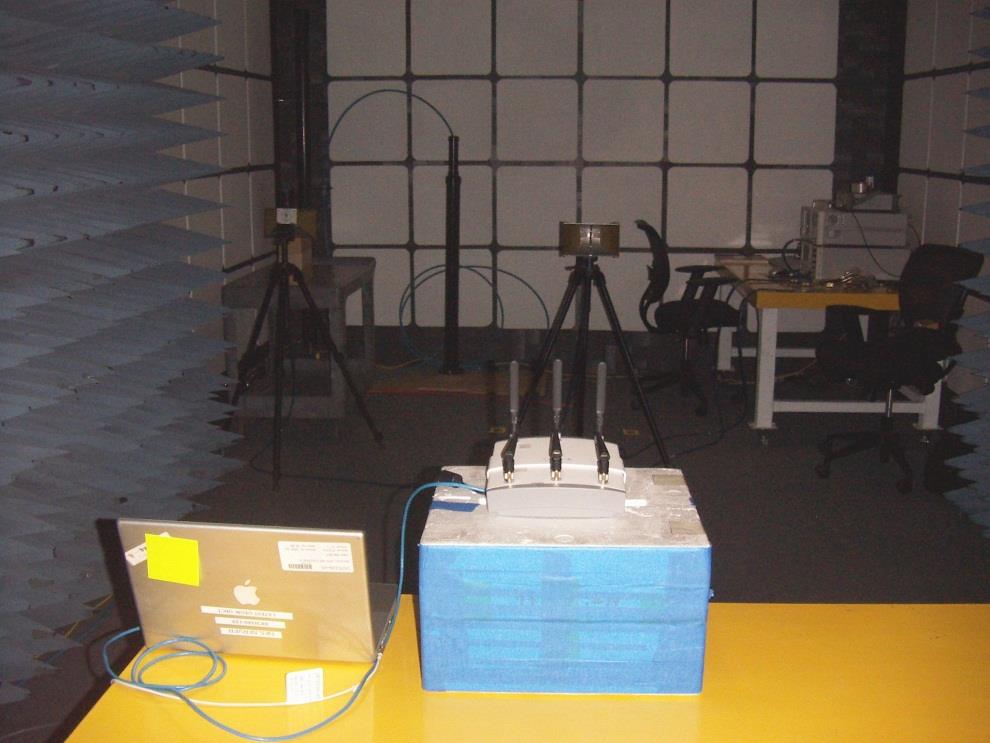

FCC ID BCG-E2644A Test Setup Photos — Test Setup Photos

FCC ID Device Details

FCC ID	BCG-E2644A
Mirrors	fcc.id \| gov \| fccid.ai
Grantee Code	BCG
Product Code	E2644A
Applicant Business	Apple Inc. 🇺🇸
Related Domains	apple.com
Equipment Class	Cellular Phone with Bluetooth and WLAN Radios
Test Firm	UL Verification Services Inc. (formerly UL CCS)

Hearing Aid Compatibility

Handset Maker	Apple
Model Name	iPhone 5c
Air Interface Technologies	LTE, CDMA, GSM, WCDMA, LTE, WCDMA, LTE, GSM, CDMA, WCDMA, LTE, Wi-Fi, Wi-Fi
Operating Frequency Bands	700, 800, 850, 850, 850, 1700, 1700, 1900, 1900, 1900, 1900, 2.4, 5.0
M-Rating	M3
M-Rating Certification Date	09/10/13
M-Rating ANSI Version	2011
T-Rating	T4
T-Rating Certification Date	09/10/13
T-Rating ANSI Version	2011
Remarks	(1) iPhone 5c includes a Hearing Aid Mode that modifies the handset's acoustic settings to improve compatibility with hearing aids set in "T" or telecoil mode. (2) iPhone 5c is compatible with Made for iPhone hearing aids. (3) Support for iPhone 5c frequency bands and air interfaces varies based on the carrier to which the handset is assigned. (4) iPhone 5c supports additional frequency bands that do not operate in U.S. territories and that were not certified under U.S. HAC rules.

Source: FCC archived Device Manufacturer Summary Reports (2014-2016).

Operating Frequencies

Frequency Range	Application Purpose	Final Action Date
5180-5240 MHz	Class II permissive change or modification of presently authorized equipment	2015-12-29
5180-5240 MHz	Original Equipment	2013-09-10
2402-2480 MHz	Original Equipment	2013-09-10
704-716 MHz	Original Equipment	2013-09-10
2402-2480 MHz	Original Equipment	2013-09-10

Exhibits

Document	Type	Available	File
iPhone_Important_Info_v1.0	Users Manual	2013-09-20	PDF 698.9 KB
iPhone_User_Guide_iOS7_v1.0_Part1	Users Manual	2013-09-20	PDF 4.3 MB
iPhone_User_Guide_iOS7_v1.0_Part2	Users Manual	2013-09-20	PDF 4.4 MB
iPhone_User_Guide_iOS7_v1.0_Part3	Users Manual	2013-09-20	PDF 2.1 MB
BCG-E2644A_Internal_Photos_v1.0	Internal Photos	2013-09-20	PDF 4 MB
A1456_External_Photos_v1.0	External Photos	2013-09-20	PDF 1.1 MB
A1532_External_Photos_v1.0	External Photos	2013-09-20	PDF 1.1 MB
A1456_Reg_Label_Location_020-8074-A_v1.0	ID Label/Location Info	2013-09-10	PDF 544 KB
A1532_Reg_Label_Location_020-8516-A_ICB_v1.0	ID Label/Location Info	2013-09-10	PDF 817.5 KB
15U21850-E1V2 FCC SetupPhotos NII	Test Setup Photos	2015-12-29	PDF 949.6 KB
15U21850-E21V2 FCC SetupPhotos NII DFS	Test Setup Photos	2015-12-29	PDF 659.4 KB
13U14987-10 A1456 & A1532 FCC 2G & 3G Cellular_PhotosOnly	Test Setup Photos	2013-09-20	PDF 145.2 KB
13U14987-11 A1456 & A1532 FCC 4G LTE Band Cellular_PhotosOnly	Test Setup Photos	2013-09-20	PDF 81.6 KB
13U14987-12 A1456 & A1532 FCC BT FHSS_Final_PhotosOnly	Test Setup Photos	2013-09-20	PDF 71.2 KB
13U14987-15 A1456 & A1532 FCC IC DTS WLAN Report_Final_PhotosOnly	Test Setup Photos	2013-09-20	PDF 70.3 KB
13U14987-16 A1456 & A1532 FCC IC UNII WLAN Report_WITH DFS_Final_PhotosOnly	Test Setup Photos	2013-09-20	PDF 125.8 KB
13U14987-28B A1456&A1532 (BCG-E2644A) HAC RF Emission Report_PhotoOnly	Test Setup Photos	2013-09-20	PDF 35.2 KB
13U14987-29A A1456 & A1532(BCG-E2644A) HAC T-Coil Test Report_PhotoOnly	Test Setup Photos	2013-09-20	PDF 35.2 KB
13U14987-8 A1456 & A1532 (BCG-E2644A) FCC SAR Report_PhotosOnly	Test Setup Photos	2013-09-20	PDF 248.2 KB
13U14987-9 A1456 & A1532 FCC IC BLE DTS Report_Final_PhotosOnly	Test Setup Photos	2013-09-20	PDF 71.7 KB
15U21850-E1V2 FCC Report NII	Test Report	2015-12-29	PDF 3.1 MB
15U21850-E21V2 FCC Report NII DFS-1	Test Report	2015-12-29	PDF 3.6 MB
15U21850-E21V2 FCC Report NII DFS-2	Test Report	2015-12-29	PDF 4.3 MB
13U14987-10 A1456 & A1532 FCC 2G & 3G Cellular Report_Final_NoPhotos	Test Report	2013-09-10	PDF 4.6 MB
13U14987-11 A1456 & A1532 FCC 4G LTE Band Cellular Report_Final revised_NoPhotos	Test Report	2013-09-10	PDF 5.7 MB
13U14987-12 A1456 & A1532 FCC BT FHSS_Final_NoPhotos	Test Report	2013-09-10	PDF 1.6 MB
13U14987-15 A1456 & A1532 FCC IC DTS WLAN Report_Final_NoPhotos	Test Report	2013-09-10	PDF 4.5 MB
13U14987-16 A1456 & A1532 FCC IC UNII WLAN Report_WITH DFS_Final_NoPhotos	Test Report	2013-09-10	PDF 5.7 MB
13U14987-17B A1456 and A1532 FCC IC DTS WLAN Report_Additional Channel 12 & 13_F	Test Report	2013-09-10	PDF 1.5 MB
13U14987-28B A1456&A1532 (BCG-E2644A) HAC RF Emission Report_NoPhotos	Test Report	2013-09-10	PDF 377.5 KB
13U14987-9 A1456 & A1532 FCC IC BLE DTS Report_Final_NoPhotos	Test Report	2013-09-10	PDF 1.1 MB
BCG-E2644A HAC T-Coil Test Report_NoPhoto	Test Report	2013-09-10	PDF 1.3 MB
HAC Calibration Certificate for E-Field Probe & Dipoles	Test Report	2013-09-10	PDF 1.4 MB
HAC System Validation & RF Emissions Test Plots	Test Report	2013-09-10	PDF 356.7 KB
HAC UID Specifications	Test Report	2013-09-10	PDF 451.8 KB
BCG-E2644A_FCC_HAC_Attestation	Attestation Statements	2013-09-10	PDF 135.7 KB
SVLTE Attestation	Attestation Statements	2013-09-10	PDF 123.6 KB
FCC C2PC change letter-LegacyPhone5Ghz-113015-V1.1	Cover Letter(s)	2015-12-29	PDF 115.8 KB
FCC_C2PC_5GHzAuthorization_Application_Letter_All-Legacy Phone-111715v-1.1	Cover Letter(s)	2015-12-29	PDF 72.2 KB
Signature Auth Letter (AR)	Cover Letter(s)	2015-12-29	PDF 38.5 KB
iPhone_FCC_Request_Confidentiality_Letter_v1.0	Cover Letter(s)	2015-12-29	PDF 84.6 KB
BCG-E2644A_FCC_Authorization_Application_Letter_v1.0	Cover Letter(s)	2013-09-10	PDF 127.5 KB
BCG-E2644A_FCC_Request_Confidentiality	Cover Letter(s)	2013-09-10	PDF 143.8 KB
Signature Auth Letter v1.0	Cover Letter(s)	2013-09-10	PDF 36.8 KB
13U14987-21B A1456&1532(BCG-E2644A) FCC SAR Report	RF Exposure Info	2013-09-10	PDF 2.8 MB
SAR Calibration Certificate for Dipoles Part 1	RF Exposure Info	2013-09-10	PDF 2.8 MB
SAR Calibration Certificate for Dipoles Part 2	RF Exposure Info	2013-09-10	PDF 3.5 MB
SAR Calibration Certificate for E-Field Probe	RF Exposure Info	2013-09-10	PDF 4.3 MB
System Performance Check & Highest SAR Test Plots	RF Exposure Info	2013-09-10	PDF 3 MB
iPhone_Software_Security_Description_v1.0 Metadata only	Operational Description		PDF 114 KB

Application Information

Application ID	9t+qkRLZU40oJxMLp39/Wg==
Final Action Date	2015-12-29
Application Purpose	Class II permissive change or modification of presently authorized equipment
Applicant FRN	0005899216
Model	E2644A
Frequency Range	5180-5240 MHz
Equipment Class	NII - Unlicensed National Information Infrastructure TX
Device Description	Cellular Phone with Bluetooth and WLAN Radios
Responsible Party	Abhishek Rala, Regulatory Compliance Manager, arala@apple.com , 408-996-1010
Test Firm	Jay Kogoma, UL Verification Services Inc. (formerly UL CCS), jay.kogoma@ul.com , 510-319-4135
TCB Email	LST.FRE.CertNotice@ul.com
TCB Scope	A4: UNII devices & low power transmitters using spread spectrum techniques
Short-Term Confidentiality	No
Long-Term Confidentiality	Yes
Grant Deferral	No
Modular Equipment	Does not apply
Composite Device	Yes
Composite Part	No
Cognitive Radio	No
Authorization Waiver	No
Authorization Waiver Approved	No
Section 5301 Certification	Yes
Related OET Knowledge DataBase Inquiry	Yes
Grant Comments	Class II permissive change to show compliance with new UNII rules. Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.57 W/kg, and 1.58 W/kg, respectively.

Applications

Application ID	Date	Purpose
9t+qkRLZU40oJxMLp39/Wg==	2015-12-29	Class II permissive change or modification of presently authorized equipment
zitMZnLiQ2eV4ATPd289Tw==	2013-09-10	Original Equipment
vB1BgtkWONryVAcyHPw3EA==	2013-09-10	Original Equipment
RqXbGnYPDFKWju+jLCJ37g==	2013-09-10	Original Equipment
LxSRN5ygyyxHnrKerFQLOg==	2013-09-10	Original Equipment

Equipment Authorization

Frequency	Output	Tolerance	Emission	Rules	Grant Notes
704-716 MHz	0.114	2.5ppm	4M47G7D	27	HC
704-716 MHz	0.114	2.5ppm	8M96G7D	27	HC
777-787 MHz	0.151	2.5ppm	4M50D7W	27	HC
777-787 MHz	0.135	2.5ppm	8M99G7D	27	HC
817-824 MHz	0.138	2.5ppm	1M28F9W	9	HC
817-824 MHz	0.277	2.5ppm	2M68G7D	9	HC
817-824 MHz	0.334	2.5ppm	4M49G7D	9	HC
824-849 MHz	0.115	2.5ppm	1M08G7D	22H	HC
824-849 MHz	0.112	2.5ppm	2M68G7D	22H	HC
824-849 MHz	0.126	2.5ppm	4M49G7D	22H	HC
824-849 MHz	0.115	2.5ppm	8M92G7D	22H	HC
1710-1755 MHz	0.588	2.5ppm	4M24F9W	27	HC
1710-1755 MHz	0.439	2.5ppm	1M28F9W	27	HC
1710-1755 MHz	0.538	2.5ppm	1M08G7D	27	HC
1710-1755 MHz	0.538	2.5ppm	2M69G7D	27	HC
1710-1755 MHz	0.428	2.5ppm	4M52G7D	27	HC
1710-1755 MHz	0.538	2.5ppm	8M94G7D	27	HC
1710-1755 MHz	0.48	2.5ppm	13M5G7D	27	HC
1710-1755 MHz	0.538	2.5ppm	18M0G7D	27	HC
1850-1915 MHz	0.7	2.5ppm	1M28F9W	24E	HC
1850-1915 MHz	0.861	2.5ppm	1M21G7D	24E	HC
1850-1915 MHz	0.822	2.5ppm	2M74G7D	24E	HC
1850-1915 MHz	1.023	2.5ppm	4M49G7D	24E	HC
1850-1915 MHz	1.084	2.5ppm	8M92G7D	24E	HC
1850-1915 MHz	1.109	2.5ppm	13M4G7D	24E	HC
1850-1915 MHz	1.205	2.5ppm	17M9G7D	24E	HC
1850-1915 MHz	1.841	2.5ppm	246KG7W	24E	HC
1850-1915 MHz	0.822	2.5ppm	4M21F9W	24E	HC
2402-2480 MHz	0.0190000			15C	CC
2402-2480 MHz	0.014			15C	CC
2412-2472 MHz	0.238			15C	CC, HX
5180-5240 MHz	0.027			15E	38, CC, HX
5180-5240 MHz	0.027			15E	CC, HX
5260-5320 MHz	0.03			15E	38, CC, HX, ND
5260-5320 MHz	0.029			15E	CC, HX, ND
5500-5700 MHz	0.026			15E	38, CC, HX, ND
5500-5700 MHz	0.025			15E	CC, HX, ND
5745-5825 MHz	0.121			15C	CC, HX
5745-5825 MHz	0.022			15E	38, CC, HX

Grants

TCB Grant - Application zitMZnLiQ2eV4ATPd289Tw==

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Apple Inc.

1 Infinite Loop

Cupertino, CA 95014-2084

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Cellular Phone with Bluetooth and WLAN Radios

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC HX	15E	5180.0 - 5240.0	0.027
CC HX ND	15E	5260.0 - 5320.0	0.029
CC HX ND	15E	5500.0 - 5700.0	0.025

Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. Operations in the 5.15-5.25 GHz band are for indoor use only. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.57 W/kg, and 1.58 W/kg, respectively.

CC:	This device is certified pursuant to two different Part 15 rules sections.
HX:	This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules.
ND:	This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h).

EAS Grant - Application zitMZnLiQ2eV4ATPd289Tw==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
United States

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Cellular Phone with Bluetooth and WLAN Radios
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC HX	15E	5180.0 - 5240.0	0.027
CC HX ND	15E	5260.0 - 5320.0	0.029
CC HX ND	15E	5500.0 - 5700.0	0.025

CC:	This device is certified pursuant to two different Part 15 rules sections.
HX:	This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules.
ND:	This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h).

TCB Grant - Application vB1BgtkWONryVAcyHPw3EA==

Mail To:

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Apple Inc.

1 Infinite Loop

Cupertino, CA 95014-2084

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Digital Transmission System
Notes:	Cellular Phone with Bluetooth and WLAN Radios

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC HX	15C	2412.0 - 2472.0	0.238
CC HX	15C	5745.0 - 5825.0	0.121
CC	15C	2402.0 - 2480.0	0.014

Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band, and 20 MHz bandwidth in the 2.4 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 0.60 W/kg, 0.52 W/kg, 0.48 W/kg, and 1.59 W/kg, respectively.

CC:	This device is certified pursuant to two different Part 15 rules sections.
HX:	This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules.

EAS Grant - Application vB1BgtkWONryVAcyHPw3EA==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
United States

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Digital Transmission System
Notes:	Cellular Phone with Bluetooth and WLAN Radios
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC HX	15C	2412.0 - 2472.0	0.238
CC HX	15C	5745.0 - 5825.0	0.121
CC	15C	2402.0 - 2480.0	0.014

CC:	This device is certified pursuant to two different Part 15 rules sections.
HX:	This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules.

TCB Grant - Application RqXbGnYPDFKWju+jLCJ37g==

Mail To:

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Apple Inc.

1 Infinite Loop

Cupertino, CA 95014-2084

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	PCS Licensed Transmitter held to ear
Notes:	Cellular Phone with Bluetooth and WLAN Radios

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
HC	22H	824.0 - 849.0	1.05	2.5 PM	251KG7W
HC	22H	824.0 - 849.0	0.2	2.5 PM	4M23F9W
HC	22H	824.0 - 849.0	0.127	2.5 PM	1M27F9W
HC	22H	824.0 - 849.0	0.115	2.5 PM	1M08G7D
HC	22H	824.0 - 849.0	0.112	2.5 PM	2M68G7D
HC	22H	824.0 - 849.0	0.126	2.5 PM	4M49G7D
HC	22H	824.0 - 849.0	0.115	2.5 PM	8M92G7D
HC	24E	1850.0 - 1915.0	1.841	2.5 PM	246KG7W
HC	24E	1850.0 - 1915.0	0.822	2.5 PM	4M21F9W
HC	24E	1850.0 - 1915.0	0.7	2.5 PM	1M28F9W
HC	24E	1850.0 - 1915.0	0.861	2.5 PM	1M21G7D
HC	24E	1850.0 - 1915.0	0.822	2.5 PM	2M74G7D
HC	24E	1850.0 - 1915.0	1.023	2.5 PM	4M49G7D
HC	24E	1850.0 - 1915.0	1.084	2.5 PM	8M92G7D
HC	24E	1850.0 - 1915.0	1.109	2.5 PM	13M4G7D
HC	24E	1850.0 - 1915.0	1.205	2.5 PM	17M9G7D
HC	90	817.0 - 824.0	0.138	2.5 PM	1M28F9W
HC	90	817.0 - 824.0	0.277	2.5 PM	2M68G7D
HC	90	817.0 - 824.0	0.334	2.5 PM	4M49G7D
HC	27	1710.0 - 1755.0	0.588	2.5 PM	4M24F9W
HC	27	1710.0 - 1755.0	0.439	2.5 PM	1M28F9W
HC	27	1710.0 - 1755.0	0.538	2.5 PM	1M08G7D
HC	27	1710.0 - 1755.0	0.538	2.5 PM	2M69G7D
HC	27	1710.0 - 1755.0	0.428	2.5 PM	4M52G7D
HC	27	1710.0 - 1755.0	0.538	2.5 PM	8M94G7D
HC	27	1710.0 - 1755.0	0.48	2.5 PM	13M5G7D
HC	27	1710.0 - 1755.0	0.538	2.5 PM	18M0G7D
HC	27	777.0 - 787.0	0.151	2.5 PM	4M50D7W
HC	27	777.0 - 787.0	0.135	2.5 PM	8M99G7D
HC	27	704.0 - 716.0	0.114	2.5 PM	4M47G7D
HC	27	704.0 - 716.0	0.114	2.5 PM	8M96G7D

Output powers listed are ERP values for operations below 1 GHz and EIRP values for operations above 1 GHz. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for U.S. operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 1.19 W/kg, 1.18 W/kg, 1.19 W/kg, and 1.59 W/kg, respectively. HAC rating: M3T4-2011

HC:	This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules.

EAS Grant - Application RqXbGnYPDFKWju+jLCJ37g==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
United States

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	PCS Licensed Transmitter held to ear
Notes:	Cellular Phone with Bluetooth and WLAN Radios
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
HC	22H	824.0 - 849.0	1.05	2.5 PM	251KG7W
HC	22H	824.0 - 849.0	0.2	2.5 PM	4M23F9W
HC	22H	824.0 - 849.0	0.127	2.5 PM	1M27F9W
HC	22H	824.0 - 849.0	0.115	2.5 PM	1M08G7D
HC	22H	824.0 - 849.0	0.112	2.5 PM	2M68G7D
HC	22H	824.0 - 849.0	0.126	2.5 PM	4M49G7D
HC	22H	824.0 - 849.0	0.115	2.5 PM	8M92G7D
HC	24E	1850.0 - 1915.0	1.841	2.5 PM	246KG7W
HC	24E	1850.0 - 1915.0	0.822	2.5 PM	4M21F9W
HC	24E	1850.0 - 1915.0	0.7	2.5 PM	1M28F9W
HC	24E	1850.0 - 1915.0	0.861	2.5 PM	1M21G7D
HC	24E	1850.0 - 1915.0	0.822	2.5 PM	2M74G7D
HC	24E	1850.0 - 1915.0	1.023	2.5 PM	4M49G7D
HC	24E	1850.0 - 1915.0	1.084	2.5 PM	8M92G7D
HC	24E	1850.0 - 1915.0	1.109	2.5 PM	13M4G7D
HC	24E	1850.0 - 1915.0	1.205	2.5 PM	17M9G7D
HC	90	817.0 - 824.0	0.138	2.5 PM	1M28F9W
HC	90	817.0 - 824.0	0.277	2.5 PM	2M68G7D
HC	90	817.0 - 824.0	0.334	2.5 PM	4M49G7D
HC	27	1710.0 - 1755.0	0.588	2.5 PM	4M24F9W
HC	27	1710.0 - 1755.0	0.439	2.5 PM	1M28F9W
HC	27	1710.0 - 1755.0	0.538	2.5 PM	1M08G7D
HC	27	1710.0 - 1755.0	0.538	2.5 PM	2M69G7D
HC	27	1710.0 - 1755.0	0.428	2.5 PM	4M52G7D
HC	27	1710.0 - 1755.0	0.538	2.5 PM	8M94G7D
HC	27	1710.0 - 1755.0	0.48	2.5 PM	13M5G7D
HC	27	1710.0 - 1755.0	0.538	2.5 PM	18M0G7D
HC	27	777.0 - 787.0	0.151	2.5 PM	4M50D7W
HC	27	777.0 - 787.0	0.135	2.5 PM	8M99G7D
HC	27	704.0 - 716.0	0.114	2.5 PM	4M47G7D
HC	27	704.0 - 716.0	0.114	2.5 PM	8M96G7D

HC:	This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules.

TCB Grant - Application LxSRN5ygyyxHnrKerFQLOg==

Mail To:

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Apple Inc.

1 Infinite Loop

Cupertino, CA 95014-2084

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Part 15 Spread Spectrum Transmitter
Notes:	Cellular Phone with Bluetooth and WLAN Radios

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15C	2402.0 - 2480.0	0.019

Output power listed is conducted.

CC:	This device is certified pursuant to two different Part 15 rules sections.

EAS Grant - Application LxSRN5ygyyxHnrKerFQLOg==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
United States

Date of Grant: 09/10/2013

Application Dated: 08/19/2013

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Part 15 Spread Spectrum Transmitter
Notes:	Cellular Phone with Bluetooth and WLAN Radios
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15C	2402.0 - 2480.0	0.019

Output power listed is conducted.

CC:	This device is certified pursuant to two different Part 15 rules sections.

TCB Grant - Application 9t+qkRLZU40oJxMLp39/Wg==

Mail To:

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 12/29/2015

Application Dated: 12/08/2015

Apple Inc.

One Apple Park Way

Cupertino, CA 95014

Attention: Abhishek Rala , Regulatory Compliance Manager

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Cellular Phone with Bluetooth and WLAN Radios

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
38 CC HX	15E	5180.0 - 5240.0	0.027
38 CC HX ND	15E	5260.0 - 5320.0	0.03
38 CC HX ND	15E	5500.0 - 5700.0	0.026
38 CC HX	15E	5745.0 - 5825.0	0.022

Class II permissive change to show compliance with new UNII rules. Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, and simultaneous transmission use conditions are: 0.59 W/kg, 0.57 W/kg, and 1.58 W/kg, respectively.

38:	This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline.
CC:	This device is certified pursuant to two different Part 15 rules sections.
HX:	This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules.
ND:	This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h).

EAS Grant - Application 9t+qkRLZU40oJxMLp39/Wg==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
One Apple Park Way
Cupertino, CA 95014
United States

Date of Grant: 12/29/2015

Application Dated: 12/08/2015

Attention: Abhishek Rala , Regulatory Compliance Manager

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCG-E2644A

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Cellular Phone with Bluetooth and WLAN Radios
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
38 CC HX	15E	5180.0 - 5240.0	0.027
38 CC HX ND	15E	5260.0 - 5320.0	0.03
38 CC HX ND	15E	5500.0 - 5700.0	0.026
38 CC HX	15E	5745.0 - 5825.0	0.022

38:	This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline.
CC:	This device is certified pursuant to two different Part 15 rules sections.
HX:	This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules.
ND:	This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h).

Mail To:
