FCC ID LNQSBWD960A
ScreenBeam 960
by Actiontec Electronics Inc
Grantee Code: LNQ Product Code: SBWD960A
Latest application date: 2016-09-07
Device Images
FCC ID Device Details
| FCC ID | LNQSBWD960A |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | LNQ |
| Product Code | SBWD960A |
| Applicant Business | Actiontec Electronics Inc 🇺🇸 |
| Related Domains |  actiontec.com |
| Equipment Class | ScreenBeam 960 |
| Test Firm | Shenzhen NTEK Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-09-07 |
| 2402-2480 MHz | Original Equipment | 2016-09-07 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-09-07 | PDF 1.5 MB |
| Internal Photos | Internal Photos | 2016-09-07 | PDF 827 KB |

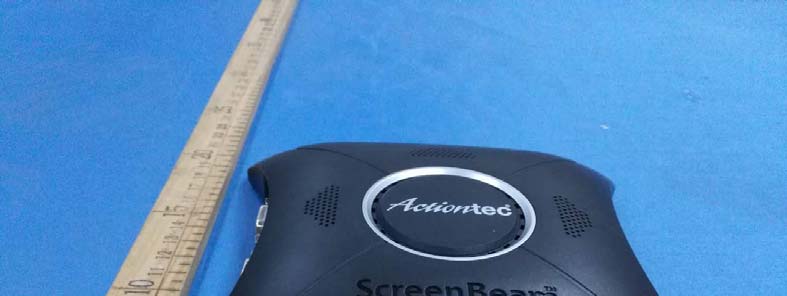

| External Photos | External Photos | 2016-09-07 | PDF 395.8 KB |
| Label & Label Location | ID Label/Location Info | 2016-09-07 | PDF 866.8 KB |
| EMC Test set-up photo | Test Setup Photos | 2016-09-07 | PDF 428.7 KB |
| RF Test Set-Up Photos | Test Setup Photos | 2016-09-07 | PDF 1,011.9 KB |
| RF Test Set-up Photos | Test Setup Photos | 2016-09-07 | PDF 1,011.9 KB |
| EMC Test Report | Test Report | 2016-09-07 | PDF 1.7 MB |
| RF Test Report | Test Report | 2016-09-07 | PDF 5.5 MB |
| RF Test Report-BLE | Test Report | 2016-09-07 | PDF 625.1 KB |
| RF Test Report-wifi | Test Report | 2016-09-07 | PDF 4 MB |
| Authorization Letter | Cover Letter(s) | 2016-09-07 | PDF 47.3 KB |
| DTS Ch 12&13 Declaration letter | Cover Letter(s) | 2016-09-07 | PDF 100.3 KB |
| LTC Letter | Cover Letter(s) | 2016-09-07 | PDF 48.1 KB |
| MPE Report | RF Exposure Info | 2016-09-07 | PDF 162.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 107.5 KB | |
| Schematics Metadata only | Schematics | PDF 431.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 135.1 KB | |
| SW Declaration letter Metadata only | Operational Description | PDF 123.5 KB |
Application Information
| Application ID | SL9diwBSoAIaXioFUOJJaQ== |
|---|---|
| Final Action Date | 2016-09-07 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0005810783 |
| Model | SBWD960A |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | ScreenBeam 960 |
| Responsible Party | Brian Henrichs, President, bhenrichs@actiontec.com , 4088579658 |
| Test Firm | Jason Chen, Shenzhen NTEK Testing Technology Co., Ltd., jason.chen@ntek.org.cn  , (86)-0755-61156588 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Product is restricted for indoor use only in the 5.15-5.25 GHz band. Power listed is maximum combined conducted output power. Device contains 20 / 40 / 80 MHz signal bandwidth. Device is 2X2 MIMO. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| SL9diwBSoAIaXioFUOJJaQ== | 2016-09-07 | Original Equipment |
| 9q+dFuLj1acQCqNQsfKbyQ== | 2016-09-07 | Original Equipment |
| 8k49tF+Gt2rmAzGQ5ZeTHg== | 2016-09-07 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application SL9diwBSoAIaXioFUOJJaQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 09/07/2016 Application Dated: 09/07/2016 |
| Actiontec Electronics Inc |
| 2445 Augustine Drive |
| Suite 501 |
| Santa Clara, CA 95054 |
| Attention: Brian Henrichs , President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | LNQSBWD960A |
| Name of Grantee: | Actiontec Electronics Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | ScreenBeam 960 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0572 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1103 |
| Product is restricted for indoor use only in the 5.15-5.25 GHz band. Power listed is maximum combined conducted output power. Device contains 20 / 40 / 80 MHz signal bandwidth. Device is 2X2 MIMO. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application SL9diwBSoAIaXioFUOJJaQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Actiontec Electronics Inc 2445 Augustine Drive Suite 501 Santa Clara, CA 95054 United States |
Date of Grant: 09/07/2016 Application Dated: 09/07/2016 |
| Attention: Brian Henrichs , President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | LNQSBWD960A |
| Name of Grantee: | Actiontec Electronics Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | ScreenBeam 960 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0572 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1103 |
| Product is restricted for indoor use only in the 5.15-5.25 GHz band. Power listed is maximum combined conducted output power. Device contains 20 / 40 / 80 MHz signal bandwidth. Device is 2X2 MIMO. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
