SBWD960A ScreenBeam 960 External Photos - FCC ID LNQSBWD960A
FCC ID LNQSBWD960A

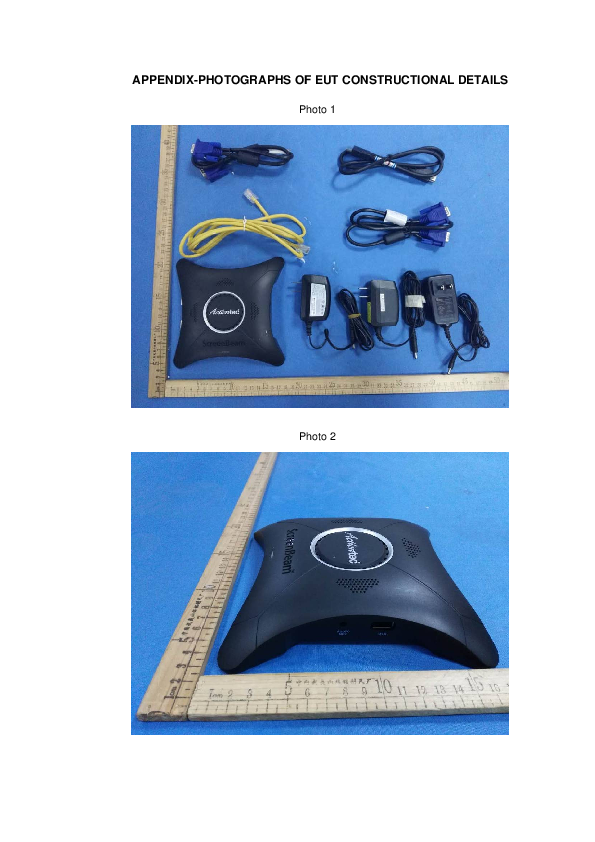

External Photos
ScreenBeam 960
Document preview loads when visible.
Document Details
| FCC ID | LNQSBWD960A |
|---|---|
| Document ID | 3125487 |
| Document Type | External Photos |
| Description | External Photos |
| Document Title | EUT PHOTO |
| Applicant | Actiontec Electronics Inc |
| Equipment Class | ScreenBeam 960 |
| Product Code | SBWD960A |
| Application ID | SL9diwBSoAIaXioFUOJJaQ== |
| Application Purpose | Original Equipment |
| Application Date | 2016-09-07 |
| Frequency Range | 5180-5240 MHz |
| FRN | 0005810783 |
| Test Firm | Shenzhen NTEK Testing Technology Co., Ltd. |
| Certified By | Angela Yao |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2016-09-07 |
| Available | 2016-09-07 |
| Created | 2016-08-18 |
| Modified | 2016-08-18 |
| Pages | 3 |
| File Type | Adobe Acrobat PDF |
| File Size | 405337 |
| File SHA-256 | dd366f25ab8fa6c53706e98614150c2b063872ba05947367dcdfd453c154e6fe |
| PDF Metadata Author | ntek096 |
| PDF Metadata Producer | Acrobat Distiller 7.0.5 (Windows) ntek096 |
| FCC.gov Sources | FCC.gov 3125487, FCC.gov 3125447, FCC.gov 3125435 |
