T055S WIRELESS SECURITY/SAFETY ALARM SYSTEM... - FCC ID NS3-T055S
FCC ID NS3-T055S

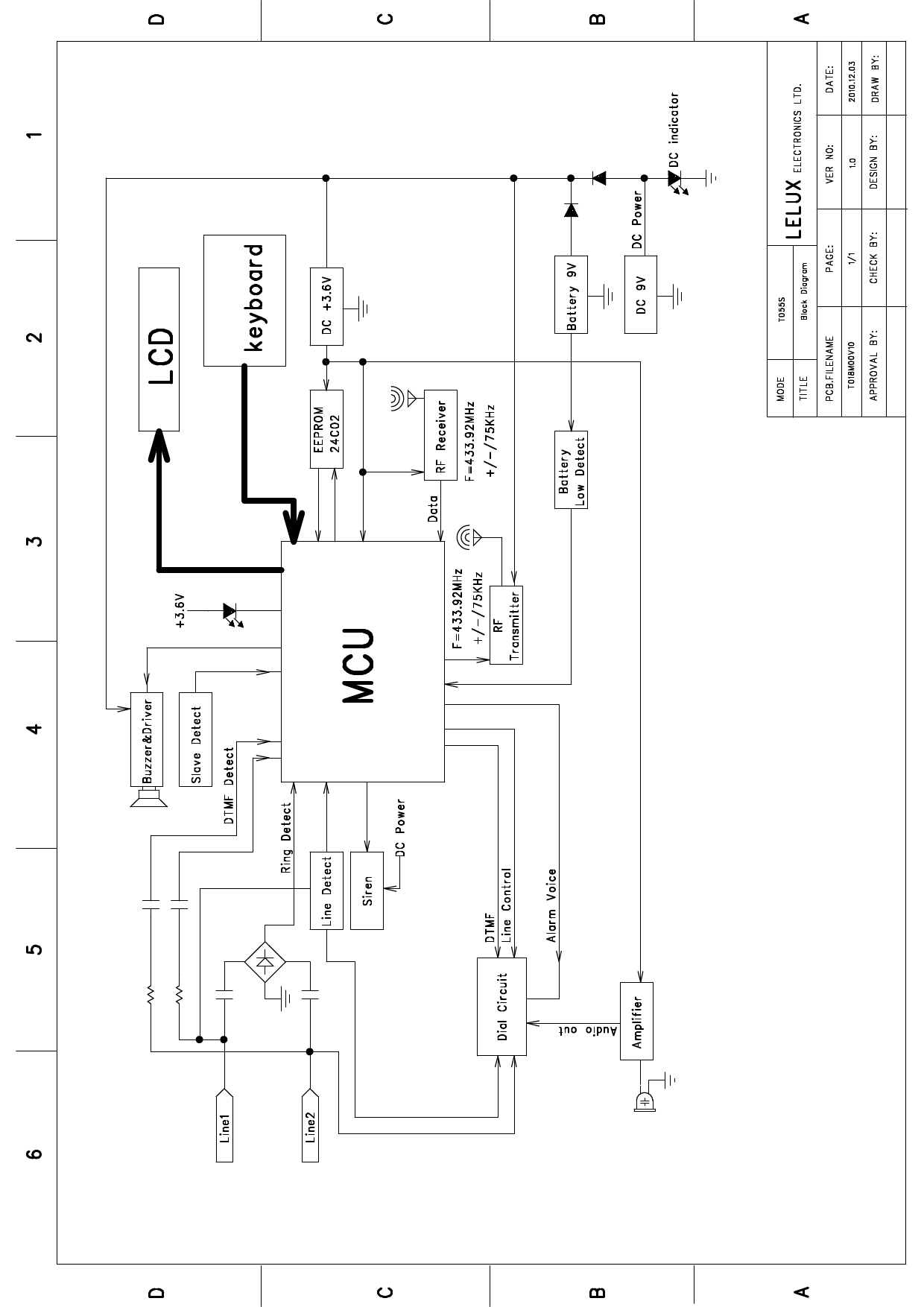

Block Diagram
WIRELESS SECURITY/SAFETY ALARM SYSTEM WITH AUTO DIALER
Document preview loads when visible.
Document Details
| FCC ID | NS3-T055S |
|---|---|
| Document ID | 1393464 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | Mainboard |
| Applicant | Lelux Electronics Ltd |
| Equipment Class | WIRELESS SECURITY/SAFETY ALARM SYSTEM WITH AUTO DIALER |
| Product Code | T055S |
| Application ID | ZC54FHD3fDjcmDRRXNUUTw== |
| Application Purpose | Original Equipment |
| Application Date | 2010-12-20 |
| Frequency Range | 433.92 MHz |
| FRN | 0013370796 |
| Test Firm | ATC Laboratory Co., Ltd |
| Certified By | Luke Luo |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2010-12-20 |
| Available | 2010-12-20 |
| Created | 2010-12-04 |
| Modified | 2010-12-20 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 32085 |
| File SHA-256 | dbf6ca026239ea8bd9b97ac68068ac49cef7f5f117a010e09f2159ceb4f023e6 |
| PDF Metadata Author | Administrator@988BC7B33DFE45D |
| PDF Metadata Creator | PScript5.dll Version 5.2.2 |
| PDF Metadata Producer | 5D PDF Creator v1.52.582 |
| FCC.gov Sources | FCC.gov 1393464 |
