AX1255 ArcXTEND Wireless Hub Access Point... - FCC ID PLRAX1255
FCC ID PLRAX1255

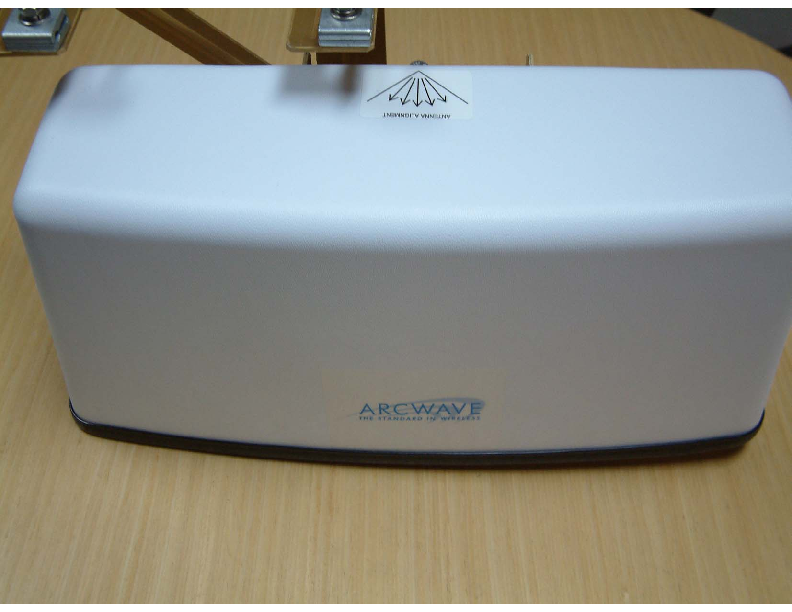

External Photos
ArcXTEND Wireless Hub Access Point
Document preview loads when visible.
Document Details
| FCC ID | PLRAX1255 |
|---|---|
| Document ID | 515956 |
| Document Type | External Photos |
| Description | External Photos |
| Document Title | Full page fax print |
| Applicant | Arcwave, Inc. |
| Equipment Class | ArcXTEND Wireless Hub Access Point |
| Product Code | AX1255 |
| Application ID | 2u/kk5yKuFLQ3O/v2//kbg== |
| Application Purpose | Original Equipment |
| Application Date | 2005-02-16 |
| Frequency Range | 5729-5813 MHz |
| FRN | 0009748567 |
| Test Firm | Compliance Certification Services Inc |
| Certified By | Mike Heckrotte Engineer Manager (Agent) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-02-16 |
| Available | 2005-02-16 |
| Created | 2005-01-17 |
| Modified | 2005-01-17 |
| Pages | 3 |
| File Type | Adobe Acrobat PDF |
| File Size | 281007 |
| File SHA-256 | 1bf7fc75f4e615522db4d333eb20e70b7c46e4e5b3129ea4c2c380f6627df86f |
| PDF Metadata Author | choque |
| PDF Metadata Producer | Acrobat Distiller 5.0.5 (Windows) choque |
| FCC.gov Sources | FCC.gov 515956 |
