SDU2000 UHF Telemetry Transceiver External... - FCC ID PT9SDU-2000

FCC ID PT9SDU-2000

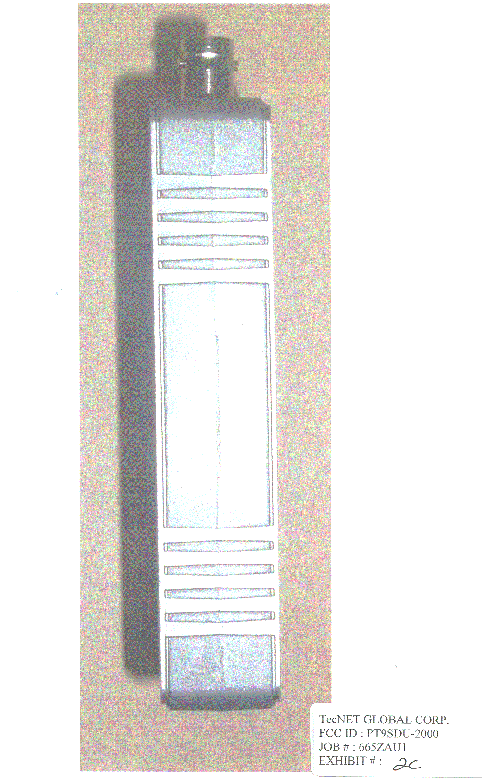

External side view photo

UHF Telemetry Transceiver

by TecNet Global Corporation

Document preview loads when visible.

Document Details

FCC IDPT9SDU-2000
Document ID173375
Document TypeExternal Photos
DescriptionExternal side view photo
ApplicantTecNet Global Corporation
Equipment ClassUHF Telemetry Transceiver
Product CodeSDU2000
Application IDcTeV12JPHXtZRFdYPSn7aQ==
Application PurposeOriginal Equipment
Application Date2002-01-17
Frequency Range450-470 MHz
FRN1202893783
Test FirmTimco Engineering, Inc.
Certified ByMario R. de Aranzeta Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-10-08
Available2002-01-17
Created2001-09-20
Modified2001-09-20
Pages1
File TypeAdobe Acrobat PDF
File Size379713
File SHA-2564e174f69c2a9fd7a02e8a874fbd10d2daf7f6fe48b760941b5a87ed933911177
PDF Metadata ProducerAcrobat 4.05 Scan Plug-in for Windows Acrobat 4.05 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 173375
