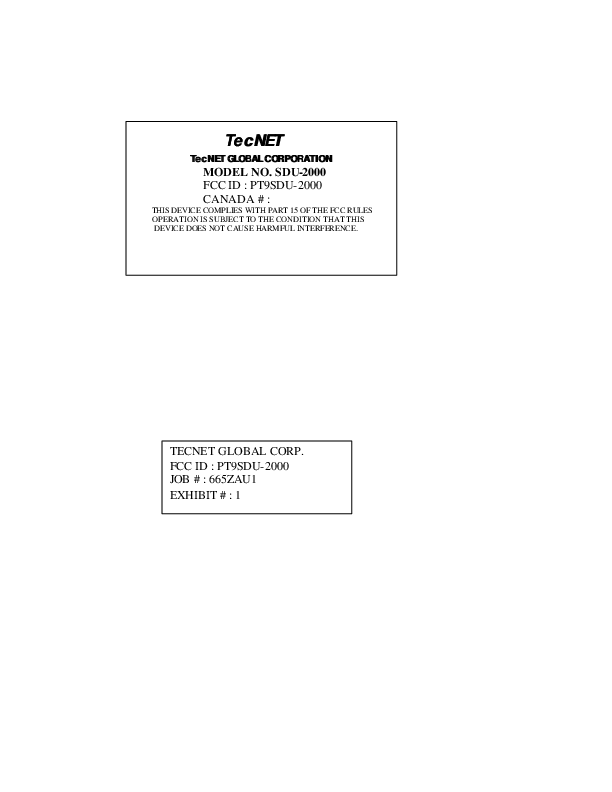

SDU2000 UHF Telemetry Transceiver Label Diagram - FCC ID PT9SDU-2000

FCC ID PT9SDU-2000

FCC ID Label Sample

UHF Telemetry Transceiver

by TecNet Global Corporation

Document preview loads when visible.

Document Details

FCC IDPT9SDU-2000
Document ID175909
Document TypeID Label/Location Info
DescriptionFCC ID Label Sample
Document Title665zau1-1a-lbl smpl
ApplicantTecNet Global Corporation
Equipment ClassUHF Telemetry Transceiver
Product CodeSDU2000
Application IDcTeV12JPHXtZRFdYPSn7aQ==
Application PurposeOriginal Equipment
Application Date2002-01-17
Frequency Range450-470 MHz
FRN1202893783
Test FirmTimco Engineering, Inc.
Certified ByMario R. de Aranzeta Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-10-24
Available2002-01-17
Created2001-10-24
Modified2001-10-24
Pages1
File TypeAdobe Acrobat PDF
File Size7789
File SHA-25673c98a81daa67b05ed88f00a857b249815e0b378b38069080c18c36471f022f4
PDF Metadata Producer665zau1-1a-lbl smpl.doc - Microsoft Word Acrobat PDFWriter 4.05 for Windows
FCC.gov SourcesFCC.gov 175909, FCC.gov 173371

Related FCC Exhibits

DocumentTypeAvailableFile
Users ManualUsers Manual2002-01-17PDF 164.8 KB
Internal component view photoInternal Photos2002-01-17PDF 64.4 KB
Internal solder view photoInternal Photos2002-01-17PDF 75.6 KB
External front view photoExternal Photos2002-01-17PDF 786.7 KB
External rear view photoExternal Photos2002-01-17PDF 70.9 KB
External side view photoExternal Photos2002-01-17PDF 370.8 KB
External top view photoExternal Photos2002-01-17PDF 39.6 KB
FCC ID Label LocationID Label/Location Info2002-01-17PDF 73 KB
FCC ID Label SampleID Label/Location Info2002-01-17PDF 7.6 KB
FCC ID Label locationID Label/Location Info2002-01-17PDF 119.5 KB
Block diagramBlock Diagram2002-01-17PDF 107.7 KB
SchematicSchematics2002-01-17PDF 802.7 KB
Theory of operationOperational Description2002-01-17PDF 313.9 KB
Test set up photoTest Setup Photos2002-01-17PDF 87 KB
Test ReportTest Report2002-01-17PDF 258.6 KB
Letter and information in responce to correspondence ID 21490Cover Letter(s)2002-01-17PDF 105 KB
Letter and information in response to correspondence ID 21335Cover Letter(s)2002-01-17PDF 236.5 KB
Response to correspondence ID 21594Cover Letter(s)2002-01-17PDF 52.4 KB
MPE calculationsRF Exposure Info2002-01-17PDF 52.4 KB
Tuning procedureParts List/Tune Up Info2002-01-17PDF 753.2 KB
