FCC ID PY7-PM0908
GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS;
by Sony Corporation
Grantee Code: PY7 Product Code: PM0908
Latest application date: 2016-02-12
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 699.7-715.3 MHz | Class II permissive change or modification of presently authorized equipment | 2016-02-12 |
| 5180-5240 MHz | Original Equipment | 2015-09-25 |
| 699.7-715.3 MHz | Original Equipment | 2015-09-25 |
| 2402-2480 MHz | Original Equipment | 2015-09-25 |
| 13.56 MHz | Original Equipment | 2015-09-25 |
| 2402-2480 MHz | Original Equipment | 2015-09-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| HAC Leaflet_PY7-PM0908 | Users Manual | 2016-03-23 | PDF 1.4 MB |
| PY7-PM0908 - 8 page SG 1 StartUpGuide_A7_Booklet_Print en_20150729-100315 | Users Manual | 2016-03-23 | PDF 711.3 KB |
| PY7-PM0908 - StartUpGuide_A7_Booklet_Prin en_20150729-100315 | Users Manual | 2016-03-23 | PDF 711.3 KB |
| PY7-PM0908_SAR-FCC-DoC-leaflet---America_print_20150918-08365 | Users Manual | 2016-03-23 | PDF 554.6 KB |
| PY7-PM0908_SAR-FCC-DoC-leaflet---America_print_20150918-083656 | Users Manual | 2016-03-23 | PDF 554.6 KB |
| Internal_Photos_PY7-PM0908 | Internal Photos | 2016-03-23 | PDF 354.5 KB |
| External_Photos_PY7-PM0908 | External Photos | 2016-03-23 | PDF 91 KB |
| FCC ID_PY7-PM0908_20150804-075433 | ID Label/Location Info | 2015-09-25 | PDF 401.9 KB |
| HAC_RF Appendix D_PY7-PM0908_Rev 01_09172015 | Test Setup Photos | 2016-03-23 | PDF 119.2 KB |
| HAC_T-Coil Appendix C_PY7-PM0908_Rev 01_09162015 | Test Setup Photos | 2016-03-23 | PDF 128.2 KB |
| JB-Z0071_PY7-PM0908_FCC_DoC_Test Report_Photos_Only | Test Setup Photos | 2016-03-23 | PDF 166.5 KB |

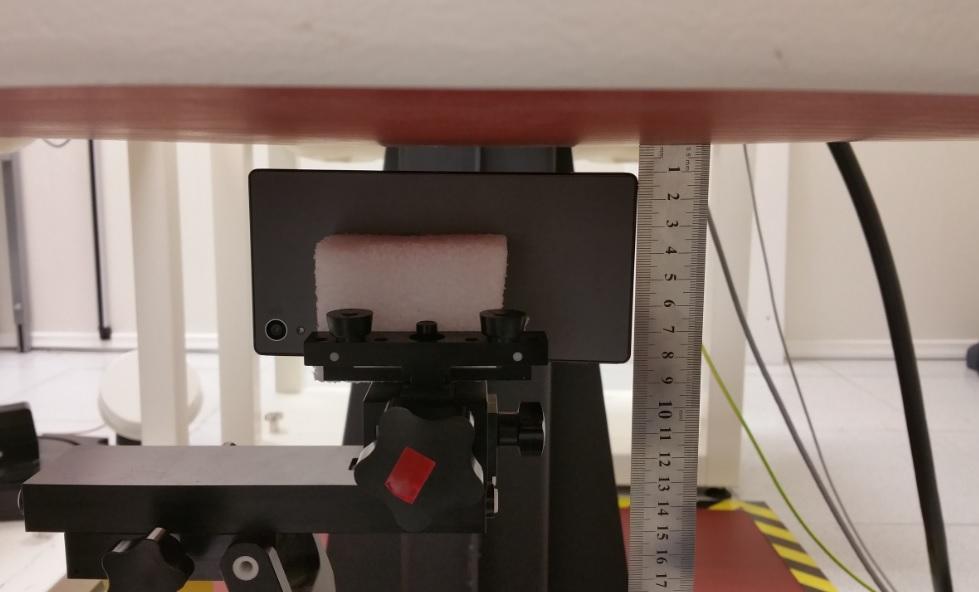

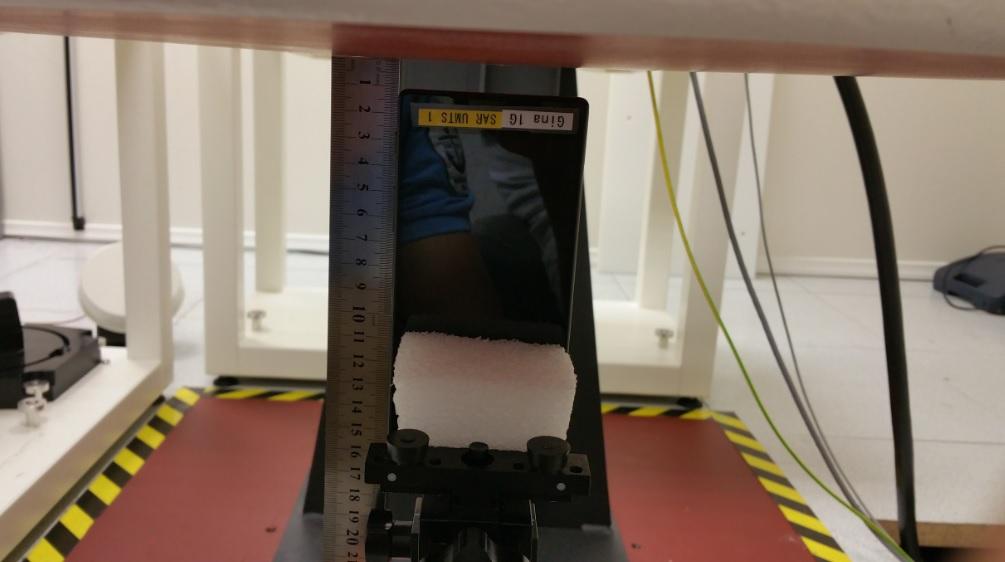

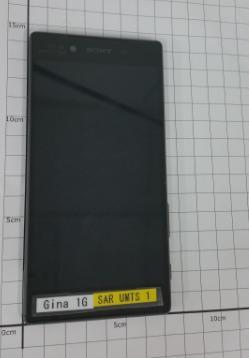

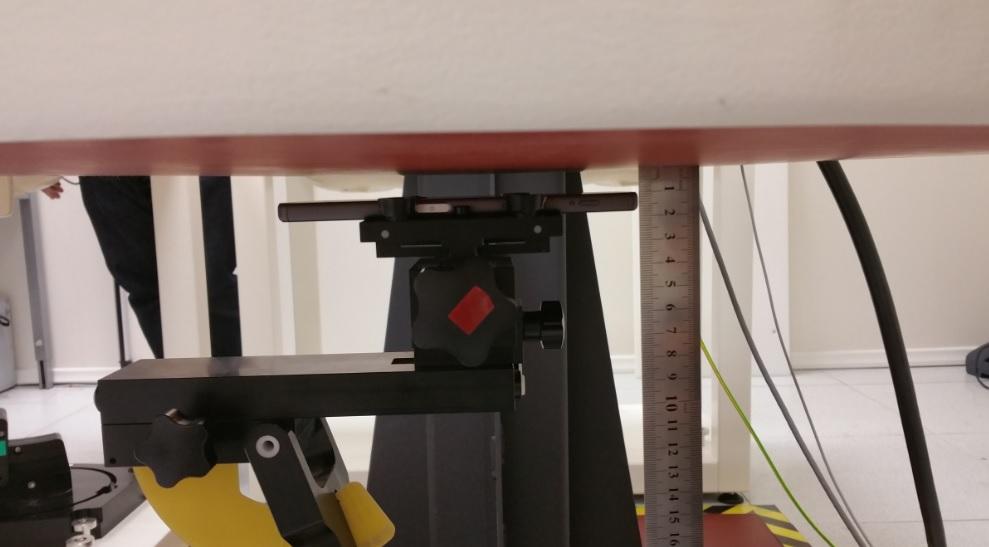

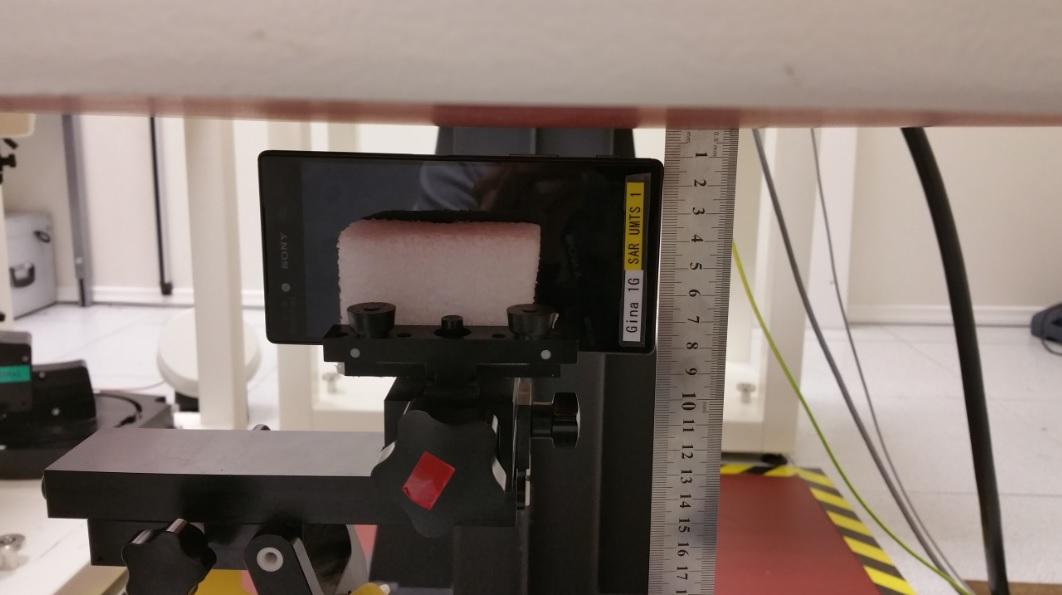

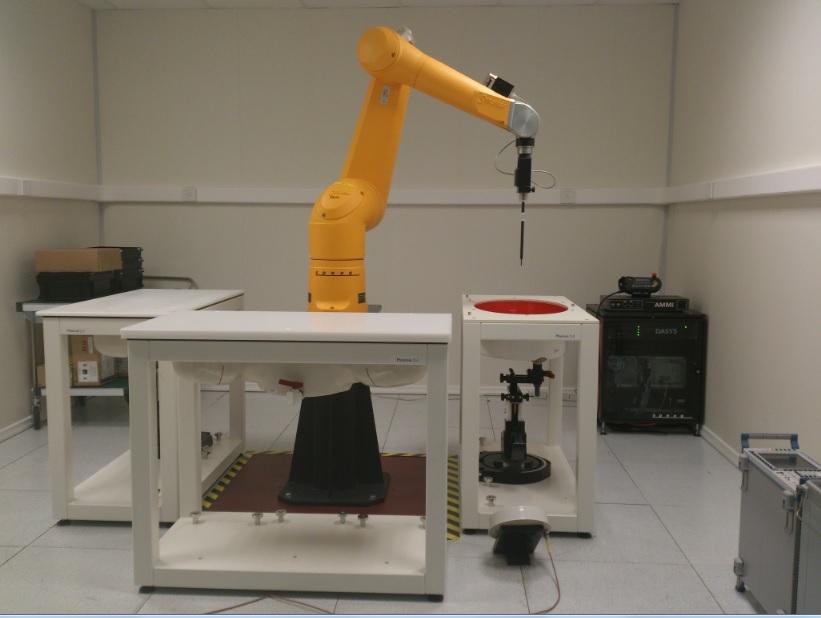

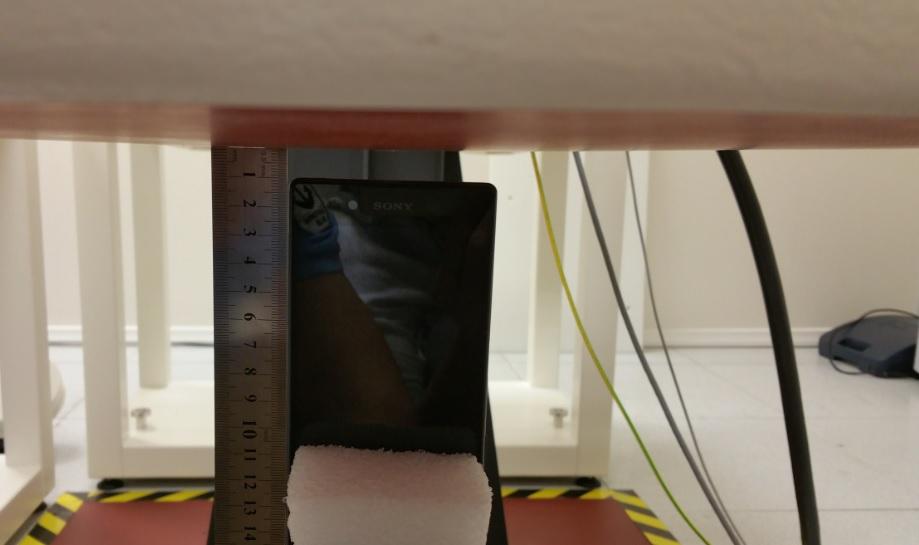

| Photos of SAR test | Test Setup Photos | 2016-03-23 | PDF 569.1 KB |
| RF_ Part 22 24 27_Setup Photo_PY7-PM0908_Rev 02_09182015 | Test Setup Photos | 2016-03-23 | PDF 555.3 KB |
| RF_Part 15C ANT+_Set-up photo_PY7-PM0908_Rev. 01_09162015 | Test Setup Photos | 2016-03-23 | PDF 434 KB |
| RF_Part 15C Bluetooth LE Set-up photo_PY7-PM0908_Rev. 01_09092015 | Test Setup Photos | 2016-03-23 | PDF 454.9 KB |
| RF_Part 15C Bluetooth Set-up photo_PY7-PM0908_Rev. 01_09092015 | Test Setup Photos | 2016-03-23 | PDF 440 KB |
| RF_Part 15C NFC Setup photo_PY7-PM0908_Rev 01_09162015 | Test Setup Photos | 2016-03-23 | PDF 392.1 KB |
| RF_Part 22 24 27_Setup Photo_PY7-PM0908_ R01_09162015 | Test Setup Photos | 2016-03-23 | PDF 201.4 KB |
| RF_Part15C WLAN 2.4G Set-up photo_PY7-PM0908_Rev. 01_09162015 | Test Setup Photos | 2016-03-23 | PDF 722.7 KB |
| RF_Part15E B1-B3_Setup Photo_PY7-PM0908_Rev 01_09162015 | Test Setup Photos | 2016-03-23 | PDF 500.7 KB |
| RF_Part15E DFS_Set-up photo_PY7-PM0908_Rev. 01_09092015 | Test Setup Photos | 2016-03-23 | PDF 365.2 KB |
| RF_Part15E WLAN 5G B4 Setup Photo_PY7-PM0908_Rev 01_09162015 | Test Setup Photos | 2016-03-23 | PDF 505.1 KB |
| SAR Test Photos | Test Setup Photos | 2016-02-12 | PDF 569.1 KB |
| HAC_RF Appendix A_PY7-PM0908_Rev 01_09172015 | Test Report | 2015-09-25 | PDF 136.2 KB |
| HAC_RF Appendix B_PY7-PM0908_Rev 01_09172015 | Test Report | 2015-09-25 | PDF 279.6 KB |
| HAC_RF Appendix C_PY7-PM0908_Rev 01_09172015 | Test Report | 2015-09-25 | PDF 506.4 KB |
| HAC_RF_PY7-PM0908_Rev 01_09172015 | Test Report | 2015-09-25 | PDF 638.7 KB |
| HAC_T-Coil Appendix A_PY7-PM0908_Rev 01_09162015 | Test Report | 2015-09-25 | PDF 635.4 KB |
| HAC_T-Coil Appendix B_PY7-PM0908_Rev 01_09162015 | Test Report | 2015-09-25 | PDF 100 KB |
| HAC_T-Coil_PY7-PM0908_Rev 01_09162015 | Test Report | 2015-09-25 | PDF 992.4 KB |
| JB-Z0071_PY7-PM0908_FCC_DoC_Test Report_No_Photos | Test Report | 2015-09-25 | PDF 478.6 KB |
| RF_Part 15C ANT+_PY7-PM0908_Rev. 01_09162015 | Test Report | 2015-09-25 | PDF 984.2 KB |
| RF_Part 15C Bluetooth LE_PY7-PM0908_Rev. 01_09092015 | Test Report | 2015-09-25 | PDF 1.4 MB |
| RF_Part 15C Bluetooth_PY7-PM0908_Rev. 01_09092015 | Test Report | 2015-09-25 | PDF 2.4 MB |
| RF_Part 15C NFC_PY7-PM0908_Rev 01_09162015 | Test Report | 2015-09-25 | PDF 802.5 KB |
| RF_Part 22 24 27_PY7-PM0908_ R01_09162015(gsm wcdma) | Test Report | 2015-09-25 | PDF 2.3 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 1 | Test Report | 2015-09-25 | PDF 509.9 KB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 10 | Test Report | 2015-09-25 | PDF 4.3 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 11 | Test Report | 2015-09-25 | PDF 4.4 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 12 | Test Report | 2015-09-25 | PDF 4.5 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 13 | Test Report | 2015-09-25 | PDF 4.4 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 14 | Test Report | 2015-09-25 | PDF 4.2 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 15 | Test Report | 2015-09-25 | PDF 4.6 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 16 | Test Report | 2015-09-25 | PDF 4 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 2 | Test Report | 2015-09-25 | PDF 1.1 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 3 | Test Report | 2015-09-25 | PDF 4.5 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 4 | Test Report | 2015-09-25 | PDF 5 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 5 | Test Report | 2015-09-25 | PDF 4.6 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 6 | Test Report | 2015-09-25 | PDF 4.7 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 7 | Test Report | 2015-09-25 | PDF 4.9 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 8 | Test Report | 2015-09-25 | PDF 4.4 MB |
| RF_Part 22 24 27__PY7-PM0908_R01_Rev 02_09162015_Part 9 | Test Report | 2015-09-25 | PDF 4.6 MB |
| RF_Part15C WLAN 2.4G_PY7-PM0908_Rev. 01_09162015 | Test Report | 2015-09-25 | PDF 4.8 MB |
| RF_Part15E B1-B3_PY7-PM0908_Rev 01_09162015 | Test Report | 2015-09-25 | PDF 4.9 MB |
| RF_Part15E DFS_PY7-PM0908_Rev. 01_09092015 | Test Report | 2015-09-25 | PDF 1.3 MB |
| RF_Part15E WLAN 5G B4_PY7-PM0908_Rev 01_09162015 | Test Report | 2015-09-25 | PDF 2.2 MB |
| Test Report Re-Use Justification - PY7-PM0908 | Cover Letter(s) | 2015-09-25 | PDF 157.2 KB |
| MIF Attestation Letter_PY7-PM0908 | Cover Letter(s) | 2015-09-25 | PDF 51.1 KB |
| PY7-PM0908_LTE Release10 feature Attestation Letter rev2 | Cover Letter(s) | 2015-09-25 | PDF 91.7 KB |
| Agent Auth | Cover Letter(s) | 2016-02-12 | PDF 211.6 KB |
| CIIPC Cover Letter | Cover Letter(s) | 2016-02-12 | PDF 14.2 KB |
| Confidentiality | Cover Letter(s) | 2016-02-12 | PDF 50.5 KB |
| Authority letter to signer for FCC | Cover Letter(s) | 2015-09-25 | PDF 211.6 KB |
| FCC Request for Confidentiality Letter - Long and Short Term PY7-PM0908 | Cover Letter(s) | 2015-09-25 | PDF 60.3 KB |
| SAR Report | RF Exposure Info | 2016-02-12 | PDF 4.6 MB |
| SAR Report Appendix A | RF Exposure Info | 2016-02-12 | PDF 1,011.6 KB |
| SAR Report Appendix B | RF Exposure Info | 2016-02-12 | PDF 1.5 MB |
| SAR Report Appendix C | RF Exposure Info | 2016-02-12 | PDF 223.9 KB |
| SAR Report Appendix D | RF Exposure Info | 2016-02-12 | PDF 2.4 MB |
| SAR Report Appendix E1 | RF Exposure Info | 2016-02-12 | PDF 3.3 MB |
| SAR Report Appendix E2 | RF Exposure Info | 2016-02-12 | PDF 2.5 MB |
| TARC-AEA7E5-SAR-FCC-01 | RF Exposure Info | 2015-09-25 | PDF 4.5 MB |
| TRAC-AEA7ES-SAR-FCC-01_Appendix A | RF Exposure Info | 2015-09-25 | PDF 628.1 KB |
| TRAC-AEA7ES-SAR-FCC-01_Appendix B | RF Exposure Info | 2015-09-25 | PDF 1.4 MB |
| TRAC-AEA7ES-SAR-FCC-01_Appendix C | RF Exposure Info | 2015-09-25 | PDF 211.5 KB |
| TRAC-AEA7ES-SAR-FCC-01_Appendix D | RF Exposure Info | 2015-09-25 | PDF 2 MB |
| TRAC-AEA7ES-SAR-FCC-01_Appendix E1 | RF Exposure Info | 2015-09-25 | PDF 3.3 MB |
| TRAC-AEA7ES-SAR-FCC-01_Appendix E2 | RF Exposure Info | 2015-09-25 | PDF 2.5 MB |
| Confidential_PY7-PM0908_Overall_Block_Diagram_for_TA_Rev2 Metadata only | Block Diagram | PDF 252 KB | |
| Confidential_PY7-PM0908_RfCell_BlockDiagram Metadata only | Block Diagram | PDF 157 KB | |
| PY7-PM0908_BT_BLE_ANTplus Metadata only | Block Diagram | PDF 62.5 KB | |
| PY7-PM0908_Global_NFC Metadata only | Block Diagram | PDF 213.5 KB | |
| PY7-PM0908_Overall_Block_Diagram_for_TA_Rev2 Metadata only | Block Diagram | PDF 252 KB | |
| PY7-PM0908_RfCell_BlockDiagram Metadata only | Block Diagram | PDF 157 KB | |
| PY7-PM0908_WLAN_2_4G_CE_FCC Metadata only | Block Diagram | PDF 63 KB | |
| PY7-PM0908_WLAN_5G_FCC Metadata only | Block Diagram | PDF 63.3 KB | |
| PY7-PM0908_Main_Gina1G_20150626-1045_TA_20150717-081802 Metadata only | Schematics | PDF 3.3 MB | |
| KDB392632 Metadata only | Operational Description | PDF 166.3 KB | |
| PY7-PM0908 Antenna Distance Metadata only | Operational Description | PDF 80.8 KB | |
| PY7-PM0908_Antenna_Specification_Rev1 Metadata only | Operational Description | PDF 48.6 KB | |
| Technical_Description_for_BT-ANT+-NFC_PY7-PM0908 Metadata only | Operational Description | PDF 500.5 KB | |
| Technical_Description_for_Cellular_PY7-PM0900_0912_b7 Metadata only | Operational Description | PDF 1 MB | |
| Technical_Description_for_WLAN_FCC_PY7-PM0908 Metadata only | Operational Description | PDF 720.2 KB | |
| Technical_Description_for_WLAN_Security_PY7-PM0908 Metadata only | Operational Description | PDF 321.9 KB | |
| PY7-PM0908 Manufacturing Tolerance Metadata only | Parts List/Tune Up Info | PDF 788 KB | |
| PY7-PM0908_BOM_150715_20150717-081224 Metadata only | Parts List/Tune Up Info | PDF 1.7 MB |
Application Information
| Application ID | A0A2nmtcXrfFsLH1bA6WnA== |
|---|---|
| Final Action Date | 2016-02-12 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0018919456 |
| Model | PM0908 |
| Frequency Range | 699.7-715.3 MHz |
| Equipment Class | PCE - PCS Licensed Transmitter held to ear |
| Device Description | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS; |
| Responsible Party | Mika Kaneko, Chief Regulatory Compliance Manager, Mika.Kaneko@sony.com  , +81367103225 |
| Test Firm | Gang Ma, Sony Mobile Type Approval China Laboratory, Gang.Ma@sonymobile.com  , 0086(0)10-80481188 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Class II Permissive Change Power output is ERP for Parts 22 and 27 (bands 12 and 17) and EIRP for Parts 24 and 27 (bands 4, 7 and 41). Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.39 W/kg; Body-worn 0.53 W/kg; Product Specific (Wireless Router): 0.77 W/kg; Simultaneous Transmission SAR: 1.41 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device contains ANT+, Bluetooth, BLE, NFC and WLAN transmitters. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 5MHz and 10 MHz bandwidth modes for LTE Band 17; and 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 7 and 41. Rel.10 LTE is limited. Only the network enhancement features and downlink carrier aggregation are supported. HAC Rating M4/T4-2011. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| A0A2nmtcXrfFsLH1bA6WnA== | 2016-02-12 | Class II permissive change or modification of presently authorized equipment |
| hFe5D7RYmzkdZxp10HDCHw== | 2015-09-25 | Original Equipment |
| W/ZiD4d600/VqoWlsdRxNQ== | 2015-09-25 | Original Equipment |
| TEhMelXFopusnz2ilzbWXQ== | 2015-09-25 | Original Equipment |
| SBKMXSwGGXrvakfkecvRPA== | 2015-09-25 | Original Equipment |
| 8UpGF+ND+nDkWxPk2JK0jA== | 2015-09-25 | Original Equipment |
| 51Rn3nxOGibBRi5nyScazA== | 2015-09-25 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | CC | ||||
| 13.56 MHz | 15C | CC | |||
| 699.7-715.3 MHz | 0.0753 | 0.0095ppm | 1M09G7D | 27 | BC, HX |
| 701.5-713.5 MHz | 0.0627 | 0.0095ppm | 4M50W7D | 27 | BC, HX |
| 704-711 MHz | 0.0736 | 0.0095ppm | 9M13G7D | 27 | BC, HX |
| 704-711 MHz | 0.0615 | 0.0095ppm | 9M03W7D | 27 | BC, HX |
| 709-711 MHz | 0.0762 | 0.0108ppm | 9M09G7D | 27 | BC, HX |
| 709-711 MHz | 0.0647 | 0.0108ppm | 9M03W7D | 27 | BC, HX |
| 824.7-848.3 MHz | 0.0615 | 0.0096ppm | 1M09W7D | 22H | BC, HX |
| 826.5-846.5 MHz | 0.0733 | 0.0096ppm | 4M50G7D | 22H | BC, HX |
| 829-844 MHz | 0.0708 | 0.0096ppm | 9M07G7D | 22H | BC, HX |
| 829-844 MHz | 0.0596 | 0.0096ppm | 9M05W7D | 22H | BC, HX |
| 1712.4-1752.6 MHz | 0.1393 | 0.004ppm | 4M15F9W | 27 | BC, HC |
| 1717.5-1747.5 MHz | 0.0665 | 0.0071ppm | 13M5G7D | 27 | BC, HX |
| 1720-1745 MHz | 0.0635 | 0.0071ppm | 18M5G7D | 27 | BC, HX |
| 1720-1745 MHz | 0.0679 | 0.0071ppm | 18M4W7D | 27 | BC, HX |
| 1850.2-1909.8 MHz | 0.3673 | 0.0165ppm | 245KGXW | 24E | BC, HC |
| 1850.2-1909.8 MHz | 0.2148 | 0.0112ppm | 245KG7W | 24E | BC, HX |
| 1851.5-1908.5 MHz | 0.0692 | 0.0127ppm | 2M73G7D | 24E | BC, HX |
| 1852.4-1907.6 MHz | 0.0733 | 0.0048ppm | 4M16F9W | 24E | BC, HC |
| 1857.5-1902.5 MHz | 0.07 | 0.0127ppm | 13M5W7D | 24E | BC, HX |
| 1860-1900 MHz | 0.0647 | 0.0127ppm | 18M5G7D | 24E | BC, HX |
| 1860-1900 MHz | 0.0659 | 0.0127ppm | 18M3W7D | 24E | BC, HX |
| 2402-2480 MHz | 0.0090000 | 15C | CC | ||
| 2402-2480 MHz | 0.0058 | 15C | CC | ||
| 2403-2480 MHz | 15C | CC | |||
| 2412-2472 MHz | 0.2254 | 15C | CC, HX, MO | ||
| 2498.5-2687.5 MHz | 0.1409 | 0.0027ppm | 4M51G7D | 27 | BC, HX |
| 2498.5-2687.5 MHz | 0.1167 | 0.0027ppm | 4M51W7D | 27 | BC, HX |
| 2506-2680 MHz | 0.1403 | 0.0027ppm | 18M5G7D | 27 | BC, HX |
| 2506-2680 MHz | 0.1112 | 0.0027ppm | 18M4W7D | 27 | BC, HX |
| 2510-2560 MHz | 0.05 | 0.0007ppm | 18M4G7D | 27 | BC, HX |
| 2510-2560 MHz | 0.053 | 0.0007ppm | 18M4W7D | 27 | BC, HX |
| 5180-5240 MHz | 0.0195 | 15E | 38, CC, HX, MO | ||
| 5260-5320 MHz | 0.0197 | 15E | 38, CC, HX, MO | ||
| 5500-5720 MHz | 0.0199 | 15E | 38, CC, HX, MO | ||
| 5745-5825 MHz | 0.0193 | 15E | 38, CC, HX, MO |
Grants
TCB Grant - Application W/ZiD4d600/VqoWlsdRxNQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Sony Corporation |
| 1-7-1 Konan, Minato-ku |
| Tokyo, 108-0075 Japan |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| This device contains ANT+, Bluetooth, BLE, NFC, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application W/ZiD4d600/VqoWlsdRxNQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sony Corporation 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| This device contains ANT+, Bluetooth, BLE, NFC, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Sony Corporation |
| 1-7-1 Konan, Minato-ku |
| Tokyo, 108-0075 Japan |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.3926 | 0.0299 PM | 244KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.1563 | 0.0108 PM | 248KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.0904 | 0.0143 PM | 4M16F9W |
| BC HC | 24E | 1850.2 - 1909.8 | 0.3673 | 0.0165 PM | 245KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.2148 | 0.0112 PM | 245KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.0733 | 0.0048 PM | 4M16F9W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.1393 | 0.004 PM | 4M15F9W |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0647 | 0.0127 PM | 18M5G7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0659 | 0.0127 PM | 18M3W7D |
| BC HX | 24E | 1851.5 - 1908.5 | 0.0692 | 0.0127 PM | 2M73G7D |
| BC HX | 24E | 1857.5 - 1902.5 | 0.07 | 0.0127 PM | 13M5W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0635 | 0.0071 PM | 18M5G7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0679 | 0.0071 PM | 18M4W7D |
| BC HX | 27 | 1717.5 - 1747.5 | 0.0665 | 0.0071 PM | 13M5G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0708 | 0.0096 PM | 9M07G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0596 | 0.0096 PM | 9M05W7D |
| BC HX | 22H | 826.5 - 846.5 | 0.0733 | 0.0096 PM | 4M50G7D |
| BC HX | 22H | 824.7 - 848.3 | 0.0615 | 0.0096 PM | 1M09W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.05 | 0.0007 PM | 18M4G7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.053 | 0.0007 PM | 18M4W7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0736 | 0.0095 PM | 9M13G7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0615 | 0.0095 PM | 9M03W7D |
| BC HX | 27 | 699.7 - 715.3 | 0.0753 | 0.0095 PM | 1M09G7D |
| BC HX | 27 | 701.5 - 713.5 | 0.0627 | 0.0095 PM | 4M50W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0762 | 0.0108 PM | 9M09G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0647 | 0.0108 PM | 9M03W7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1403 | 0.0027 PM | 18M5G7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1112 | 0.0027 PM | 18M4W7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1409 | 0.0027 PM | 4M51G7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1167 | 0.0027 PM | 4M51W7D |
| Power output is ERP for Parts 22 and 27 (bands 12 and 17) and EIRP for Parts 24 and 27 (bands 4, 7 and 41) . Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.39 W/kg; Body-worn 0.53 W/kg; Product Specific (Wireless Router): 0.61 W/kg; Simultaneous Transmission SAR: 1.41 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device contains ANT+, Bluetooth, BLE, NFC and WLAN transmitters. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 5 MHz and 10 MHz bandwidth modes for LTE Band 17; and 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 7 and 41. Rel.10 LTE is limited. The network enhancement features and downlink carrier aggregation are supported only. HAC Rating M4/T4-2011. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application TEhMelXFopusnz2ilzbWXQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sony Corporation 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.3926 | 0.0299 PM | 244KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.1563 | 0.0108 PM | 248KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.0904 | 0.0143 PM | 4M16F9W |
| BC HC | 24E | 1850.2 - 1909.8 | 0.3673 | 0.0165 PM | 245KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.2148 | 0.0112 PM | 245KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.0733 | 0.0048 PM | 4M16F9W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.1393 | 0.004 PM | 4M15F9W |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0647 | 0.0127 PM | 18M5G7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0659 | 0.0127 PM | 18M3W7D |
| BC HX | 24E | 1851.5 - 1908.5 | 0.0692 | 0.0127 PM | 2M73G7D |
| BC HX | 24E | 1857.5 - 1902.5 | 0.07 | 0.0127 PM | 13M5W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0635 | 0.0071 PM | 18M5G7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0679 | 0.0071 PM | 18M4W7D |
| BC HX | 27 | 1717.5 - 1747.5 | 0.0665 | 0.0071 PM | 13M5G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0708 | 0.0096 PM | 9M07G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0596 | 0.0096 PM | 9M05W7D |
| BC HX | 22H | 826.5 - 846.5 | 0.0733 | 0.0096 PM | 4M50G7D |
| BC HX | 22H | 824.7 - 848.3 | 0.0615 | 0.0096 PM | 1M09W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.05 | 0.0007 PM | 18M4G7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.053 | 0.0007 PM | 18M4W7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0736 | 0.0095 PM | 9M13G7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0615 | 0.0095 PM | 9M03W7D |
| BC HX | 27 | 699.7 - 715.3 | 0.0753 | 0.0095 PM | 1M09G7D |
| BC HX | 27 | 701.5 - 713.5 | 0.0627 | 0.0095 PM | 4M50W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0762 | 0.0108 PM | 9M09G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0647 | 0.0108 PM | 9M03W7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1403 | 0.0027 PM | 18M5G7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1112 | 0.0027 PM | 18M4W7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1409 | 0.0027 PM | 4M51G7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1167 | 0.0027 PM | 4M51W7D |
| Power output is ERP for Parts 22 and 27 (bands 12 and 17) and EIRP for Parts 24 and 27 (bands 4, 7 and 41) . Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.39 W/kg; Body-worn 0.53 W/kg; Product Specific (Wireless Router): 0.61 W/kg; Simultaneous Transmission SAR: 1.41 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device contains ANT+, Bluetooth, BLE, NFC and WLAN transmitters. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 5 MHz and 10 MHz bandwidth modes for LTE Band 17; and 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 7 and 41. Rel.10 LTE is limited. The network enhancement features and downlink carrier aggregation are supported only. HAC Rating M4/T4-2011. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Sony Corporation |
| 1-7-1 Konan, Minato-ku |
| Tokyo, 108-0075 Japan |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX MO | 15C | 2412.0 - 2472.0 | 0.2254 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0058 |
| Power output is conducted. Device is capable to operate 802.11n MIMO configurations as described in this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.58 W/kg; Body-worn: < 0.10 W/kg; Product Specific (Wireless Router): < 0.10 W/kg; Simultaneous Transmission SAR: 1.41 W/kg. This device contains ANT+, Bluetooth, NFC and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application SBKMXSwGGXrvakfkecvRPA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sony Corporation 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX MO | 15C | 2412.0 - 2472.0 | 0.2254 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0058 |
| Power output is conducted. Device is capable to operate 802.11n MIMO configurations as described in this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.58 W/kg; Body-worn: < 0.10 W/kg; Product Specific (Wireless Router): < 0.10 W/kg; Simultaneous Transmission SAR: 1.41 W/kg. This device contains ANT+, Bluetooth, NFC and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Sony Corporation |
| 1-7-1 Konan, Minato-ku |
| Tokyo, 108-0075 Japan |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC HX MO | 15E | 5180.0 - 5240.0 | 0.0195 | ||
| 38 CC HX MO | 15E | 5260.0 - 5320.0 | 0.0197 | ||
| 38 CC HX MO | 15E | 5500.0 - 5720.0 | 0.0199 | ||
| 38 CC HX MO | 15E | 5745.0 - 5825.0 | 0.0193 |
| Power output is conducted. Device is capable to operate in 802.11n/ac MIMO configurations as described in this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.50 W/kg; Body-worn < 0.10 W/kg; Simultaneous Transmission SAR: 1.28 W/kg. This device contains ANT+, Bluetooth, BLE, NFC and GSM/WCDMA/LTE transmitters and has a 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application hFe5D7RYmzkdZxp10HDCHw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sony Corporation 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC HX MO | 15E | 5180.0 - 5240.0 | 0.0195 | ||
| 38 CC HX MO | 15E | 5260.0 - 5320.0 | 0.0197 | ||
| 38 CC HX MO | 15E | 5500.0 - 5720.0 | 0.0199 | ||
| 38 CC HX MO | 15E | 5745.0 - 5825.0 | 0.0193 |
| Power output is conducted. Device is capable to operate in 802.11n/ac MIMO configurations as described in this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.50 W/kg; Body-worn < 0.10 W/kg; Simultaneous Transmission SAR: 1.28 W/kg. This device contains ANT+, Bluetooth, BLE, NFC and GSM/WCDMA/LTE transmitters and has a 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 02/12/2016 Application Dated: 02/12/2016 |
| Sony Corporation |
| 1-7-1 Konan, Minato-ku |
| Tokyo, 108-0075 Japan |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.3926 | 0.0299 PM | 244KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.1563 | 0.0108 PM | 248KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.0904 | 0.0143 PM | 4M16F9W |
| BC HC | 24E | 1850.2 - 1909.8 | 0.3673 | 0.0165 PM | 245KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.2148 | 0.0112 PM | 245KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.0733 | 0.0048 PM | 4M16F9W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.1393 | 0.004 PM | 4M15F9W |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0647 | 0.0127 PM | 18M5G7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0659 | 0.0127 PM | 18M3W7D |
| BC HX | 24E | 1851.5 - 1908.5 | 0.0692 | 0.0127 PM | 2M73G7D |
| BC HX | 24E | 1857.5 - 1902.5 | 0.07 | 0.0127 PM | 13M5W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0635 | 0.0071 PM | 18M5G7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0679 | 0.0071 PM | 18M4W7D |
| BC HX | 27 | 1717.5 - 1747.5 | 0.0665 | 0.0071 PM | 13M5G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0708 | 0.0096 PM | 9M07G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0596 | 0.0096 PM | 9M05W7D |
| BC HX | 22H | 826.5 - 846.5 | 0.0733 | 0.0096 PM | 4M50G7D |
| BC HX | 22H | 824.7 - 848.3 | 0.0615 | 0.0096 PM | 1M09W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.05 | 0.0007 PM | 18M4G7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.053 | 0.0007 PM | 18M4W7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0736 | 0.0095 PM | 9M13G7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0615 | 0.0095 PM | 9M03W7D |
| BC HX | 27 | 699.7 - 715.3 | 0.0753 | 0.0095 PM | 1M09G7D |
| BC HX | 27 | 701.5 - 713.5 | 0.0627 | 0.0095 PM | 4M50W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0762 | 0.0108 PM | 9M09G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0647 | 0.0108 PM | 9M03W7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1403 | 0.0027 PM | 18M5G7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1112 | 0.0027 PM | 18M4W7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1409 | 0.0027 PM | 4M51G7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1167 | 0.0027 PM | 4M51W7D |
| Class II Permissive Change Power output is ERP for Parts 22 and 27 (bands 12 and 17) and EIRP for Parts 24 and 27 (bands 4, 7 and 41). Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.39 W/kg; Body-worn 0.53 W/kg; Product Specific (Wireless Router): 0.77 W/kg; Simultaneous Transmission SAR: 1.41 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device contains ANT+, Bluetooth, BLE, NFC and WLAN transmitters. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 5MHz and 10 MHz bandwidth modes for LTE Band 17; and 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 7 and 41. Rel.10 LTE is limited. Only the network enhancement features and downlink carrier aggregation are supported. HAC Rating M4/T4-2011. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application A0A2nmtcXrfFsLH1bA6WnA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sony Corporation 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan |
Date of Grant: 02/12/2016 Application Dated: 02/12/2016 |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.3926 | 0.0299 PM | 244KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.1563 | 0.0108 PM | 248KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.0904 | 0.0143 PM | 4M16F9W |
| BC HC | 24E | 1850.2 - 1909.8 | 0.3673 | 0.0165 PM | 245KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.2148 | 0.0112 PM | 245KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.0733 | 0.0048 PM | 4M16F9W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.1393 | 0.004 PM | 4M15F9W |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0647 | 0.0127 PM | 18M5G7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.0659 | 0.0127 PM | 18M3W7D |
| BC HX | 24E | 1851.5 - 1908.5 | 0.0692 | 0.0127 PM | 2M73G7D |
| BC HX | 24E | 1857.5 - 1902.5 | 0.07 | 0.0127 PM | 13M5W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0635 | 0.0071 PM | 18M5G7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.0679 | 0.0071 PM | 18M4W7D |
| BC HX | 27 | 1717.5 - 1747.5 | 0.0665 | 0.0071 PM | 13M5G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0708 | 0.0096 PM | 9M07G7D |
| BC HX | 22H | 829.0 - 844.0 | 0.0596 | 0.0096 PM | 9M05W7D |
| BC HX | 22H | 826.5 - 846.5 | 0.0733 | 0.0096 PM | 4M50G7D |
| BC HX | 22H | 824.7 - 848.3 | 0.0615 | 0.0096 PM | 1M09W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.05 | 0.0007 PM | 18M4G7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.053 | 0.0007 PM | 18M4W7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0736 | 0.0095 PM | 9M13G7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0615 | 0.0095 PM | 9M03W7D |
| BC HX | 27 | 699.7 - 715.3 | 0.0753 | 0.0095 PM | 1M09G7D |
| BC HX | 27 | 701.5 - 713.5 | 0.0627 | 0.0095 PM | 4M50W7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0762 | 0.0108 PM | 9M09G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0647 | 0.0108 PM | 9M03W7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1403 | 0.0027 PM | 18M5G7D |
| BC HX | 27 | 2506.0 - 2680.0 | 0.1112 | 0.0027 PM | 18M4W7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1409 | 0.0027 PM | 4M51G7D |
| BC HX | 27 | 2498.5 - 2687.5 | 0.1167 | 0.0027 PM | 4M51W7D |
| Class II Permissive Change Power output is ERP for Parts 22 and 27 (bands 12 and 17) and EIRP for Parts 24 and 27 (bands 4, 7 and 41). Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.39 W/kg; Body-worn 0.53 W/kg; Product Specific (Wireless Router): 0.77 W/kg; Simultaneous Transmission SAR: 1.41 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device contains ANT+, Bluetooth, BLE, NFC and WLAN transmitters. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 5MHz and 10 MHz bandwidth modes for LTE Band 17; and 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 7 and 41. Rel.10 LTE is limited. Only the network enhancement features and downlink carrier aggregation are supported. HAC Rating M4/T4-2011. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Sony Corporation |
| 1-7-1 Konan, Minato-ku |
| Tokyo, 108-0075 Japan |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2403.0 - 2480.0 | |||
| CC | 15C | 13.56 - 13.56 |
| This device contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 8UpGF+ND+nDkWxPk2JK0jA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sony Corporation 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2403.0 - 2480.0 | |||
| CC | 15C | 13.56 - 13.56 |
| This device contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Sony Corporation |
| 1-7-1 Konan, Minato-ku |
| Tokyo, 108-0075 Japan |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.009 |
| Power output listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device contains ANT+, BLE, NFC, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 51Rn3nxOGibBRi5nyScazA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sony Corporation 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan |
Date of Grant: 09/25/2015 Application Dated: 09/22/2015 |
| Attention: Mika Kaneko , Chief Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PY7-PM0908 |
| Name of Grantee: | Sony Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, NFC&GPS |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.009 |
| Power output listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device contains ANT+, BLE, NFC, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
