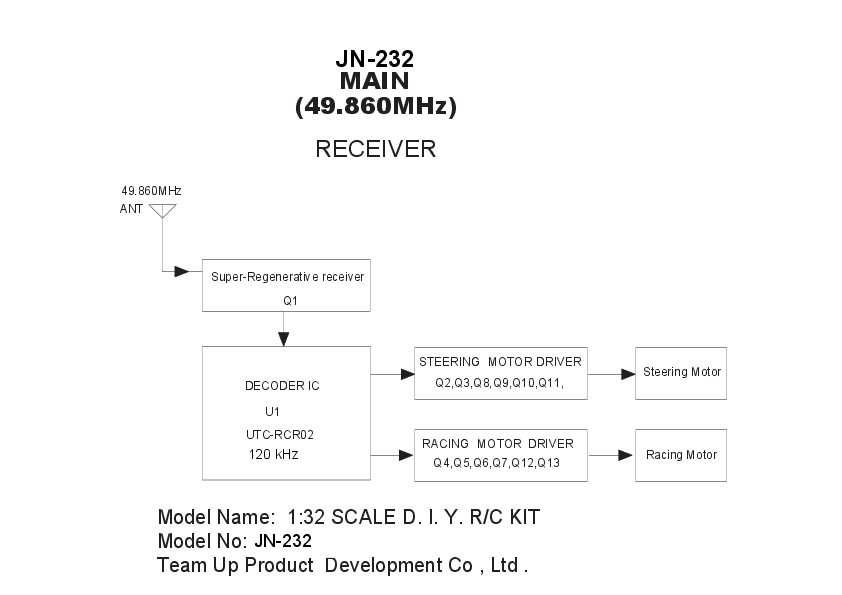

TUPDJN232049R RC Car Block Diagram - FCC ID RJ2TUPDJN-232049R

FCC ID RJ2TUPDJN-232049R

Block Diagram

RC Car

by Team Up Product Dev. Co. Ltd.

Document preview loads when visible.

Document Details

FCC IDRJ2TUPDJN-232049R
Document ID717681
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title1.ai
ApplicantTeam Up Product Dev. Co. Ltd.
Equipment ClassRC Car
Product CodeTUPDJN232049R
Application IDkcsqoFOoHl+yFV/DqFRzfA==
Application PurposeOriginal Equipment
Application Date2006-10-19
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByAnthony Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2006-10-19
Available2006-10-19
Created2006-10-11
Modified2006-10-11
Pages1
File TypeAdobe Acrobat PDF
File Size1243340
File SHA-256c66150bb3b8f507da965633cbd481abe4eaca35dac206bab94aaa7629fcf2cbd
PDF Metadata ProducerAdobe Illustrator(R) 11.0
FCC.gov SourcesFCC.gov 717681
