TUPDJN232049R RC Car Schematics - FCC ID RJ2TUPDJN-232049R
FCC ID RJ2TUPDJN-232049R

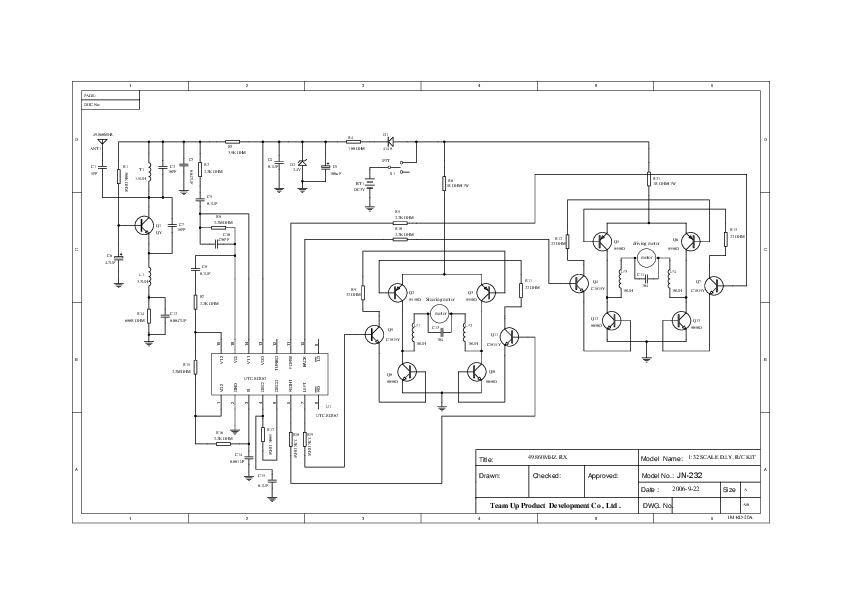

Circuit Diagram
RC Car
Document preview loads when visible.
Document Details
| FCC ID | RJ2TUPDJN-232049R |
|---|---|
| Document ID | 717682 |
| Document Type | Schematics |
| Description | Circuit Diagram |
| Applicant | Team Up Product Dev. Co. Ltd. |
| Equipment Class | RC Car |
| Product Code | TUPDJN232049R |
| Application ID | kcsqoFOoHl+yFV/DqFRzfA== |
| Application Purpose | Original Equipment |
| Application Date | 2006-10-19 |
| Frequency Range | 49.86 MHz |
| FRN | 0003786449 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Anthony Chan Assistant Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2006-10-19 |
| Available | 2006-10-19 |
| Created | 2006-10-11 |
| Modified | 2006-10-11 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 398609 |
| File SHA-256 | 5f618c8ceb5f0b5aa508cbf73f4d671a75c67c264414c8e7f2b5a08e4a731c3a |
| FCC.gov Sources | FCC.gov 717682 |
