FMZ1300 FM-Transmitter Block Diagram - FCC ID S6XFMZ1300

FCC ID S6XFMZ1300

Block Diagram

FM-Transmitter

by Zonoki Electronics Manufacturer Co., Ltd

Document preview loads when visible.

Document Details

FCC IDS6XFMZ1300
Document ID731979
Document TypeBlock Diagram
DescriptionBlock Diagram

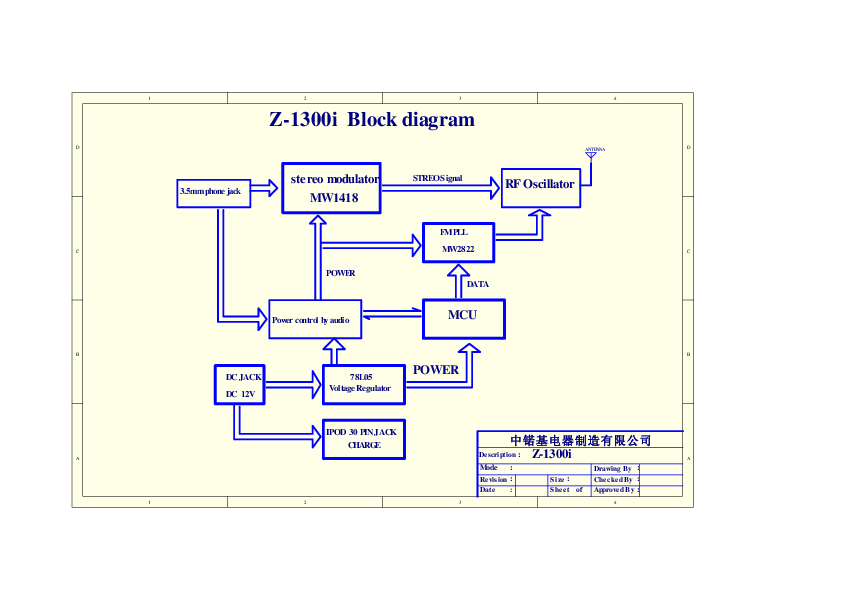

Document TitleZ-1300I BLOCK DIAGRAM
ApplicantZonoki Electronics Manufacturer Co., Ltd
Equipment ClassFM-Transmitter
Product CodeFMZ1300
Application IDUtl/HrLyNjnmyecUfSDRgA==
Application PurposeOriginal Equipment
Application Date2006-12-01
Frequency Range88.1-107.9 MHz
FRN0013222971
Test FirmAccurate Technology Co., Ltd.
Certified BySean Liu Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-11-27
Available2006-12-01
Created2006-09-26
Modified2006-09-26
Pages1
File TypeAdobe Acrobat PDF
File Size33415
File SHA-256330d0b78967826c2f404bf45a274d68b65b3c835ebdeb0e04a27ca5ddd0f78ac
PDF Metadata Authorliuxiang
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) liuxiang
FCC.gov SourcesFCC.gov 731979
